Name: DEHN 478019 EFPM M10 12 V4A L230 V2A Earth anchor 1 pc(s)
Brand: DEHN
SKU: 2750040

Metal mounting bracket with a long rod and a yellow, round plastic cap. Used for securing to surfaces.

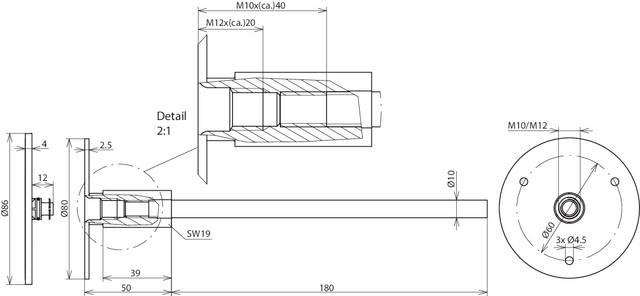

Technical drawing of a cylindrical component with dimensions and detailed cross-section. Shows assembly and specifications such as threading and diameter.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Earth anchor

Manufacturer part #: 478019

Content: 1 pc(s)

: 50 mm

: Stainless steel V4A

: 10

: 180 mm

: 80 mm

: Stainless steel V2A

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750040 DEHN 478019 EFPM M10 12 V4A L230 V2A Earth anchor 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750040 DEHN 478019 EFPM M10 12 V4A L230 V2A Earth anchor 1 pc(s)

Information

Information 2750040 DEHN 478019 EFPM M10 12 V4A L230 V2A Earth anchor 1 pc(s)

Description

Earthing fixed point according to DIN EN 62561-1, as corrosion-free connection of the conductor, for example B. To the reinforcement of buildings or to the earthing system, for the protection potential equalization and / or the functional potential compensation for installation in the formwork. Type M with connection axle (10 mm) and connection thread M10 / 12.
