Name: DEHN 478049 EFPM M10 12 V4A L245 VP V2A Earth anchor 1 pc(s)
Brand: DEHN
SKU: 2750103

Metal rod with a round mounting plate and a yellow disc beside it.

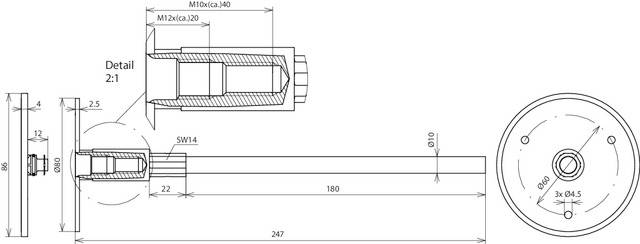

Technical drawing of a cylindrical component with dimensions, cross-section and longitudinal section; shows detail of a section at scale 2:1.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Earth anchor

Manufacturer part #: 478049

Content: 1 pc(s)

: 50 mm

: Stainless steel V4A

: 10

: 180 mm

: 80 mm

: Stainless steel V2A

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750103 DEHN 478049 EFPM M10 12 V4A L245 VP V2A Earth anchor 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750103 DEHN 478049 EFPM M10 12 V4A L245 VP V2A Earth anchor 1 pc(s)

Information

Information 2750103 DEHN 478049 EFPM M10 12 V4A L245 VP V2A Earth anchor 1 pc(s)

Description

Earthing fixed point according to DIN EN 62561-1, as corrosion-free connection of the conductor, for example B. To the reinforcement of buildings or to the earthing system, for the protection potential equalization and / or the functional potential compensation for installation in the formwork. Type M with pressed-in connecting axle (10 mm) and connection thread M10 / 12.

This text is machine translated.
