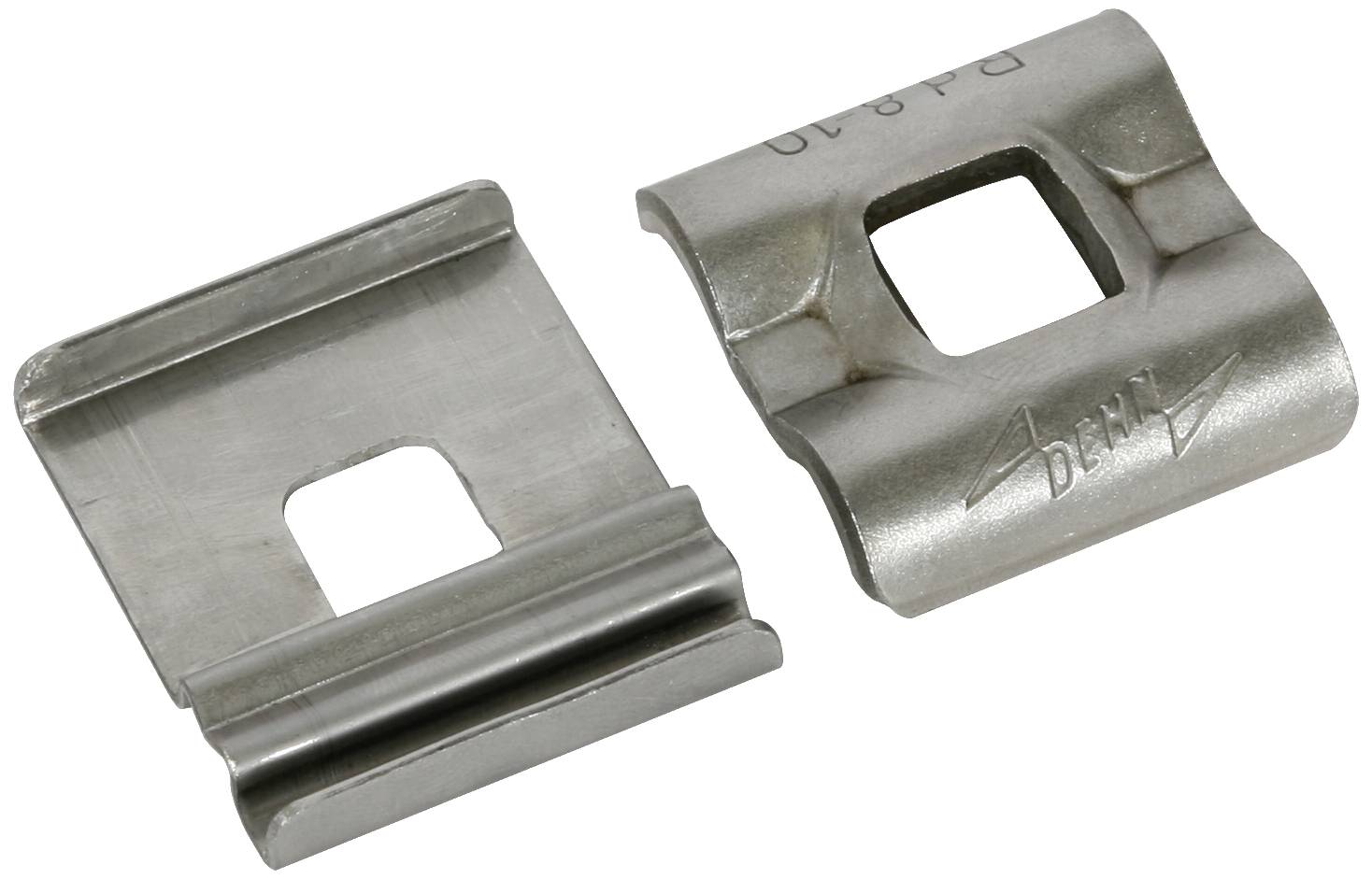

DEHN 540261 KP AQ4 50 DUL 8.10 VKL11 V2A Fittings Surge protection for: PV systems 100 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Fittings
- Surge protection for
PV systems
- Manufacturer part #
540261
- Content
100 pc(s)
Round conductor
Untreated
Stainless steel
8.0-10.0 mm
4.0-50.0 mm²
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2750392 DEHN 540261 KP AQ4 50 DUL 8.10 VKL11 V2A Fittings Surge protection for: PV systems 100 pc(s)
User & Safety Instructions
User & Safety Instructions 2750392 DEHN 540261 KP AQ4 50 DUL 8.10 VKL11 V2A Fittings Surge protection for: PV systems 100 pc(s)
Information
Information 2750392 DEHN 540261 KP AQ4 50 DUL 8.10 VKL11 V2A Fittings Surge protection for: PV systems 100 pc(s)
Description
UNI-Grounding terminal to connect the mounting systems for example B. Of PV systems in the functional potential equalization/functional earthing (conductor color possibly black) and lightning protection potential equalization according to DIN EN 62305-3 (VDE 0185-305-3). Through the contact plate (intermediate element) made of NIRO, different materials of the conductor (Cu, Al, St/tZn and NIRO) can be used with the usual mounting systems e.g. B. Made from aluminum without the creation of contact corrosion. Design without screw (M10), for combination with other screw systems, with double overlay, for example B. For through-wiring of the profiles.
