Name: DEHN 705504 AS SCHR M12 M12 40 Connector piece 1 pc(s)
Brand: DEHN
SKU: 2750609

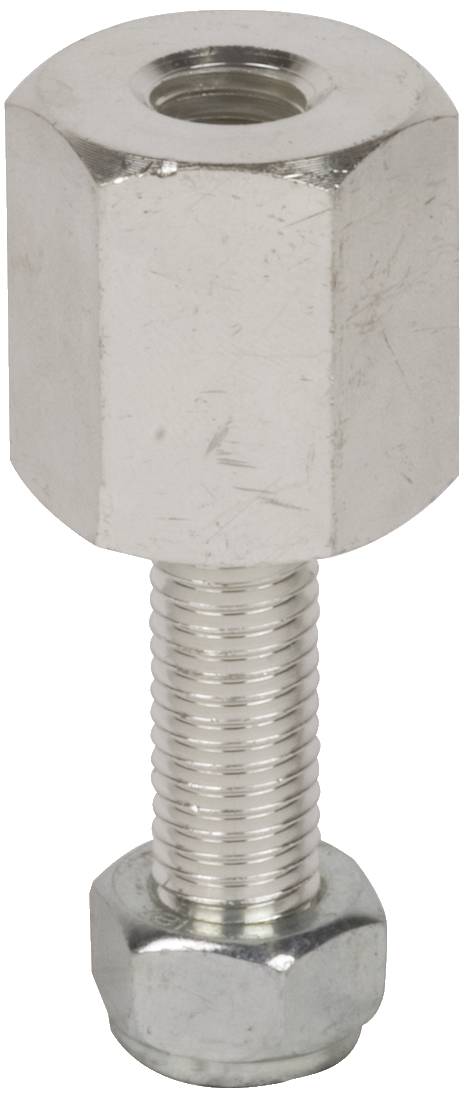

A hexagonal nut with a bolt, both made of metal, positioned side by side on a white background. The nut has a vertical threaded shaft.

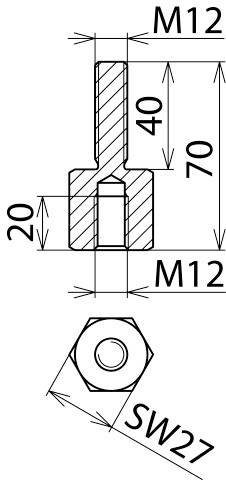

Technical drawing of a bolt with M12 thread at top and bottom, total length 70 mm. Cross-section 20 mm, hexagon width AF27.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Connector piece

Manufacturer part #: 705504

Content: 1 pc(s)

: With thread bolt

: Straight

: FALSE

: 29.6 kA

: Internal thread

: 150 mm²

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750609 DEHN 705504 AS SCHR M12 M12 40 Connector piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750609 DEHN 705504 AS SCHR M12 M12 40 Connector piece 1 pc(s)

Information

Information 2750609 DEHN 705504 AS SCHR M12 M12 40 Connector piece 1 pc(s)

Description

Connection piece for screw-on mounting, with internal thread as a ground-side connection point according to DIN VDE 0683-100 (EN/IEC 61230) at the grounding system. Highly mechanical strength thanks to thread cut without cutting.
