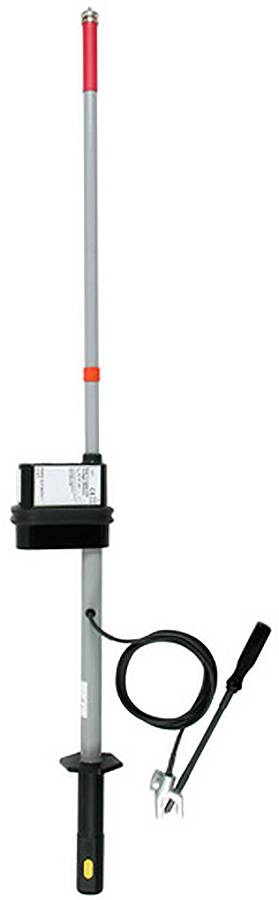

DEHN 767666 Voltage tester Visual
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Application area: Interior and open air systems
- Display type: Optical
- Nominal voltage 1.0-24.0 kV
- Total length 1260.0-1260.0 mm
- Product type
Voltage tester
- Reading type
Voltage testing
- Display
Visual
- V DC reading range
1.0 up to 24.0 kV
Manufacturer's standards (no certificate)
- Voltage DC reading range (max.)
24.0 kV
- Voltage reading range DC (min.)
1.0 kV
- Length
1260.0 mm
- Type
767666
- Type
2-pin
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3801312 DEHN 767666 Voltage tester Visual
User & Safety Instructions
User & Safety Instructions 3801312 DEHN 767666 Voltage tester Visual
Description
Resistive, single-sided DC voltage tester PHE/G for switchgear, version positive pole on the probe, as a coherent design based on DIN VDE 0682-411 (EN/IEC 61243-1) for determining the absence of voltage by touching at the working place according to DIN VDE 0105-100 (EN 50110-1) in electrical systems up to 24 kV DC. Ground-side terminal with rotary handle and magnetic contact. Can also be used in precipitation.
This text is machine translated.
This text is machine translated.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
