DEHN 767724 Voltage tester Visual
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Application area: Interior and open air systems
- Category: S.
- Display type: Acoustic and visual
- Nominal voltage 20.0-20.0 kV
- Total length 3080.0-3080.0 mm
- Product type
Voltage tester
- Reading type
Voltage testing
- Display
Visual
Manufacturer's standards (no certificate)
- Length
3080.0 mm
- Type
767724
- Type
1-pin
1-pole
Switchgear and power cable for overhead lines
AC
Acoustic and optic
50.0-50.0 Hz
1580 mm
S
20.0-20.0 kV
Interior and outdoor installations
TRUE
TRUE
3080.0-3080.0 mm
TRUE
Documents & Downloads
Datasheet
Datasheet 3800300 DEHN 767724 Voltage tester Visual
User & Safety Instructions
User & Safety Instructions 3800300 DEHN 767724 Voltage tester Visual
Description

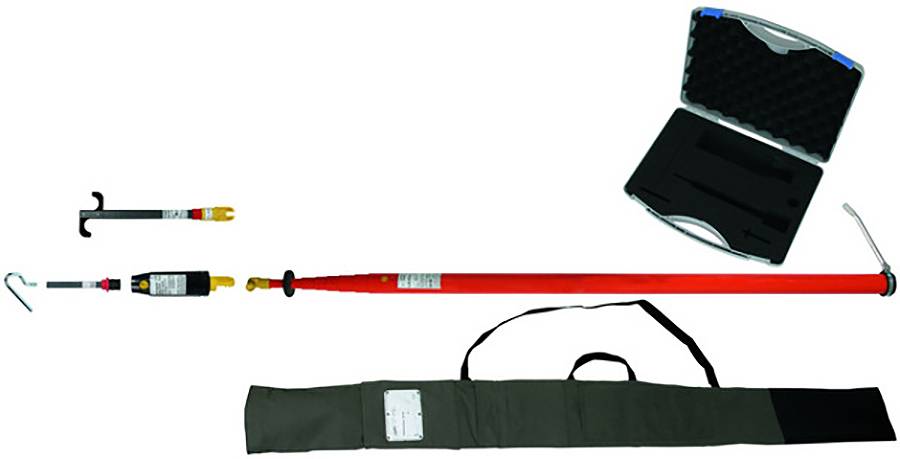

Capacitive voltage tester set PHE III as a connected model according to DIN VDE 0682-411 (EN/IEC 61243-1) with universal checking of freedom from voltage at the work place according to DIN VDE 0105-100 (EN 50110-1) in electrical systems. With universal gear bushing according to DIN VDE 0682-211 (EN/IEC 60832). Category ""S"" for switchboards and overhead wires. Can also be used in precipitation. With visual and acoustic display and self-test device, including transport container.
This text is machine translated.
This text is machine translated.
