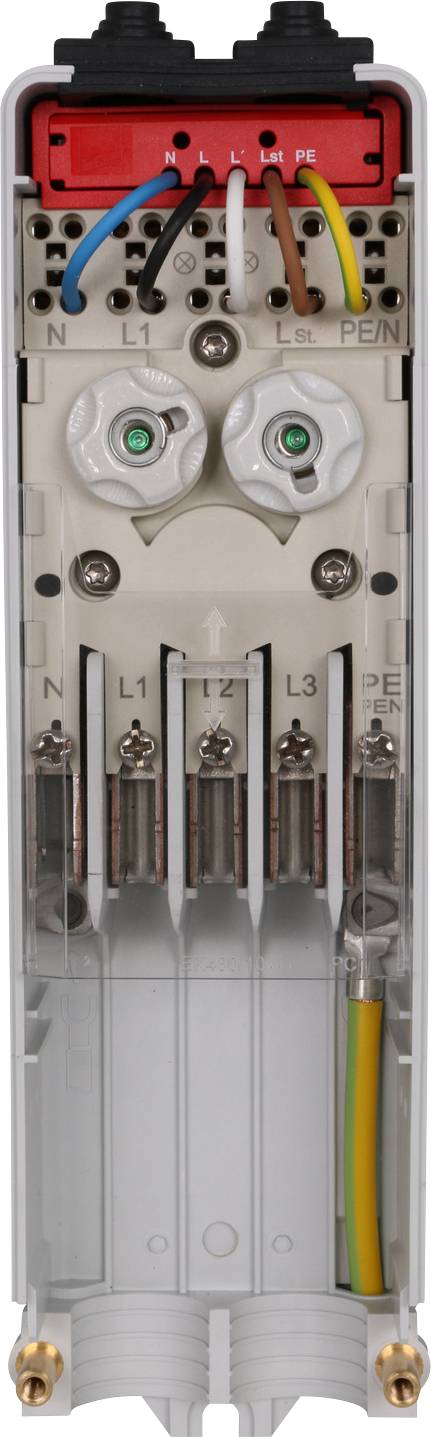

Image similar
DEHN 900443 SK EK480 G2S-2d LM DCOR Feeder box Pole-mount No. of rows = 1 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Feeder box
No. of rows
1
Mounting type
Pole-mount
Width
276 mm
Height
81 mm
Technical specifications
- Material casing: Polyamide
- Color of housing: Standard color RAL 7035 light gray
- Design: According to DIN 43 628 and VDE 0660 part 505
- Protection class: IP 54 according to DIN VDE 0470
- Protection class: II
- Cover: Transparent or gray
- Clamping technology: Access: Sliding terminal technology / outlet: Spring clamping technology
- Maximum clamping cable cross-section: 1 - 3 cables (4 or 5 x 16 mm2)
- Outgoing terminals: Max. 2.5 mm2
- Nominal voltage AC (UN ): 230 V (50 / 60 Hz) V (50 / 60 Hz)
- Maximum continuous voltage AC [L-N] (UC ) 275 V (50 / 60 Hz)
- Maximum continuous voltage AC [N-PE] (UC ): 255 V (50 / 60 Hz)
- Nominal surge current (8/20 µs) (in ): 5 kA
- Max. Surge current (8/20 µs) (Imax ): 10 kA
- Total discharge surge current (8/20 µs) [L+N-PE] (Idial ): 20 kA
- Response time [L-N] (TA ): ≤ 25 ns
- Response time [L/N-PE] (TA ): ≤ 100 ns
- Max. LOAD CURRENT AC (IL ): 10 A.
- Max. Line-side overcurrent protection: B 16 A.
- Defect indicator: Red
- Open load circuit in the event of a fault: Yes
- Number of ports: 1
- Operating temperature range (TU ): -40 °C ... +80 °C
- Connecting wires 1.5 mm2, length 60 mm
- Housing material: Thermoplastic, color red, UL 94 V-2
- Installation location: Interior, fuse boxes / cable junction box for brick construction
- Protection class when installed: IP 20
- Product type
Feeder box
- with PE and N terminals
Yes
- No. of rows
1
- Mounting type
Pole-mount
- Factory colour
Multicolour
- Width
276 mm
- Height
81 mm
- Dim
(L x W x H) 200 cm x 276 mm x 81 mm
- Depth
70 mm
- Content
1 pc(s)
- Protection
Yes
- Length
200 cm
- UKCA
yes
