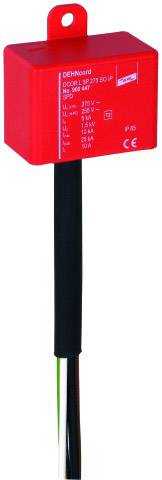

DEHN 900447 DCOR L 3P 275 SO IP Surge protection (surface-mount) 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DEHN + SONS surge arresters type 2 expansion cord 3P DCOR L 27
- Visual fault indicator for both protective paths
- Interruption of the load circuit in case of an error.
- Compact design
Technical specifications
- Product type
Surge protection (surface-mount)
- Leakage current
20 kA
- Nominal voltage
230 V
- Operating temperature
-40 °C - +80 °C
IP65
- Manufacturer part #
900447
- Type
2
- Dim
(W x H x D) 30 x 50 x 48 mm
- Width
30 mm
- Height
50 mm
- Depth
48 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1967982 DEHN 900447 DCOR L 3P 275 SO IP Surge protection (surface-mount) 20 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967982 DEHN 900447 DCOR L 3P 275 SO IP Surge protection (surface-mount) 20 kA 1 pc(s)
Description
Three-pin surge arresters, type 2 according to EN 61643, Stretch cord L in a very compact form with connection cable for installation in outdoor areas (IP65 protection), for instance at cable junction box of LED mast lights with switch-off of the load circuit in case of an error and the protection of the control phase. For use in lightning protection zones concept at the interfaces 0 B-1 and higher.
