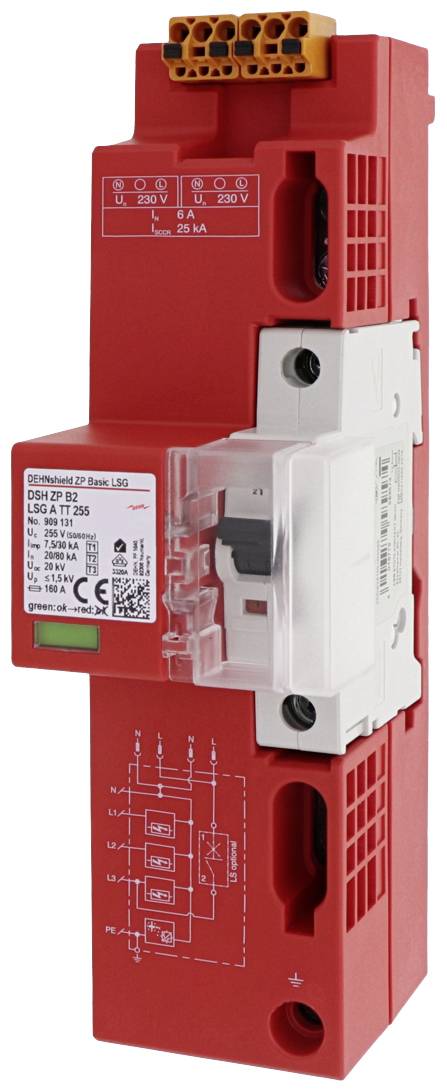

DEHN 909131 DSH ZP B2 LSG A TT 255 Surge arrester Surge protection for: 40 mm busbar Piece 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Surge arrester
- Surge protection for
40 mm busbar
- Manufacturer part #
909131
- Factory colour
Multicolour
- Content
1 pc(s)
- Packaging type
Piece
- Weight
870 g
Busbar
50 kA
4
FALSE
25 kA
255 V
230 V
Type 1 + 2
1.5 kV
Optic
IP30
1.5 kV
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2750899 DEHN 909131 DSH ZP B2 LSG A TT 255 Surge arrester Surge protection for: 40 mm busbar Piece 1 pc(s)
Information
Information 2750899 DEHN 909131 DSH ZP B2 LSG A TT 255 Surge arrester Surge protection for: 40 mm busbar Piece 1 pc(s)

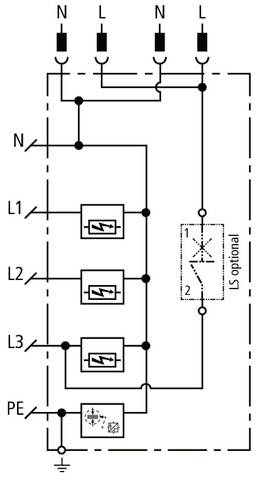

Circuit diagramm
Circuit diagramm 2750899 DEHN 909131 DSH ZP B2 LSG A TT 255 Surge arrester Surge protection for: 40 mm busbar Piece 1 pc(s)
Description
Combi conductor type 1 + type 2 + type 3 according to EN 61643-11 for TT and TN-S systems (3+1 circuit) with 230 V power supply (N and L) each for RFZ / APZ according to EN VDE-AR-N 4100 Includes a single-pole B6 circuit breaker for the power supply of the intelligent measurement system according to VDE-AR-N 4100, with sealable protective cover; for use on the 40 mm busbar system in the main power supply system according to DIN VDE 0100-443 in buildings without external lightning protection system (also with overhead feed). 2 x sockets and 2 x plugs for easy wiring of the intelligent measuring system are included in the delivery.
