DEHN 909497 LS B6 DSH ZP LSG Circuit breaker 6 A
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
1
Release characteristics
B
Nominal current - rounded value
6 A
Nominal current
6 A
Datasheet (PDF)
Technical specifications
- Product type
Circuit breaker
- Number of pins
1
- Release characteristics
B
- Nominal current - rounded value
6 A
- Nominal current
6 A
- Content
1 pc(s)
- Switch-off capacity
25 kA

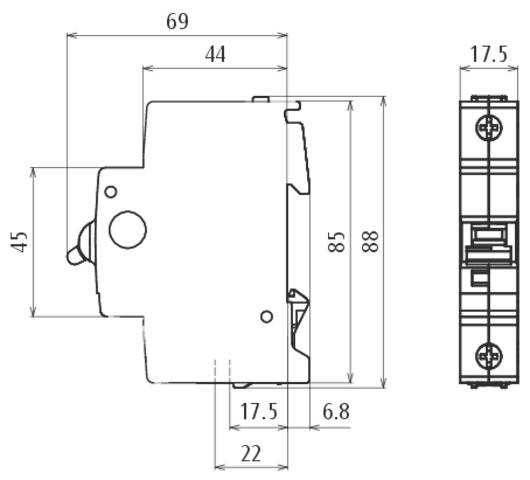

- Depth
69 mm
AC
69 mm
6 A
23 V
50.0-60.0 Hz
B
440 V
3
3
3
1
IP20
1
FALSE
0.75-25.0 mm²
0.75-25.0 mm²
FALSE
1
25 kA
25 kA
25 kA
4 kV
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2750267 DEHN 909497 LS B6 DSH ZP LSG Circuit breaker 6 A
User & Safety Instructions
User & Safety Instructions 2750267 DEHN 909497 LS B6 DSH ZP LSG Circuit breaker 6 A
Circuit diagramm
Circuit diagramm 2750267 DEHN 909497 LS B6 DSH ZP LSG Circuit breaker 6 A
Description
The series S 200 P circuit breakers protect cables and wires from overload and short circuit in accordance with DIN VDE 0100-430 and DIN VDE 0100-530. They comply with the construction regulations DIN VDE 0641-11 and/or IEC/EN 60898-1, DIN VDE 0660-101 OR IEC/EN60947-2 AND UL1077. For better visibility of wiring, the connection opening for wires is above the connection opening for the phase rail. Wire cross-sections up to 25 mm² can be connected directly to the device via the terminal clamp with insulation in protection class IP20. The extensive range of accessories offers you everything that you need WAS for your installation tasks. Numerous approvals make the S 200 P ready for worldwide use. Each device is subjected to three-fold intensive tests for quality and performance before delivery.
