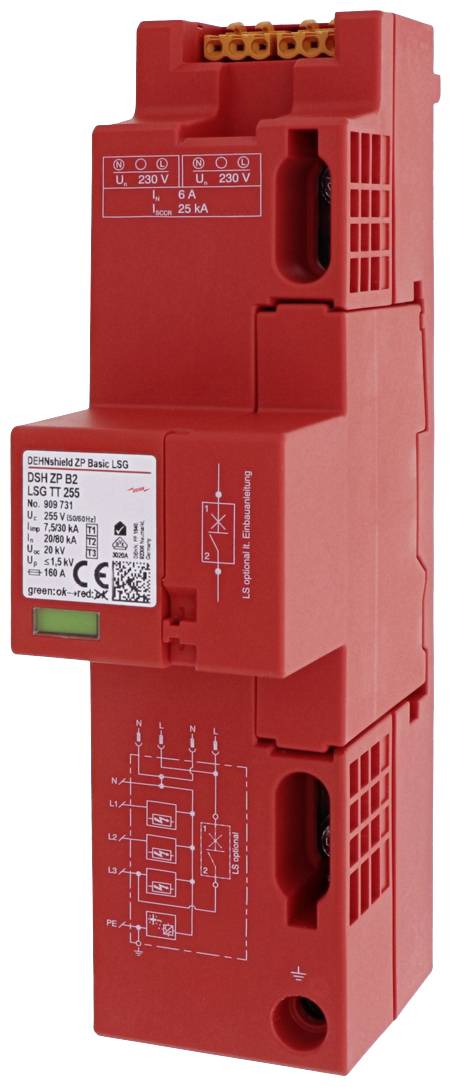

DEHN 909731 DSH ZP B2 LSG TT 255 Surge arrester Surge protection for: 40 mm busbar 30 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Surge arrester
- Surge protection for
40 mm busbar
- Leakage current
30 kA
- Manufacturer part #
909731
- Content
1 pc(s)
Busbar
30 kA
4
FALSE
25 kA
255 V
230 V
Type 1 + 2
1.5 kV
Optic
IP30
1.5 kV
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2750897 DEHN 909731 DSH ZP B2 LSG TT 255 Surge arrester Surge protection for: 40 mm busbar 30 kA 1 pc(s)
Information
Information 2750897 DEHN 909731 DSH ZP B2 LSG TT 255 Surge arrester Surge protection for: 40 mm busbar 30 kA 1 pc(s)

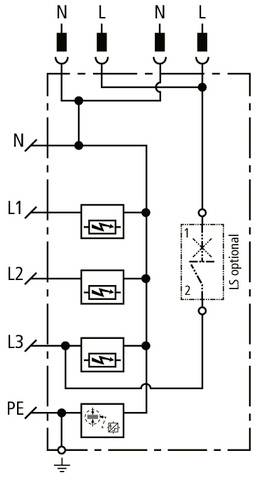

Circuit diagramm
Circuit diagramm 2750897 DEHN 909731 DSH ZP B2 LSG TT 255 Surge arrester Surge protection for: 40 mm busbar 30 kA 1 pc(s)
Description
Kombi conductor Type 1 + Type 2 + Type 3 after EN 61643-11 for TT and TN-S systems (3+1 circuit). Subsequent integration of a single-pole B6 line circuit breaker possible to implement a power supply of the intelligent measuring system. Two sockets for the 230 V power supply (N and L) respectively for RFZ / APZ acc VDE-AR-N 4100 are integrated in the device; for use on the 40 mm busbar system in the main power supply system according to DIN VDE 0100-443 in buildings without external lightning protection system (also with feed line).
