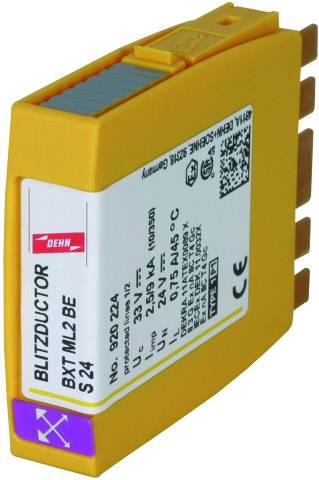

DEHN 920224 BXT ML2 BE S 24 Lightning conductor Surge protection for: Switchboards 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DEHN + SONS Combination arrester module 920224 BXT ML 2 BES 24
- Life check arrester monitoring
- Optimal protection for 2 single wires and cable shield
- Can be used after the lightning protection zones concept at the interfaces 0A - 2 and higher
Technical specifications
- Product type
Lightning conductor
- Surge protection for
Switchboards
- Leakage current
20 kA
- Nominal voltage
5 V
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
920224
- Type
1
- Dim
(W x H x D) 12 x 45 x 51 mm
- Width
12 mm
- Height
45 mm
- Depth
51 mm
- Content
1 pc(s)
- Weight
0.04
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1967865 DEHN 920224 BXT ML2 BE S 24 Lightning conductor Surge protection for: Switchboards 20 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967865 DEHN 920224 BXT ML2 BE S 24 Lightning conductor Surge protection for: Switchboards 20 kA 1 pc(s)
Description
Space-saving Combination arrester module with life check for protection of 2 single wires with a common reference potential as well as asymmetric interfaces, either direct or indirect shield earthing. Life check detects thermal or electrical overload conditions according to which the arrester must be replaced. The display is done contact by means of strain record LC/SCM/MCM.
