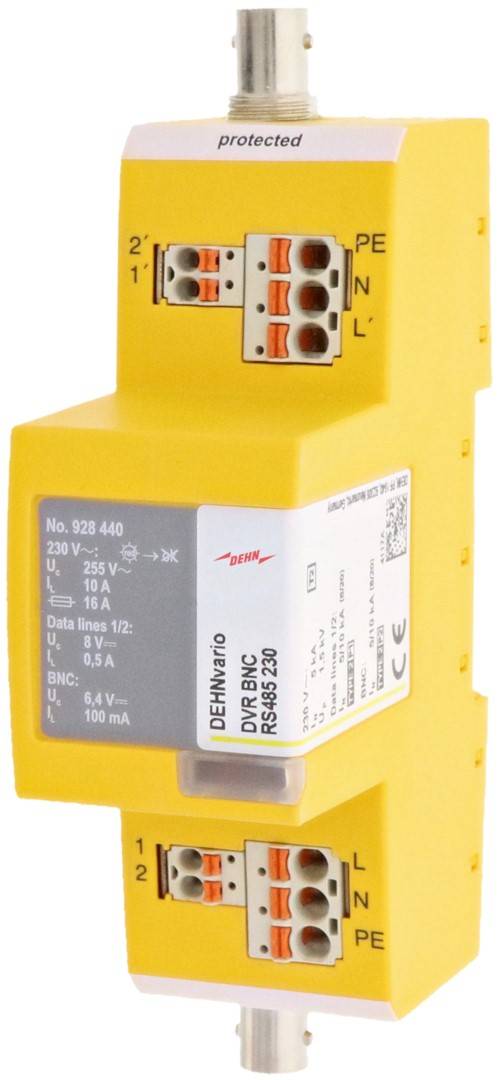

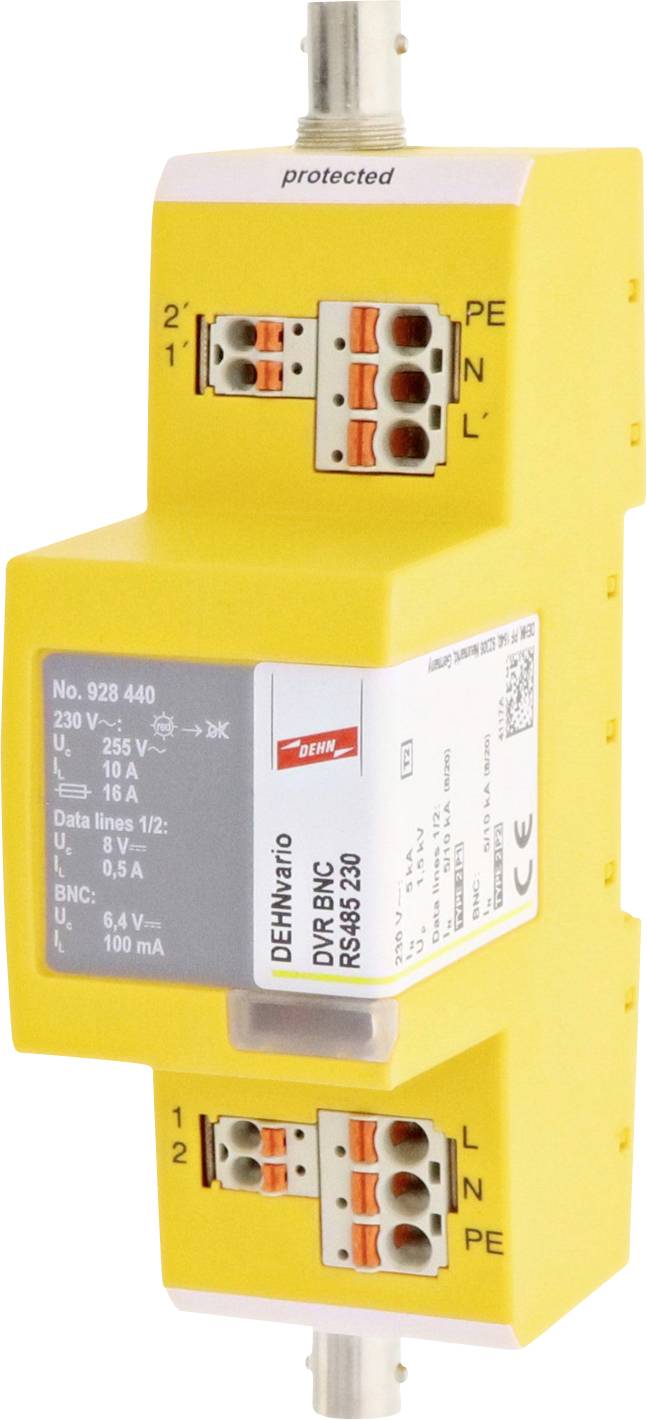

DEHN 928440 DVR BNC RS485 230 Surge arrester 5 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Arrester monitoring: Yes
- BNC, 75 ohm connection
- Cut-off frequency 300 MHz
- Maximum continuous voltage AC 255 V.
- Maximum continuous voltage DC 6.4 V
- With remote signaling contact: No.
- Mounting type: DIN rail 35 mm
- Nominal load current 0.1 A
- Protective level wire/wire 1500 V
- Protective level wire/earth 1500 V
- Protective level wire/signal ground 550 V
- Protection level Signal ground/Protectiveground 550 V
- Signaling on the device: Optical
- Product type
Surge arrester
- Leakage current
5 kA
- Nominal voltage
230 V AC
- Manufacturer part #
928440
- Compatible with (details)
Information/MSR technology
- Content
1 pc(s)
- UKCA
yes
