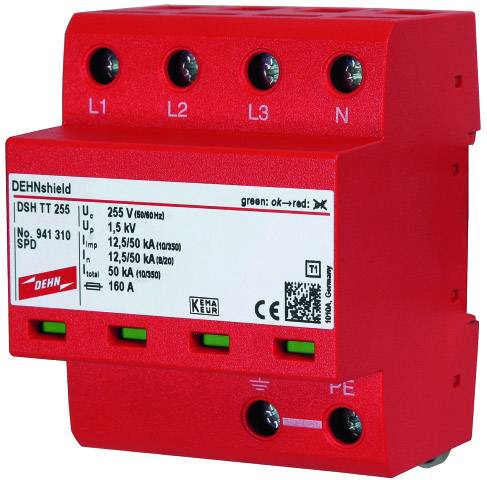

DEHN 941310 DSH TT 255 Lightning conductor Surge protection for: Switchboards 50 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DEHN + SONS Combination arrester TT and TN-S systems DSH TT 255
- Ready to connect, application-optimized Combination arrester type 1 + Type 2 on radio link base
- Space-saving radio link technology with only 1 TE/pin allows compact design
- Allows compact lightning protection potential compensation including terminals protection
Technical specifications
- Product type
Lightning conductor
- Surge protection for
Switchboards
- Leakage current
50 kA
- Nominal voltage
230 V
400 V
- Pick-up time (details)
<100 ns
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
941310
- Type
1 + 2
- Factory colour
Multicolour
- Standards
KEMA, VDE, UL
- Dim
(W x H x D) 72 x 90 x 65 mm
- Width
72 mm
- Height
90 mm
- Depth
65 mm
- Content
1 pc(s)
- Weight
0
DIN rail (top hat rail) 35 mm
4
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1968119 DEHN 941310 DSH TT 255 Lightning conductor Surge protection for: Switchboards 50 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1968119 DEHN 941310 DSH TT 255 Lightning conductor Surge protection for: Switchboards 50 kA 1 pc(s)
Description
Multi-pole, application-optimized combination surge arresters, type 1 + Type 2 after stretching shield EN 61643 on radio link basis. Space-saving radio link technology with only 1 TE/pin allows compact design. For the protection of residential buildings and for use in special applications. Enables terminals protection. For protection against overvoltages, even in direct lightning strikes. Can be used after the lightning protection zones concept at the interfaces 0A - 2.
