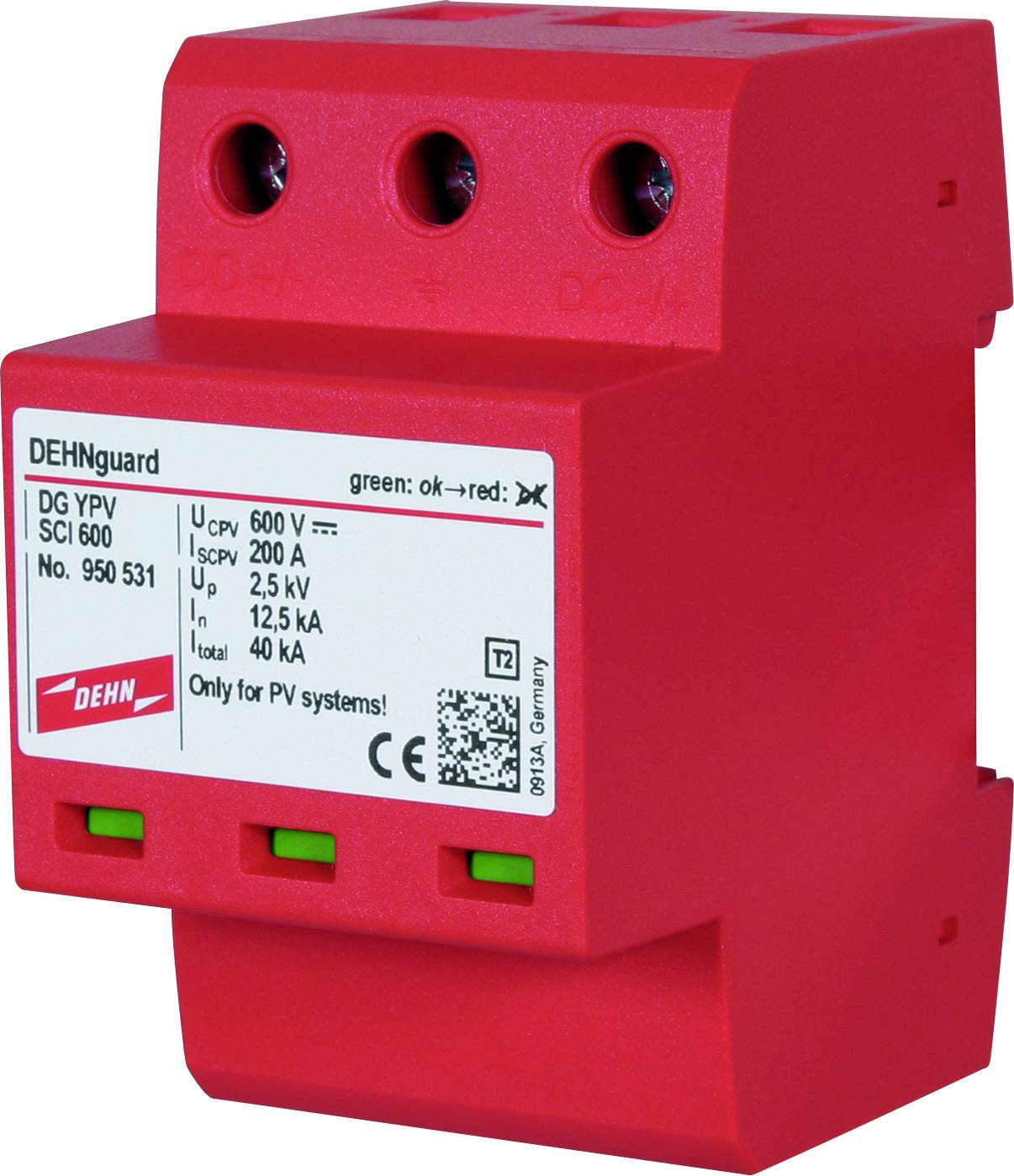

DEHN 950531 DG YPV SCI 600 Surge arrester 12.5 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design of the poles: 2
- Size: 3 HP
- Integrated fuse: No.
- Short-circuit proof: Yes
- Max. Conductor cross-section flexible fine-strand 25 mm²
- Max. Conductor cross-section rigid single/multi-strand 35 mm²
- Max. PV voltage 600 V.
- With remote signaling contact: No.
- Mounting type: DIN rail 35 mm
- Protection level 2.5 kV
- Signaling on the device: Optical
- Product type
Surge arrester
- Leakage current
12.5 kA
IP20
- Manufacturer part #
950531
- Type
2
- Compatible with (details)
Power technology/power supply
- Standards
EN 50539-11
- Dim
(W x H x D) 99.0000 x 74.0000 x 55.0000 mm
- Width
99.0000 mm
- Height
74.0000 mm
- Depth
55.0000 mm
- Content
1 pc(s)
- UKCA
not relevant
