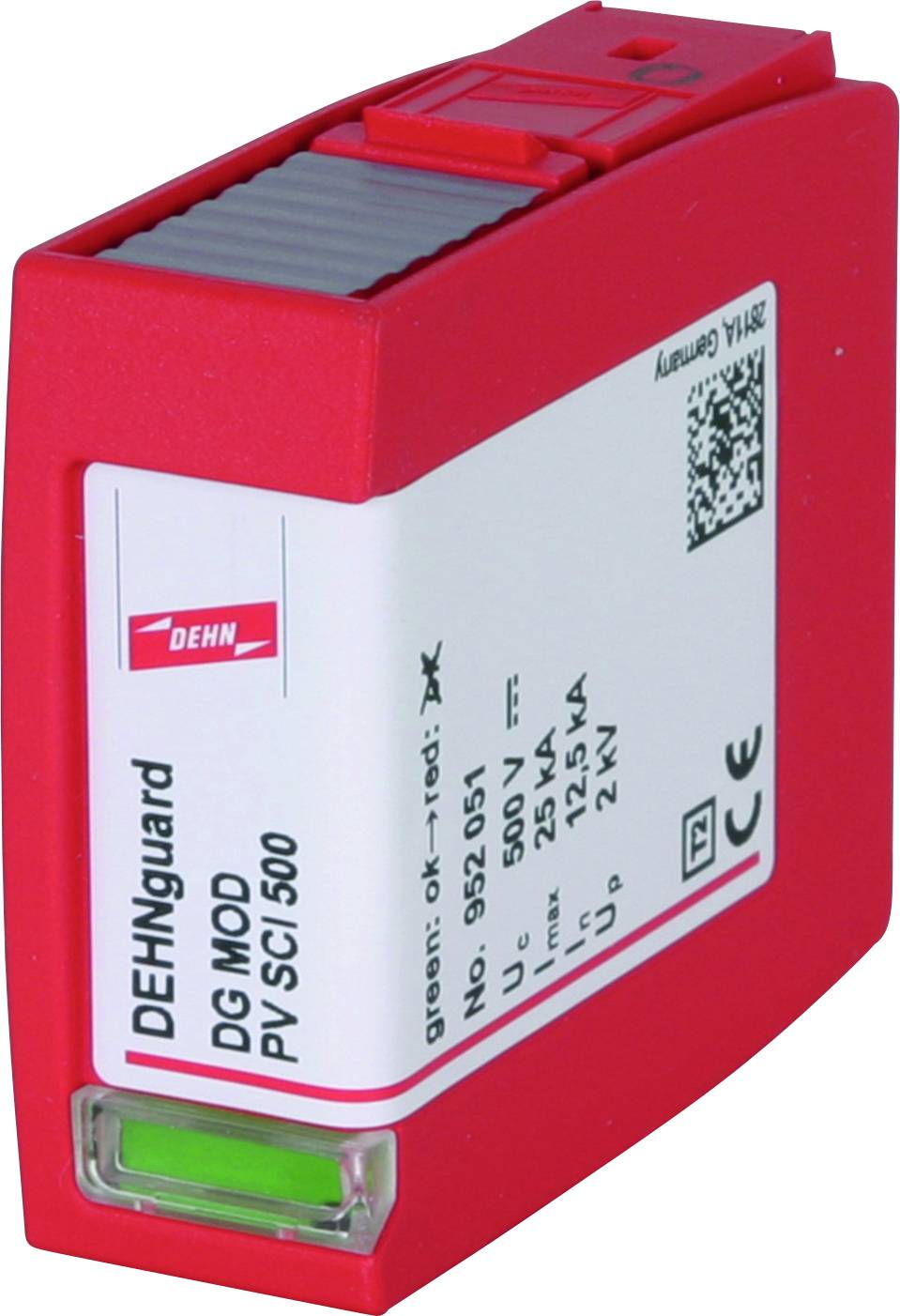

DEHN 952051 DG MOD PV SCI 500 Surge protection module 12.5 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design of the poles: 1
- Size: 1 TE
- Maximum continuous voltage DC 500 V.
- Integrated fuse: No.
- Short-circuit proof: No.
- With remote signaling contact: No.
- Mounting type: On base element
- Protection level 2 kV
- Signaling on the device: Optical
- Product type
Surge protection module
- Leakage current
12.5 kA
- Manufacturer part #
952051
- Type
2
- Compatible with (details)
DEHNGuard modular
- Standards
EN 50539-11
- Content
1 pc(s)
On basic element
- UKCA
not relevant
