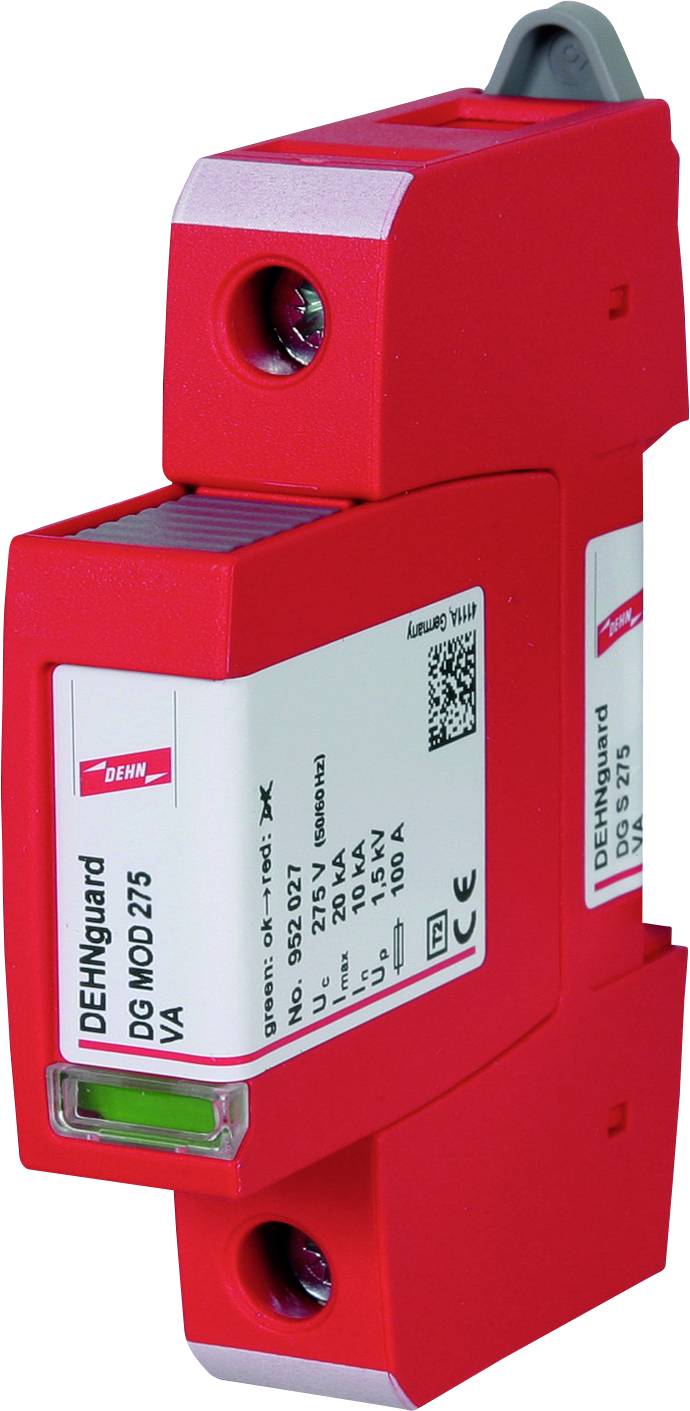

Surge protection device in a red enclosure with the inscription 'DEHNgard DG M OD 275VA'. It provides maximum current protection of 100 A.

Surge protection device in a red enclosure with the inscription 'DEHNgard DG M OD 275VA'. It provides maximum current protection of 100 A.

Image similar

DEHN

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Design of the poles: 1
Size: 1 TE
Highest continuous voltage AC 275 V.
Maximum continuous voltage DC 350 V.
Integrated fuse: No.
Short-circuit proof: Yes
Max. Conductor cross-section flexible fine-strand 25 mm²
Max. Conductor cross-section rigid single/multi-strand 35 mm²
With remote signaling contact: No.
Mounting type: DIN rail 35 mm
Protection level 1.5 kV
Signaling on the device: Optical

Product type: Surge arrester

Leakage current: 10 kA

Nominal voltage: 230 V AC

: IP20

Manufacturer part #: 952082

Type: 2

Compatible with (details): Power technology/power supply

Standards: EN 61643-11

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2303113 DEHN 952082 DG S 275 VA Surge arrester 10 kA 1 pc(s)
