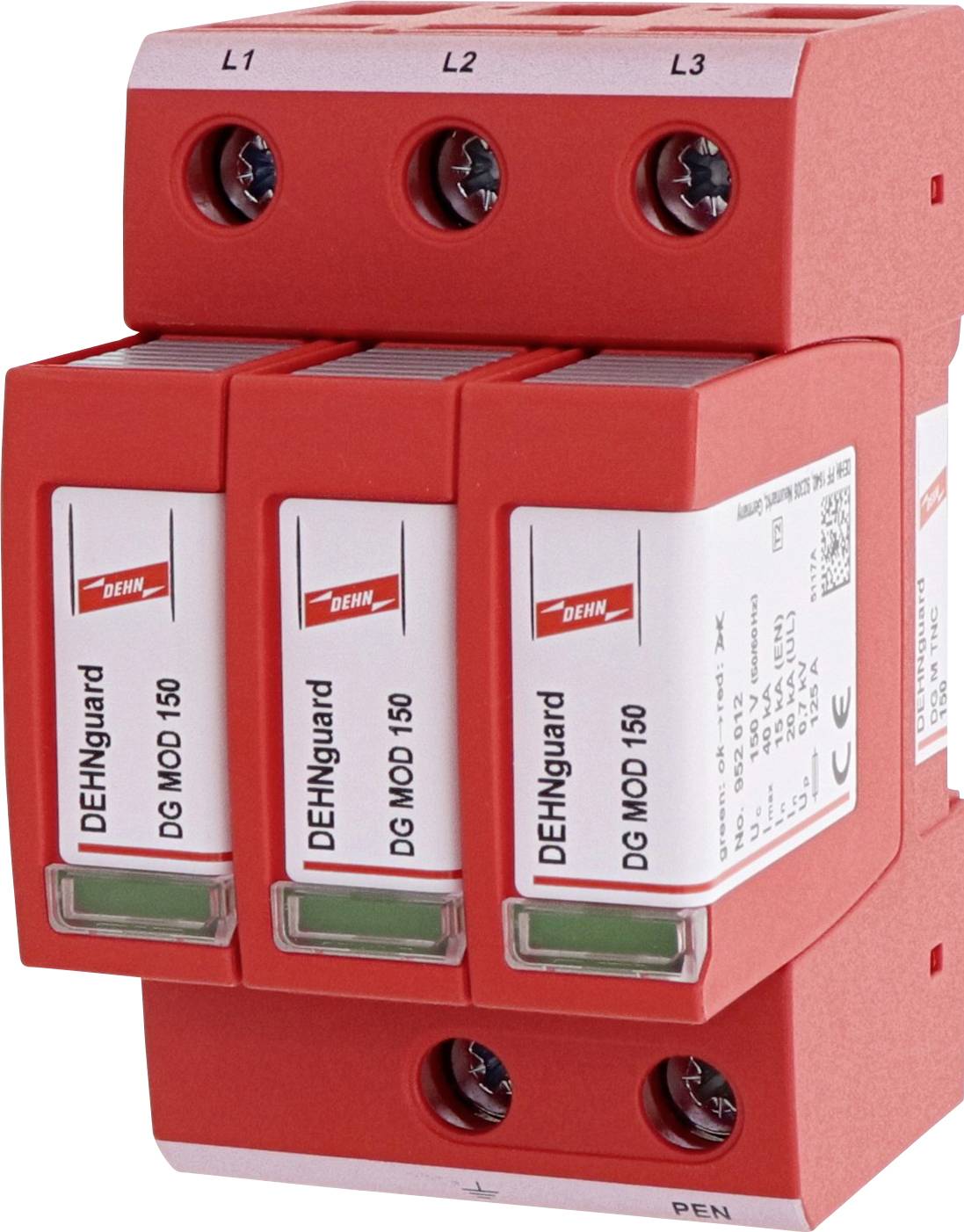

DEHN 952313 DG M TNC 150 Surge arrester 15 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design of the poles: 3
- Size: 3 HP
- Maximum continuous voltage AC 150 V.
- Integrated fuse: No.
- Short-circuit proof: Yes
- Max. Conductor cross-section flexible fine-strand 25 mm²
- Max. Conductor cross-section rigid single/multi-strand 35 mm²
- With remote signaling contact: No.
- Mounting type: DIN rail 35 mm
- Mains form TN-C.
- Protection level 0.7 kV
- Signaling on the device: Optical
- Product type
Surge arrester
- Leakage current
15 kA
- Nominal voltage
120 V AC
IP20
- Manufacturer part #
952313
- Type
2
- Compatible with (details)
Power technology/power supply
- Standards
EN 61643-11
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2303159 DEHN 952313 DG M TNC 150 Surge arrester 15 kA 1 pc(s)
