DEHN 952409 DG M TNS 385 FM Surge arrester 20 kA 1 pc(s)

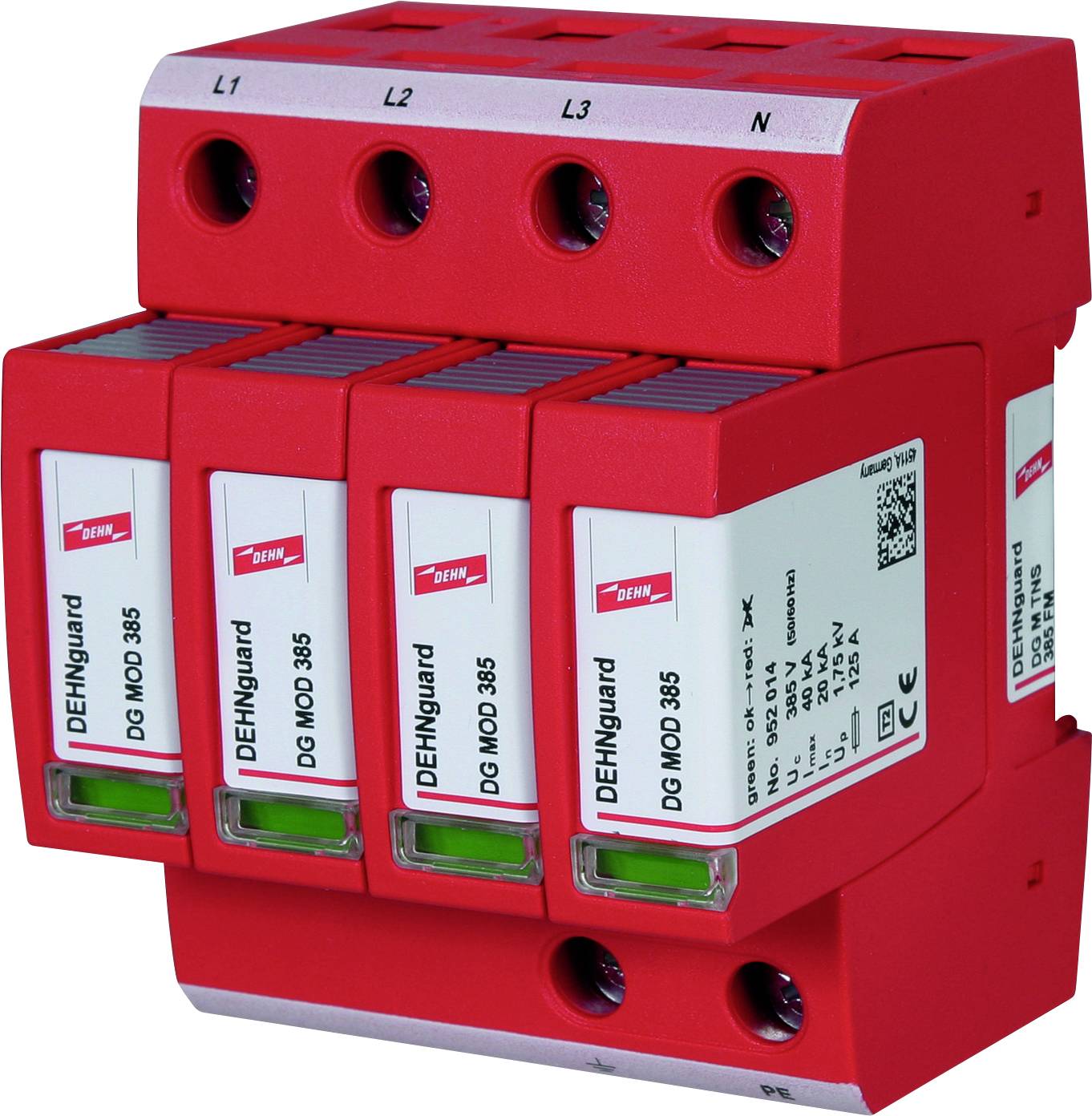

A surge protection device in a red housing with the print 'DEHNguard DG MOD 385', with four slots for fuse cards.

A surge protection device in a red housing with the print 'DEHNguard DG MOD 385', with four slots for fuse cards.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Pin type: 4
Size: 4 HP
Highest continuous voltage AC 385 V
Integrated fuse: No.
Short-circuit proof: Yes
Max. Conductor cross-section flexible fine-strand 25 mm²
Max. Conductor cross-section rigid single/multi-strand 35 mm²
With remote signaling contact: Yes
Mounting type: DIN rail 35 mm
Mains form TN-S
Protection level 1.75 kV
Protection level N-PE: 1.75 kV
Signaling on the device: Optical

Product type: Surge arrester

Leakage current: 20 kA

Nominal voltage: 230 V AC

: IP20

Manufacturer part #: 952409

Type: 2

Compatible with (details): Power technology/power supply

Standards: EN 61643-11

Content: 1 pc(s)

UKCA: yes
