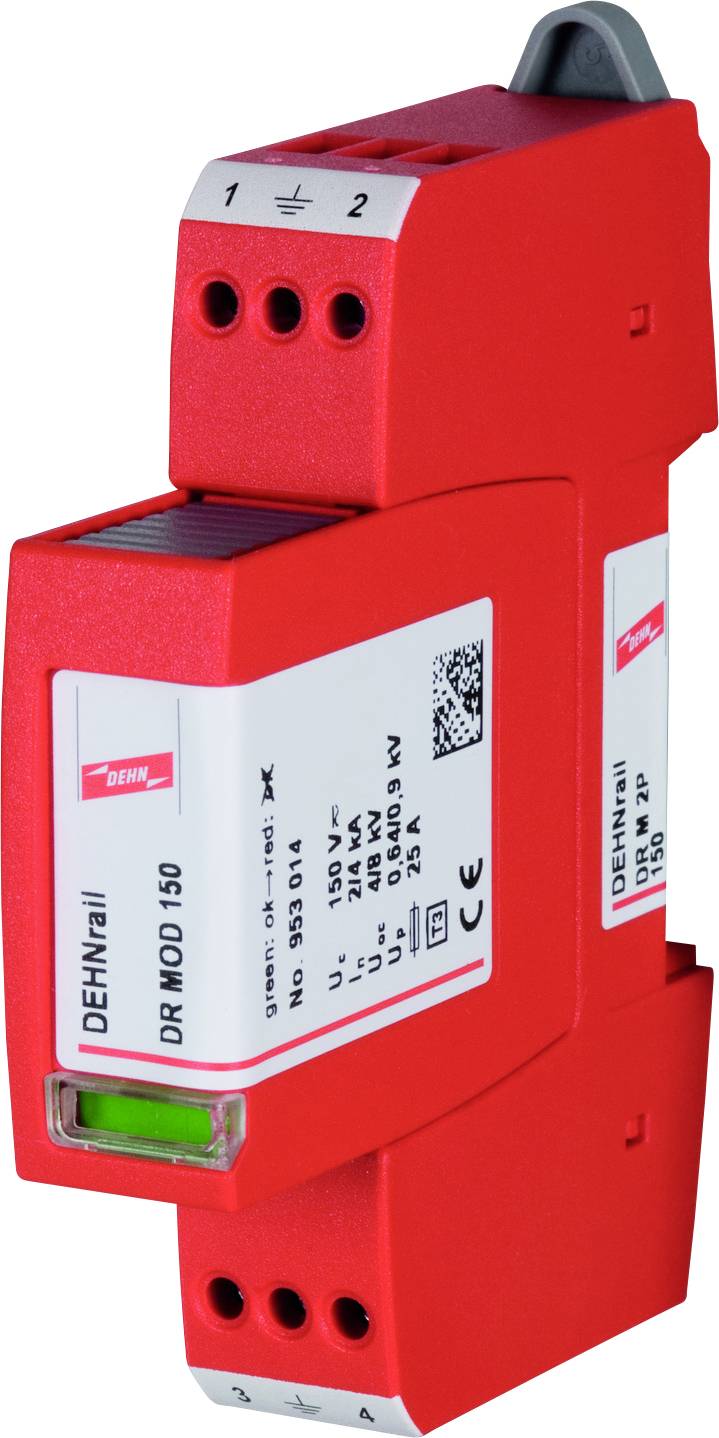

DEHN 953204 DR M 2P 150 Module (built-in) Surge protection for: Switchboards 4 kA Piece 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Total leakage current 8/20 L+N-PE: 4 kA
- highest continuous voltage AC: 150 V
- highest continuous voltage DC: 150 V
- Max. Conductor cross-section flexible fine strand 2.5 mm²
- Max. Conductor cross-section rigid single/multi-wire: 4 mm²
- with telecommunications contact: No
- Mounting type: DIN rail 35 mm
- Nominal load current: 25 A
- Test class Type 3: Yes
- Protection type: IP20
- Signaling on the device: Optical
- Product type
Module (built-in)
- Surge protection for
Switchboards
- Leakage current
4 kA
- Manufacturer part #
953204
- Content
1 pc(s)
- Packaging type
Piece
- Impulse/leakage current
2 kA
- Number of pins
2
- Voltage
120 V
- UKCA
yes
