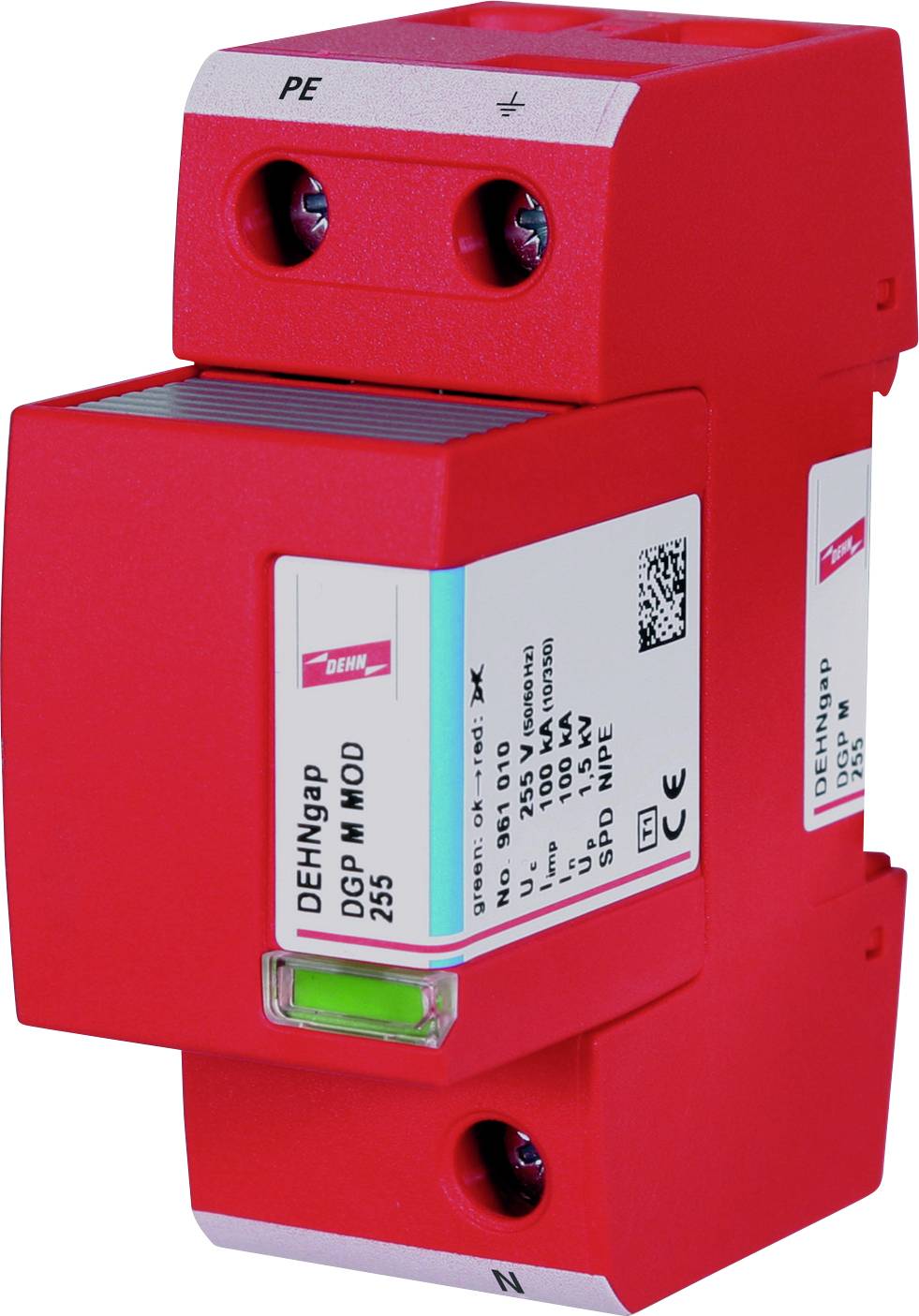

DEHN 961101 DGP M 255 Surge arrester 100 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design of the poles: 1
- Size: 2 HP
- Subsequent current erasability: 0.1 kA
- Maximum continuous voltage 255 V/AC
- Max. Conductor cross-section flexible fine strand 35 mm²
- Max. Conductor cross-section rigid single/multi-wire: 50 mm²
- With remote signaling contact: No.
- Mounting type: DIN rail 35 mm
- Test class type 1: Yes
- Protection level 1.5 kV
- Signaling on the device: Optical
- Specific energy W/R: 2500 kJ/Ohm
- Material: Thermoplastic
- Weight: 315 g
- Product type
Surge arrester
- Leakage current
100 kA
- Nominal voltage
230 V AC
- Pick-up time (details)
100 ns
- Operating temperature
-40 to 80 °C
IP20
- Manufacturer part #
961101
- Factory colour
Red
- Compatible with (details)
Energy Engineering
- Content
1 pc(s)
- UKCA
not relevant
