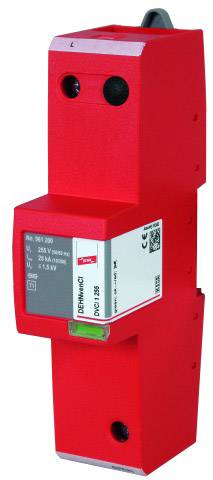

DEHN 961200 DVCI 1 255 Lightning conductor Surge protection for: Switchboards 50 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Combination arrester 1 DEHNvenCI DVCI expansion + SONS 1 255
- Combination arrester on radio link base with integrated lightning current arresters viable fusing
- Maximum system availability through RADAX-flow sequence current limitation
- Enables terminals protection
Technical specifications
- Product type
Lightning conductor
- Surge protection for
Switchboards
- Leakage current
50 kA
- Nominal voltage
230 V
- Pick-up time (details)
100 ns
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
961200
- Type
1
- Standards
KEMA
- Dim
(W x H x D) 36 x 150 x 66 mm
- Width
36 mm
- Height
150 mm
- Depth
66 mm
- Content
1 pc(s)
- Number of pins
1
- Weight
480 g
DIN rail (top hat rail) 35 mm
1
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1967985 DEHN 961200 DVCI 1 255 Lightning conductor Surge protection for: Switchboards 50 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967985 DEHN 961200 DVCI 1 255 Lightning conductor Surge protection for: Switchboards 50 kA 1 pc(s)
Description
Single-pole combination surge arresters, type 1 according to EN 61643 to DEHNvenCI radio link base with integrated surge arrester fusing. Maximum system availability through RADAX-flow sequence current limitation. Enables terminals protection. For the protection of low voltage consumer systems against the overvoltages, even in direct lightning strikes. Can be used after the lightning protection zones concept at the interfaces 0A - 2.
