DEHN 971221 DSE M 2P 60 Surge arrester 1 pc(s)

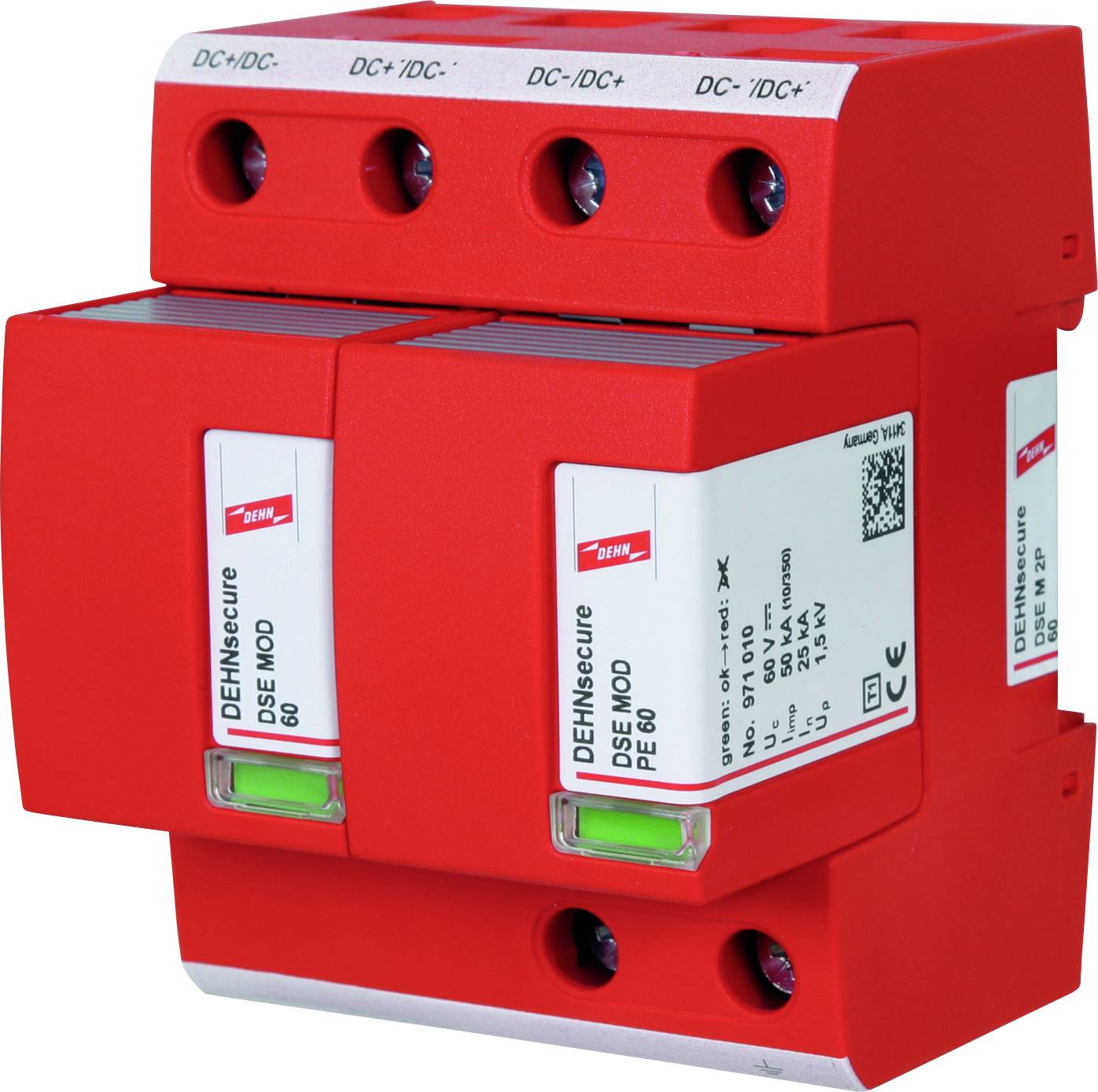

Two red surge protection devices with green indicators. Labelled at the top with 'DC+, DC-', 'DC+, DC-', for use in electrical systems.
Image similar
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Design of the poles: 2
  • Size: 4 HP
  • Lightning surge current 25 kA
  • Highest continuous voltage DC: 60 V.
  • Integrated fuse: No.
  • Max. Conductor cross-section flexible fine strand 35 mm²
  • Max. Conductor cross-section rigid single/multi-wire: 50 mm²
  • With remote signaling contact: No.
  • Mounting type: DIN rail 35 mm
  • Protection level 1.5 kV
  • Signaling on the device: Optical
Product type

Surge arrester

Manufacturer part #

971221

Type

1

Compatible with (details)

Energy Engineering

Standards

EN 61643-11

Content

1 pc(s)

DIN rail (top hat rail) 35 mm

IP20

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2303311 DEHN 971221 DSE M 2P 60 Surge arrester 1 pc(s)
