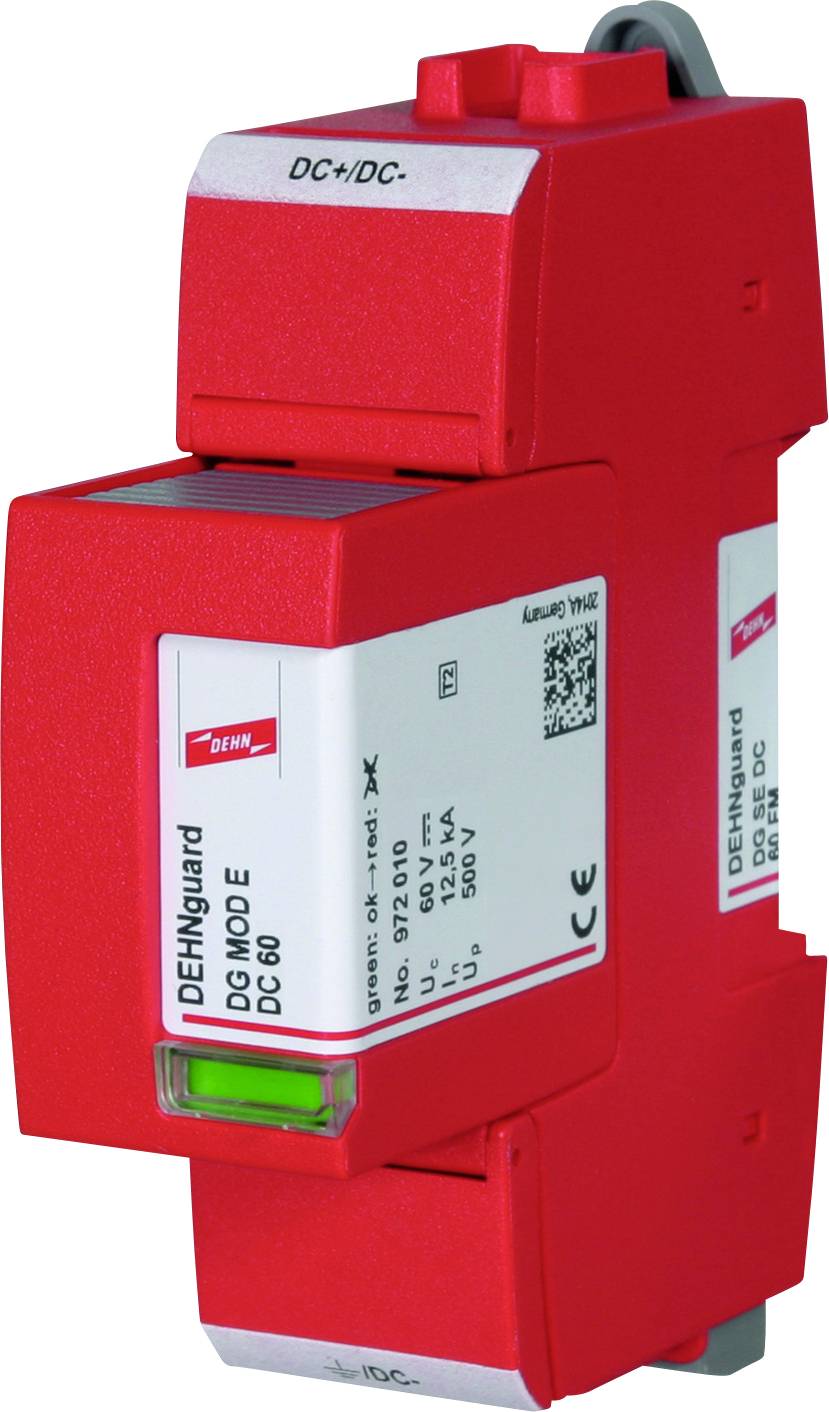

'Red module for overvoltage protection by DEHN with labelling DC+/DC-. It shows the model name DEHNgate DG MOD E DC 60.'

'Red module for overvoltage protection by DEHN with labelling DC+/DC-. It shows the model name DEHNgate DG MOD E DC 60.'

Image similar

DEHN

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Design of the poles: 1
Highest continuous voltage DC: 60 V.
Integrated fuse: No.
Short-circuit proof: Yes
Max. Conductor cross-section flexible fine-strand 25 mm²
Max. Conductor cross-section rigid single/multi-strand 35 mm²
With remote signaling contact: Yes
Mounting type: DIN rail 35 mm
Protection level 0.5 kV
Signaling on the device: Optical

Product type: Surge arrester

Leakage current: 12.5 kA

Nominal voltage: 48 V DC

: IP20

Manufacturer part #: 972115

Type: 2

Compatible with (details): Power technology/power supply

Standards: EN 61643-11

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2303132 DEHN 972115 DG SE DC 60 FM Surge arrester 12.5 kA 1 pc(s)
