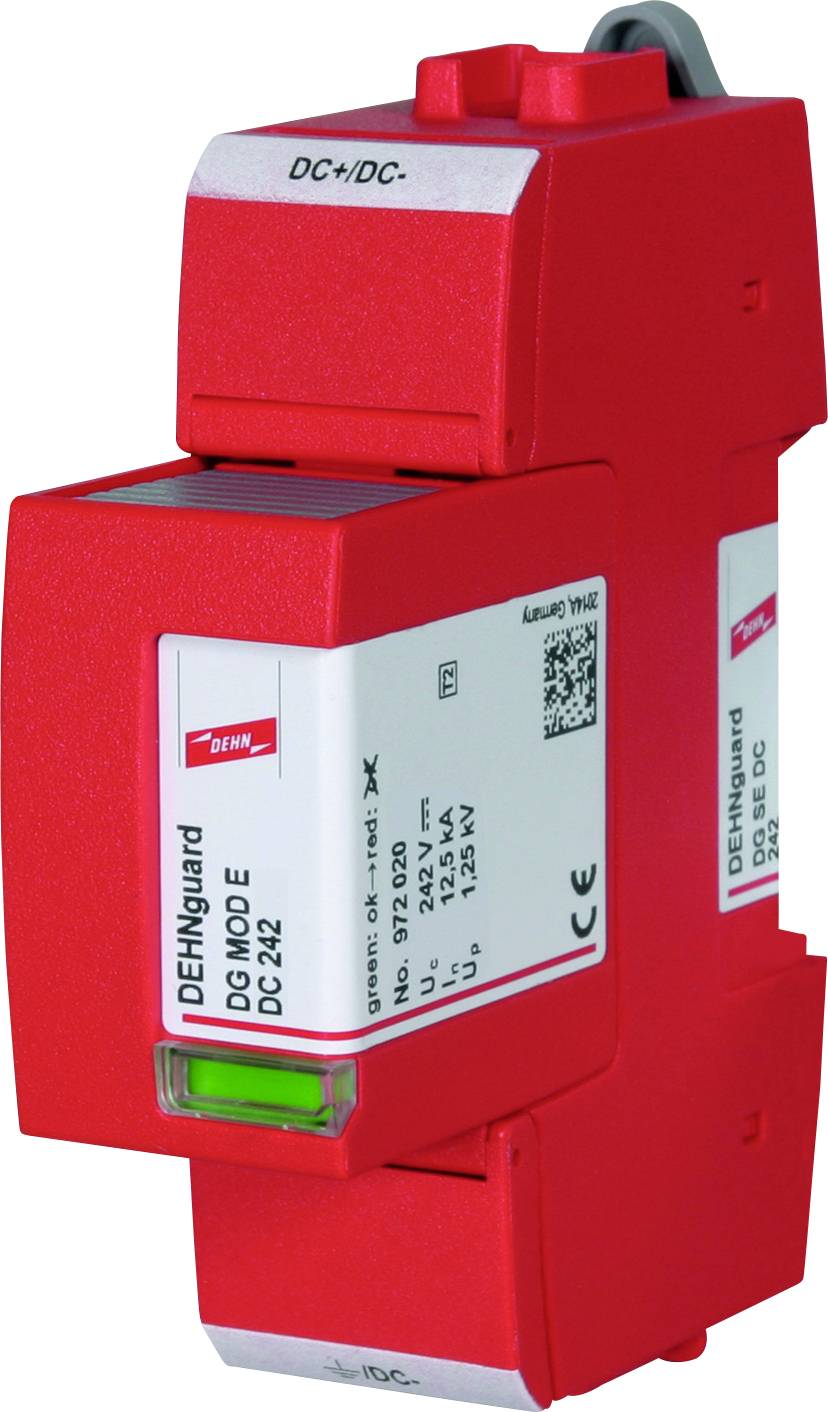

A red electrical protective device with the inscription 'DEHNguard DGM O2 E DC 22' and technical specifications on a label.

A red electrical protective device with the inscription 'DEHNguard DGM O2 E DC 22' and technical specifications on a label.

Image similar

DEHN

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Design of the poles: 1
Highest continuous voltage DC 242 V
Integrated fuse: No.
Short-circuit proof: Yes
Max. Conductor cross-section flexible fine-strand 25 mm²
Max. Conductor cross-section rigid single/multi-strand 35 mm²
With remote signaling contact: No.
Mounting type: DIN rail 35 mm
Protection level 1.25 kV
Signaling on the device: Optical

Product type: Surge arrester

Leakage current: 12.5 kA

Nominal voltage: 220 V DC

: IP20

Manufacturer part #: 972120

Type: 2

Compatible with (details): Power technology/power supply

Standards: EN 61643-11

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2303133 DEHN 972120 DG SE DC 242 Surge arrester 12.5 kA 1 pc(s)
