DEHN 972145 DG SE DC 900 FM Surge arrester 12.5 kA 1 pc(s)

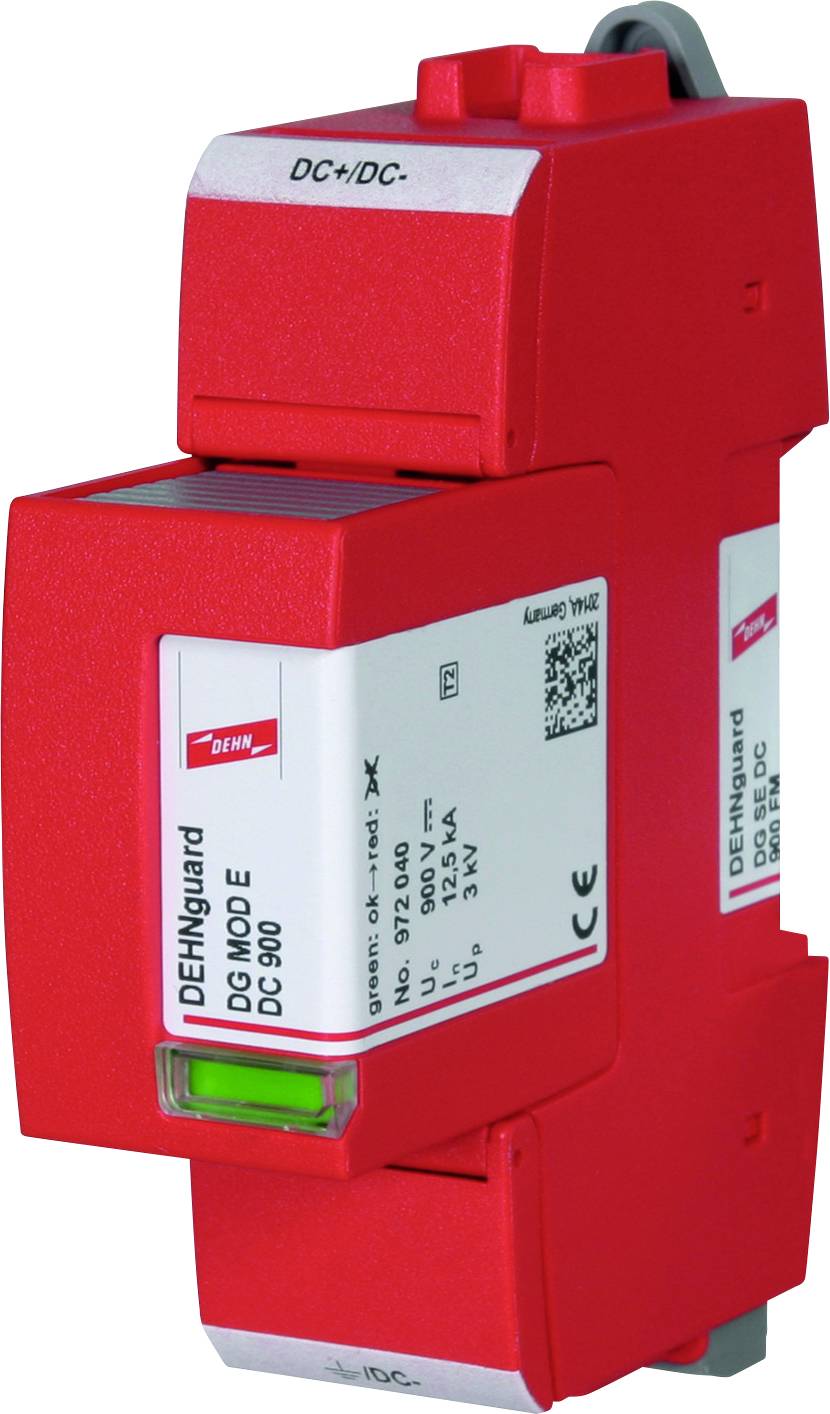

Red overvoltage protection device for DIN rail mounting, with 'DEHNguard' label and technical specifications on the front.
Image similar
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Design of the poles: 1
  • Highest continuous voltage DC 900 V
  • Integrated fuse: No.
  • Short-circuit proof: Yes
  • Max. Conductor cross-section flexible fine-strand 25 mm²
  • Max. Conductor cross-section rigid single/multi-strand 35 mm²
  • With remote signaling contact: Yes
  • Mounting type: DIN rail 35 mm
  • Protection level 3 kV
  • Signaling on the device: Optical
Product type

Surge arrester

Leakage current

12.5 kA

Nominal voltage

750 V DC

IP20

Manufacturer part #

972145

Type

2

Compatible with (details)

Power technology/power supply

Standards

EN 61643-11

Content

1 pc(s)

UKCA

not relevant
