DEHN SAG DCA P HR GA Voltmeter LED

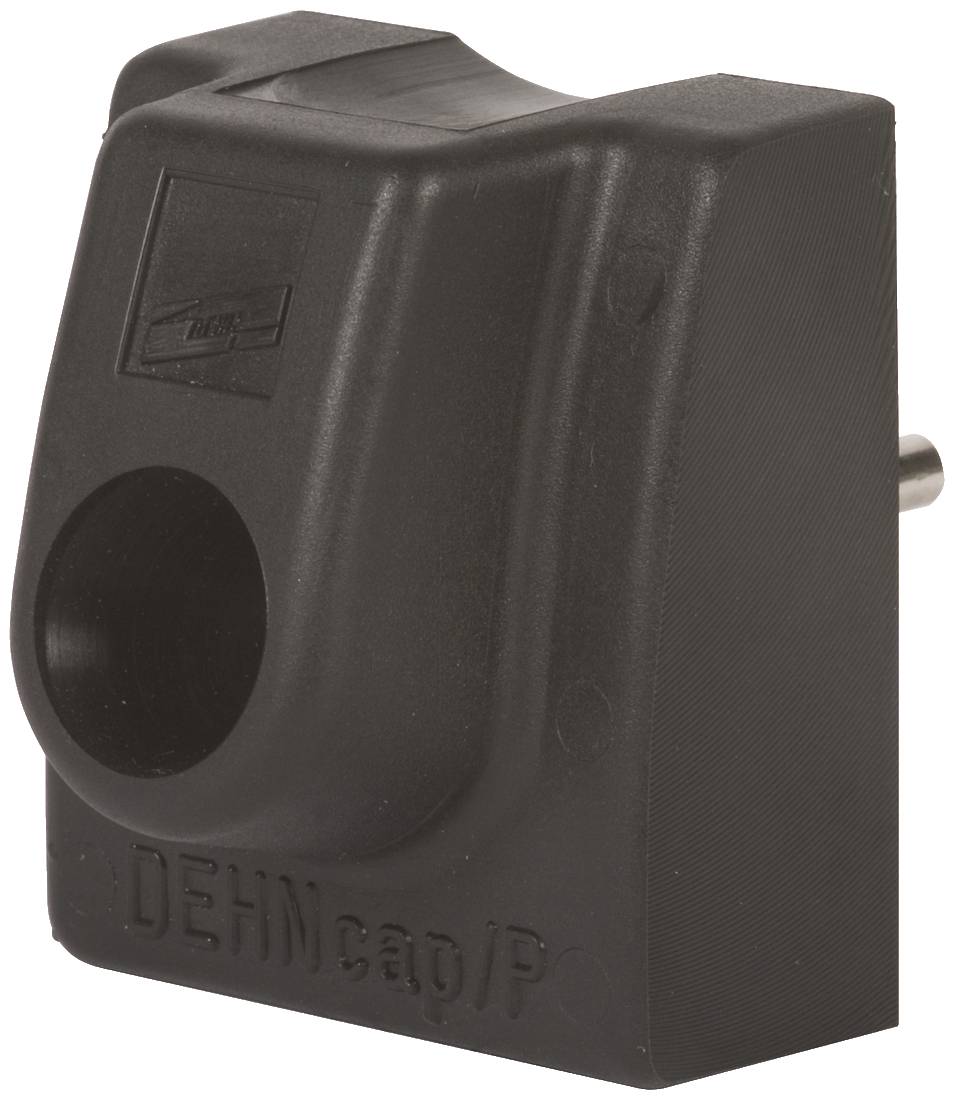

Black overvoltage protection DEHNcap/P with cylindrical connection on the right-hand side, used for cable protection.
Technical drawing of a plug with dimensions: 48 mm width, 35 mm height, 40 mm depth. Front and side views illustrated.

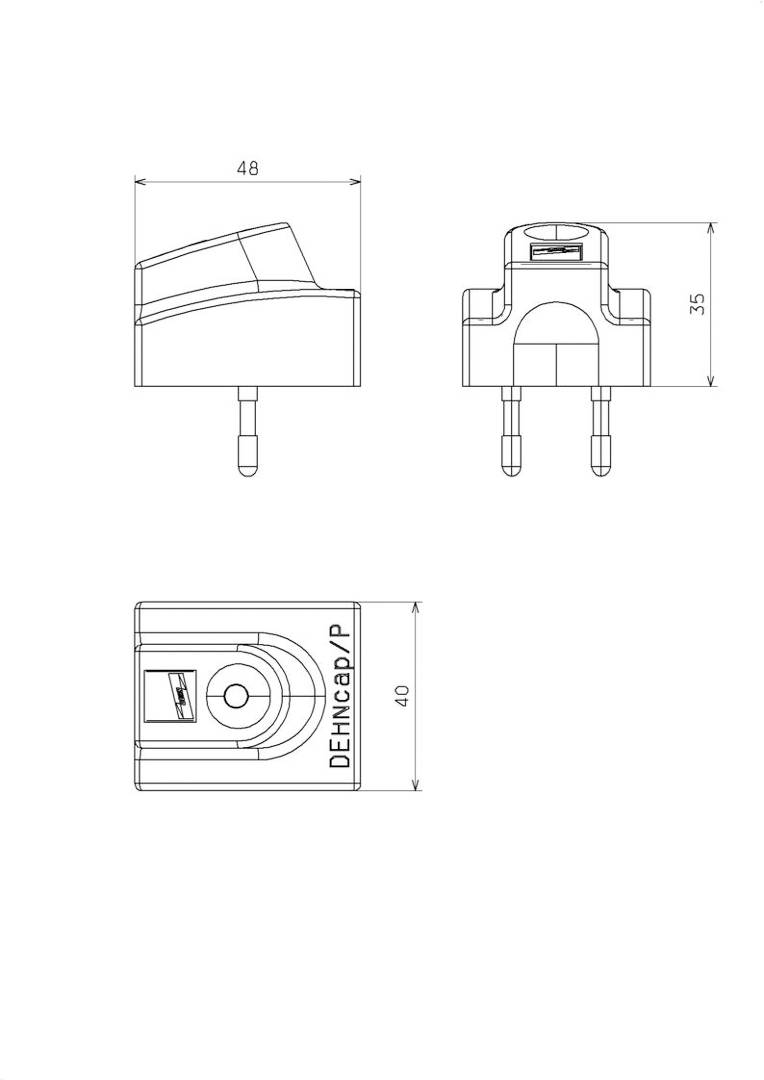

Technical Drawing of a Socket Adapter with Dimensions: Height 35 mm, Width 40 mm, Depth 48 mm.
Technical drawing of a socket adapter with dimensions 48x40x35 mm from various perspectives.
1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

Voltmeter

Reading type

Voltage testing

Display

LED

V AC reading range

45 kV (max)

Manufacturer's standards (no certificate)

V AC reading range (max.)

45 kV

Type

SAG DCA P HR GA

50 Hz

Optic

Voltage display device

1.0-45.0 kV

FALSE

HR

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2750506 DEHN SAG DCA P HR GA Voltmeter LED

User & Safety Instructions

User & Safety Instructions 2750506 DEHN SAG DCA P HR GA Voltmeter LED

Description

Passive voltage display device DEHNcap/P-HR with LED-display as per DIN VDE 0682-415 (EN/IEC 61243-5) for determination of freedom of voltage at the work place for switching systems with HR-measuring sockets. Can also be used as a permanent voltage indicator. Nominal voltages up to 45 kV / 50 Hz (three-phase system).

This text is machine translated.

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
