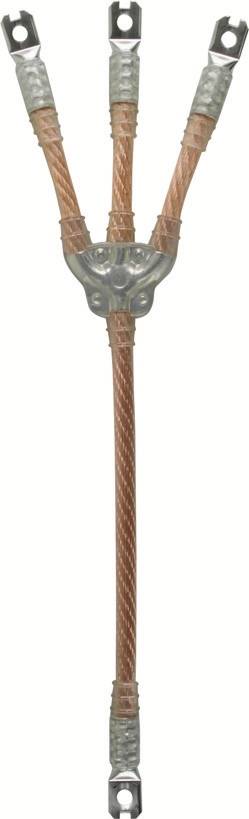

DEHN VNC1S9W EKV3+0 25 G VNC1S9W Earth and short circuit cable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Earth and short circuit cable
- Manufacturer part #
VNC1S9W
- Length
1800 mm
- Content
1 pc(s)
3
Copper
7.0 kA
25 mm²
25 mm²
600 mm
600 mm
600 mm
1800 mm
None
None
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2750569 DEHN VNC1S9W EKV3+0 25 G VNC1S9W Earth and short circuit cable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2750569 DEHN VNC1S9W EKV3+0 25 G VNC1S9W Earth and short circuit cable 1 pc(s)
Description
Three-pin earthing and short-circuit cables, same cross-section, empty on both sides, for completion with suitable clamps, in accordance with DIN VDE 0683-100 (EN/IEC 61230). Cable cross-section 25 mm2, Max Short circuit current: 7.0 kA / 0.5 s, rope length A = 600 mm, B = 600 mm, C = 600 mm and D = 1800 mm, version no. VNC1S9W. Earthing and short-circuit devices can be assembled online at www.dehn.de/de/euk via the EuK configurator.
This text is machine translated.
