Name: Deko Light 348070 Arneb Ceiling light (surface mount) LED (monochrome) EEC: G (A - G) 30 W Graphite grey (RAL 7024)
Brand: Deko Light
SKU: 2795793

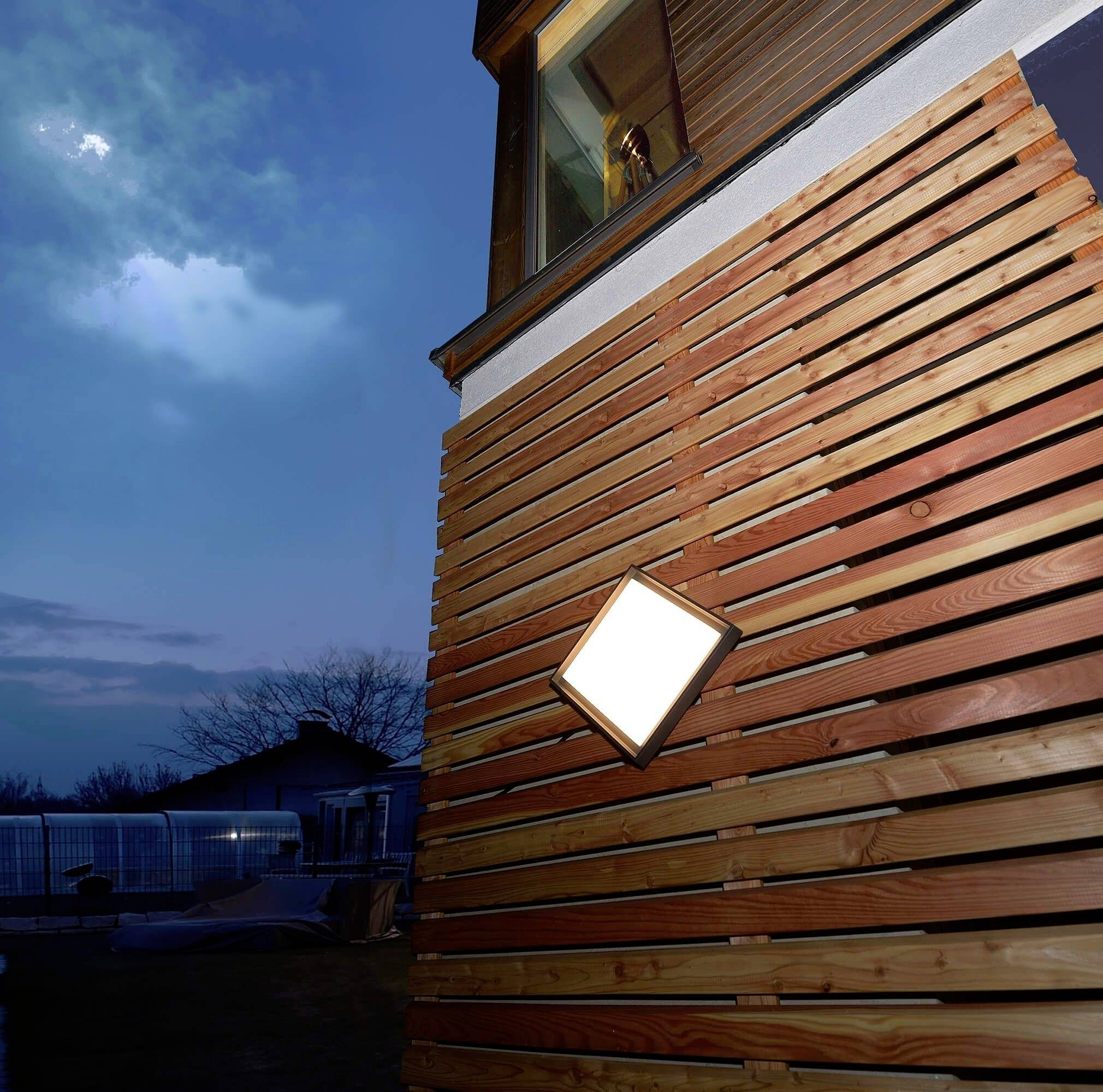

A modern building with wooden cladding and an illuminated window, in the evening light. The sky is cloudy with moonlight in the top left.

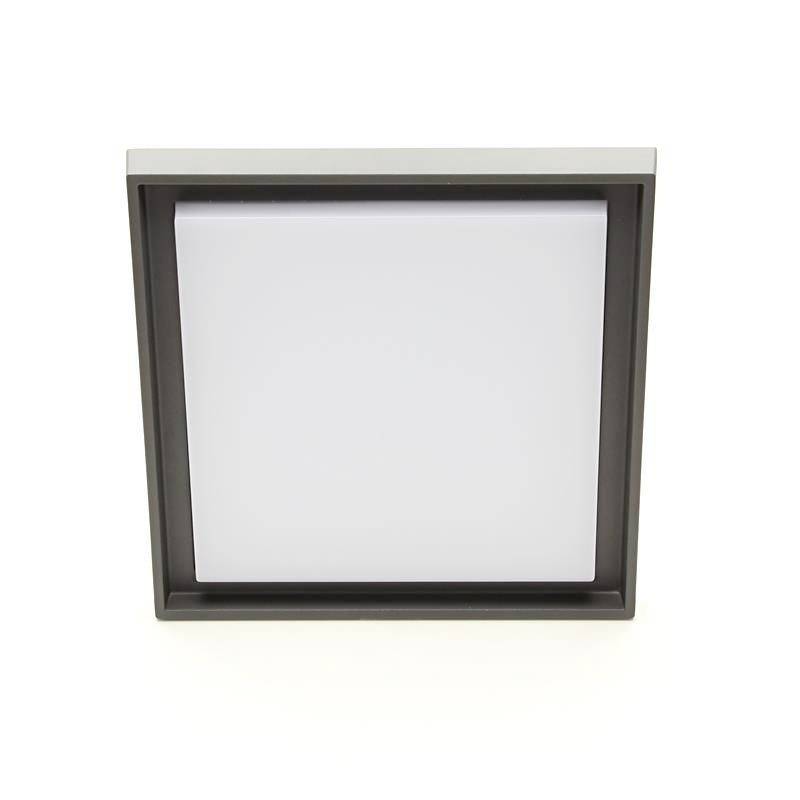

Modern square wall light with a grey frame and white light panel.

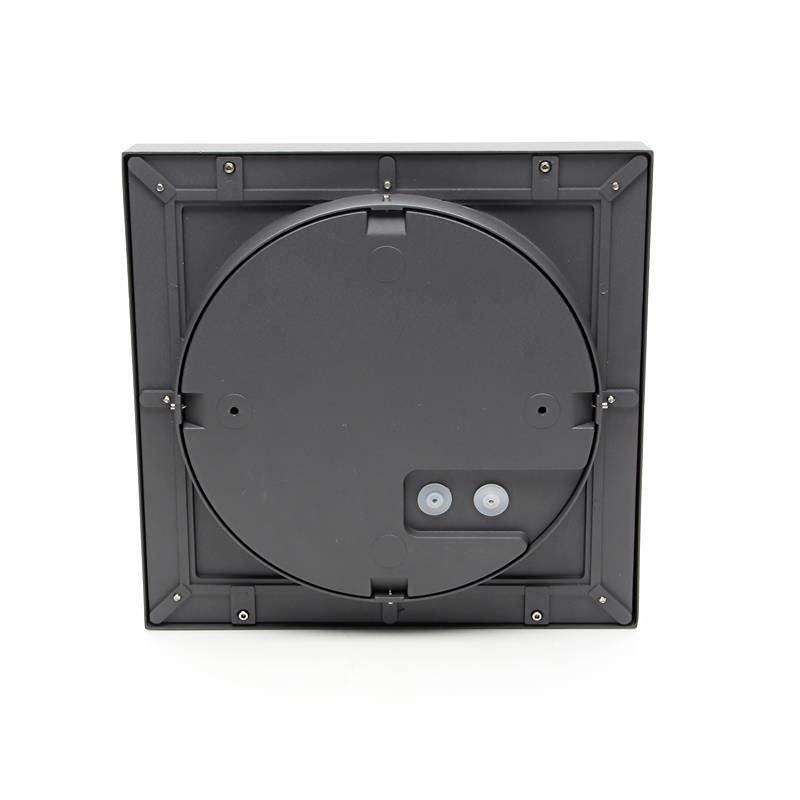

Square black metal plate with a round central section and two small openings on one side.

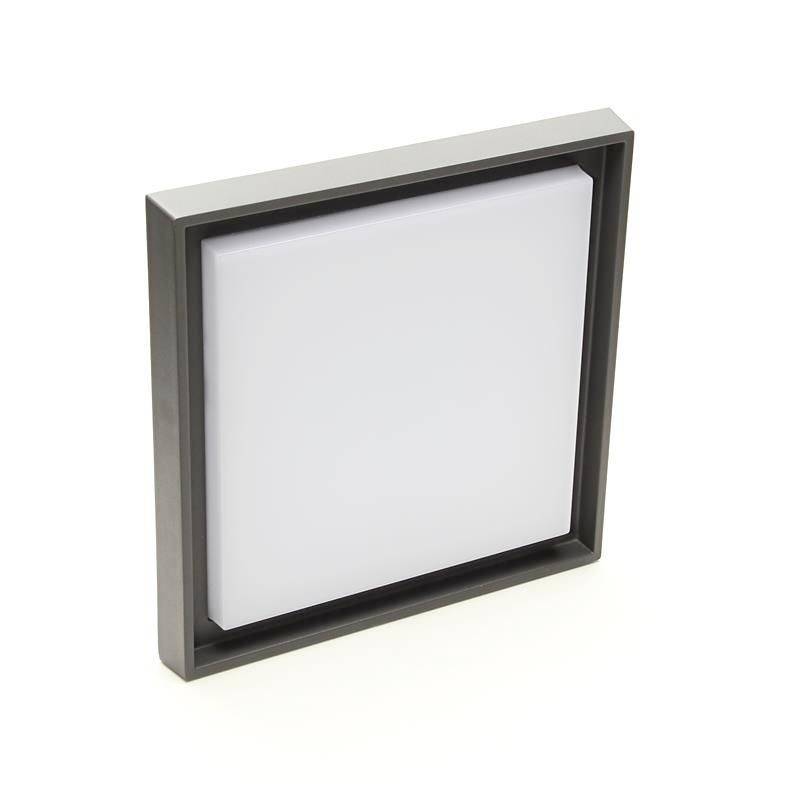

Square LED ceiling light with a black frame and white diffuser. Perfect for contemporary interiors.

1/4

Application

Product data sheet

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

LED Ceiling Light, Surface-mounted, Arneb, Square, IP54, 3000 K, aluminum, dark gray

Power= 30 W
Total luminous flux= 2300 lm
Colour temperature= 3000 K
Warm white

Technical specifications

Base height (mm): 12base diameter (mm): 270
Colour rendering Ra: 80
Light intensity 780 cd
Life: 30000 hours
Switching cycles 100000
Beam angle: 113°
Radiation distribution 582 nm
Colour consistency 0.429 / 0.401
Number of LEDs: 299
LED type SMD
LED design 3014
Terminal connection option
Power supplies: Inc. LED power supply
Material 2: Plastic
Optics 2: Milky

Dim: (Ø x H) 270 mm x 50 mm

Operating voltage: 220 V AC
240 V AC

No. of bulbs: 299

Product type: Ceiling light (surface mount)

Width: 340 mm

Bulb type: LED (monochrome)

Height: 50 mm

Depth: 340 mm

: 30 W

(Ø): 270 mm

Energy consumption: 33 kWh/1000h

Protection class: I

: IP54

Factory colour: Graphite grey (RAL 7024)

Material: Aluminium (die-cast)

: G (A - G)

Colour: Warm white

Light bulb included: Yes

: 3000 K

Colour temperature range: 3000 K

Total luminous flux: 2300 lm

Documents & Downloads

Datasheet

Datasheet 2795793 Deko Light 348070 Arneb Ceiling light (surface mount) LED (monochrome) EEC: G (A - G) 30 W Graphite grey (RAL 7024)

User & Safety Instructions

User & Safety Instructions 2795793 Deko Light 348070 Arneb Ceiling light (surface mount) LED (monochrome) EEC: G (A - G) 30 W Graphite grey (RAL 7024)

Description

These surface-mounted lamps have been especially designed for outdoor use, and are perfect for lighting house entrances, terraces or other ways. The required protection classes are also available, as are different colors and shapes. Can be used universally and do not neglect as safety aspect.

This text is machine translated.
