Name: Deko Light 565371 Dione LED recessed light EEC: E (A - G) LED (monochrome) Built-in LED 8.50 W Nickel
Brand: Deko Light
SKU: 2998289

Lighting set comprising a round LED recessed spotlight in a brushed metal finish with a matching power supply unit and cable.

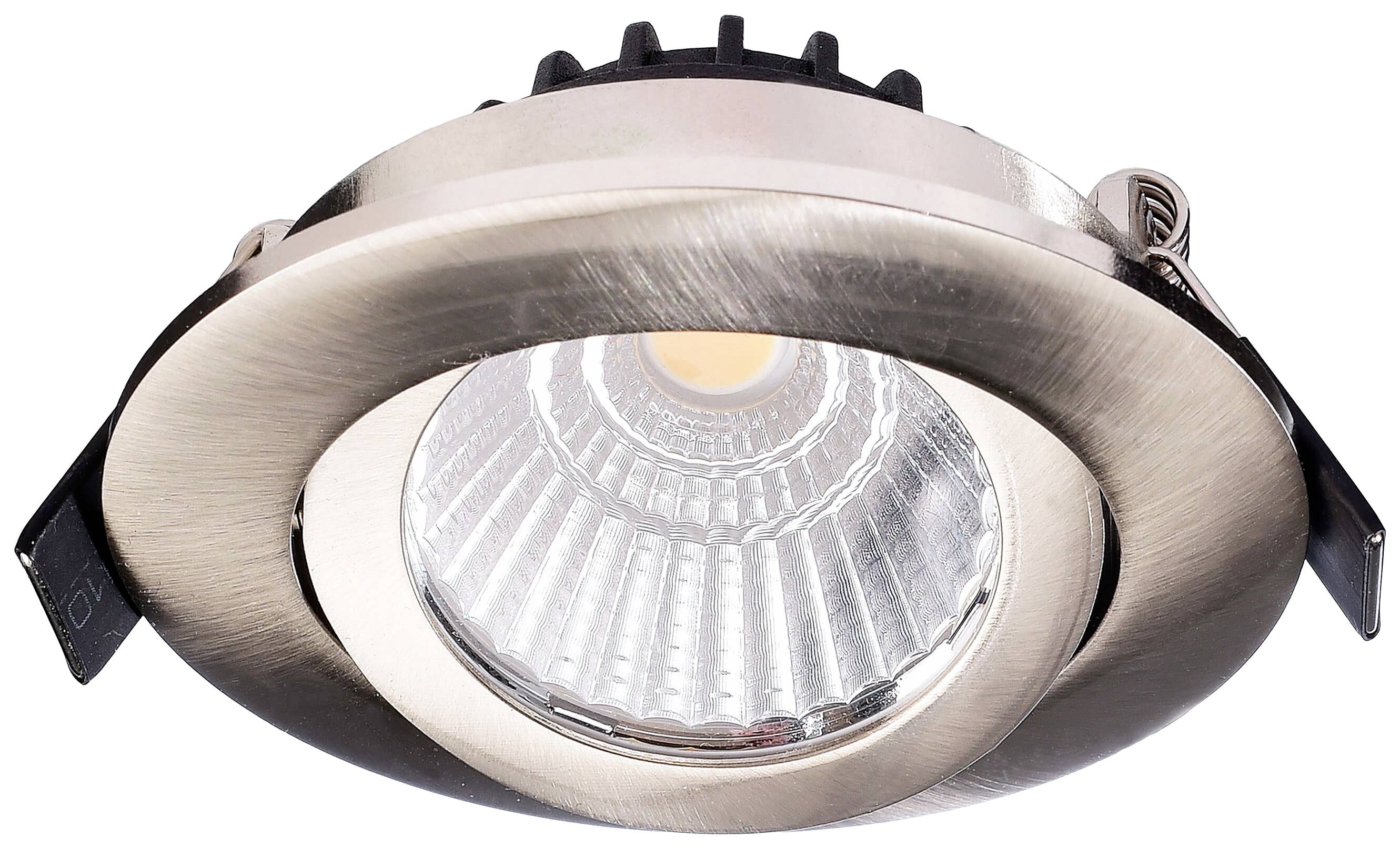

LED downlight in a silver housing, emitting warm white light. Suitable for ceiling installation for general lighting.

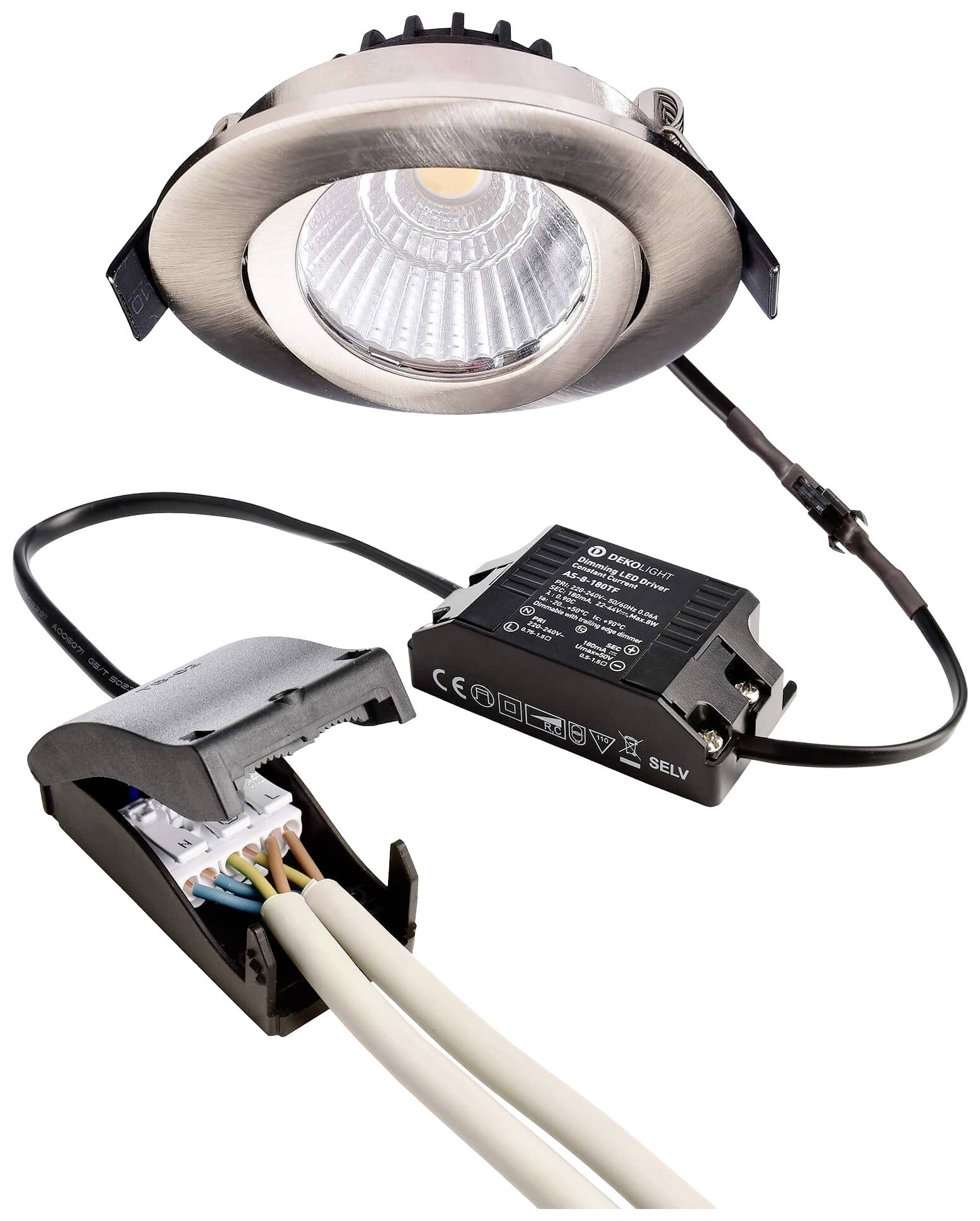

Recessed spotlight with GU10 LED lamp and cable, connected to a transformer. Suitable for ceiling installation, metallic frame in silver finish.

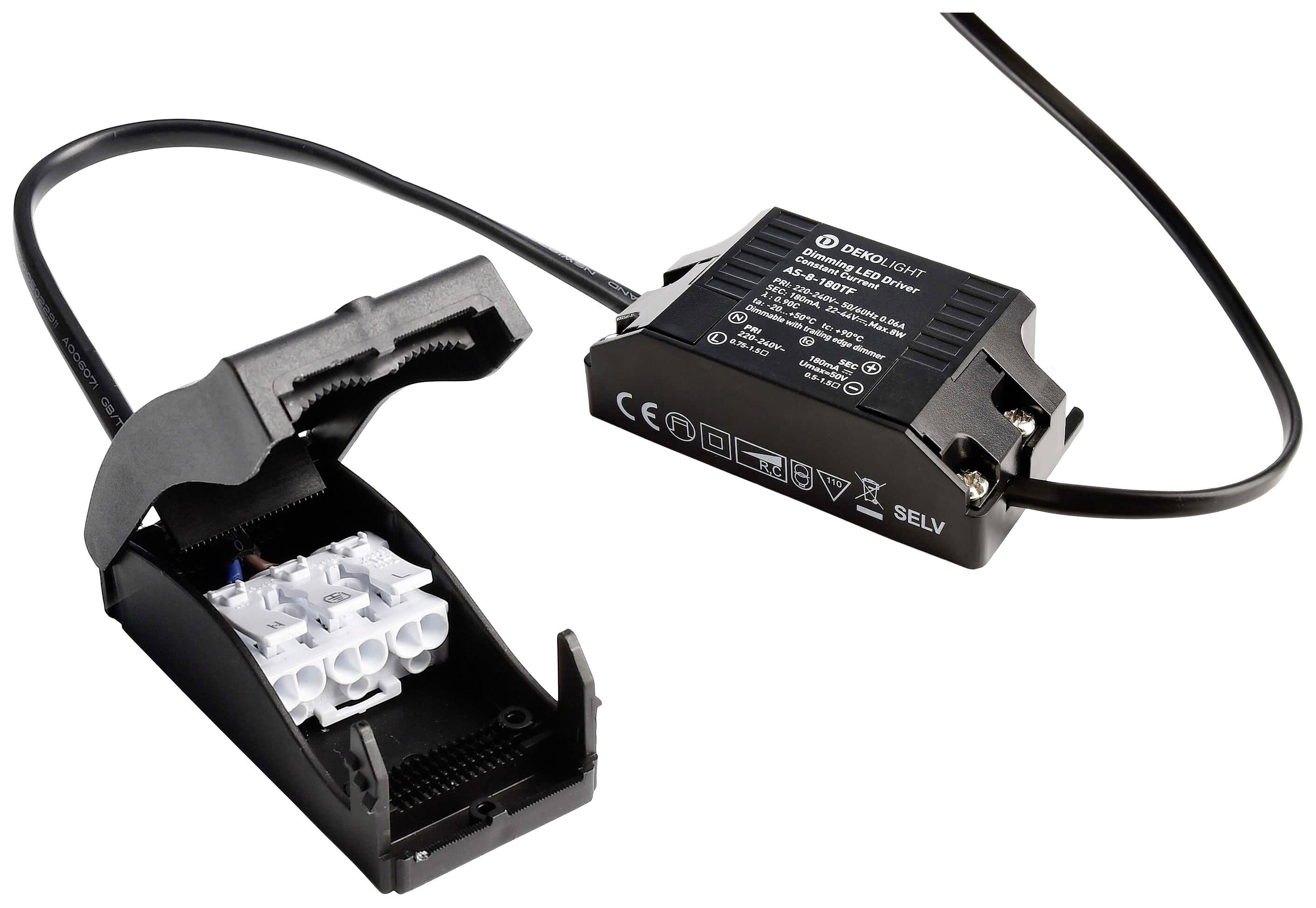

Electrical junction box with a removable lid and multiple cable connections. Opened on the left side, revealing internal wiring.

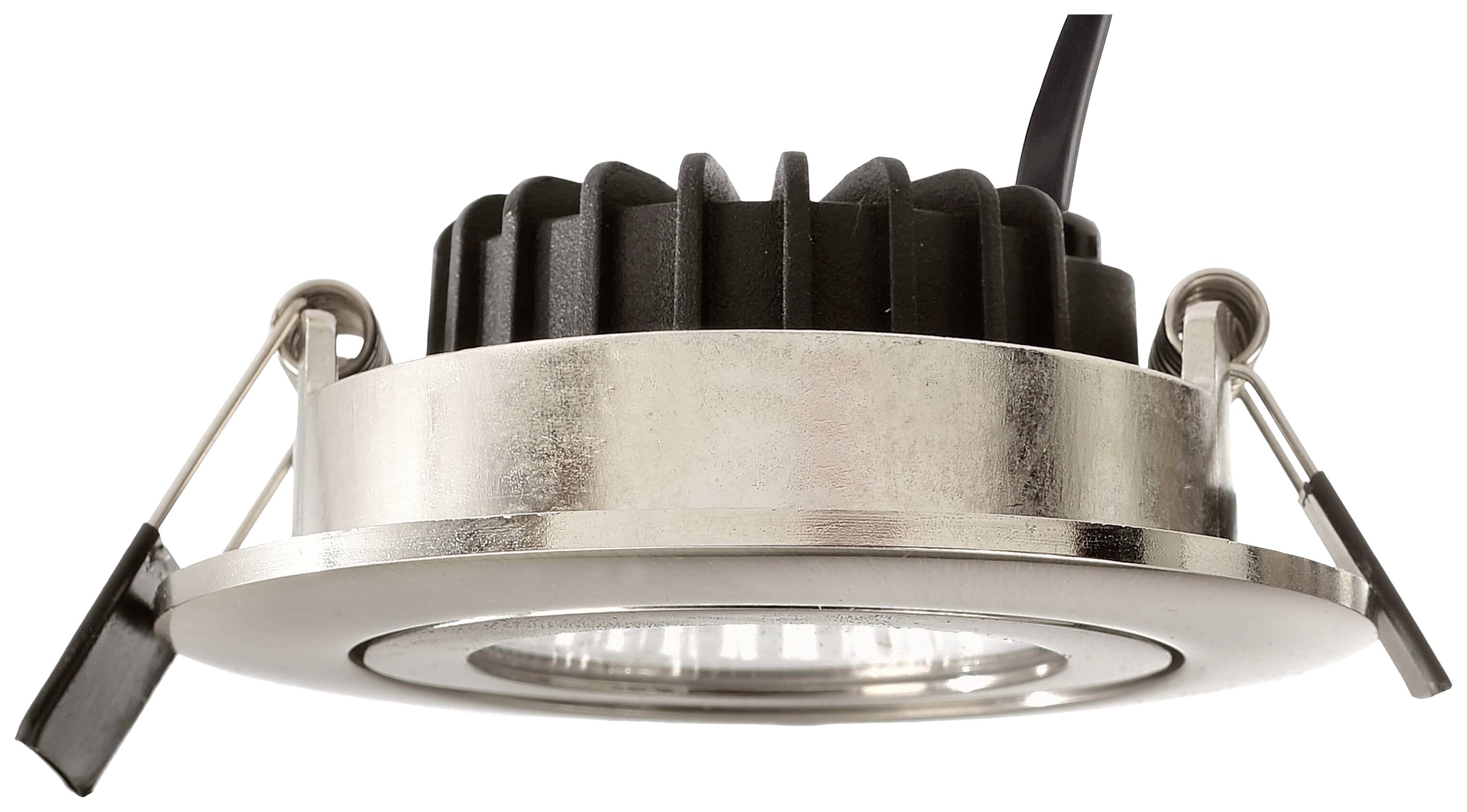

Metal LED recessed ceiling spotlight, with black heatsink and cable. Suitable for ceiling installation, modern design.

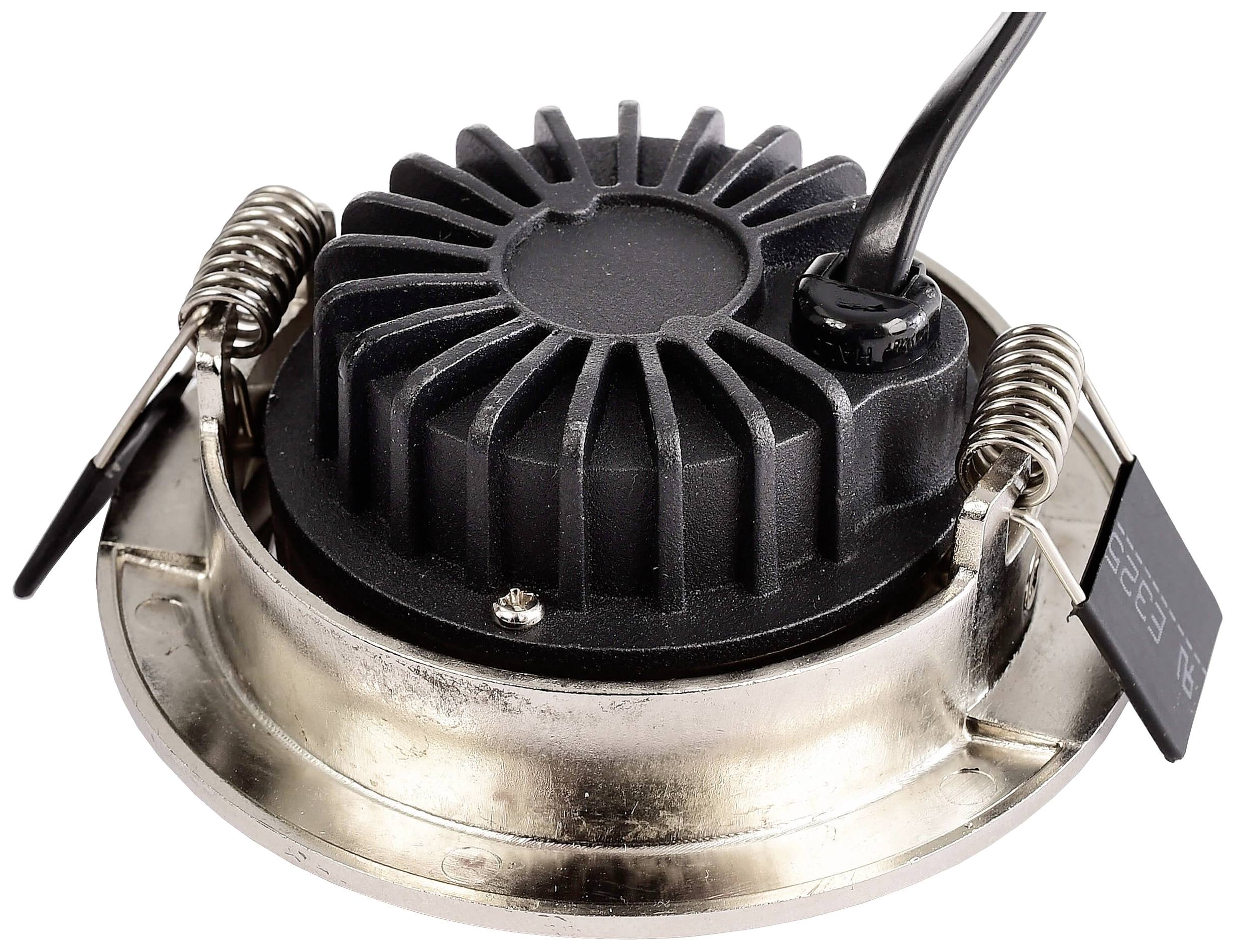

Round LED downlight with heatsink and two metal springs for mounting. Black cable protrudes from the centre.

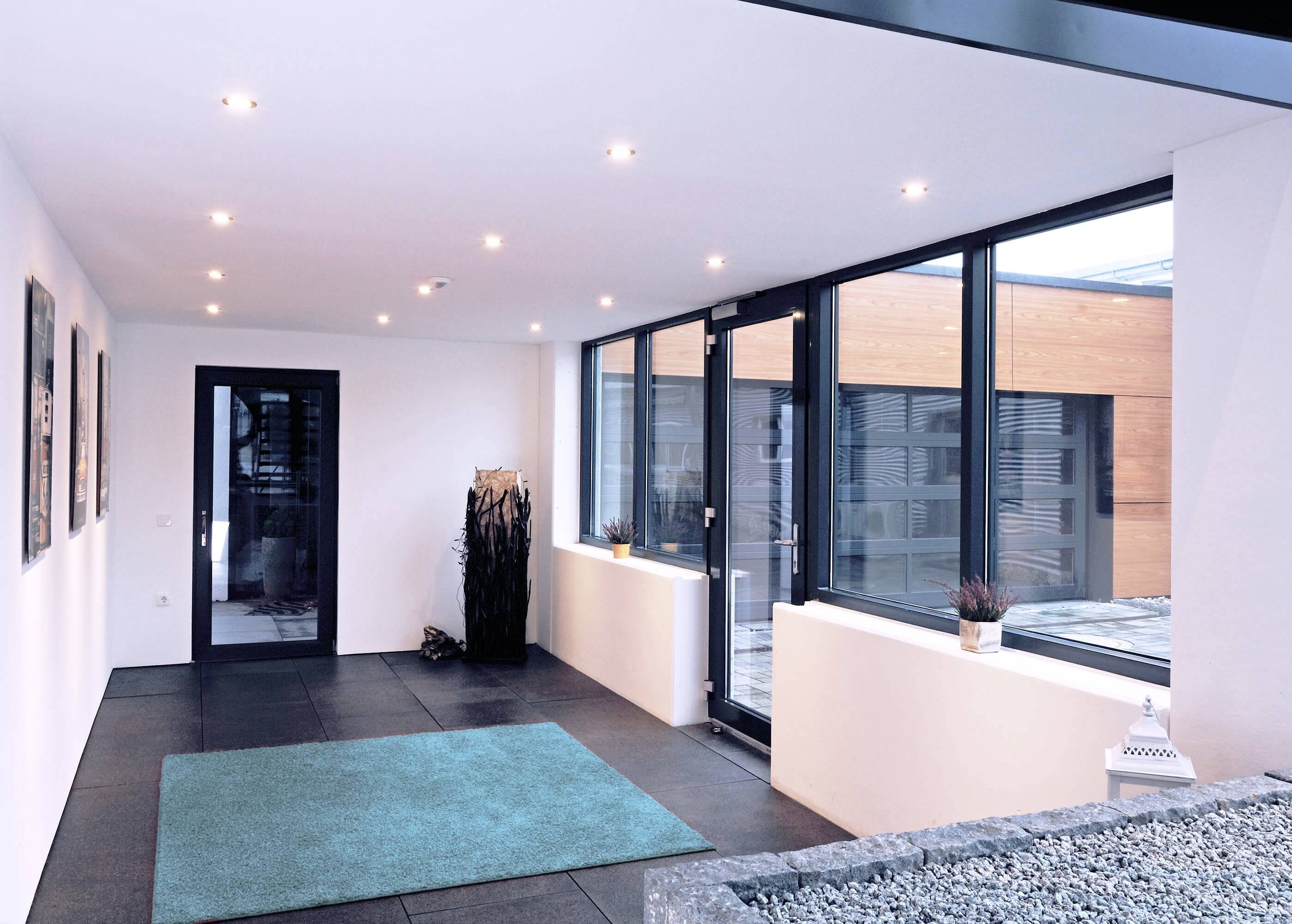

Modern entrance hall with glass walls, dark flooring and a blue carpet. Natural daylight illuminates the space, with plants used as decorative elements.

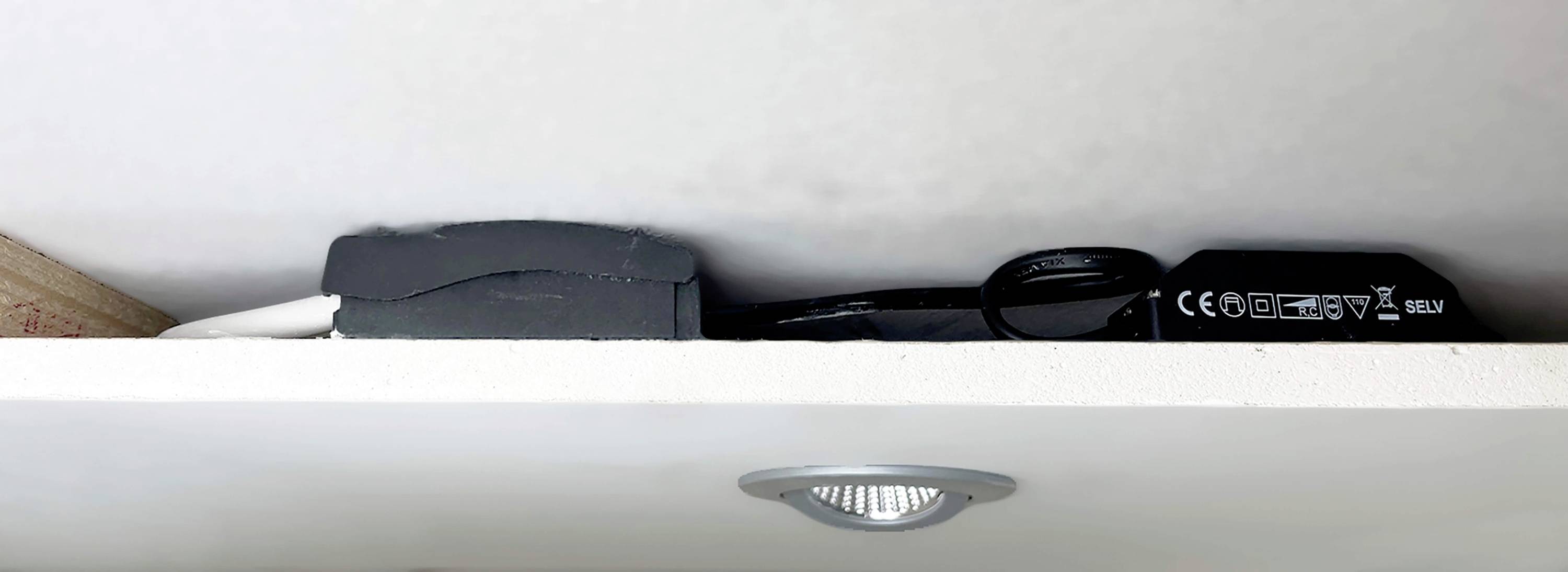

A black device with symbols and a CE mark is lying on a shelf above a ceiling light.

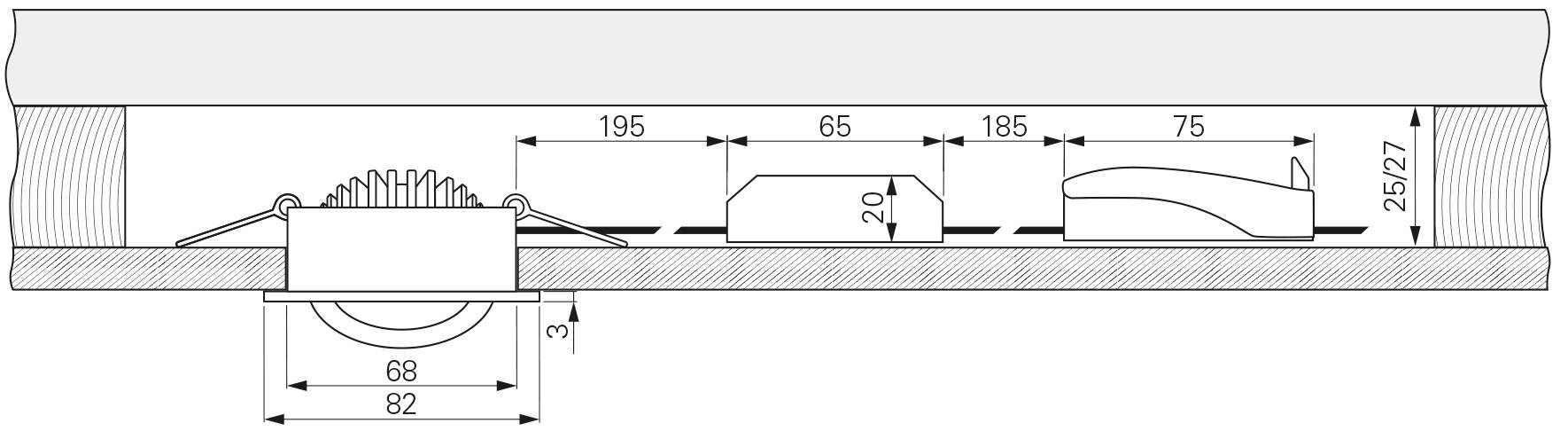

Diagram of a Ceiling-Mounted Installation: Shows Dimensions of a Recessed Spotlight. Dimensions: 195 mm Width, 82 mm Length, 25-27 mm Depth.

1/9

Product data sheet

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ceiling-mounted light fixture, Dione, 8.5 W, DIM, 3000 K, Nickel, 220-240 V/AC, 50 / 60 Hz

Power= 8.50 W Total luminous flux= 800 lm Colour temperature= 3000 K Warm white

Technical specifications

Input voltage 220-240V AC/50-60Hz
Activation: Phase-section dimmer
Colour rendering Ra: 80
Light intensity 1100 cd
Switching cycles 25000
LED type COB
Terminal connection option
Including. LED power supply
Inclination 30°
Power supply dimensions: 66x35x20 mm
Dimensions of connection box: 75x39x23 mm
Ceiling thickness: Max. 13 mm
Cable length 200 mm

Product type: LED recessed light

No. of bulbs: 1

: Built-in LED

Bulb type: LED (monochrome)

: 8.50 W

Total luminous flux: 800 lm

: 3000 K

Colour: Warm white

Energy consumption: 7 kWh/1000h

Type: Circular

Radiation angle: 36°

Light features: Swivelling

Swivel range (max.): 30°

Recess diameter: 68 mm

Recess depth: 38 mm

Outside Ø: 82 mm

: IP20

Protection class: II

Factory colour: Nickel

Material: Aluminium

: E (A - G)

Dim: (Ø x H) 82 mm x 41 mm

Light bulb included: Yes

Colour temperature range: 3000 K

Height: 41 mm

(Ø): 82 mm

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Factory colour

Bulb type

Colour

Recess diameter

Deko Light 565371 Dione LED recessed light EEC: E (A - G) LED (monochrome) Built-in LED 8.50 W Nickel

Item no:2998289

Unavailable

Conrad Electronic

This article

Nickel

LED (monochrome)

Warm white

68 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Deko Light 565355 Dione LED recessed light EEC: F (A - G) LED (monochrome) Built-in LED 8.50 W White

Item no:2795138

Unavailable

Conrad Electronic

White

LED (monochrome)

Warm white

82 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Deko Light 565356 Dione LED recessed light EEC: F (A - G) COB LED Built-in LED 8.50 W Silver-grey

Item no:2795139

Unavailable

Conrad Electronic

Silver-grey

COB LED

Warm white

82 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Deko Light 565357 Dione LED recessed light EEC: F (A - G) LED (monochrome) Built-in LED 8.50 W Black

Item no:2795140

Unavailable

Conrad Electronic

Black

LED (monochrome)

Warm white

82 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Deko Light 565358 Dione LED recessed light EEC: F (A - G) COB LED Built-in LED 8.50 W White

Item no:2795141

Unavailable

Conrad Electronic

White

COB LED

Neutral white

Piece(s)

Minimum order quantity: 1

Multiple: 1

Deko Light 565359 Dione LED recessed light EEC: F (A - G) COB LED Built-in LED 8.50 W Silver-grey

Item no:2795142

Unavailable

Conrad Electronic

Silver-grey

COB LED

Neutral white

82 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Deko Light 565360 Dione LED recessed light EEC: F (A - G) COB LED Built-in LED 8.50 W Black

Item no:2795143

Unavailable

Conrad Electronic

Black

COB LED

Neutral white

82 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Deko Light 565372 Dione LED recessed light EEC: E (A - G) LED (monochrome) Built-in LED 8.50 W Chrome

Item no:2998290

Unavailable

Conrad Electronic

Chrome

LED (monochrome)

Warm white

68 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Deko Light 565373 Dione LED recessed light EEC: E (A - G) LED (monochrome) Built-in LED 8.50 W Nickel

Item no:2998291

Unavailable

Conrad Electronic

Nickel

LED (monochrome)

Neutral white

68 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Deko Light 565374 Dione LED recessed light EEC: E (A - G) LED (monochrome) Built-in LED 8.50 W Chrome

Item no:2998292

Unavailable

Conrad Electronic

Chrome

LED (monochrome)

Neutral white

68 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2998289 Deko Light 565371 Dione LED recessed light EEC: E (A - G) LED (monochrome) Built-in LED 8.50 W Nickel

User & Safety Instructions

User & Safety Instructions 2998289 Deko Light 565371 Dione LED recessed light EEC: E (A - G) LED (monochrome) Built-in LED 8.50 W Nickel

Description

The ceiling mounting spots of the DIONE series impress with their particularly low installation depth. This makes them very space-saving and requires only a ceiling cavity of 25 mm. Also the connection box included in the delivery and the dimmable power supply fit thanks to the compact design into the 68 mm cutout. Since all components for operating the Dione are pre-assembled, a time-saving tool-free installation is possible. The junction box with plug-in terminals enables additional 3-pin through wiring. This makes the DIONE spotlight the ideal solution for retrofitting within a renovation or for new installations with a limited installation space. With the high-quality COB technology, the recessed spotlights can deliver up to 750 lm with an output of 8.5 W. The casing is made of aluminum, the angle of radiation is 36° and the spots are available in the light colors 3,000 K and 4,000 K. The lamp head can be rotated by up to 30°.
