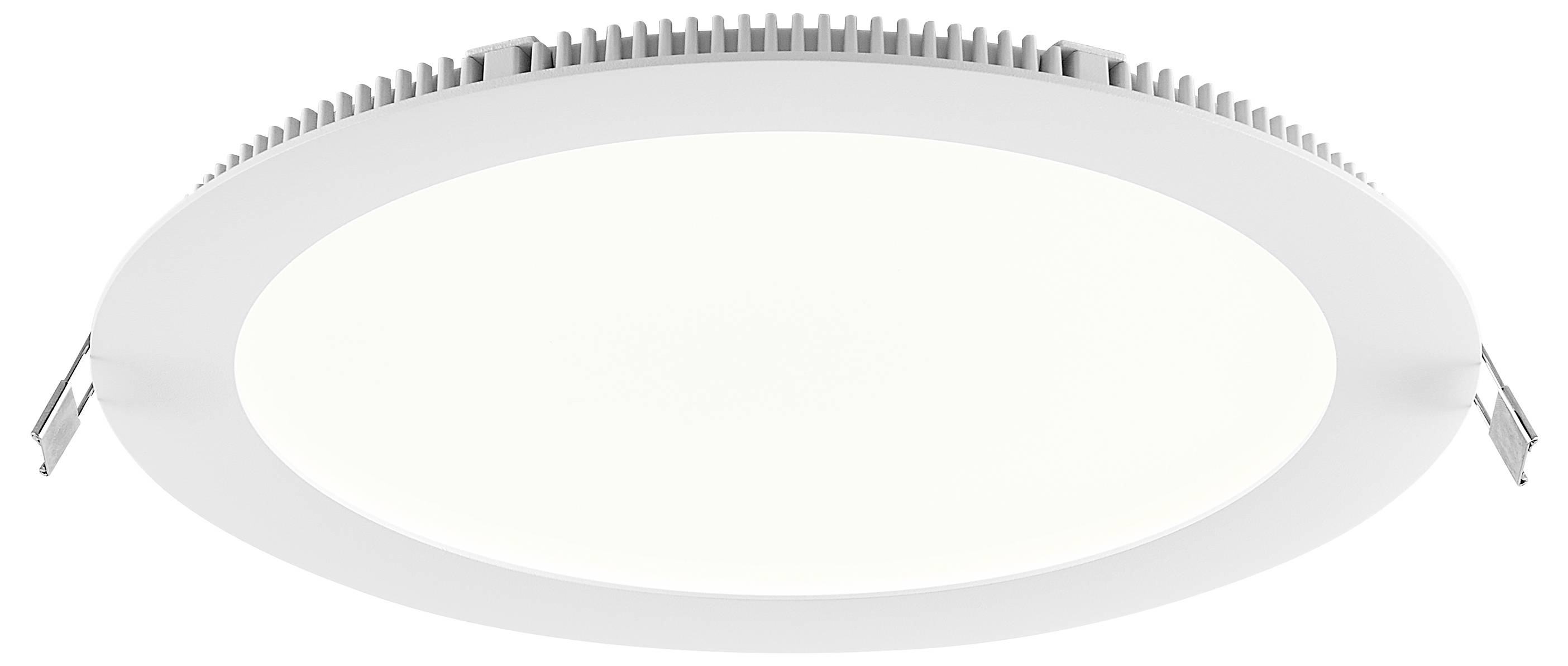

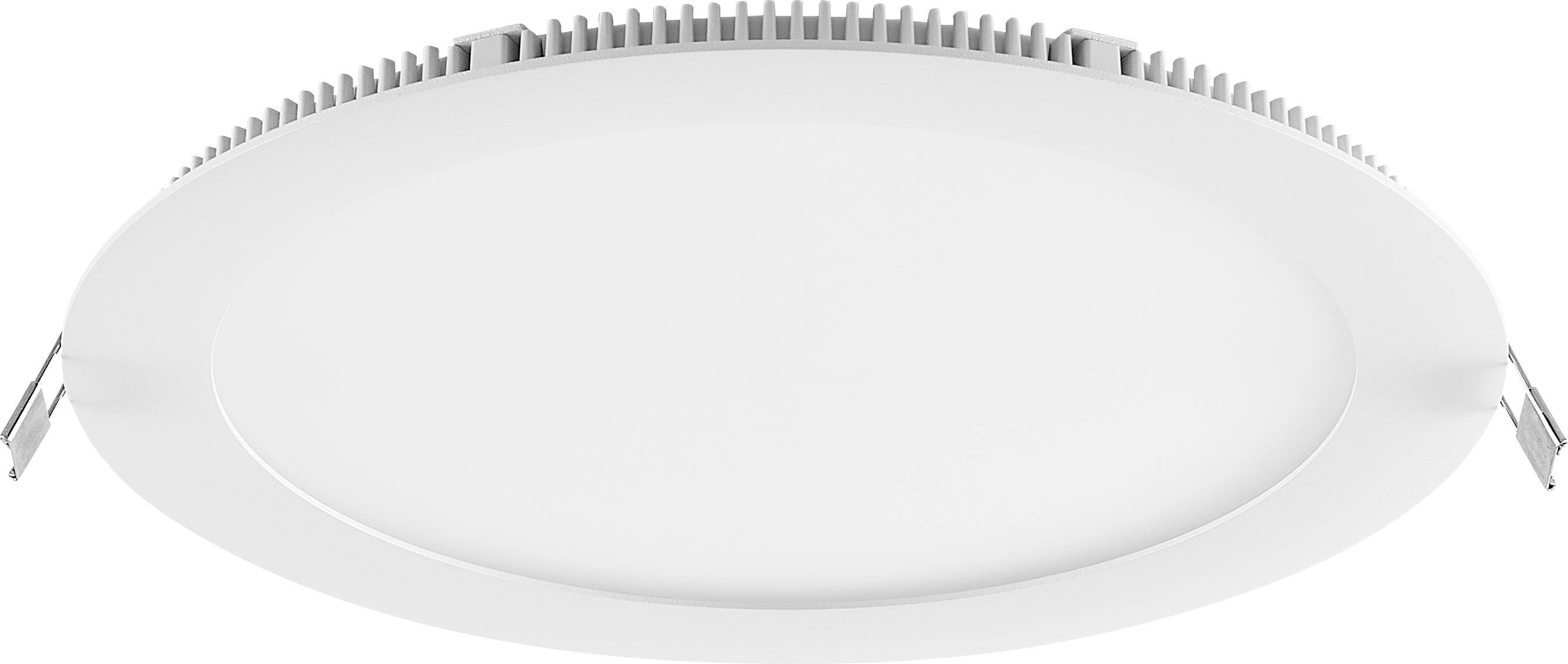

Deko Light 565418 Downlight - Anik Round 220 Flush mount light LED (monochrome) 17 W White (RAL9016)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Deco Light Downlight - ANIK Round 220, 17 W, DIM, 4000 K, white
- Power= 17 W Total luminous flux= 2130 lm Colour temperature= 4000 K Warm white
Technical specifications
- Operating mode: Current constant
- Rated current 500 mA
- Input voltage 32-37 V/DC
- Product type
Flush mount light
- Operating voltage
37 V DC
- Bulb type
LED (monochrome)
- Rating per bulb
17 W
17 W
- Total luminous flux
2130 lm
4000 K
- Colour
Warm white
- Energy consumption
17 kWh/1000h
- Type
Circular
- Radiation angle
120°
- Light features
Dimmable
- Recess diameter
222 mm
- Recess depth
17.5 mm
IP44
IP20
IK05
- Protection class
III
- Factory colour
White (RAL9016)
- Material
Steel
PMMA
Aluminium
- Weight
499 g
n.rel.
- Dim
(Ø x H) 234 mm x 20 mm
Yes
- Light bulb included
Yes
- Colour temperature range
4000 K
- Height
20 mm
- (Ø)
234 mm
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3766307 Deko Light 565418 Downlight - Anik Round 220 Flush mount light LED (monochrome) 17 W White (RAL9016)
User & Safety Instructions
User & Safety Instructions 3766307 Deko Light 565418 Downlight - Anik Round 220 Flush mount light LED (monochrome) 17 W White (RAL9016)
Warranty Terms
Warranty Terms 3766307 Deko Light 565418 Downlight - Anik Round 220 Flush mount light LED (monochrome) 17 W White (RAL9016)
Description

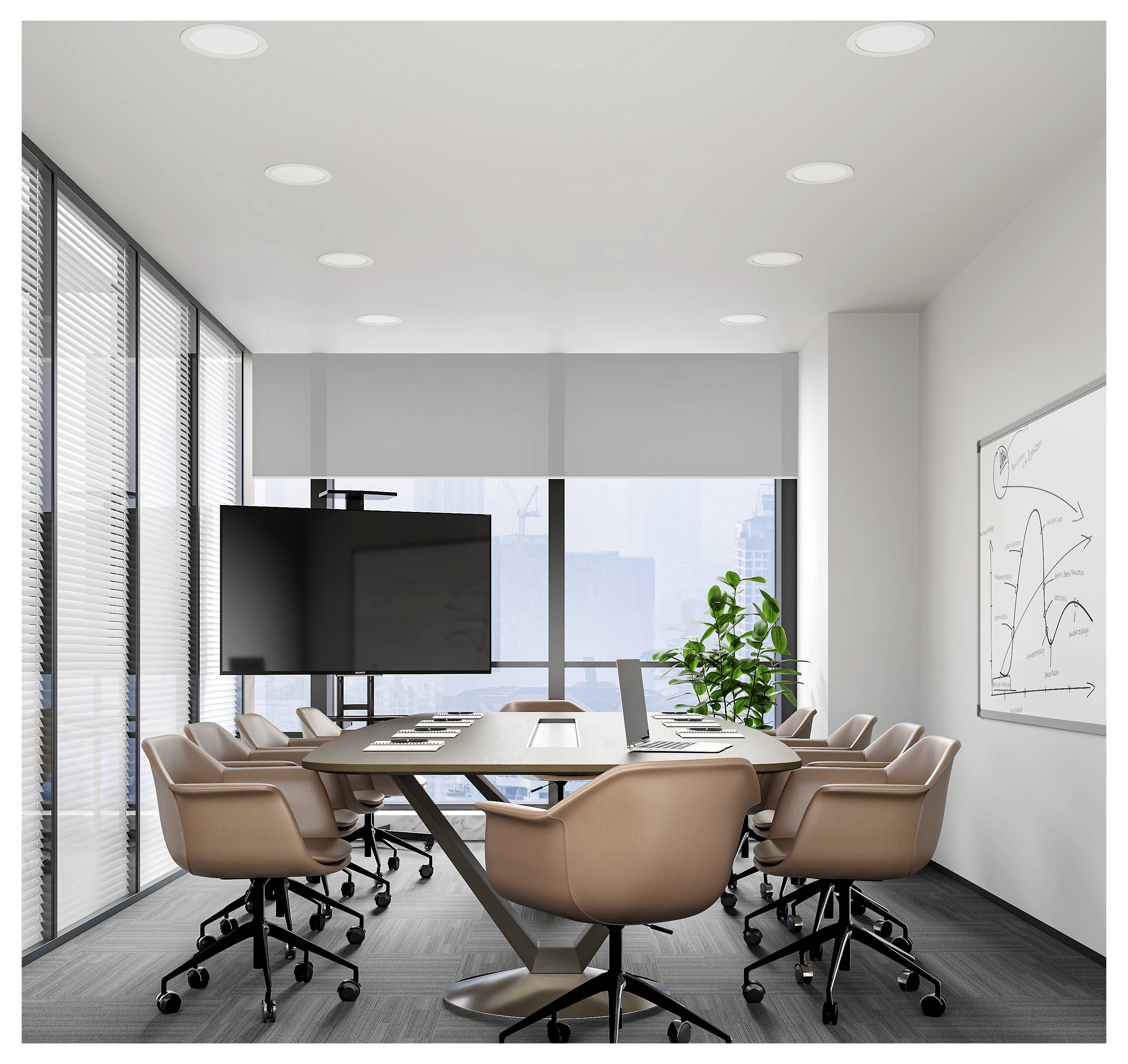

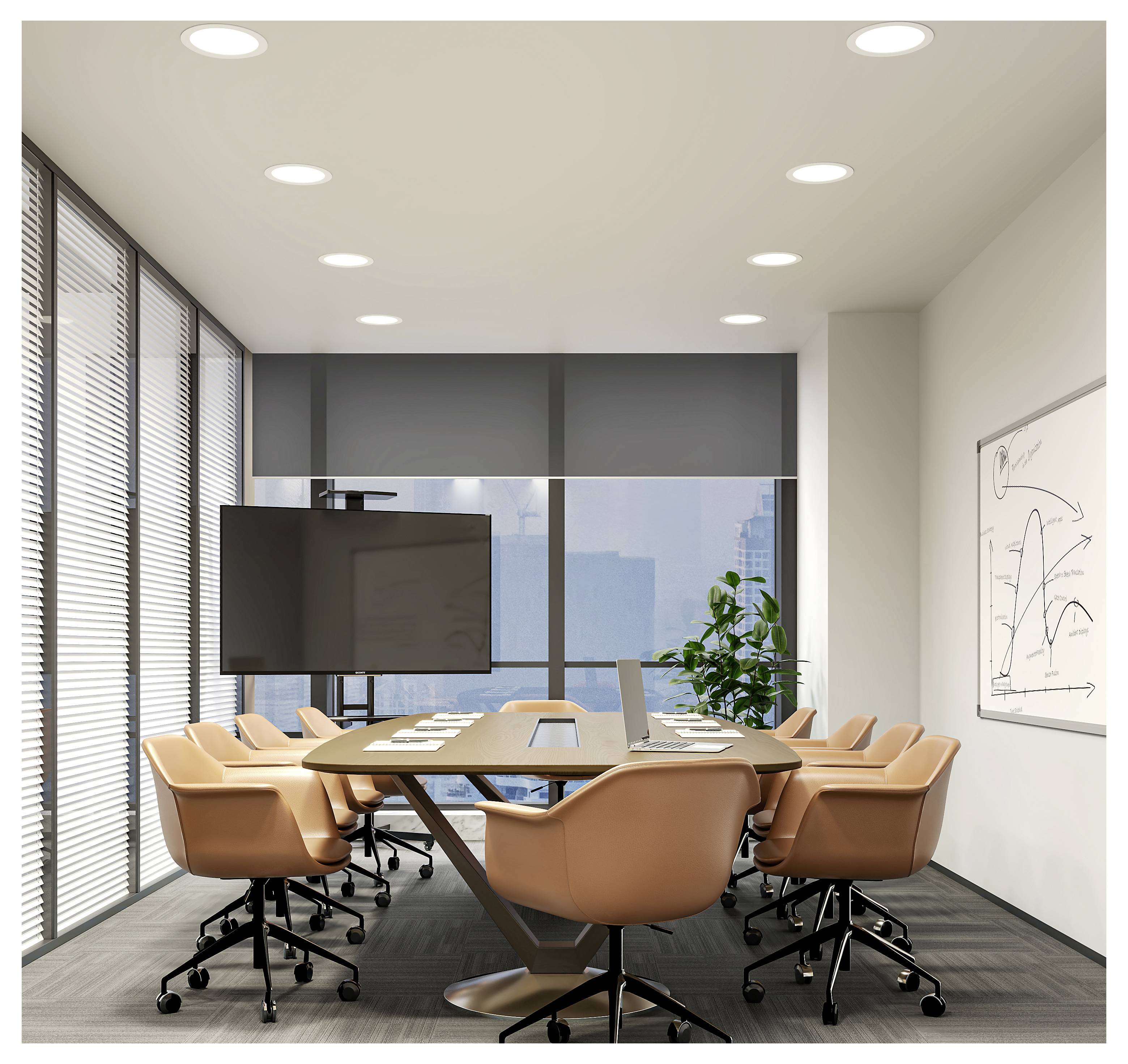

The LED downlight ANIK ROUND is a high quality light solution for a wide range of applications such as reception areas, offices, conference rooms, shops, retail areas, Hotels, restaurants, bathrooms and toilets. It impresses through a uniform, wide-spread light distribution with an angle of radiation of 120° and a very high color reproduction (Ra ≥ 90). Thanks to the protection class IP44 on the bottom in the installed state, it is also suitable for moist surroundings. The lamp can be combined with external power supplies and thus can be dimmed. The ANIK ROUND series covers a wide power spectrum from 9 W to 30 W and is available in 2700 K, 3000 K and 4000 K color temperatures. With its flat design (19–22 mm height) and various diameters (144–398 mm), it is suitable for both new buildings and renovation projects.
