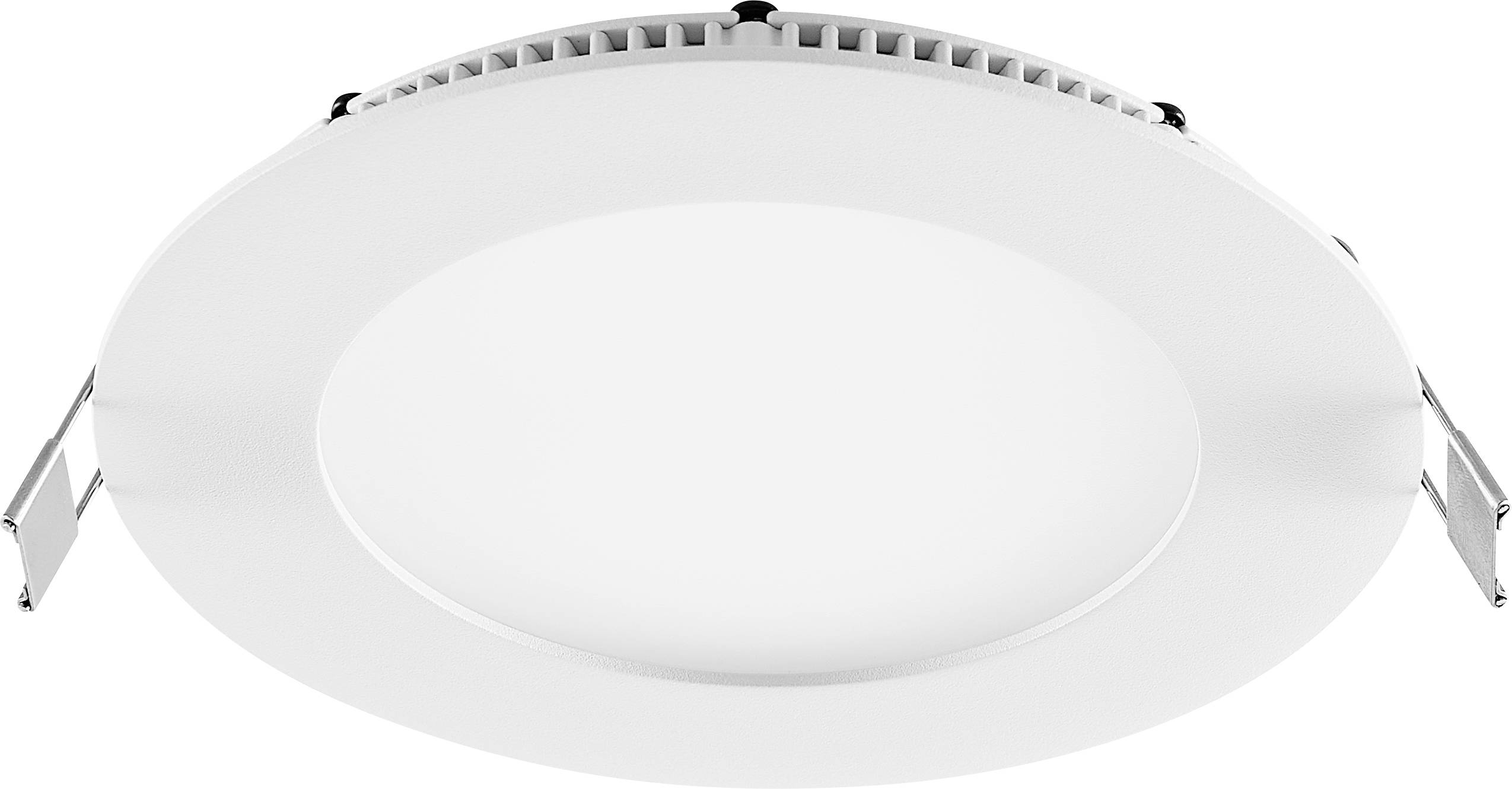

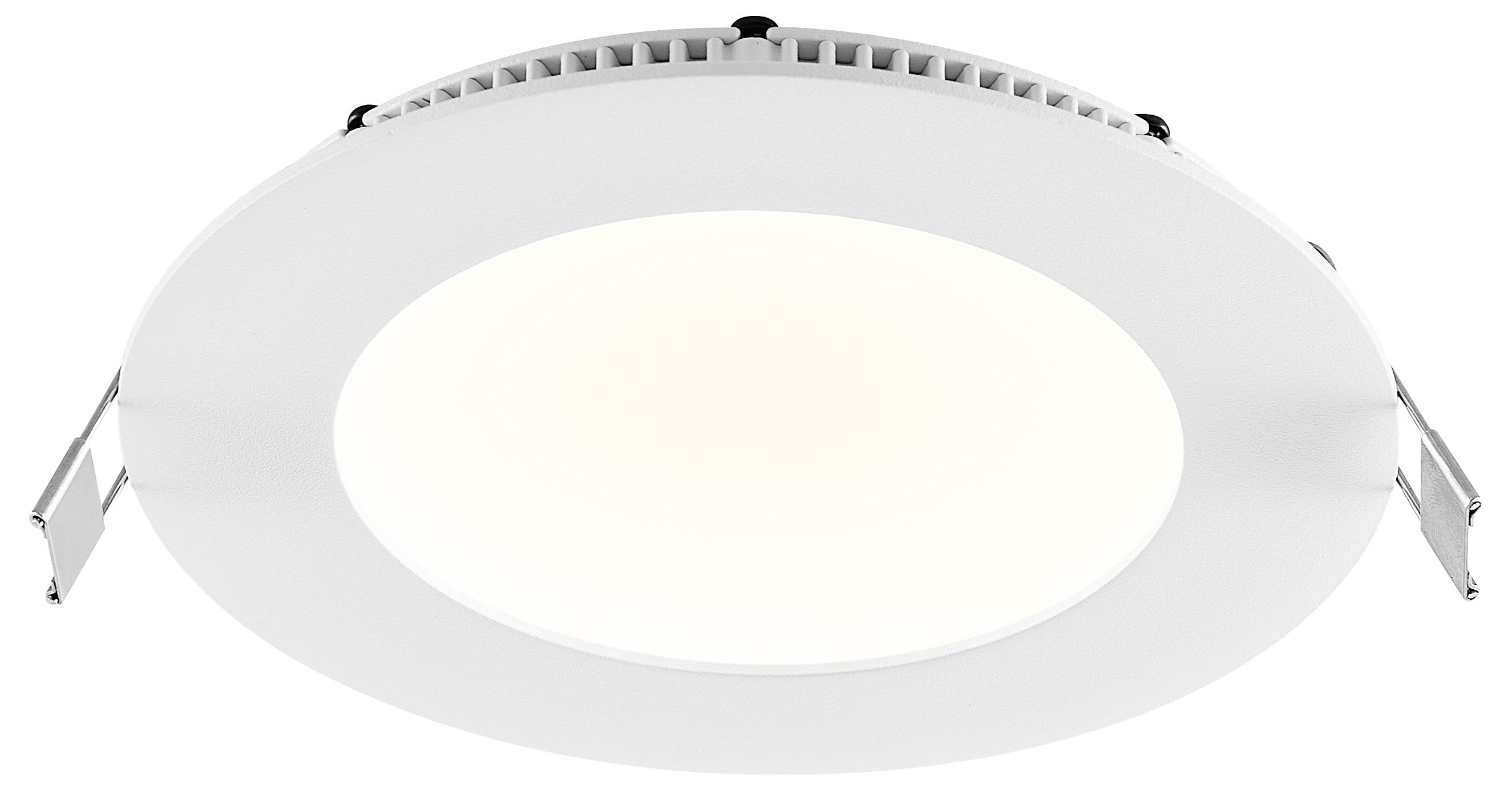

Deko Light 565426 Downlight - Anik Round 130 Flush mount light LED (monochrome) 12 W Traffic white (RAL 9016)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Deco Light Downlight - ANIK Round 130, 12 W, DIM, RGB/3000 K, white
- Power= 12 W Total luminous flux= 780 lm Colour temperature= 3000 K RGB, Warm white
Technical specifications
- Output: 3000K = 600 lm / 6.0 W, R = 30 lm / 2.0W, G = 120 lm / 2.0W, B = 30 lm / 2.0W
- Operating mode: Voltage constant
- Colour consistency 3 SDCM
- Switching cycles 100000
- UGR 19
- Colour reproduction (Ra): 90
- Product type
Flush mount light
- Operating voltage
24 V DC
- Bulb type
LED (monochrome)
12 W
- Total luminous flux
780 lm
3000 K
- Colour
RGB
Warm white
- Energy consumption
12 kWh/1000h
- Type
Circular
- Radiation angle
120°
- Light features
Dimmable
- Recess diameter
132 mm
- Recess depth
16.5 mm
IP44
IP20
IK05
- Protection class
III
- Factory colour
Traffic white (RAL 9016)
- Material
PMMA
Steel
Aluminium
- Weight
210 g
n.rel.
- Dim
(Ø x H) 144 mm x 19 mm
Yes
- Light bulb included
Yes
- Colour temperature range
3000 K
- Height
19 mm
- (Ø)
144 mm
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3766316 Deko Light 565426 Downlight - Anik Round 130 Flush mount light LED (monochrome) 12 W Traffic white (RAL 9016)
User & Safety Instructions
User & Safety Instructions 3766316 Deko Light 565426 Downlight - Anik Round 130 Flush mount light LED (monochrome) 12 W Traffic white (RAL 9016)
Warranty Terms
Warranty Terms 3766316 Deko Light 565426 Downlight - Anik Round 130 Flush mount light LED (monochrome) 12 W Traffic white (RAL 9016)
Description

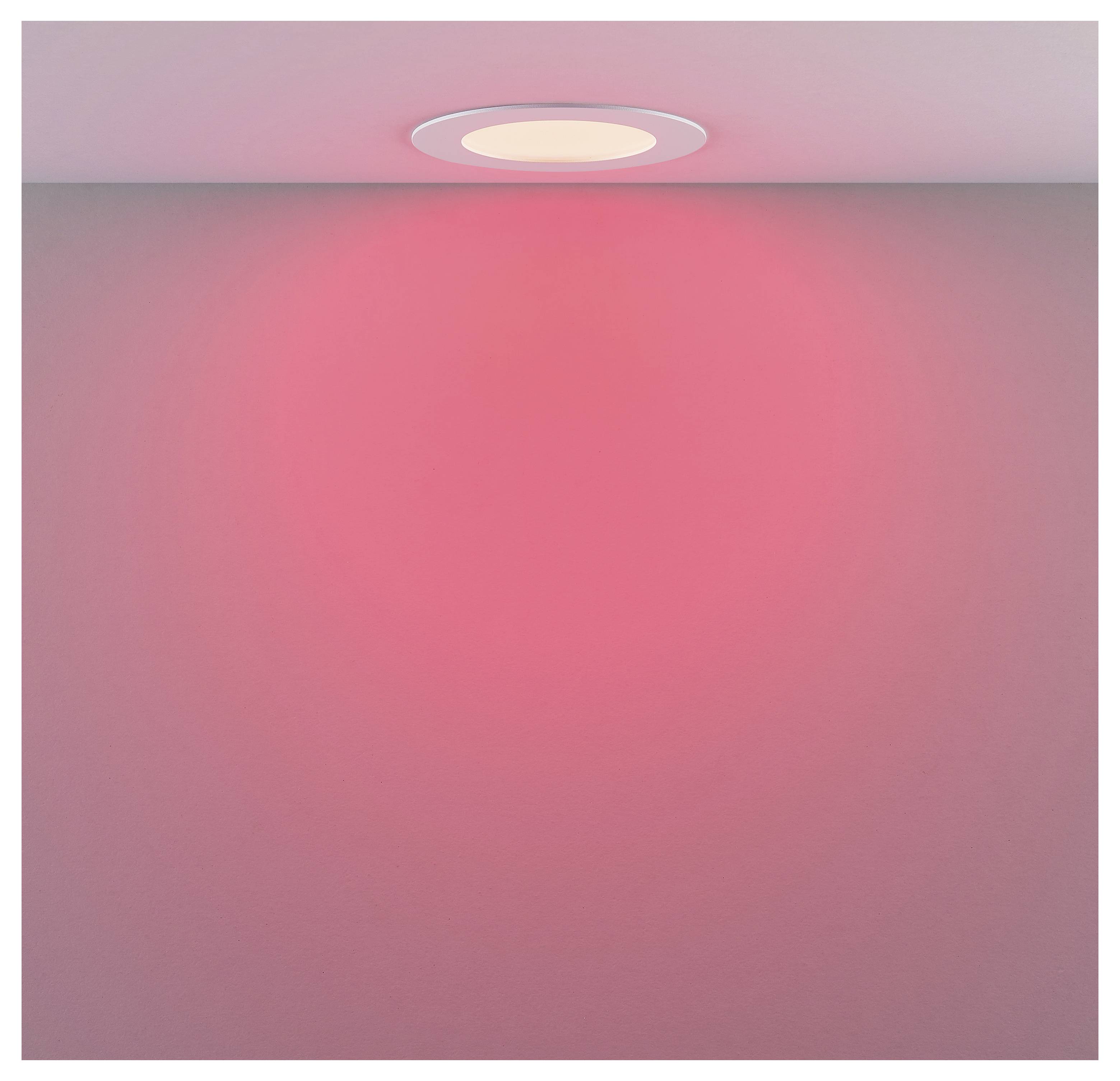

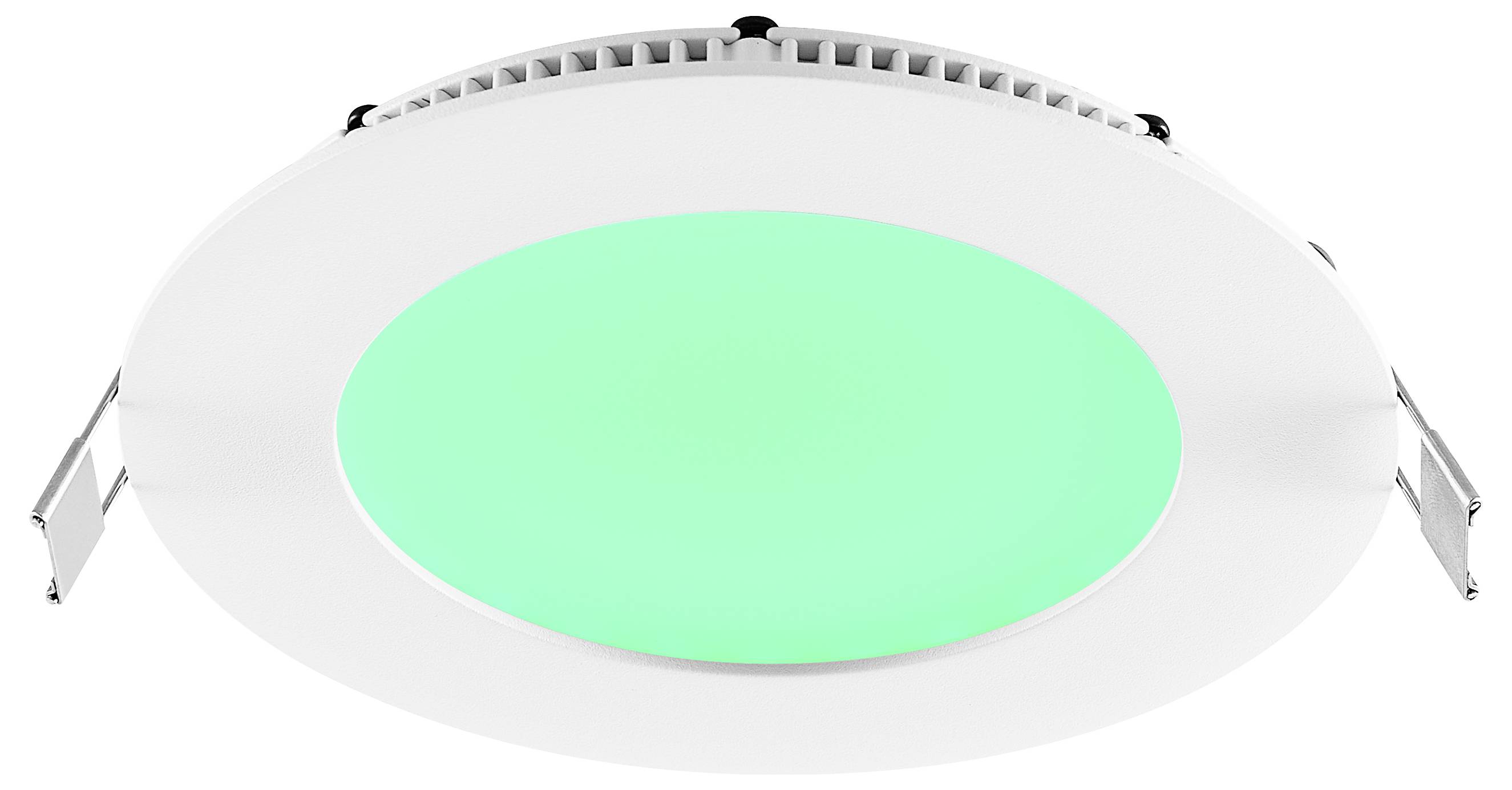

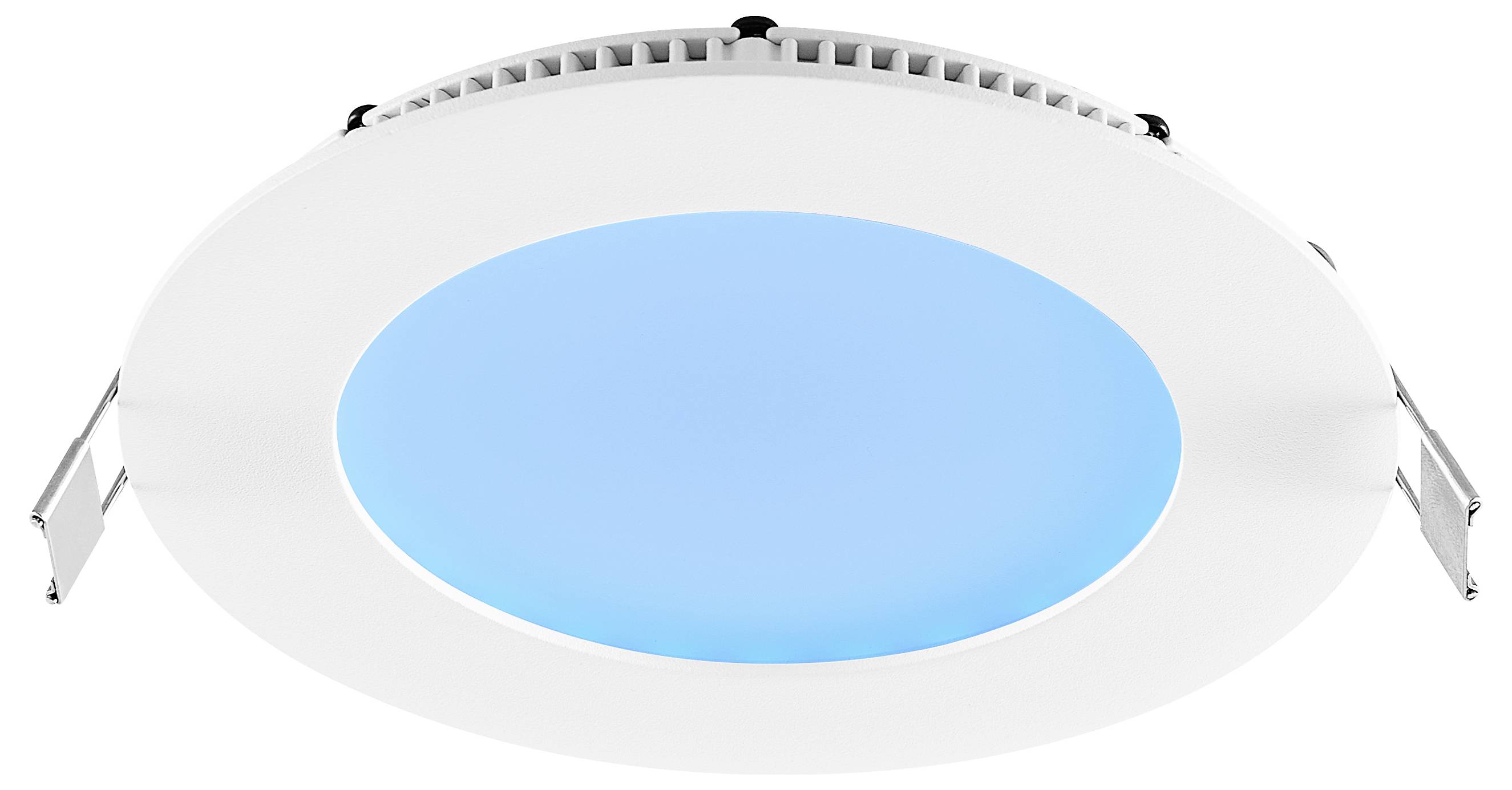

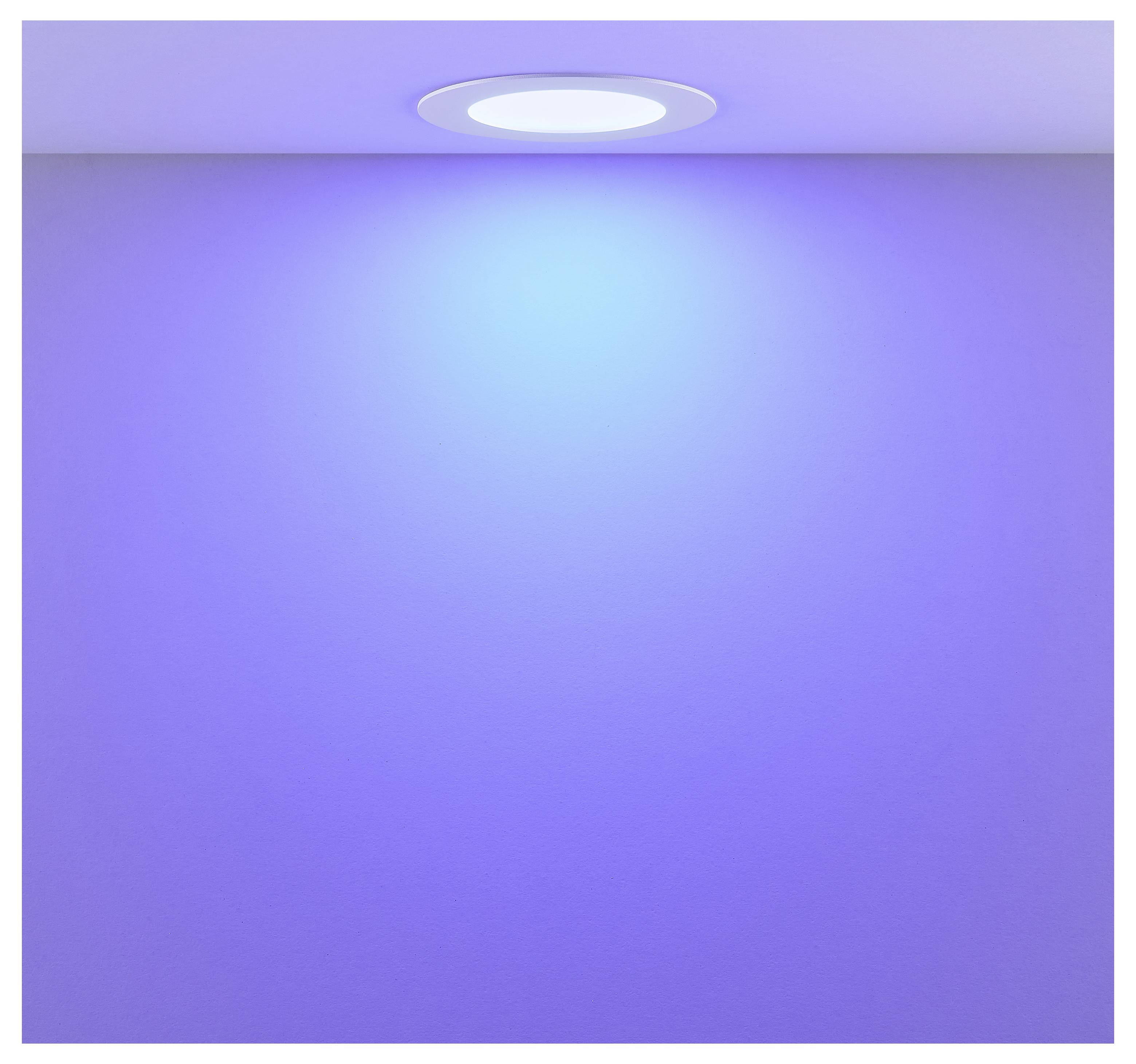

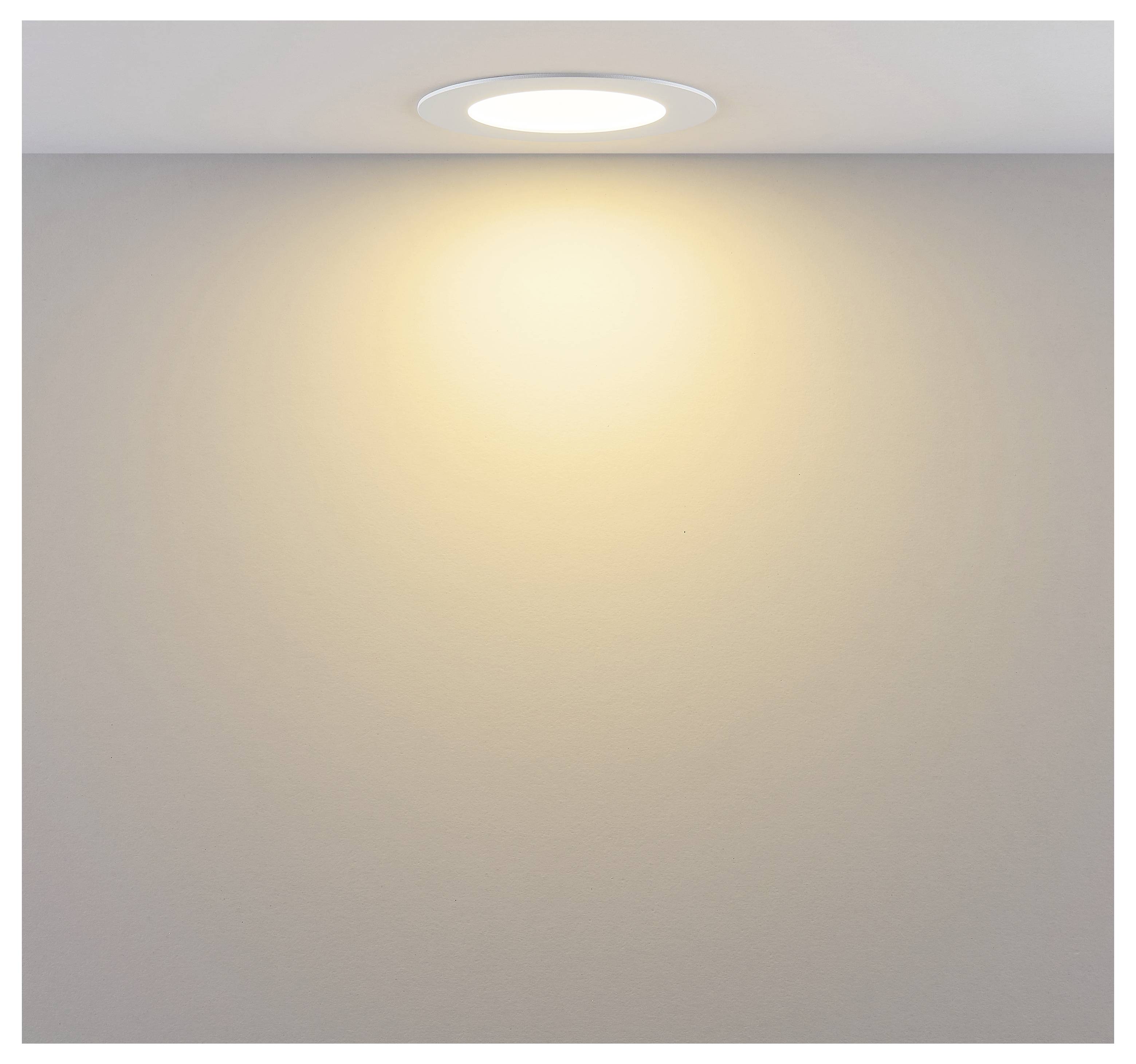

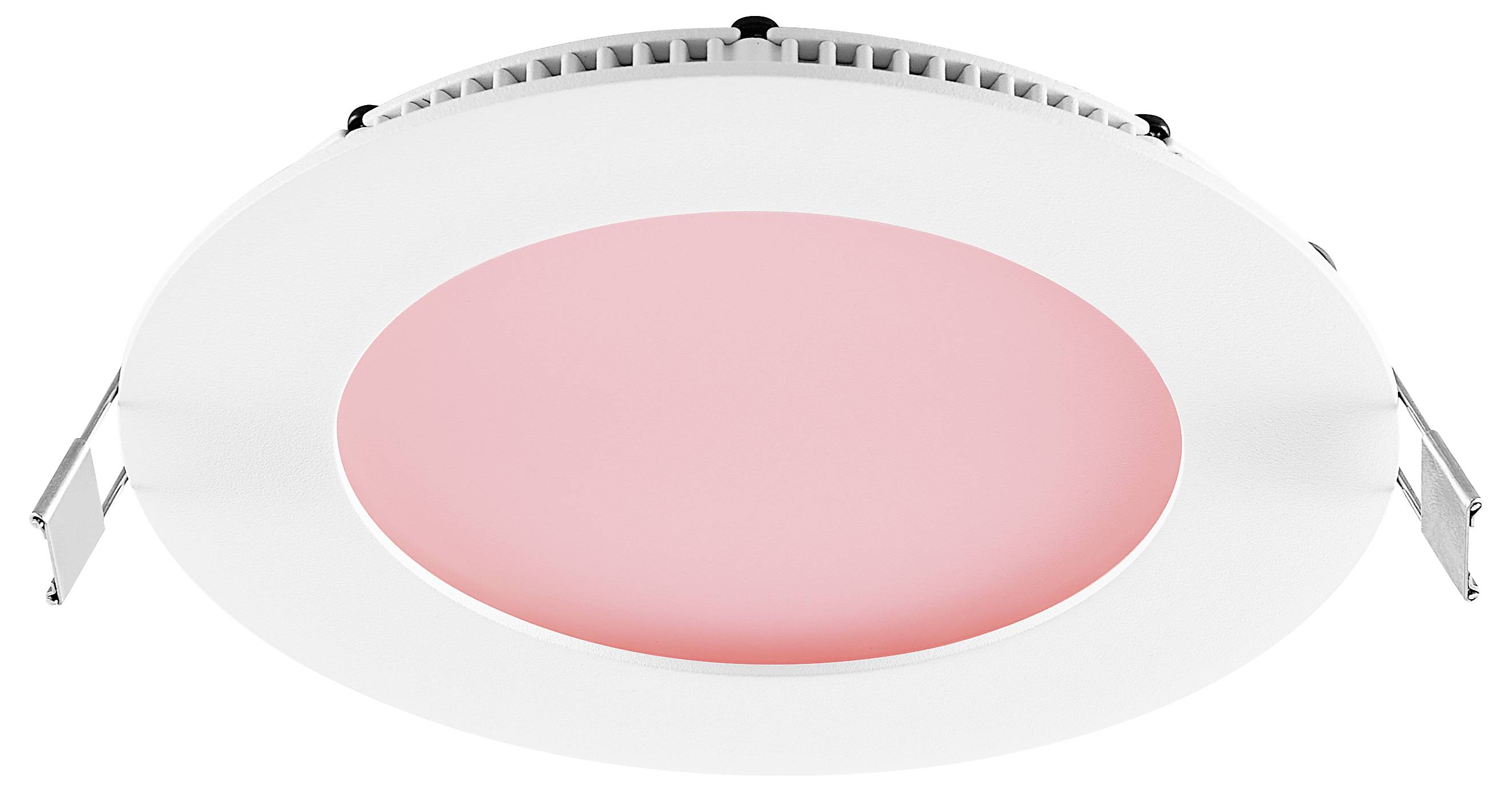

The LED Downlight ANIK ROUND RGBW is a high quality lighting solution for a wide range of applications, such as reception areas, offices, conference rooms, shops, retail outlets Hotels, restaurants, bathrooms and toilets. It impresses through a uniform, wide-spread light distribution with an angle of radiation of 120° and a very high color reproduction (Ra ≥ 90). Thanks to the protection class IP44 on the bottom in the installed state, it is also suitable for moist surroundings. The lamp can be combined with external power supplies and thus can be dimmed. The ANIK ROUND RGBW series covers a wide range of services from 9 W to 30 W. The light color can be set individually via an optional controller. With its flat design (19–22 mm height) and various diameters (144–398 mm), it is suitable for both new buildings and renovation projects.
