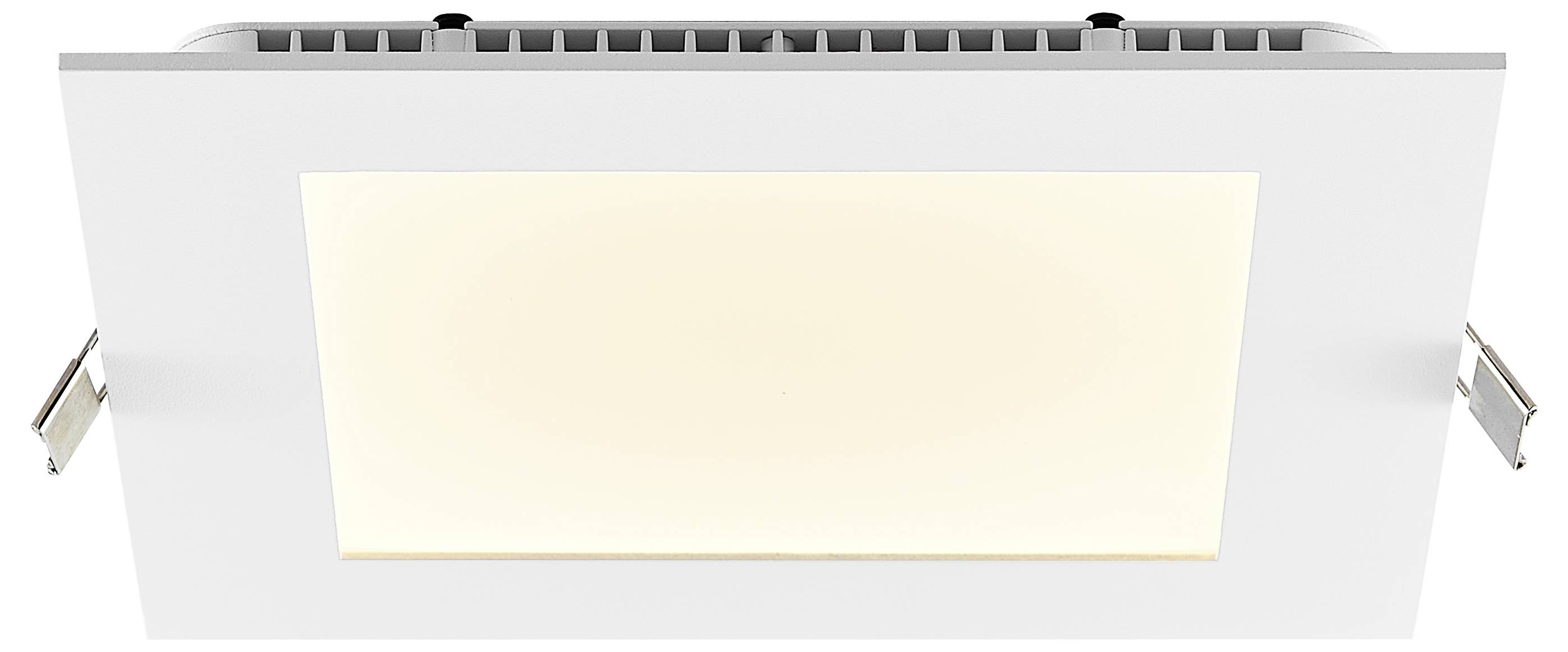

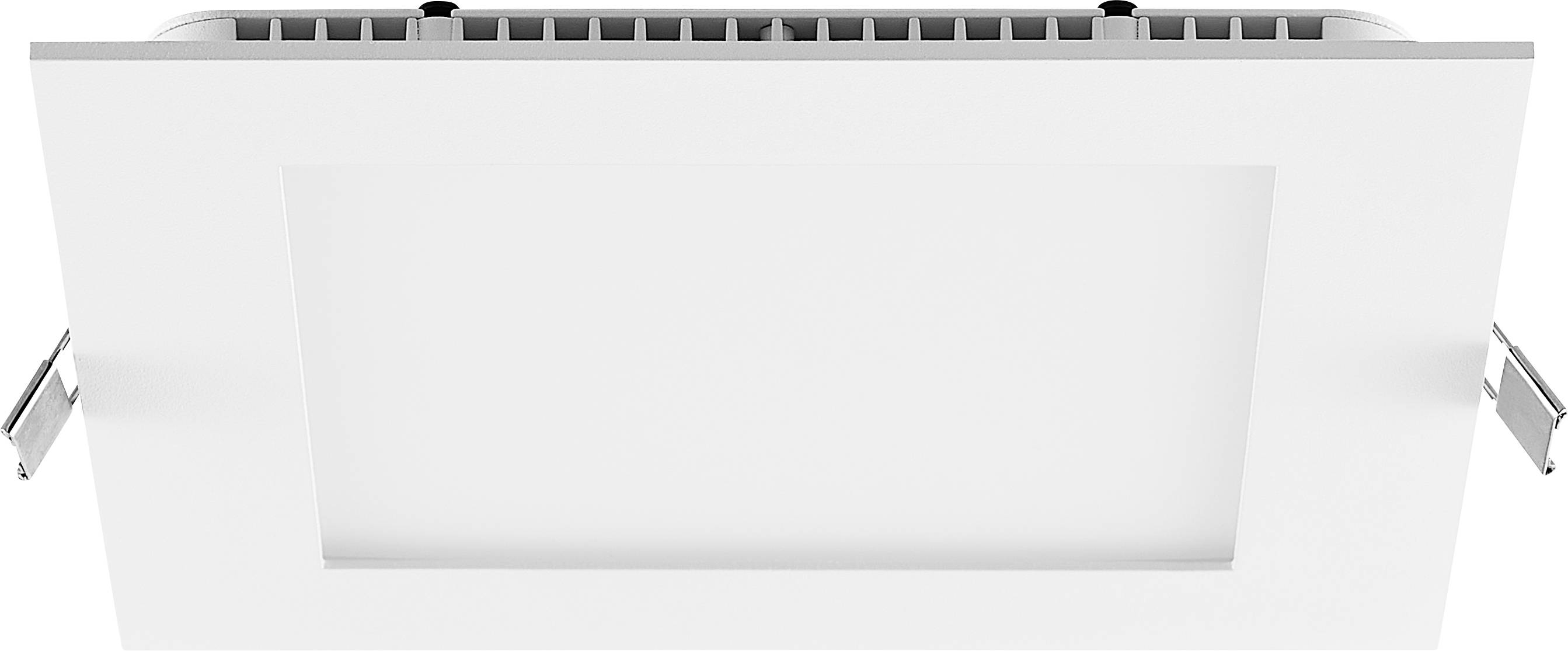

Deko Light 565433 Downlight - Anik Square 155 Flush mount light LED (monochrome) 17 W Traffic white (RAL 9016)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Deco Light Downlight - Antique Square 155, 17 W, DIM, 2700 K, white
- Power= 17 W Total luminous flux= 2060 lm Colour temperature= 2700 K Warm white
Technical specifications
- Operating mode: Current constant
- Colour consistency 3 SDCM
- Switching cycles 100000
- Rated current 500 mA
- Input voltage 32-37 V/DC
- UGR 19
- Product type
Flush mount light
- Operating voltage
37 V DC
- Bulb type
LED (monochrome)
17 W
- Total luminous flux
2060 lm
2700 K
- Colour
Warm white
- Energy consumption
17 kWh/1000h
- Type
Rectangular
- Radiation angle
120°
- Light features
Dimmable
- Recess length
158 mm
- Recess width
158 mm
- Recess depth
18 mm
IP44
IP20
IK05
- Protection class
III
- Factory colour
Traffic white (RAL 9016)
- Material
PMMA
Steel
Aluminium
- Weight
355 g
n.rel.
- Dim
(L x W x H) 180 x 180 x 21 mm
Yes
- Light bulb included
Yes
- Colour temperature range
2700 K
- Width
180 mm
- Height
21 mm
- Length
180 mm
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3766323 Deko Light 565433 Downlight - Anik Square 155 Flush mount light LED (monochrome) 17 W Traffic white (RAL 9016)
User & Safety Instructions
User & Safety Instructions 3766323 Deko Light 565433 Downlight - Anik Square 155 Flush mount light LED (monochrome) 17 W Traffic white (RAL 9016)
Warranty Terms
Warranty Terms 3766323 Deko Light 565433 Downlight - Anik Square 155 Flush mount light LED (monochrome) 17 W Traffic white (RAL 9016)
Description

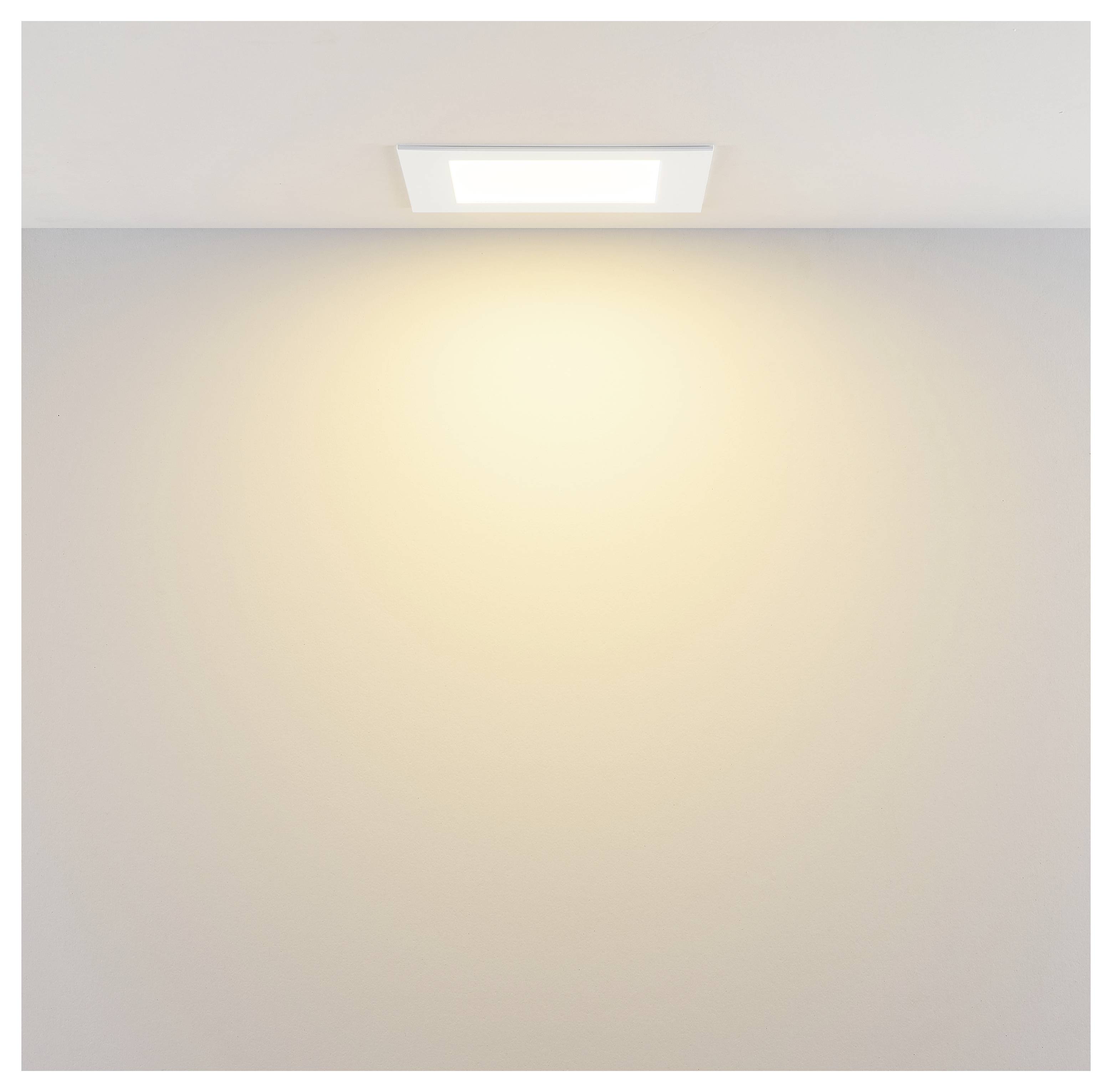

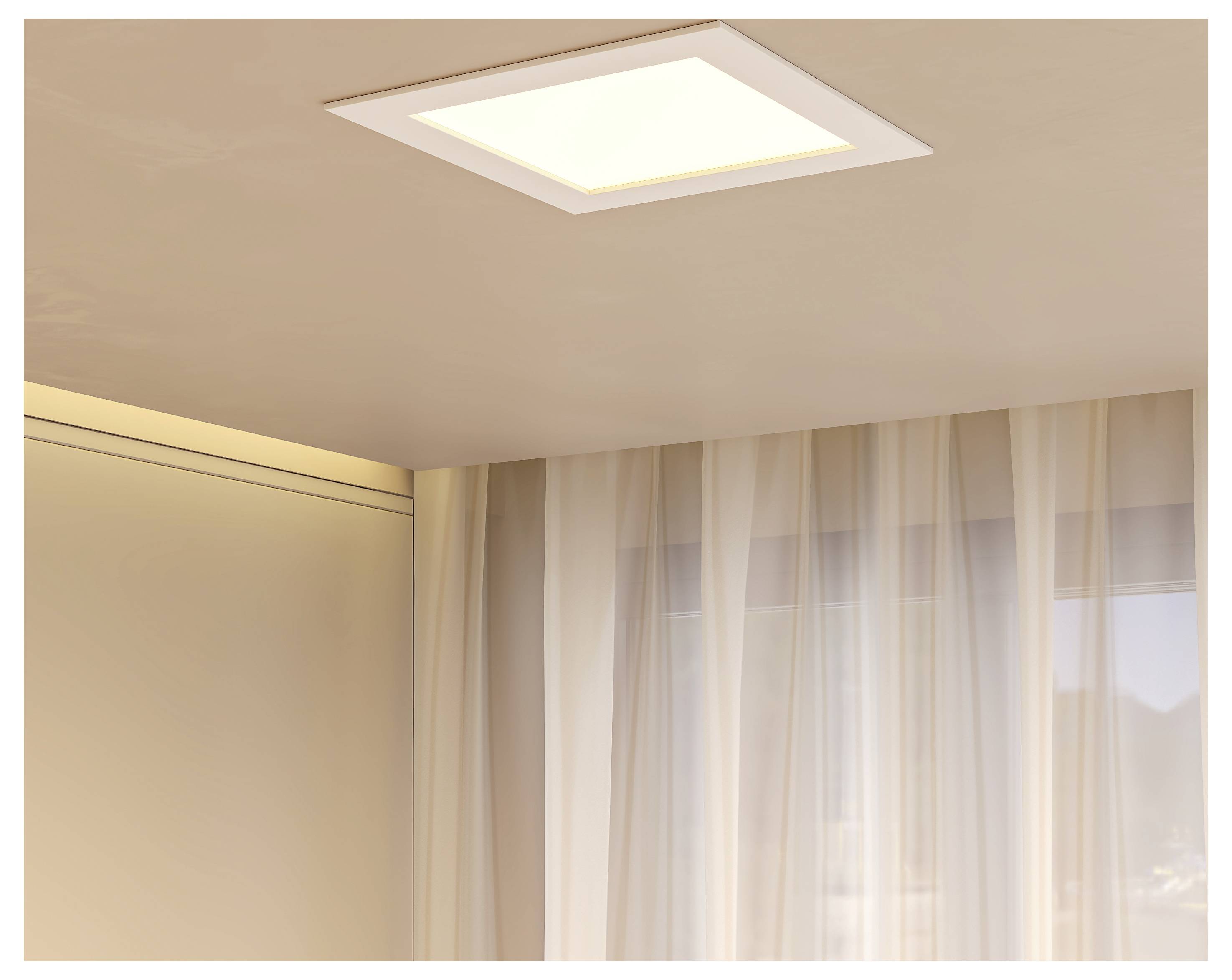

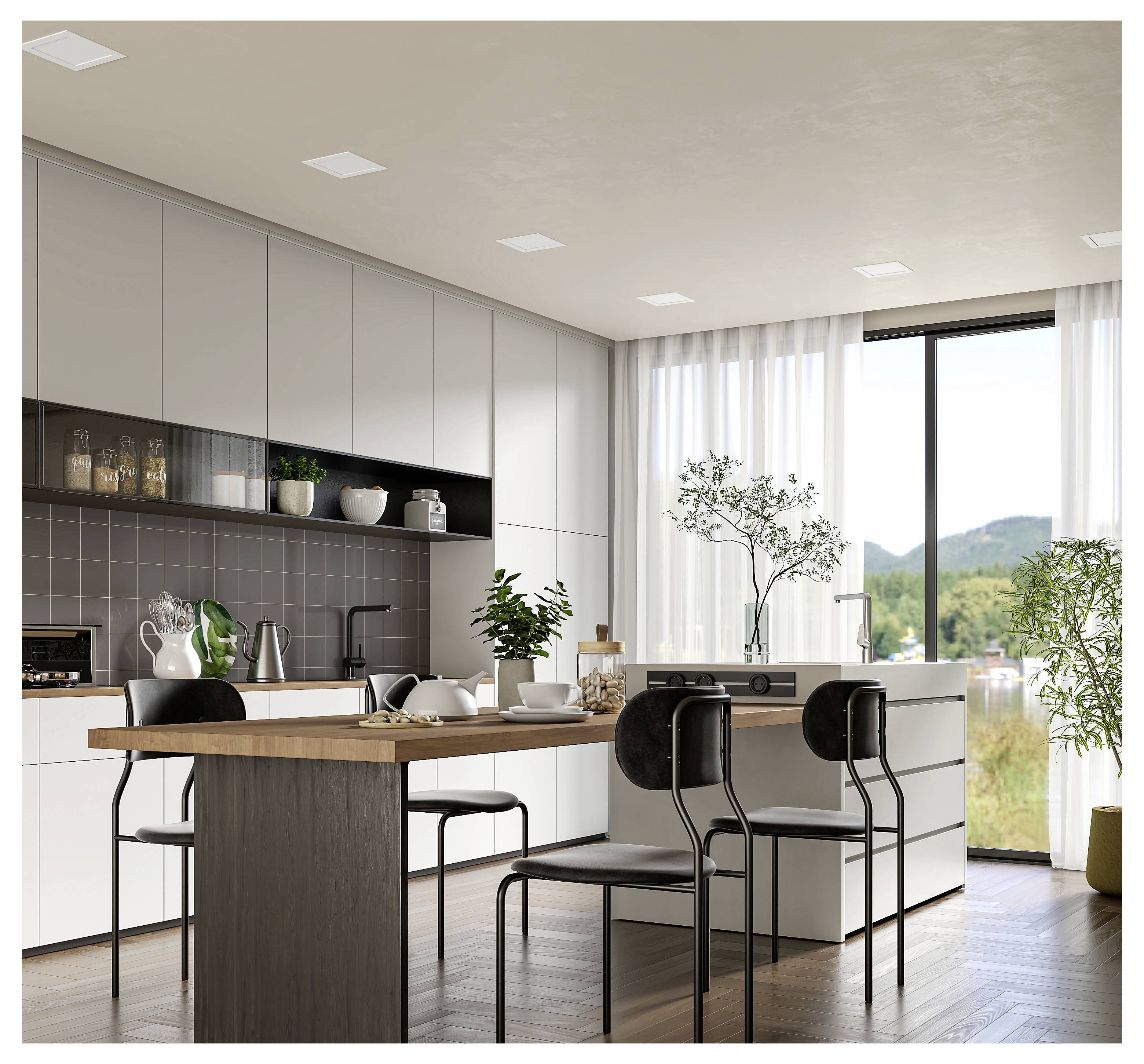

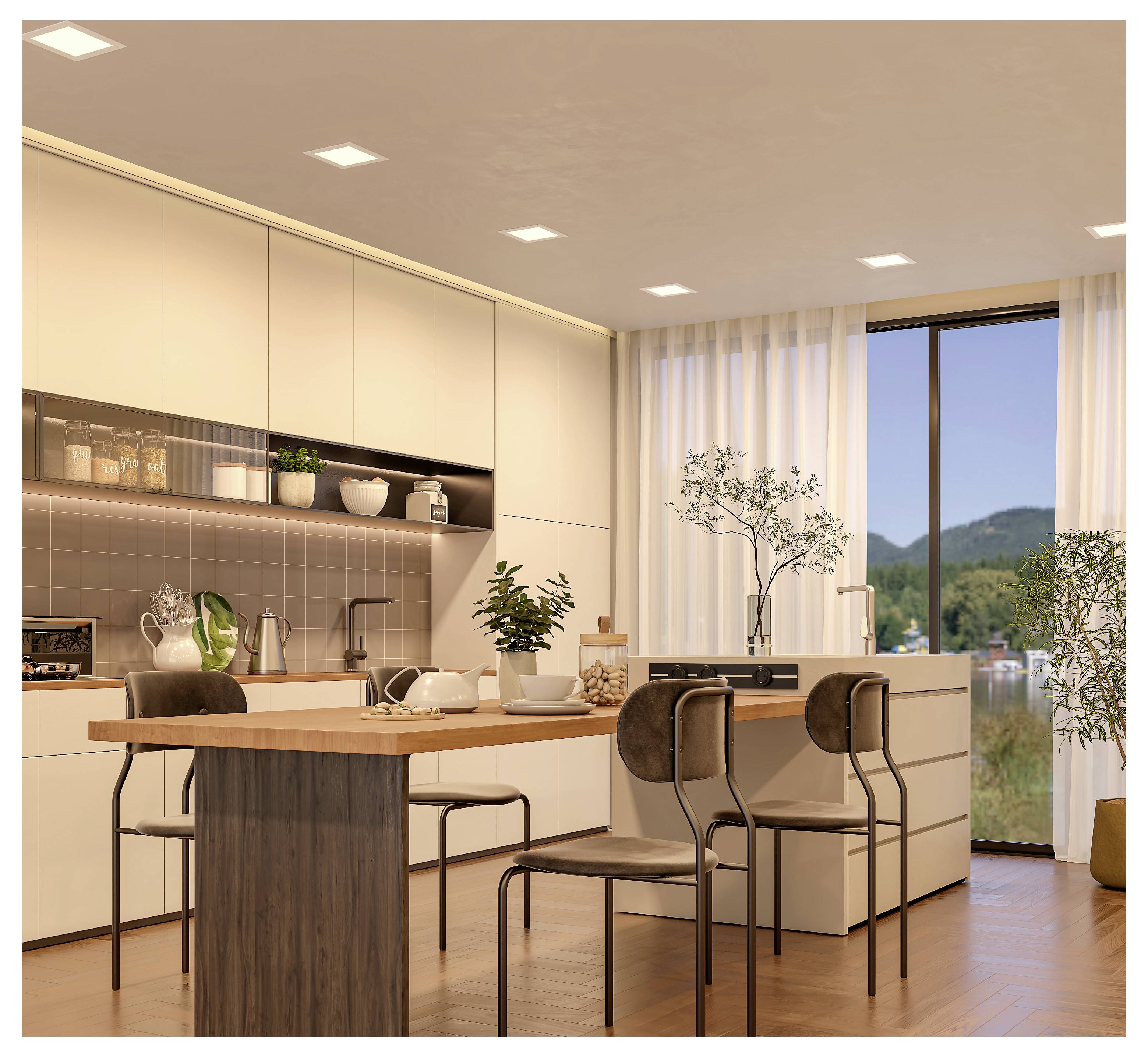

The LED downlight ANIK SQUARE is a high quality light solution for a wide range of applications such as reception areas, offices, conference rooms, shops, retail areas, Hotels, restaurants, bathrooms and toilets. It impresses through a uniform, wide-spread light distribution with an angle of radiation of 120° and a very high color reproduction (Ra ≥ 90). Thanks to the protection class IP44 on the bottom in the installed state, it is also suitable for moist surroundings. The lamp can be combined with external power supplies and thus can be dimmed. The ANIK ROUND series covers a wide power spectrum from 9 W to 30 W and is available in 2700 K, 3000 K and 4000 K color temperatures. With its flat design (19–22 mm height) and various diameters (144–398 mm), it is suitable for both new buildings and renovation projects.
