Name: Deko Light 565747 Downlight - Acrux Pro 82 Flush mount light LED (monochrome) 9 W Traffic white (RAL 9016)
Brand: Deko Light
SKU: 3766344

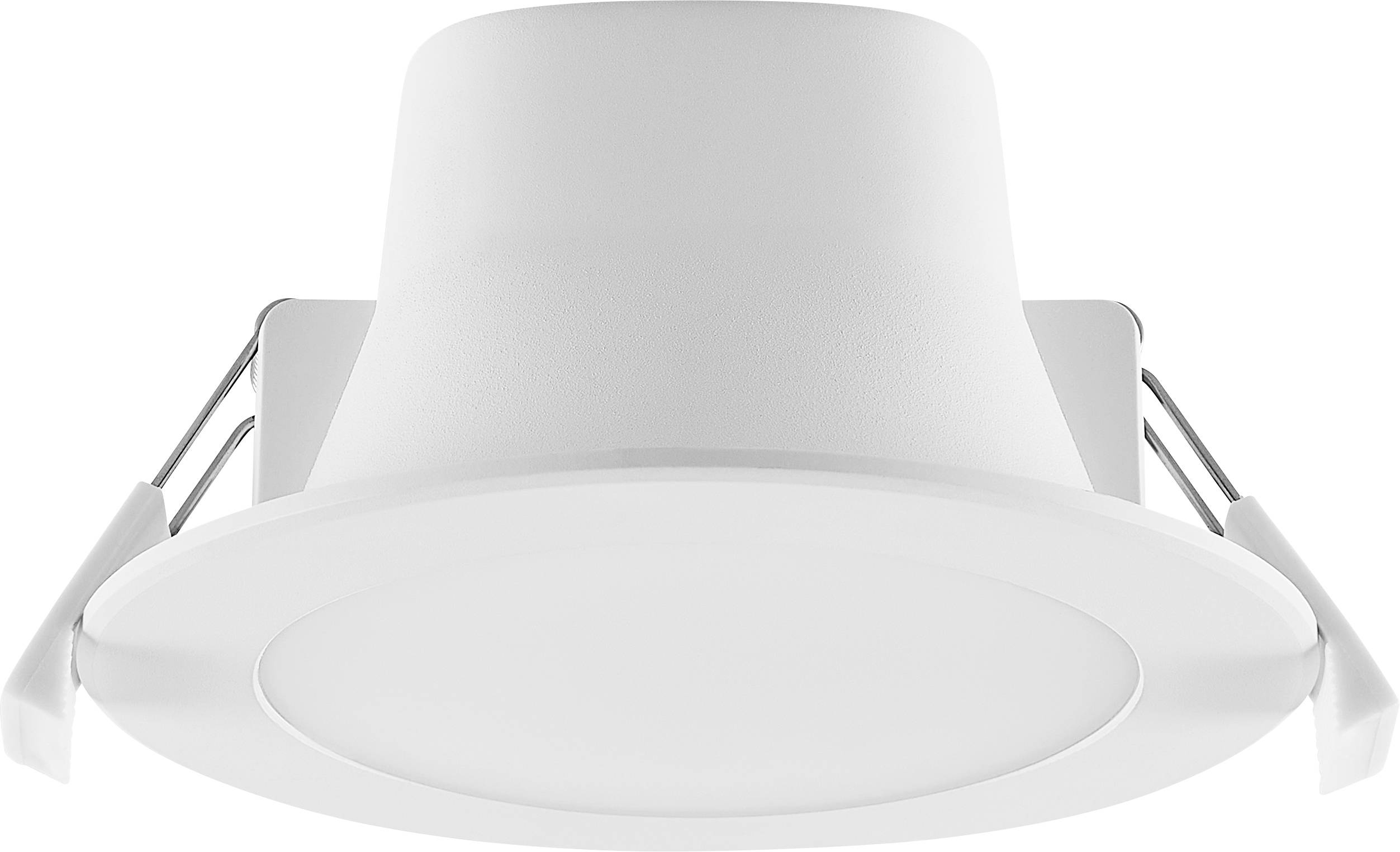

White recessed LED downlight with spring clips, shown from below on a white background.

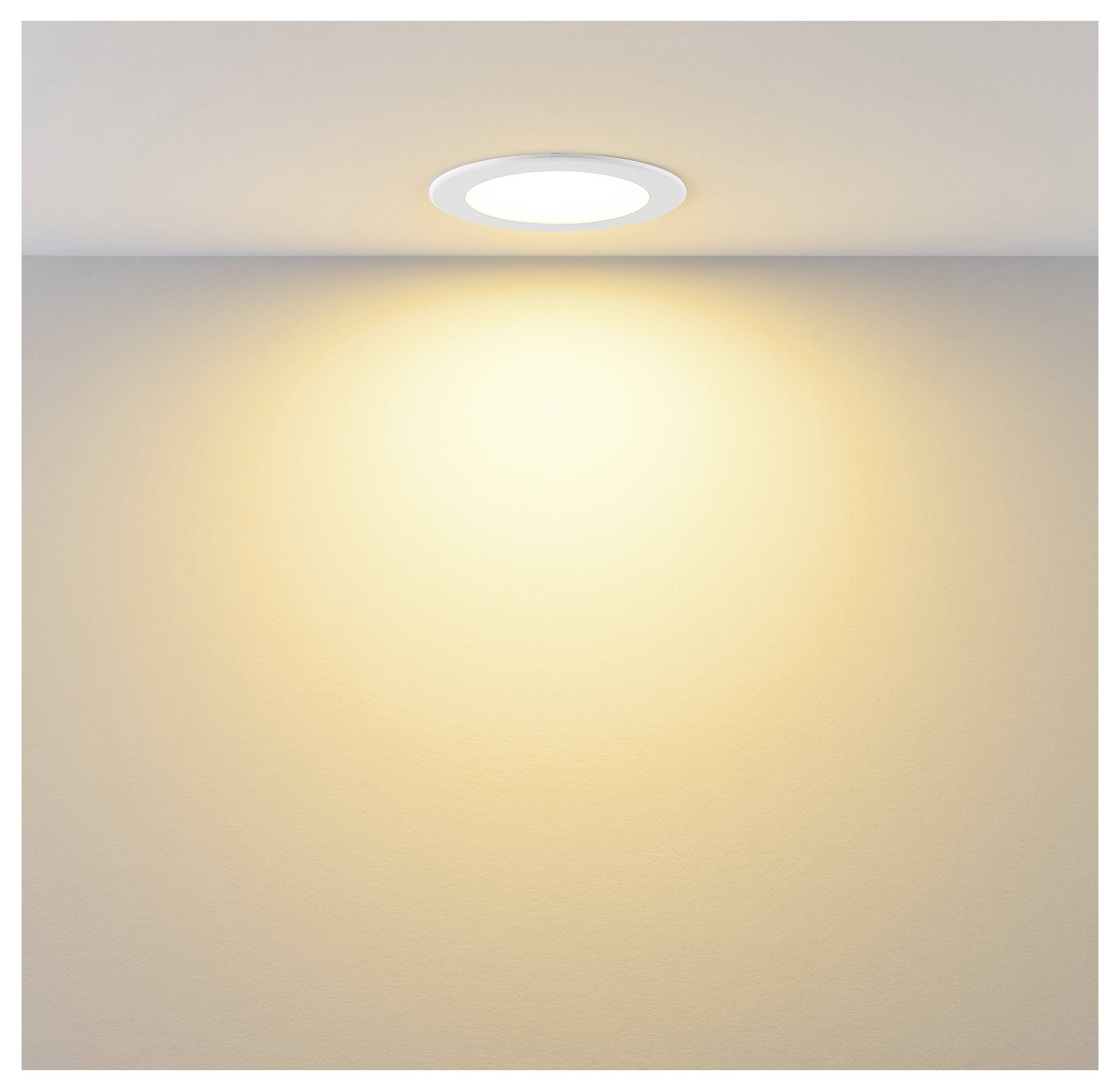

Round recessed ceiling light casting a warm glow on a plain wall and ceiling<br>

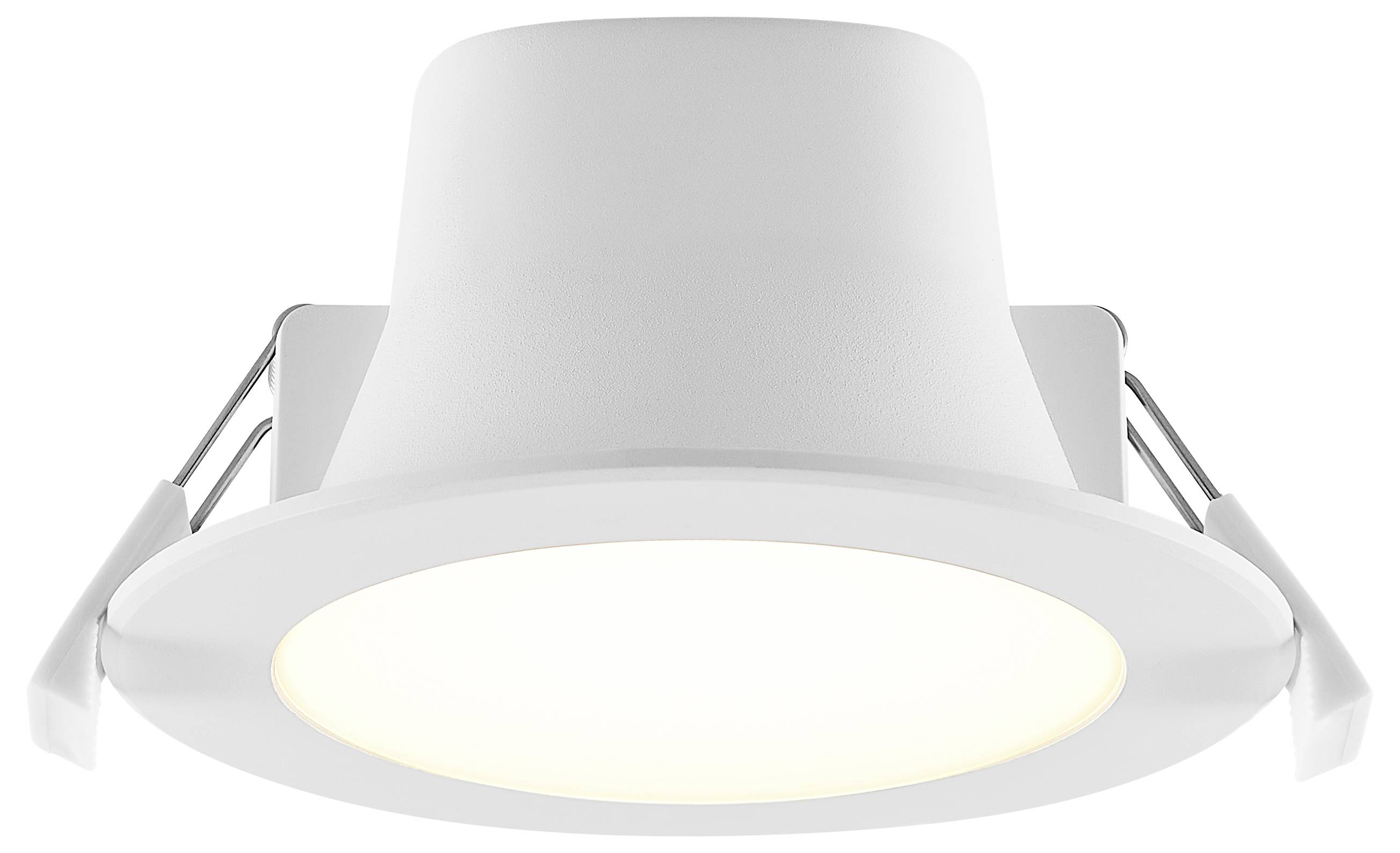

White recessed ceiling downlight with a round glowing LED panel and spring clips for mounting

White round ceiling-mounted smoke detector with side spring clips and test button, shown on a white background.

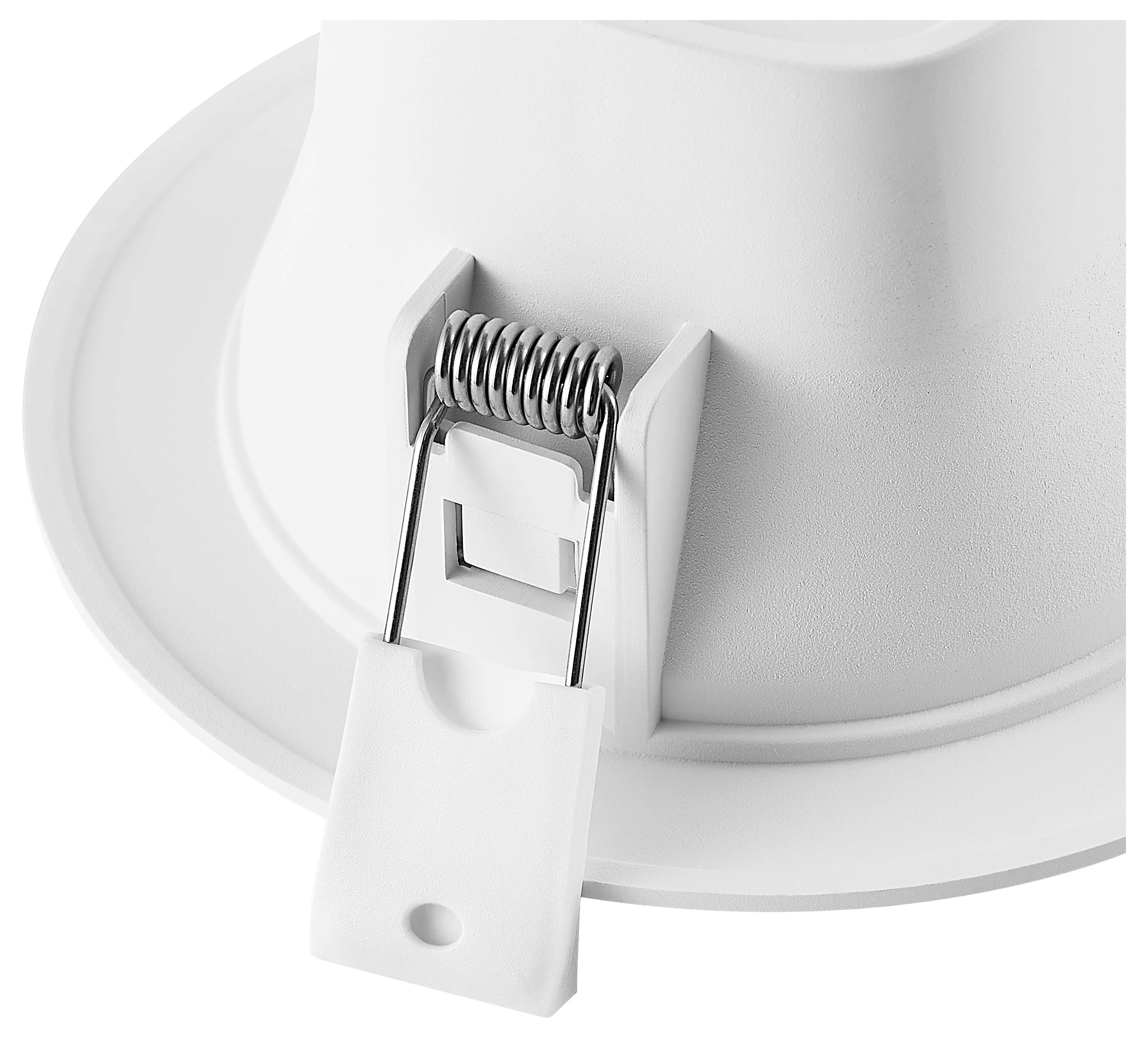

Close-up of a white recessed spring clip or latch mounted in a circular housing, with a hinged cover hanging open.

Close-up of a white wireless mouse underside showing the power switch and DPI selector labeled 2.7K, 3K, and 4K.

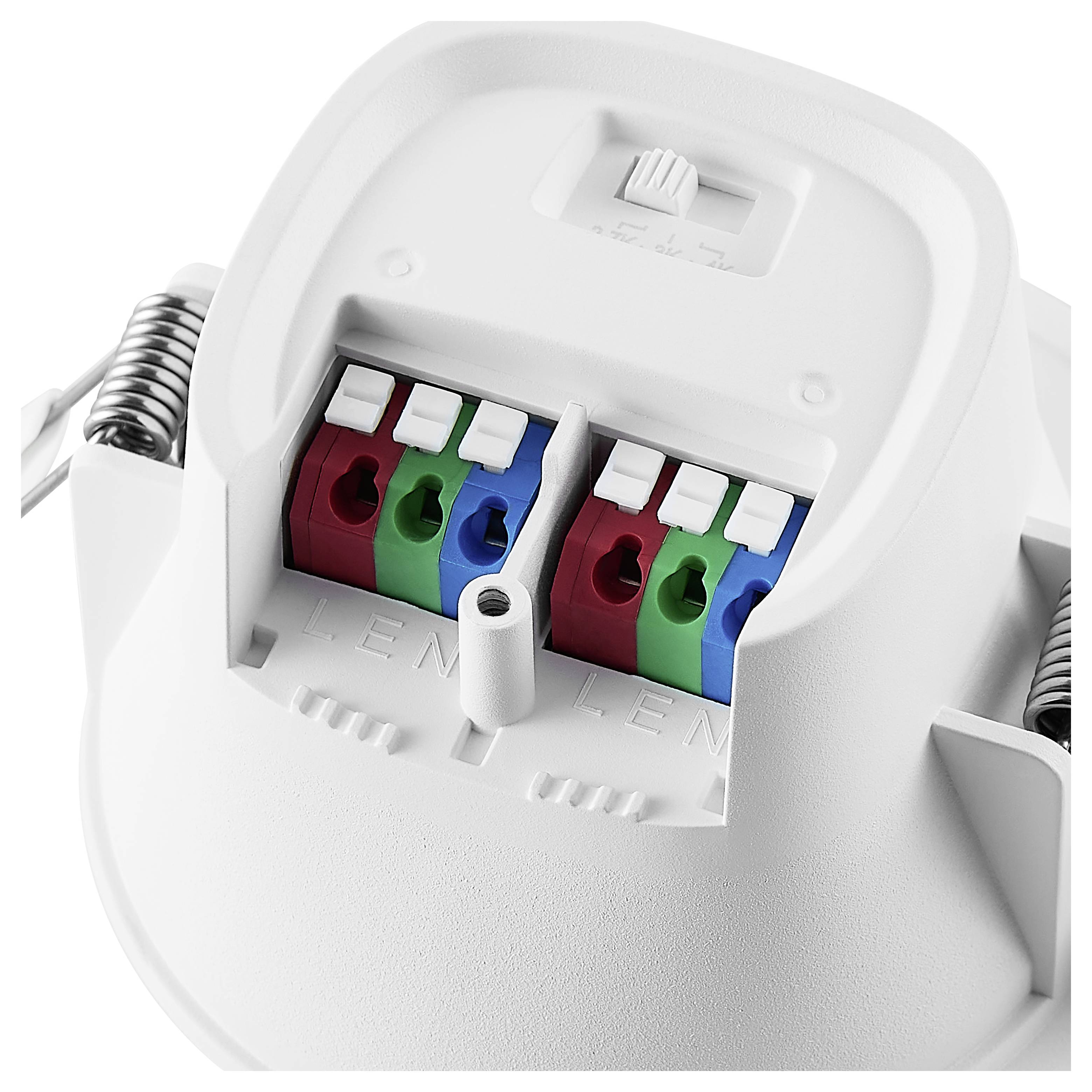

Close-up of a white recessed ceiling light with two spring clips and adjustable multicolor wire terminals for electrical installation.

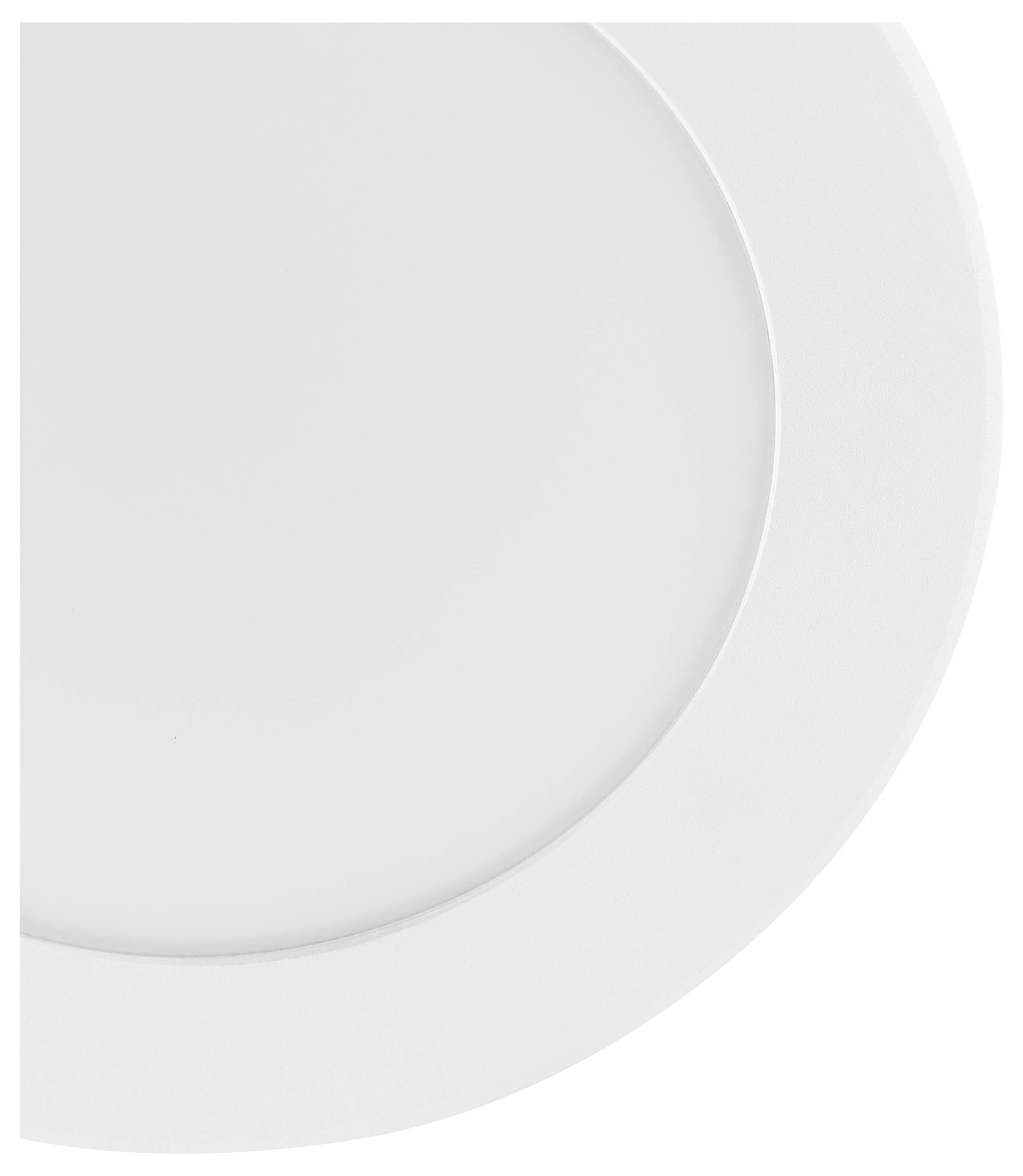

Abstract light gray layered circular shapes on a white background, resembling overlapping plates or rings.<br>

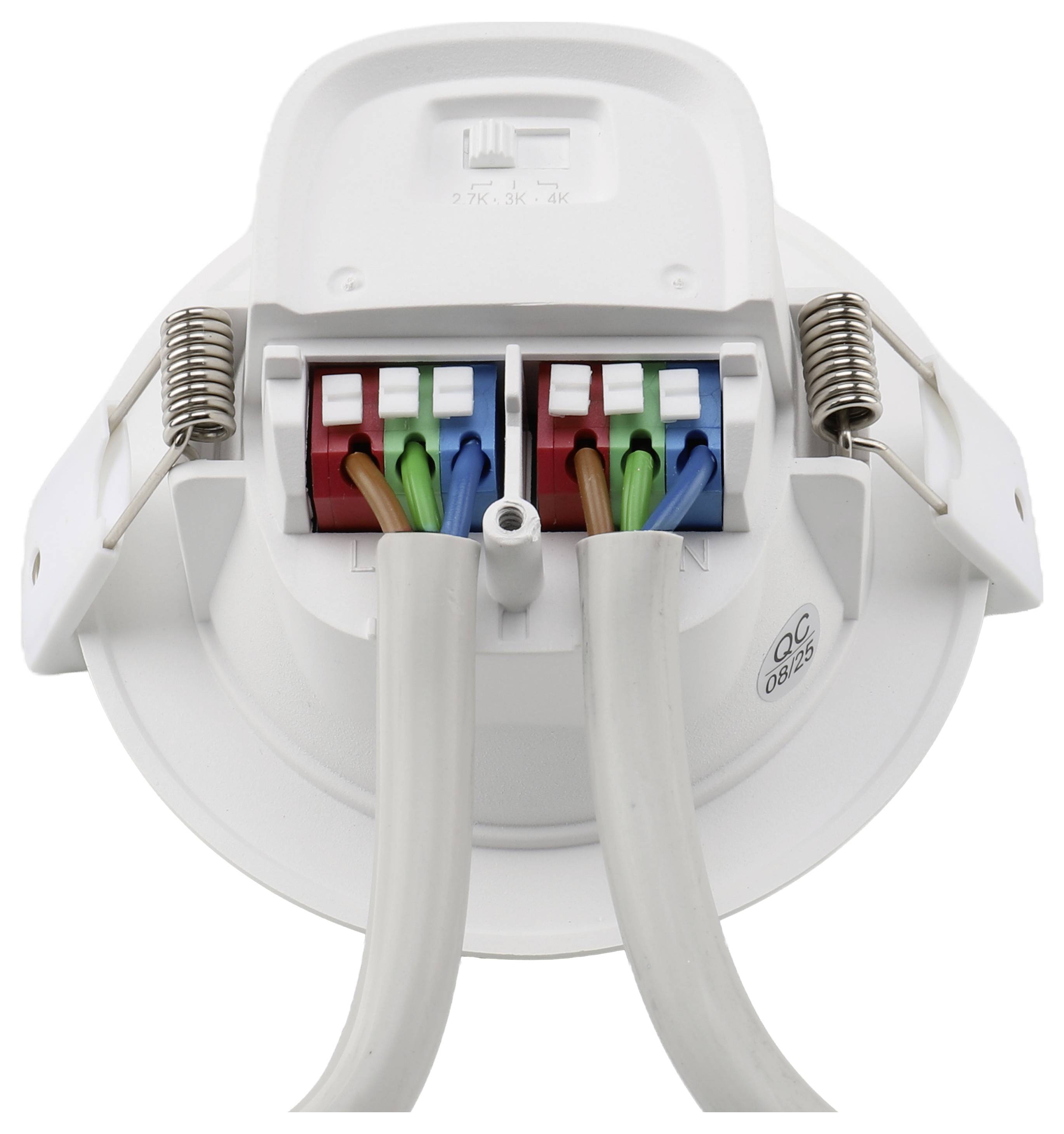

Back view of a recessed ceiling light with two gray cables connected to spring-clamp wiring terminals.

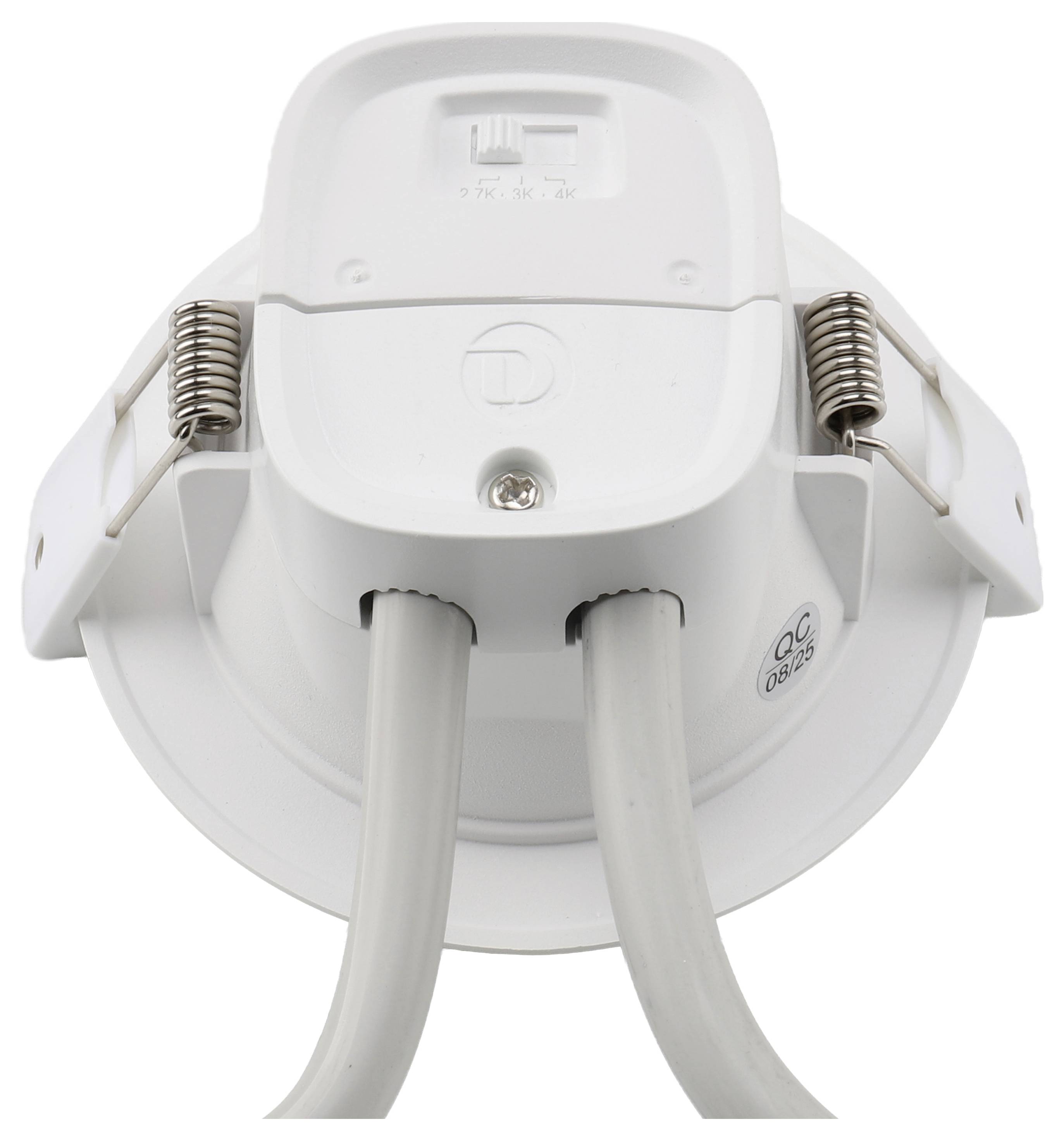

White recessed ceiling light housing with two exposed wires and spring clips, viewed from the back.

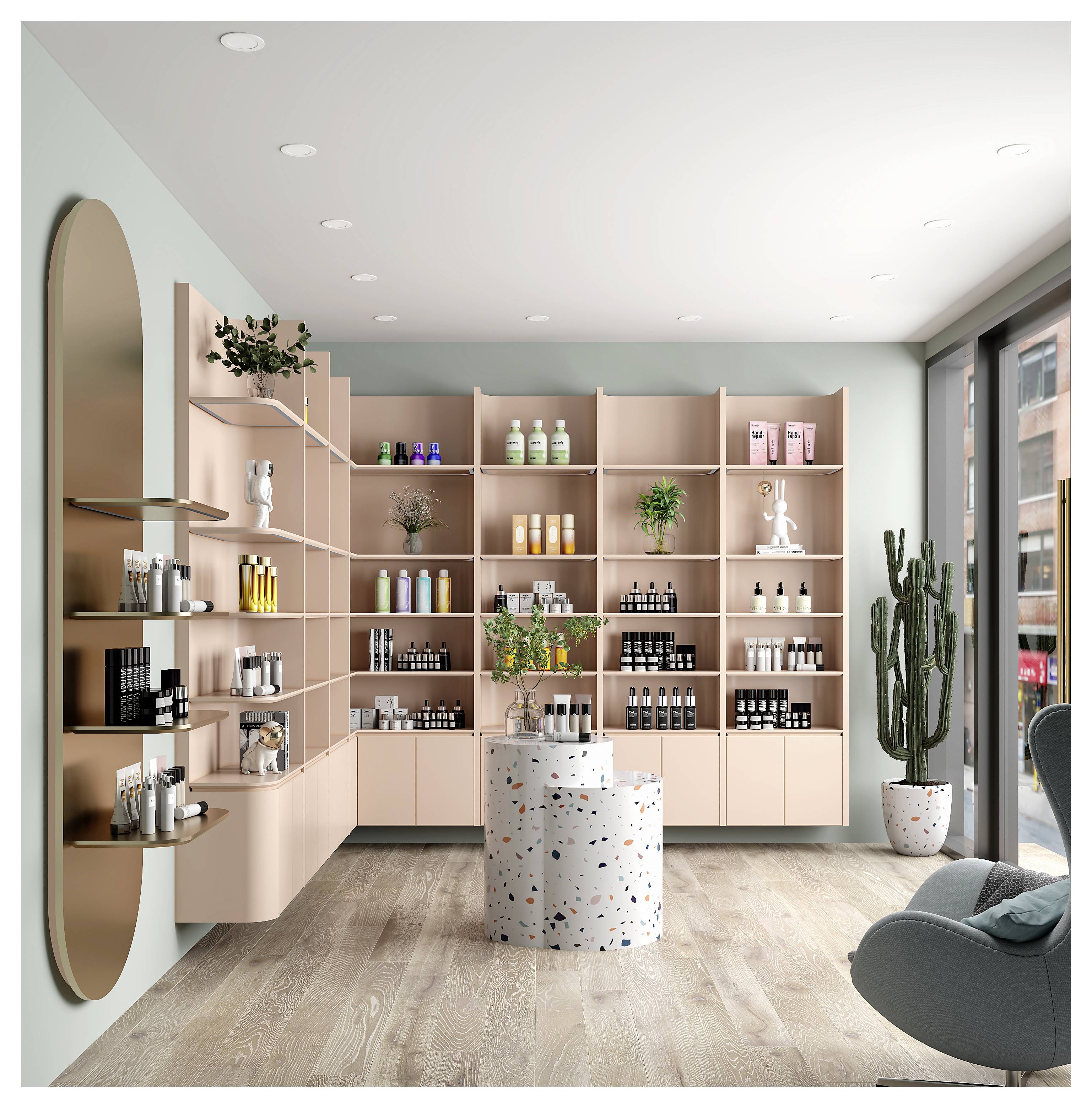

Modern retail display with pastel shelving and products, a terrazzo pedestal table, wall mirror, potted plants, and a large cactus by the window in a bright store interior.<br>

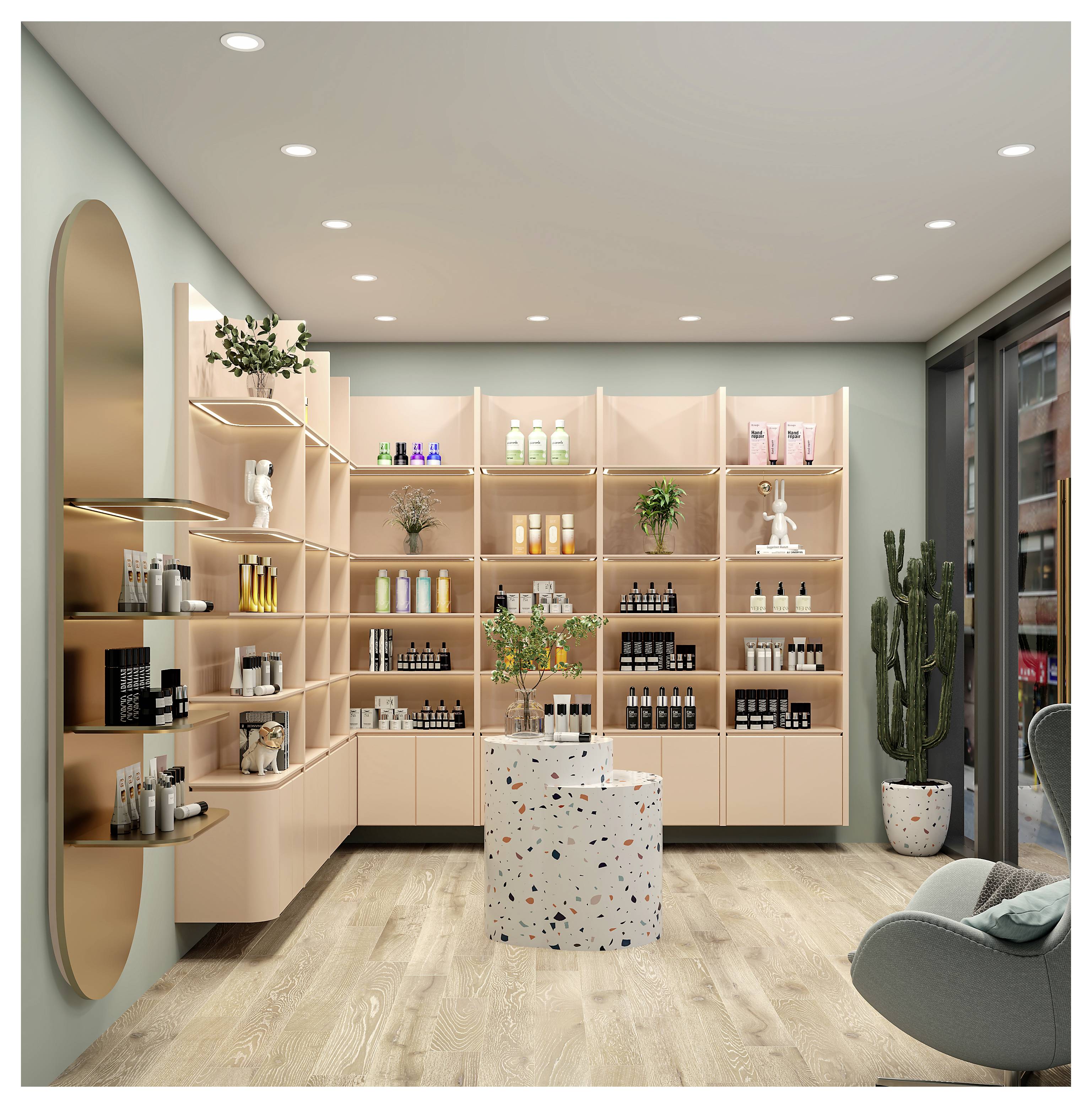

Modern retail beauty store with pink shelving of skincare products, central terrazzo display, potted plants, and a lounge chair by the window.<br>

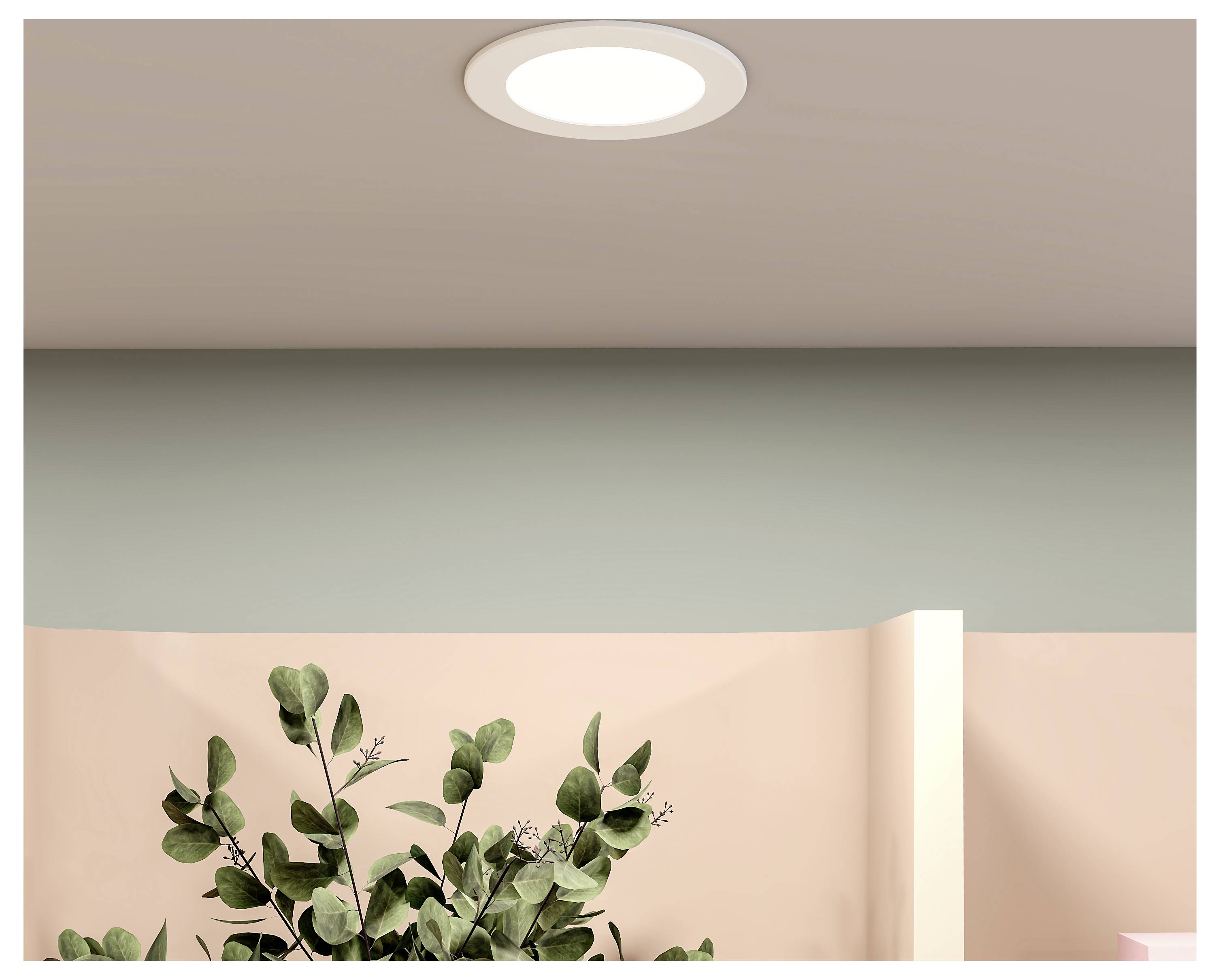

Ceiling with a round recessed light above a peach wall, with leafy green plant branches rising from the bottom edge.

1/13

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Deco Light Downlight - Acux Pro 82, 9 W, DIM, 2700/3000/4000 K, white

Power= 9 W Total luminous flux= 1180 lm Colour temperature= 4000 K Neutral white, Warm white

Technical specifications

Colour consistency 6 SDCM
Switching cycles 50000
Starting current max. 5 A / 100 µs
Power factor 0.9
UGR 19
Colour temperature 2700/3000/4000 K
Colour reproduction (Ra): 90
Rated light current 1080/1130/1180 lm
Cut-out dimension diameter 82-95 mm
Cutting diameter min.: 82 mm
Cut diameter max. 95 mm
Required mounting depth 85 mm
Product dimension mounting depth 55 mm

Product type: Flush mount light

Operating voltage: 240 V AC

Bulb type: LED (monochrome)

: 9 W

Total luminous flux: 1180 lm

: 4000 K

Colour: Neutral white
Warm white

Type: Circular

Radiation angle: 100°

Light features: Dimmable

: IP54 (front)
IP20 (back panel)
IK05

Protection class: II

Factory colour: Traffic white (RAL 9016)

Material: Polyamide
Aluminium

Weight: 126 g

: n.rel.

Dim: (Ø x H) 110 mm x 55 mm

: Yes

Light bulb included: Yes

Colour temperature (max.): 4000 K

Colour temperature (min.): 2700 K

Colour temperature range: 2700 - 4000 K

Height: 55 mm

(Ø): 110 mm

UKCA: yes
