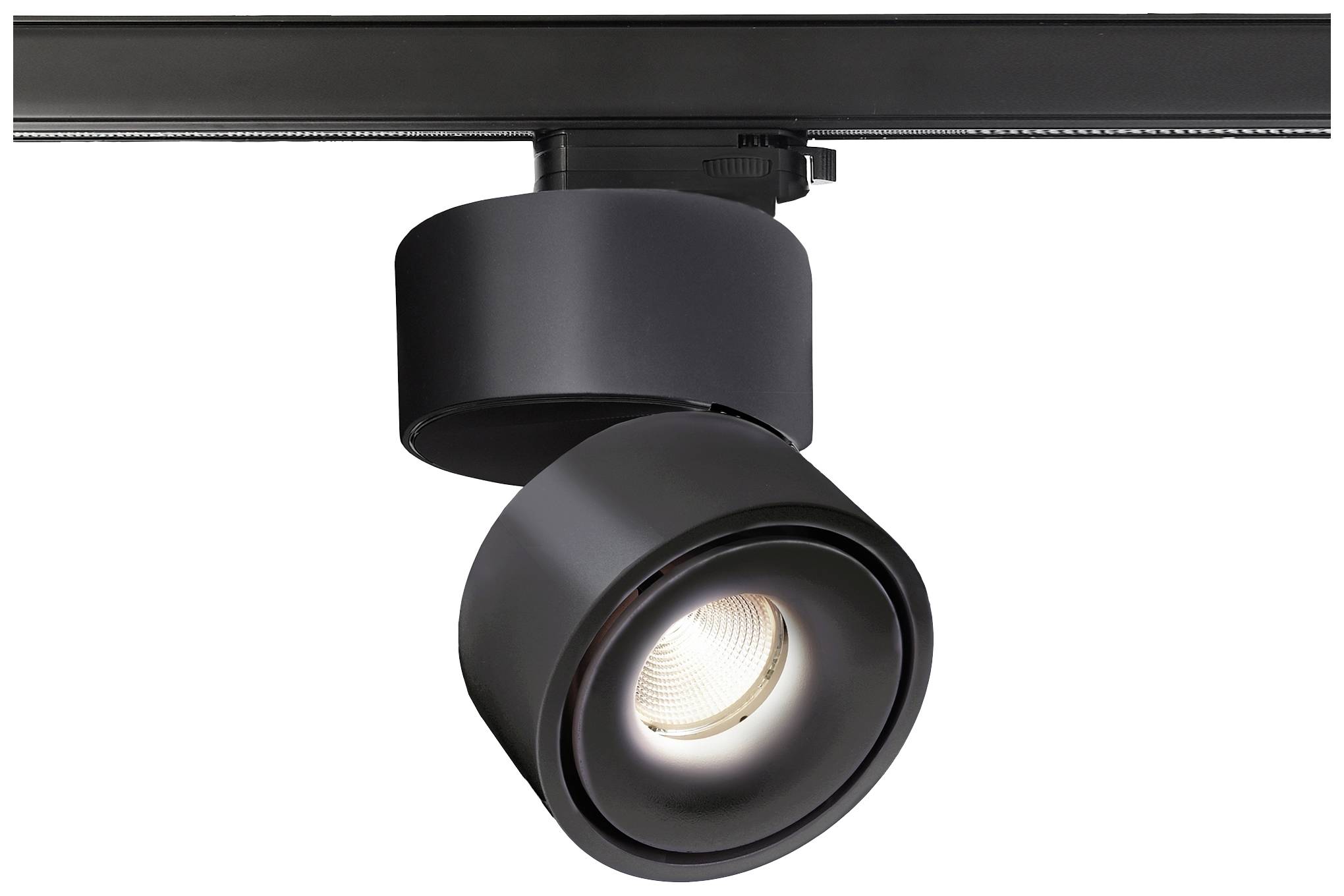

Deko Light 707131 Uni II High voltage mounting rail light EEC: G (A - G) LED (monochrome) Built-in LED 17 W Black
EAN:
Part number:
Item no:
Highlights & Details
LED spotlight, 3-phase track system, Uni II, 3000 K, dimmable, Aluminium, black
- Power= 17 W Total luminous flux= 910 lm Colour temperature= 3000 K Warm white
Technical specifications
- Control: Phase section or phase section
- Cut-out dimension diameter (mm):
- Installation pot diameter 1 (mm):
- Light source: Including light source
- Colour rendering Ra: 90
- Light intensity 1647 cd
- Lifetime 20000 h
- Switching cycles: 15000
- Radiation distribution: 582 nm
- LED Number: 1
- LED type COB
- LED DESIGN: V10 ARRAY
- Connection option: Adapter
- Power supplies: Inc. LED power supply
- Angle of inclination: 90 °
- Material 2: Plastic
- Optics 2: Clear / transparent
- Product type
High voltage mounting rail light
- Operating voltage
220 V AC
240 V AC
- No. of bulbs
1
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
17 W
17 W
910 lm
- Total luminous flux
910 lm
3000 K
- Colour
Warm white
- Energy consumption
17 kWh/1000h
- Protection screen
Clear
- Radiation angle
35°
- Light features
Pivoted
Swivelling
- Swivel range (max.)
90°
IP20
- Protection class
I
- Factory colour
Black
- Material
Aluminium (die-cast)
G (A - G)
- Dim
(Ø x H) 100 mm x 167 mm
Yes
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature range
3000 K (max)
- Height
167 mm
- (Ø)
100 mm
