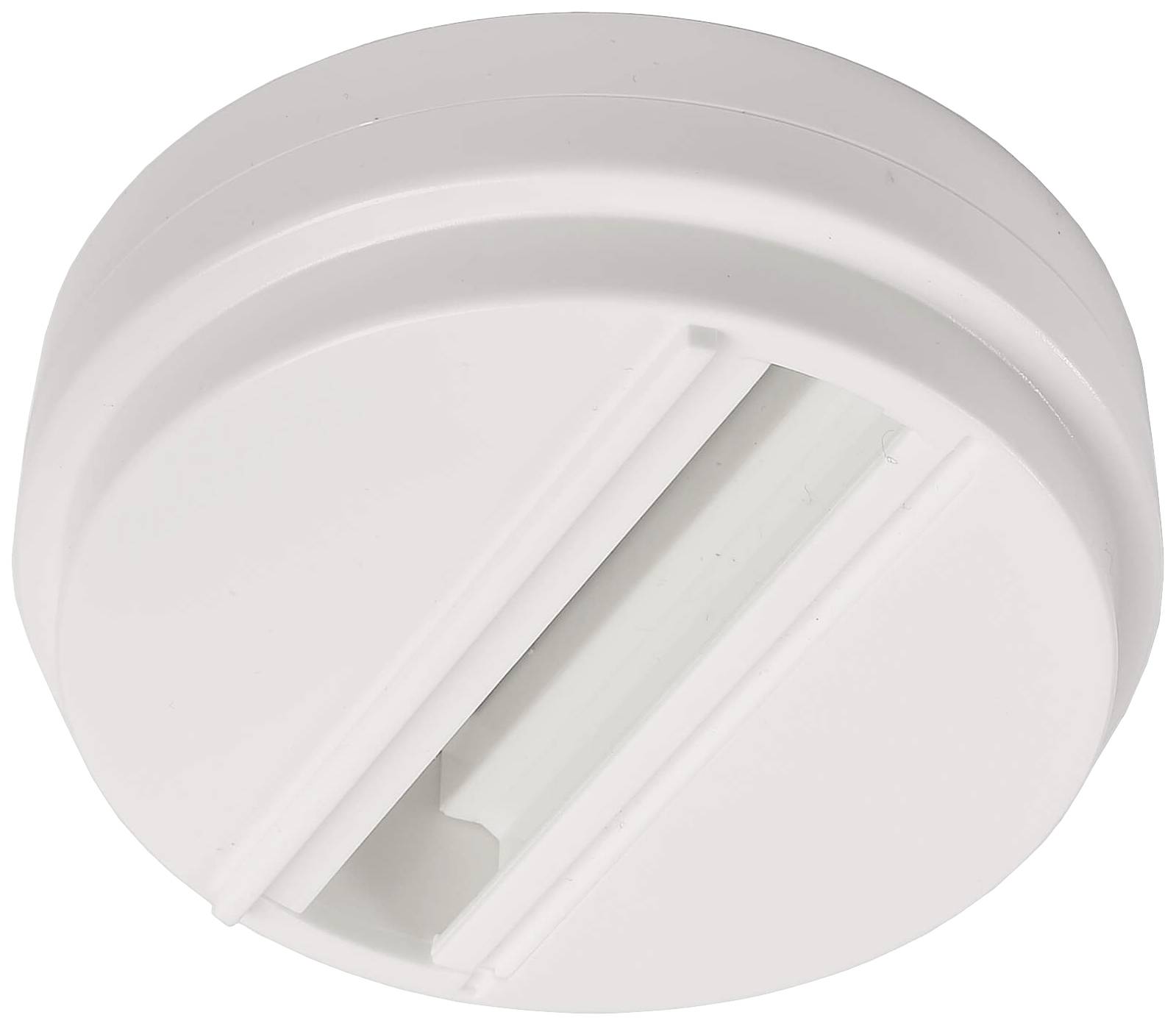

Deko Light 710045 D Line Aufbau-Adapter für Leuchten High voltage mounting rail Busbar 3-phase White
EAN:
Part number:
Item no:
Highlights & Details
Rail system 3-phase 230V, D-Line mounting adapter for lamps, 220-240V AC/50-60Hz
- Elegant design
- Up to 3 phases can be fed in
- Surface-mounted housing for current rail floodlight for conversion
- Easy to install
Technical specifications
- Product type
High voltage mounting rail
- Component
Busbar
n.rel.
- Series
3-phase
- Operating voltage
230 V
IP20
- Protection class
I
- Factory colour
White
- Material
Plastic

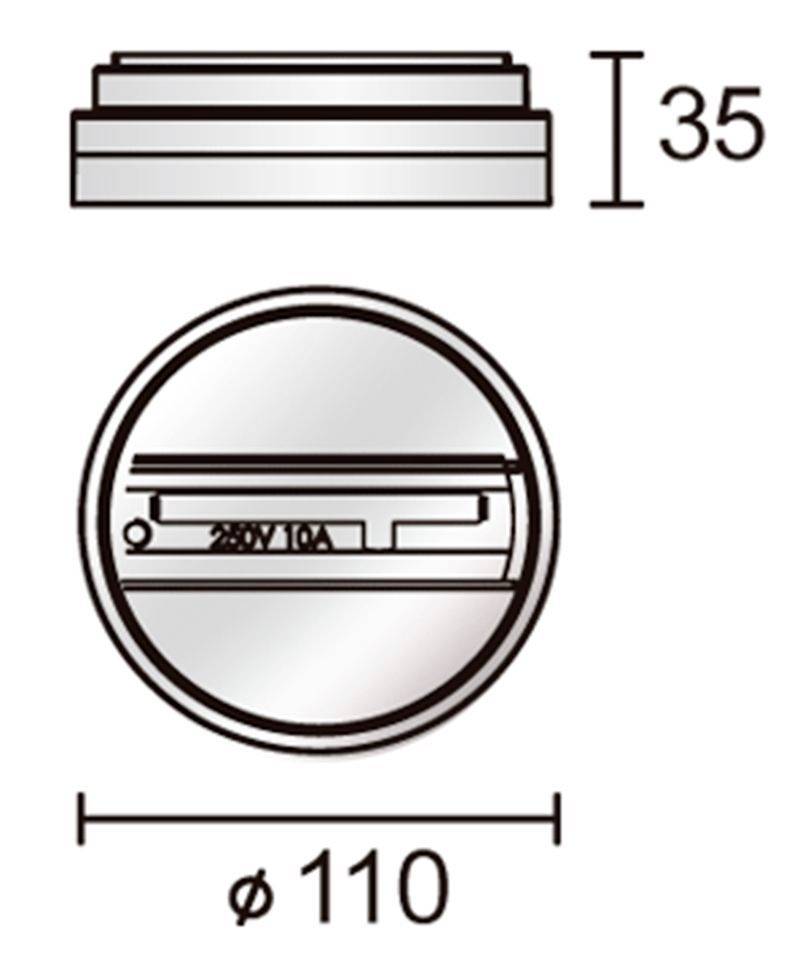

- Dim
(Ø x H) 110 mm x 35 mm
- Height
35 mm
- (Ø)
110 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2497879 Deko Light 710045 D Line Aufbau-Adapter für Leuchten High voltage mounting rail Busbar 3-phase White
Information
Information 2497879 Deko Light 710045 D Line Aufbau-Adapter für Leuchten High voltage mounting rail Busbar 3-phase White
Description
With the mounting adapter, one can in future turn each 3-phase busbar lamp into a surface-mounted beamer. This is often required when ceiling spotlights distributed in the room are to match the design of the busbar spotlights.
This text is machine translated.
This text is machine translated.
Features
- Rail system 3-phase 230V
- D Line mounting adapter for lights
- 220-240V AC/50-60Hz
