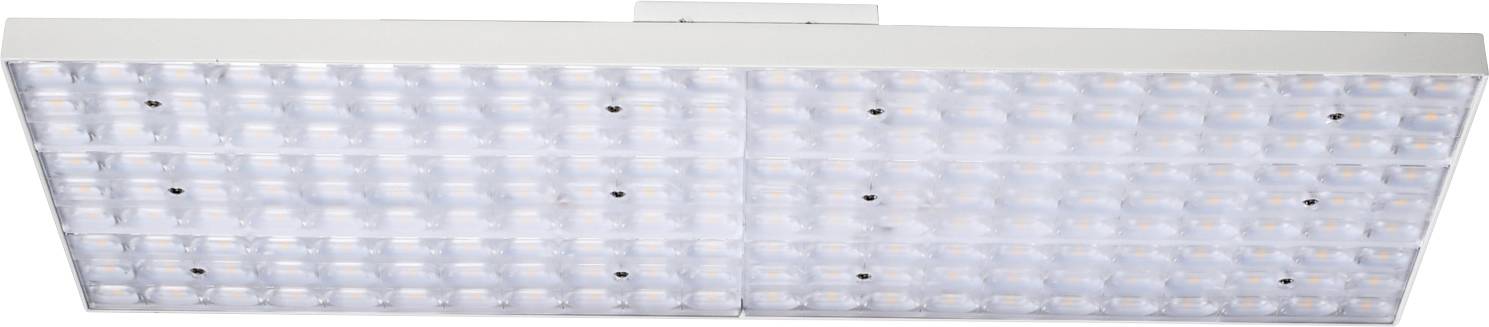

Deko Light Draconis Ceiling light (surface mount) LED (monochrome) Built-in LED 72 W EEC: E (A - G) Warm white, Neutral
EAN:
Part number:
Item no:
Highlights & Details
Ceiling-mounted light, Draconis, square, 45/55/72W, 2700/3500/4000 K, IP20, aluminum die-cast, white
- Power= 72 W Total luminous flux= 8215 lm Colour temperature= 4000 K Warm white, Neutral white
Technical specifications
- Terminal connection option
- Power supplies: Inc. LED power supply
- LED type SMD
- LED design 2835
- Reflector/lens: Symmetrical
- Radiation distribution 582 nm
- Colour rendering Ra: 80
- Light intensity 5220 cd
- Life: 50,000 h
- Switching cycles 25000
- Start-up time at 60% luminous flux: 1.0 s
- Starting time:0.5 s
- Base length (mm): 102
- Socket width (mm): 88
- Socket height (mm): 25
- Product dimension depth (mm): 577.6
- Product type
Ceiling light (surface mount)
- Operating voltage
220 V
240 V
- No. of bulbs
198
- Bulb type
LED (monochrome)
Built-in LED
- Width
188.6 mm
- Rating per bulb
72 W
- Height
71 mm
72 W
- Energy consumption
72 kWh/1000h
4000 K
- Colour
Warm white
Neutral white
8215 lm
- Total luminous flux
8215 lm
- Light features
Selectable luminous flux
- Radiation angle
60°
- Protection class
I
IP20
- Factory colour
Traffic white (RAL 9016)
- Material
Aluminium (die-cast)
- Dim
(W x H x D) 188.6 x 71 x 577.6 mm
E (A - G)
- Light bulb included
Yes
- Depth
577.6 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2794891 Deko Light Draconis Ceiling light (surface mount) LED (monochrome) Built-in LED 72 W EEC: E (A - G) Warm white, Neutral
Description
The modular DRACONIS series enables the flexible ceiling lighting for different application areas. Combine this lamp head with our mounting adapters for optional use as a fixed surface-mounted ceiling lamp, in a 3-phase track system or as a pendant lamp and you can adjust the power and light color flexibly. In addition, we offer several lenses for asymmetric and symmetrical illumination at multiple beam angles, so that THE DRACONIS can be used in almost any scenario.
