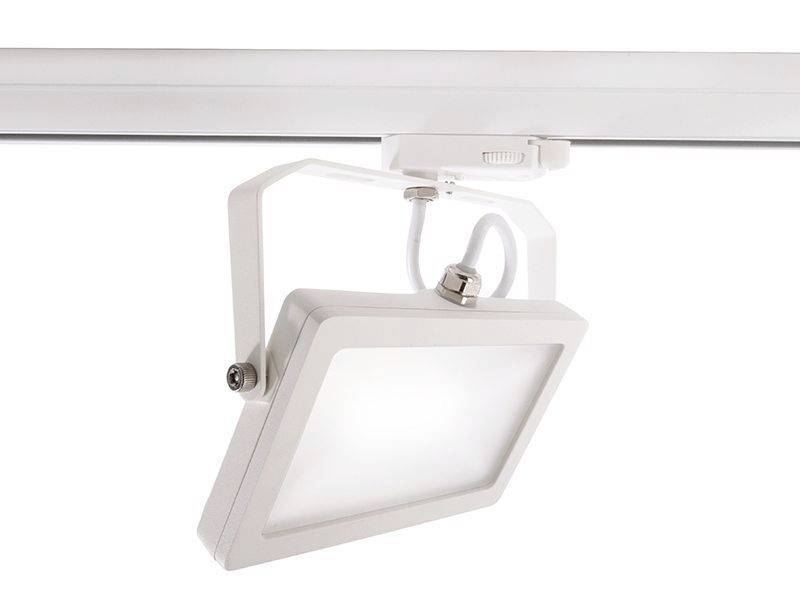

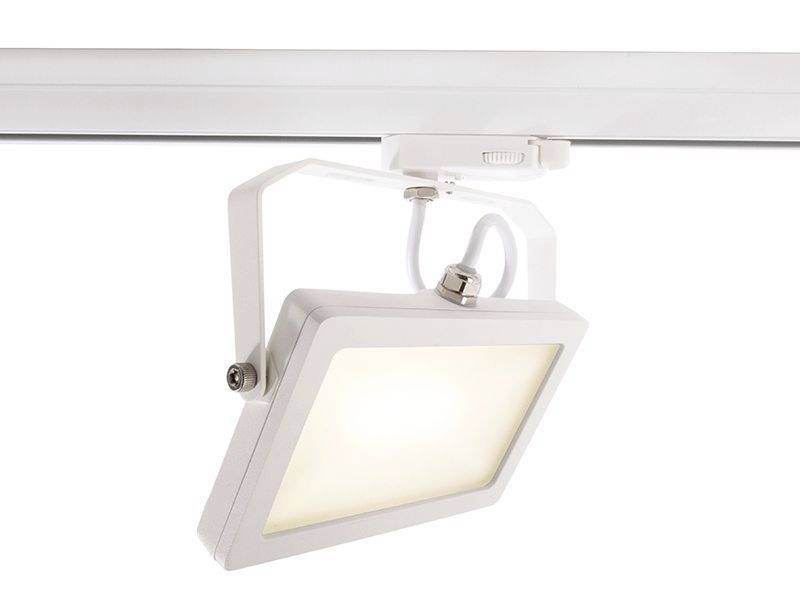

Deko Light Flood High voltage mounting rail light 3-phase Built-in LED 15 W EEC: E (A - G) LED (monochrome) Traffic whit
EAN:
Part number:
Item no:
Highlights & Details
LED spotlight, 3-phase track system, flood SMD, 4000 K, aluminum, White
- Power= 15 W Total luminous flux= 1650 lm Colour temperature= 4000 K Neutral white
Technical specifications
- Dimensions diameter (mm):
- Assembly pot diameter 1 (mm):
- Light source: Inclusive light source
- Colour rendering Ra: 80
- Light intensity 752 cd
- Life: 30000 hours
- Switching cycles 15000
- Number of LEDs: 36
- LED type SMD
- LED design 2835
- IK Protection class 7
- Connection option: Adapter
- Power supplies: Inc. LED power supply
- Inclination 180°
- Material 2: Glass
- Optic 2: Satin
- Product type
High voltage mounting rail light
- Operating voltage
220 V AC
240 V AC
- Series
3-phase
- No. of bulbs
36
Built-in LED
- Bulb type
LED (monochrome)
15 W
4000 K
- Colour
Neutral white
- Total luminous flux
1650 lm
- Energy consumption
15 kWh/1000h
- Light features
Pivoted
Swivelling
- Swivel range (max.)
180°
IP20
- Protection class
I
- Factory colour
Traffic white (RAL 9016)
- Material
Aluminium (die-cast)
E (A - G)
- Width
180 mm
- Height
38 mm
- Depth
192 mm
- Radiation angle
90°
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2795623 Deko Light Flood High voltage mounting rail light 3-phase Built-in LED 15 W EEC: E (A - G) LED (monochrome) Traffic whit
User & Safety Instructions
User & Safety Instructions 2795623 Deko Light Flood High voltage mounting rail light 3-phase Built-in LED 15 W EEC: E (A - G) LED (monochrome) Traffic whit
Description
Scope of delivery
- 1x Allen key
- This text is machine translated.
