Name: Deko Light Lucea 10 3-phase lighting 10 W LED (monochrome) Traffic white (RAL 9016)
Brand: Deko Light
SKU: 3766366

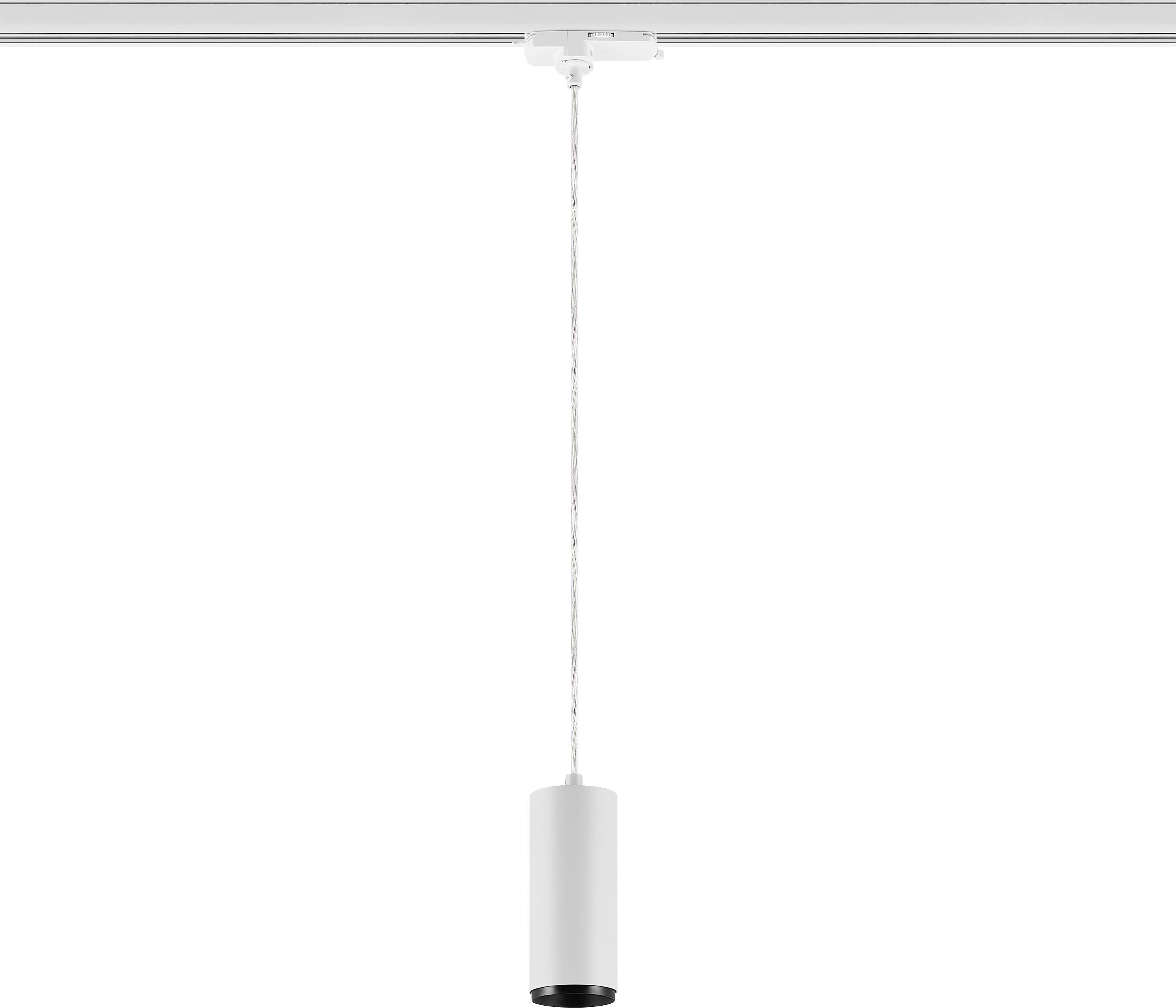

White cylindrical pendant light hanging from a ceiling track on a plain white background.

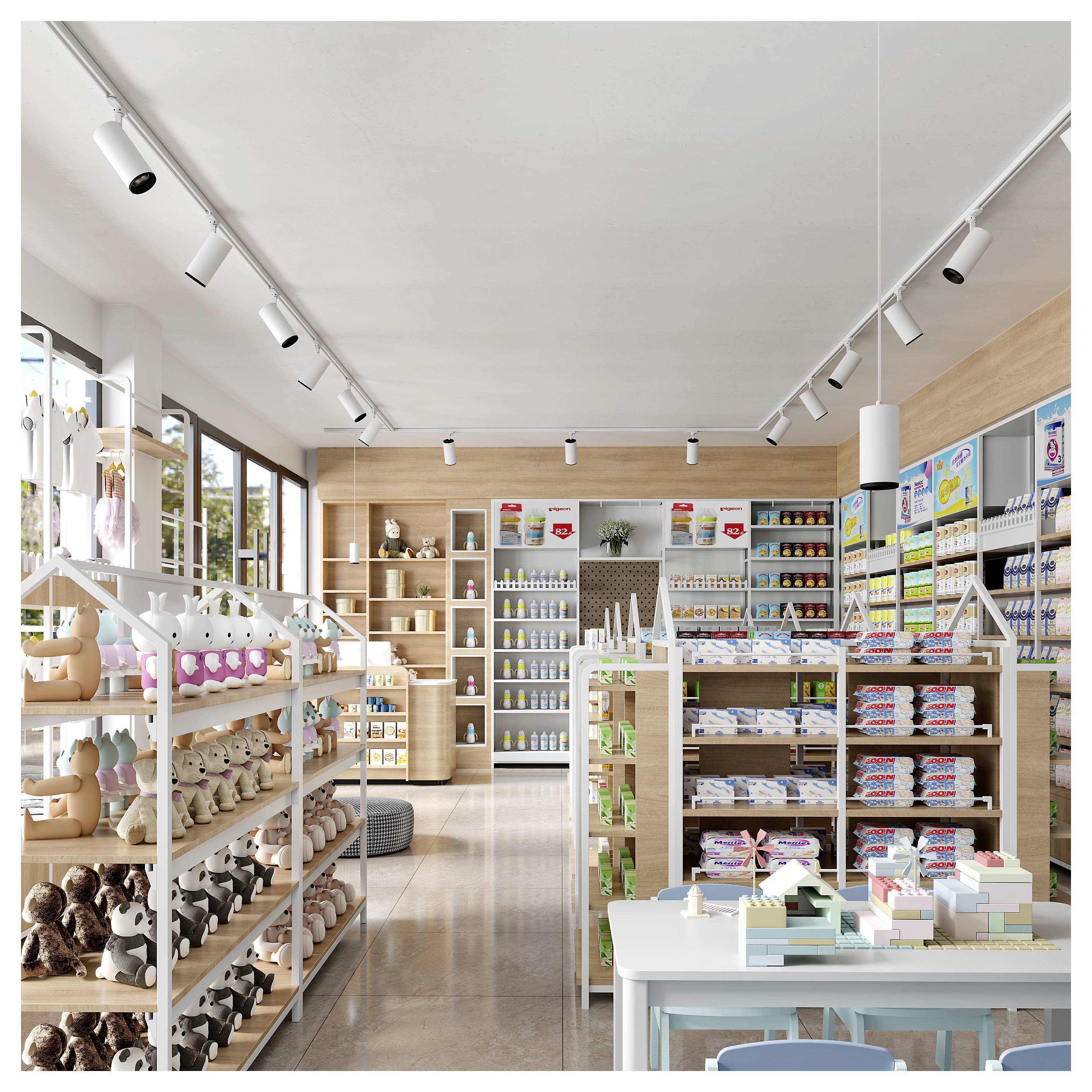

Bright, modern retail store interior with shelves of assorted products, plush toys on the left, and boxed goods and supplies on center and right displays.

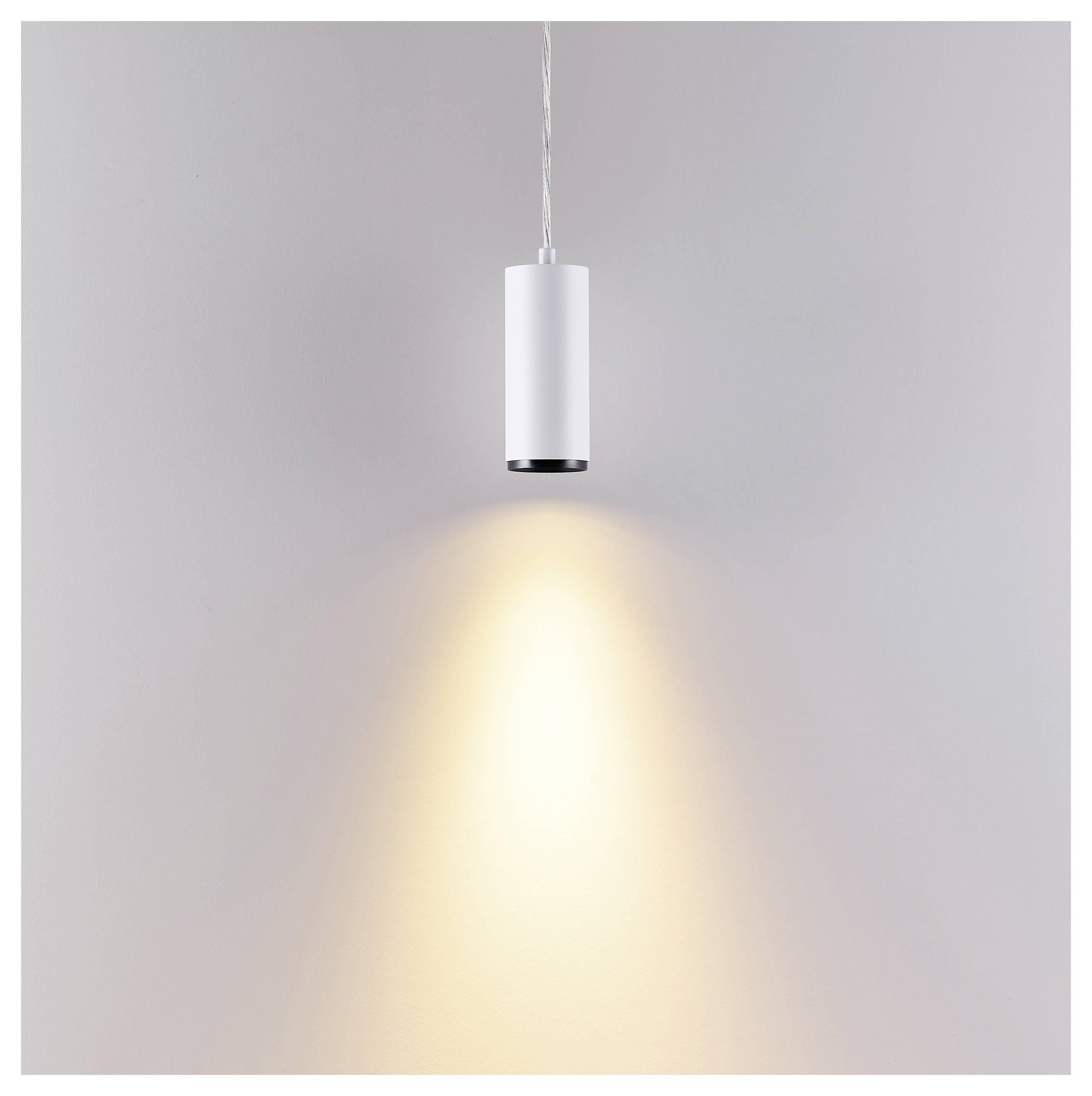

A modern white pendant light hangs from the ceiling, casting a warm cone of light downward against a plain wall.

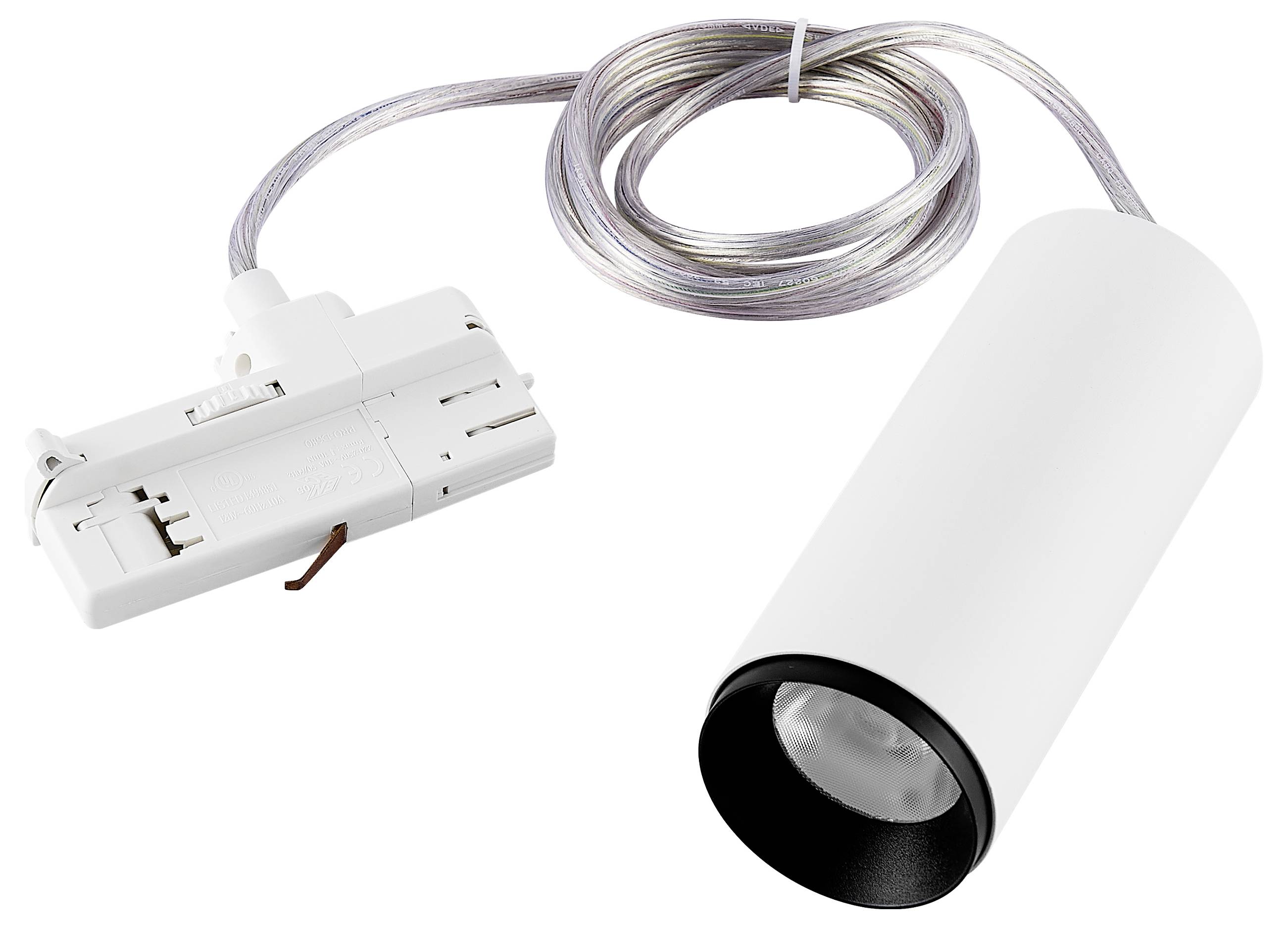

White cylindrical track light fixture with attached wiring and ceiling connector, shown on a white background.

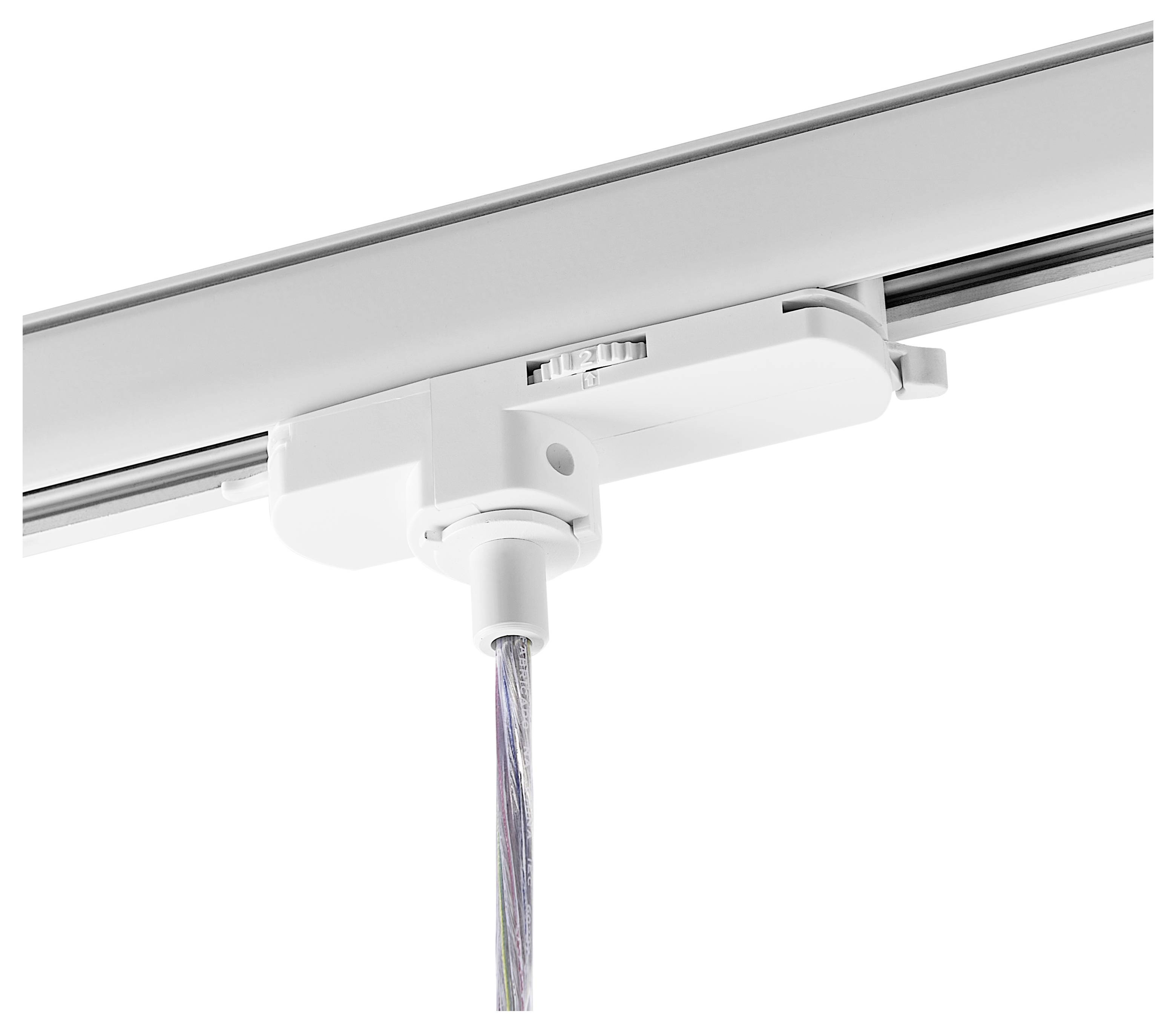

A white ceiling track light adapter with a hanging electrical cable attached to the rail.

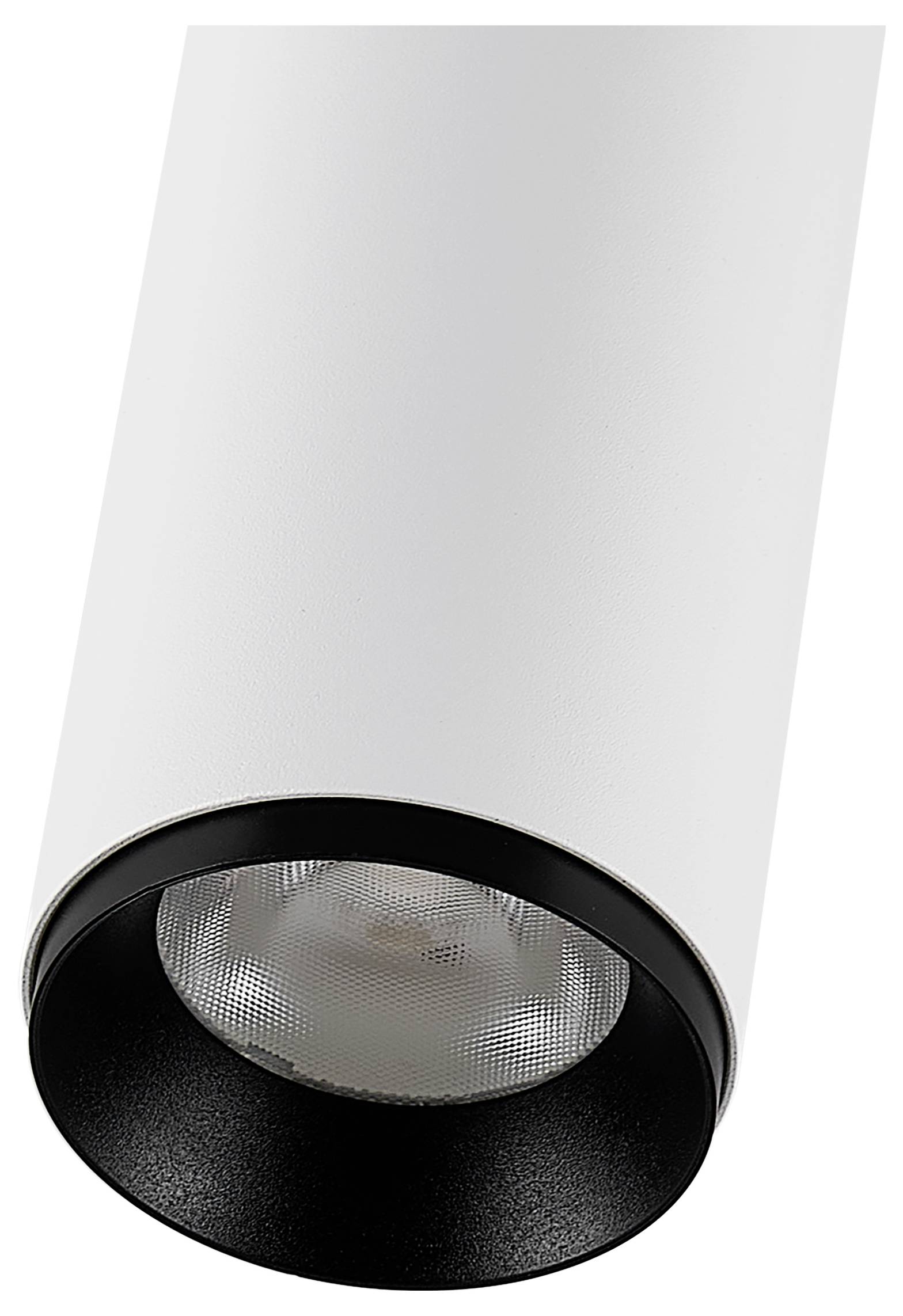

White cylindrical ceiling spotlight with black rim and recessed lens, viewed from below on a plain background.

Close-up of a silver cylindrical recessed ceiling light fixture with a black base, central cable opening, and visible mounting screws.

Bright, modern retail store interior with shelves of colorful merchandise and stuffed toys, wide aisle, and display tables by large windows.<br>

Bright, modern pet supply store with rows of stuffed animal toys and pet products on shelves, and a display table in the foreground.

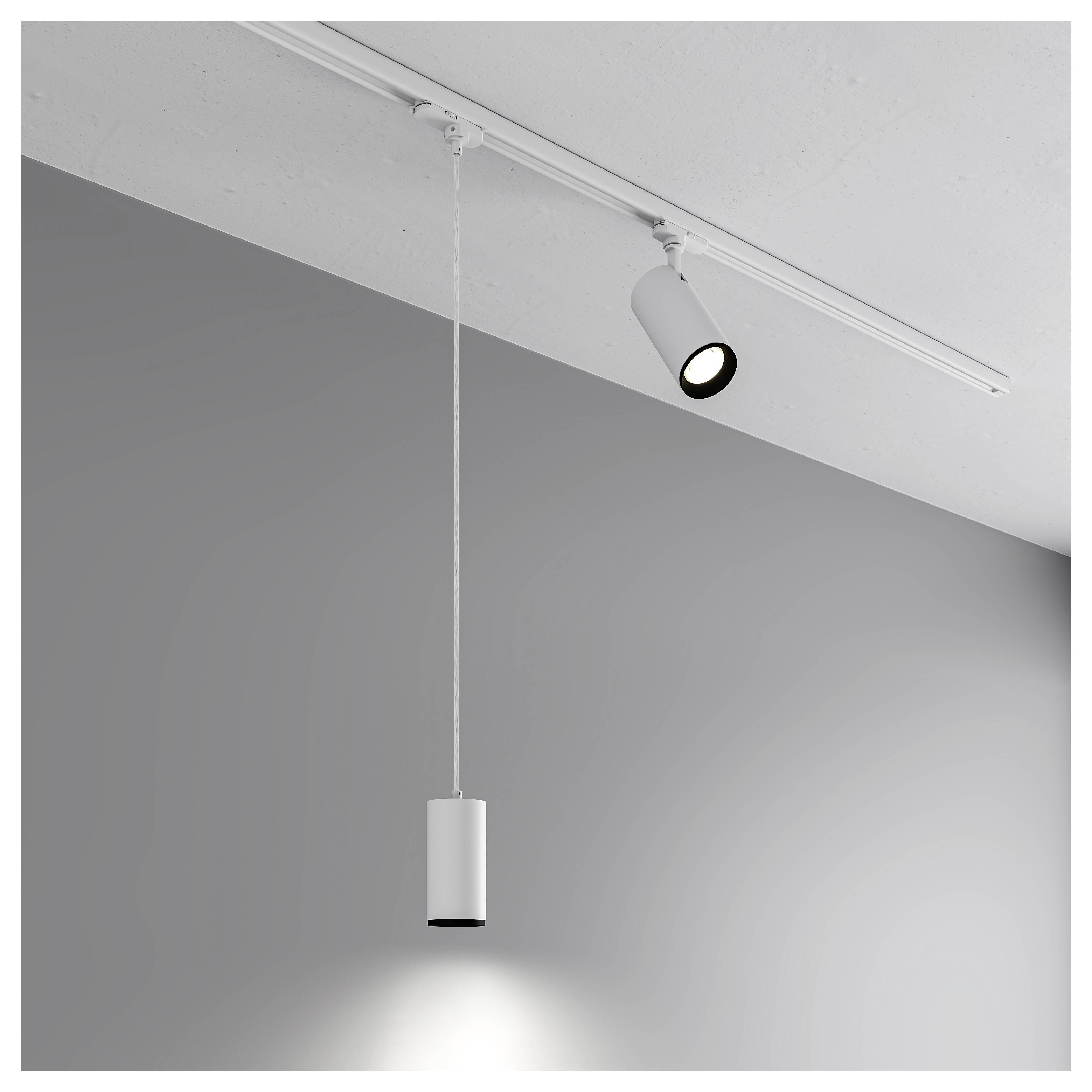

Ceiling track light and hanging pendant spotlight illuminating a gray wall in a minimalist interior.

1/10

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Deco Light 3-phase pendant light - LUCEA 10, 10 W, DALI, 2700 K, white

Power= 10 W
Total luminous flux= 1300 lm
Colour temperature= 2700 K
Warm white

Technical specifications

Starting current max. 18.6 A / 62.9 µs
Frequency 50 - 60 Hz
Voltage range emergency lighting 176-280 V/DC
EOFI: 100%
Light source: Replaceable light source TC
Colour consistency 3 SDCM
Switching cycles 100000
Power factor 0.9
Max. Number of LS B10: 55
Max. Number of LS B16: 88
Max. Number of LS C10: 55
Max. Number of each LS C16: 88
Operating temperature -20 to +40°C.
Storage temperature -20 to 65 °C.
Control: Push-dim, DALI 2.0 / DT6
UGR 13
Colour reproduction (Ra): 90
Functions: Emergency power capable, phase switch

Product type: 3-phase lighting

Operating voltage: 240 V AC

Bulb type: LED (monochrome)

: 10 W

: 2700 K

Colour: Warm white

Total luminous flux: 1300 lm

Energy consumption: 10 kWh/1000h

Light features: Dimmable

Radiation angle: 36°

: IP20
IK03

Protection class: I

Factory colour: Traffic white (RAL 9016)

Material: Aluminium

Weight: 686 g

Dim: (L x W x H) 65 x 65 x 157 mm

: n.rel.

Width: 65 mm

Height: 157 mm

Length: 65 mm

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3766366 Deko Light Lucea 10 3-phase lighting 10 W LED (monochrome) Traffic white (RAL 9016)

User & Safety Instructions

User & Safety Instructions 3766366 Deko Light Lucea 10 3-phase lighting 10 W LED (monochrome) Traffic white (RAL 9016)

Warranty Terms

Warranty Terms 3766366 Deko Light Lucea 10 3-phase lighting 10 W LED (monochrome) Traffic white (RAL 9016)

Description

The DALI pendant lamps of the LUCEA series suitable for the 3-phase 230 V busbar system are available in 10 W and offer up to 1,300 lumens of light output. The maximum suspension is 1,600 mm. Optional lenses allow the individual models to narrow or expand in their viewing angle. The housing of the Lucea lamps is made of die cast aluminum

This text is machine translated.
