Name: Deko Light Lucea 10 CCT 3-phase lighting 11 W LED (monochrome) Traffic white (RAL 9016)
Brand: Deko Light
SKU: 3766358

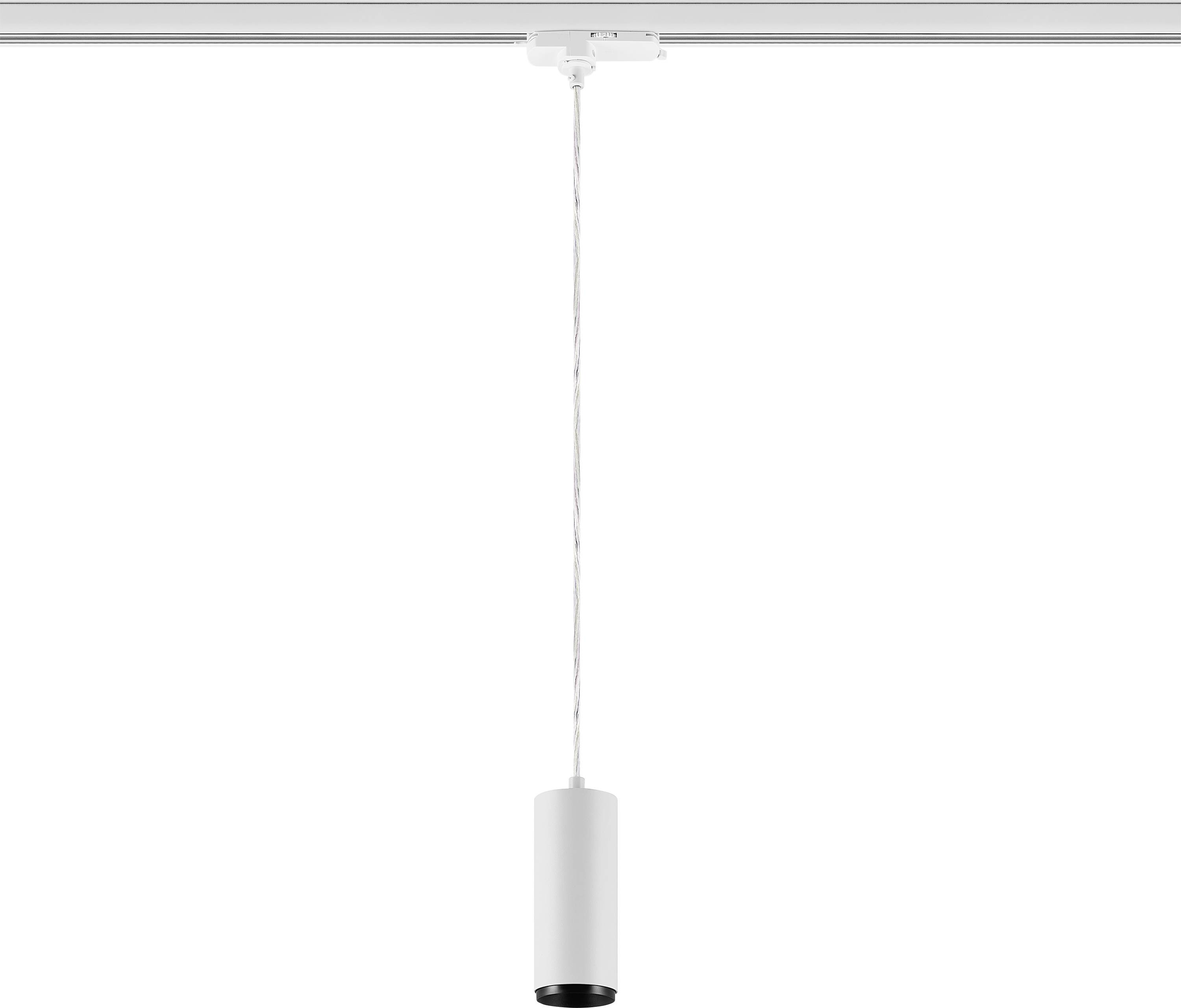

Minimal white cylindrical pendant light hanging from a ceiling mount against a plain white background.

Minimal white pendant light hanging from a ceiling track by a long cord, shown against a plain background.

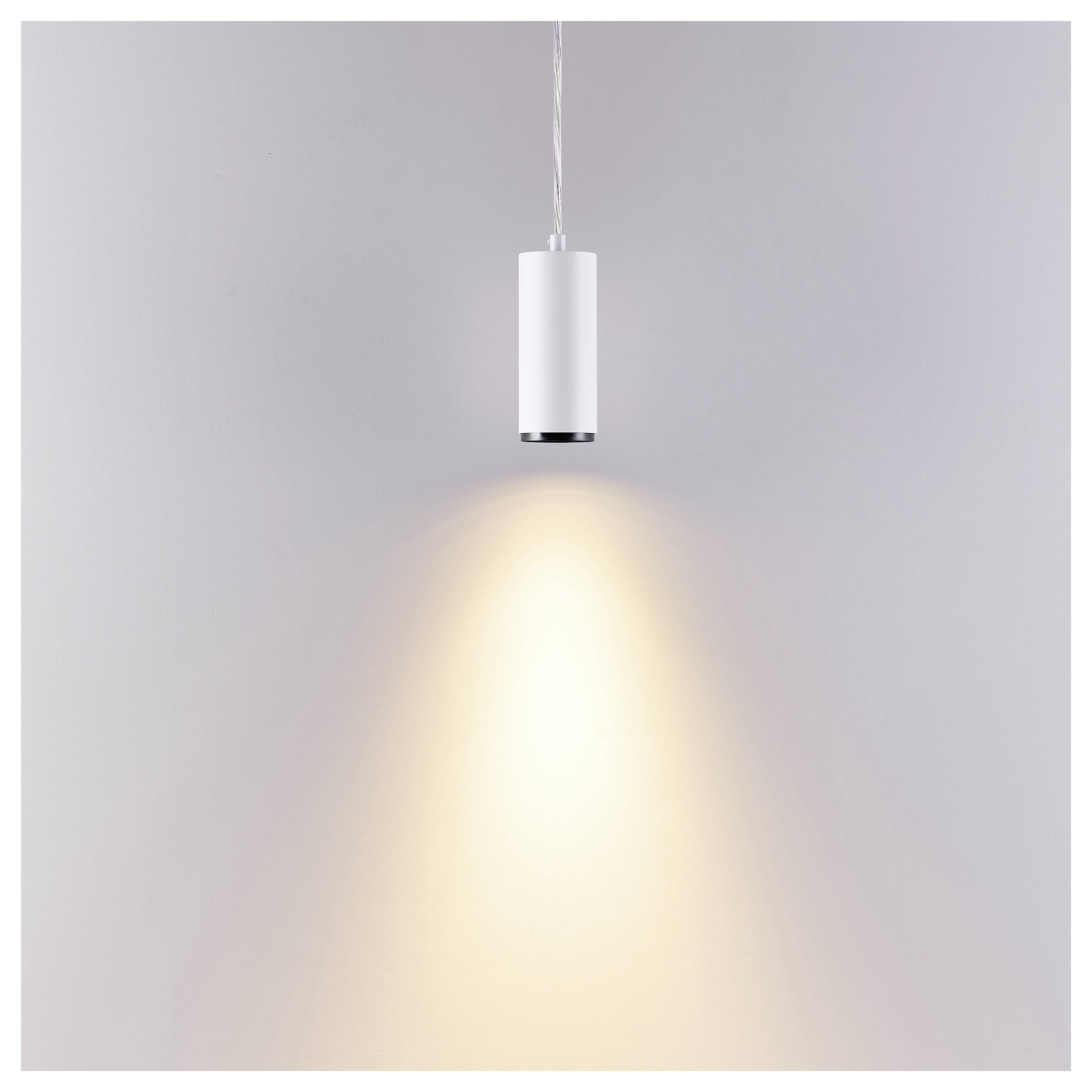

White pendant light shining a warm spotlight downward against a plain gray wall.<br>

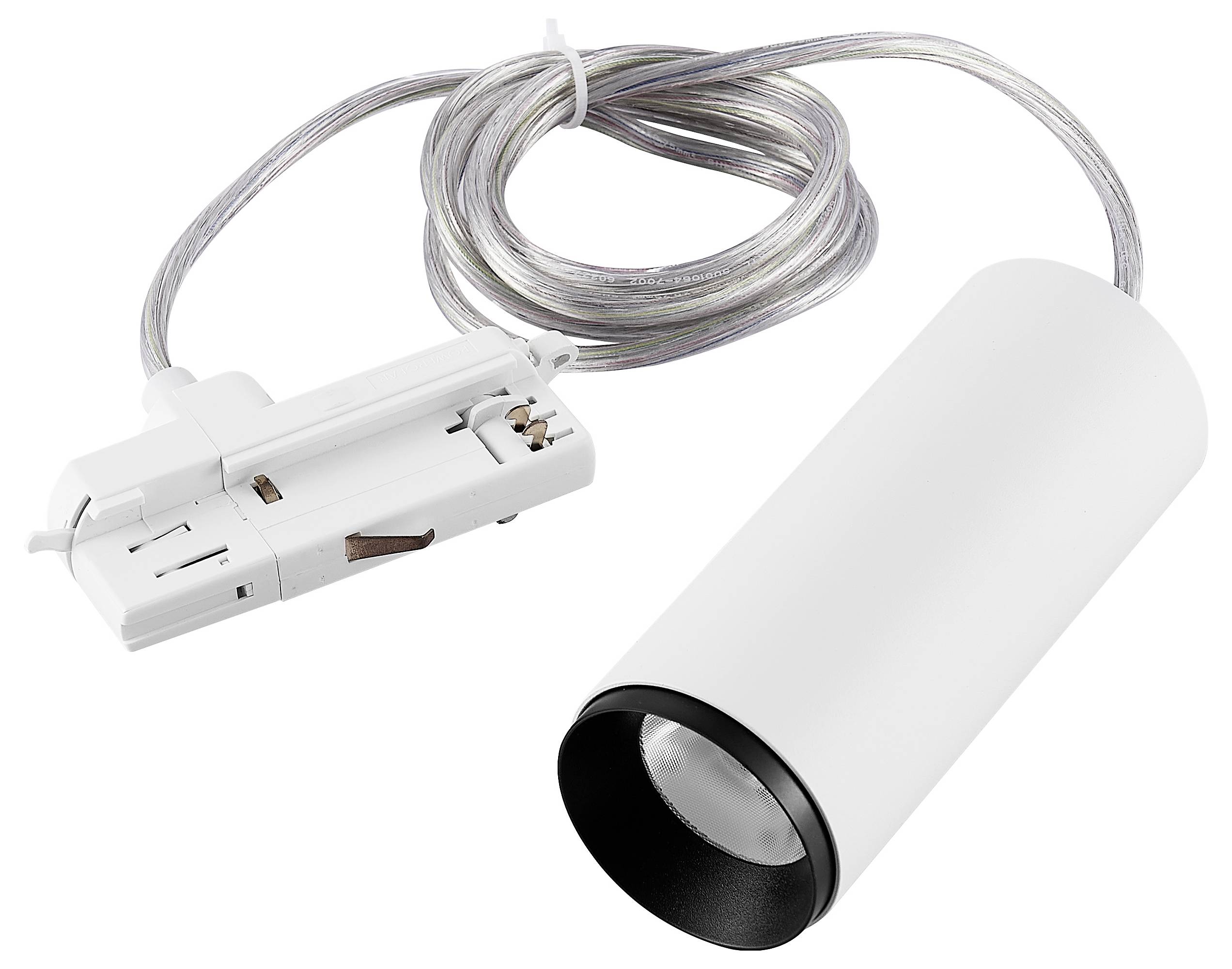

White cylindrical ceiling spotlight with mounting connector and attached wiring, shown on a white background.

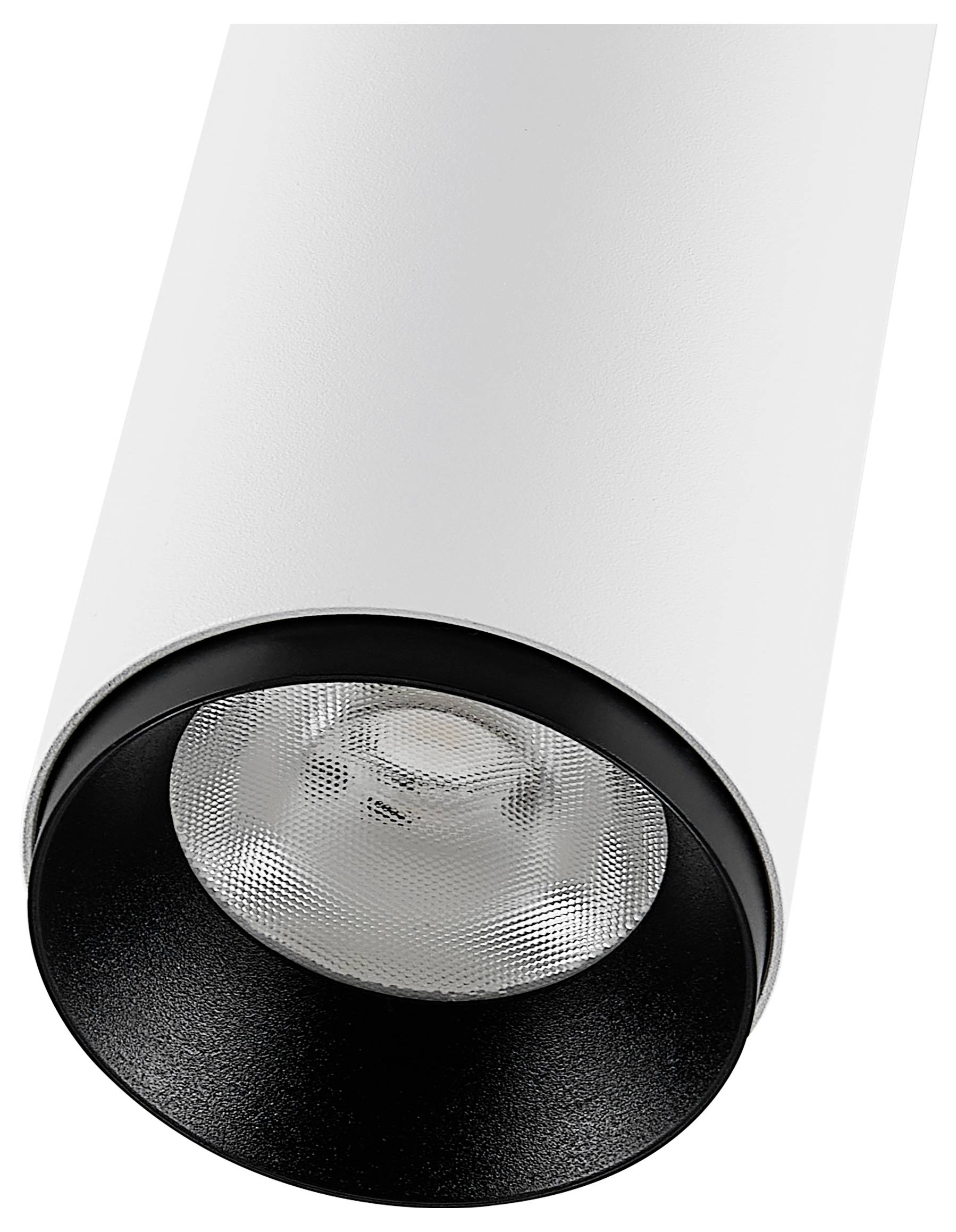

Close-up of a modern cylindrical recessed ceiling light with a white outer housing and black trim around a textured glass lens.

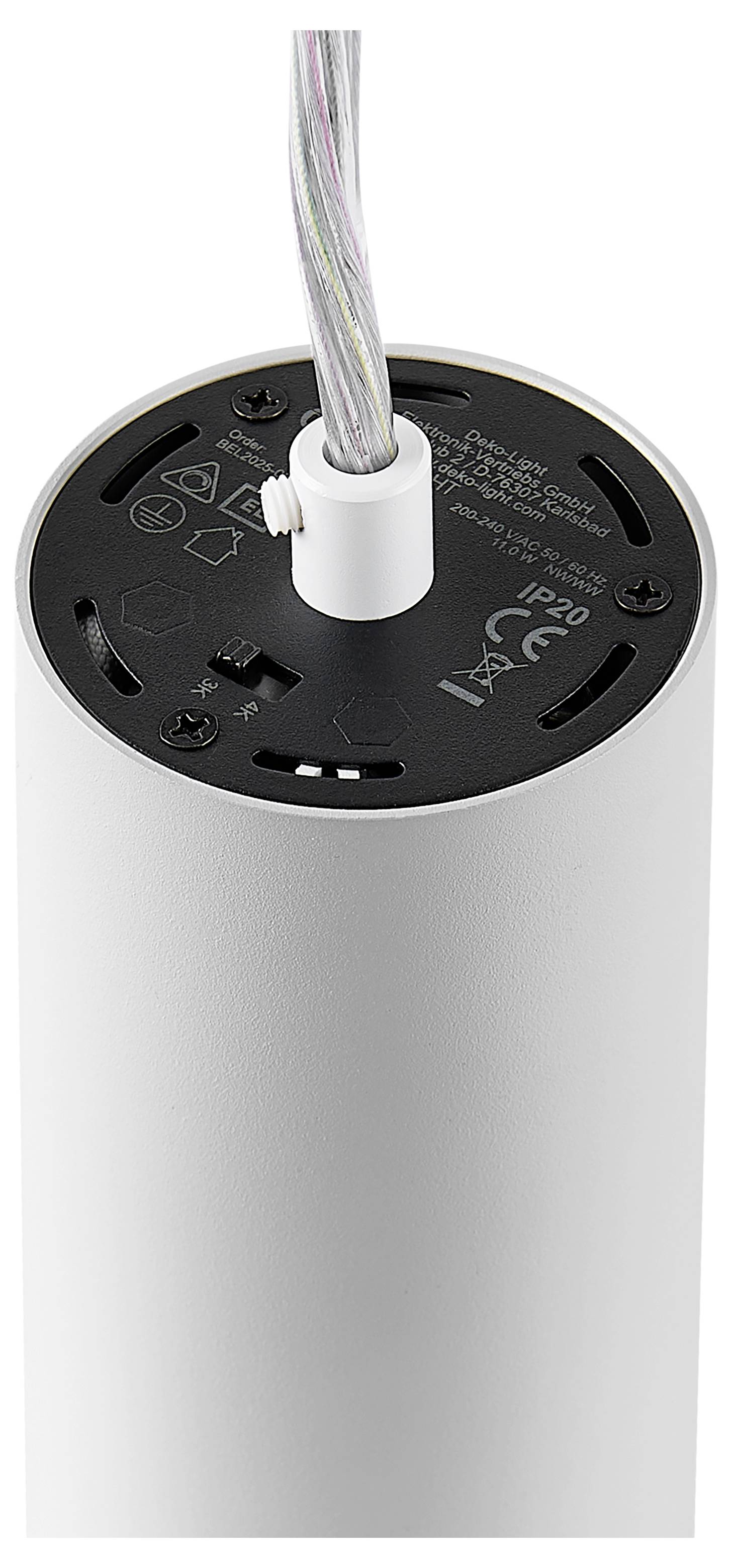

Close-up of a white cylindrical device with a black top cap labeled IP20, showing a cable exiting through a central white connector.

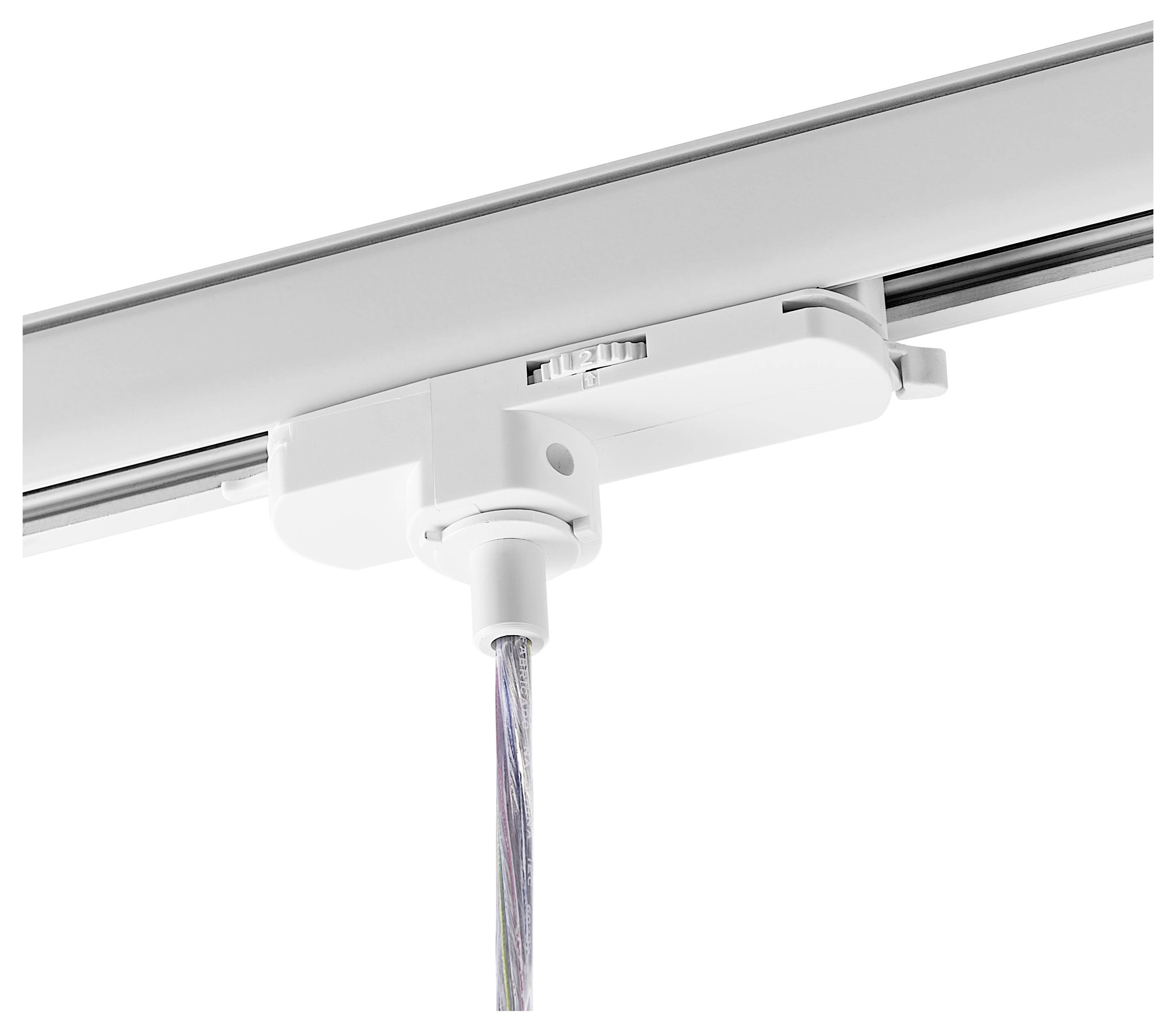

White track light fixture mounted on a ceiling rail with a hanging power cord.

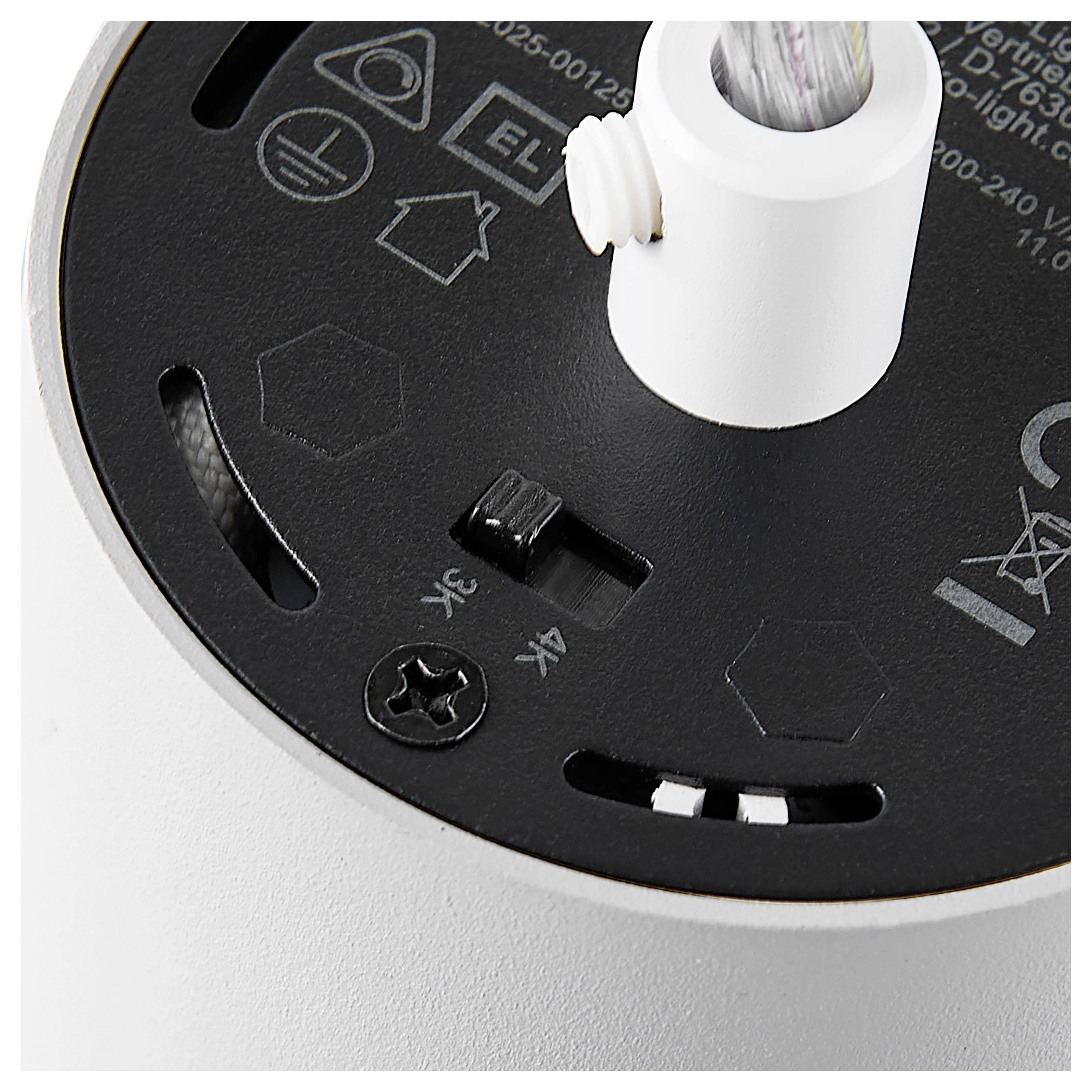

Close-up of a black ceiling light fixture base with a white mounting stem, screw, and adjustment slider, showing installation controls and symbols.<br>

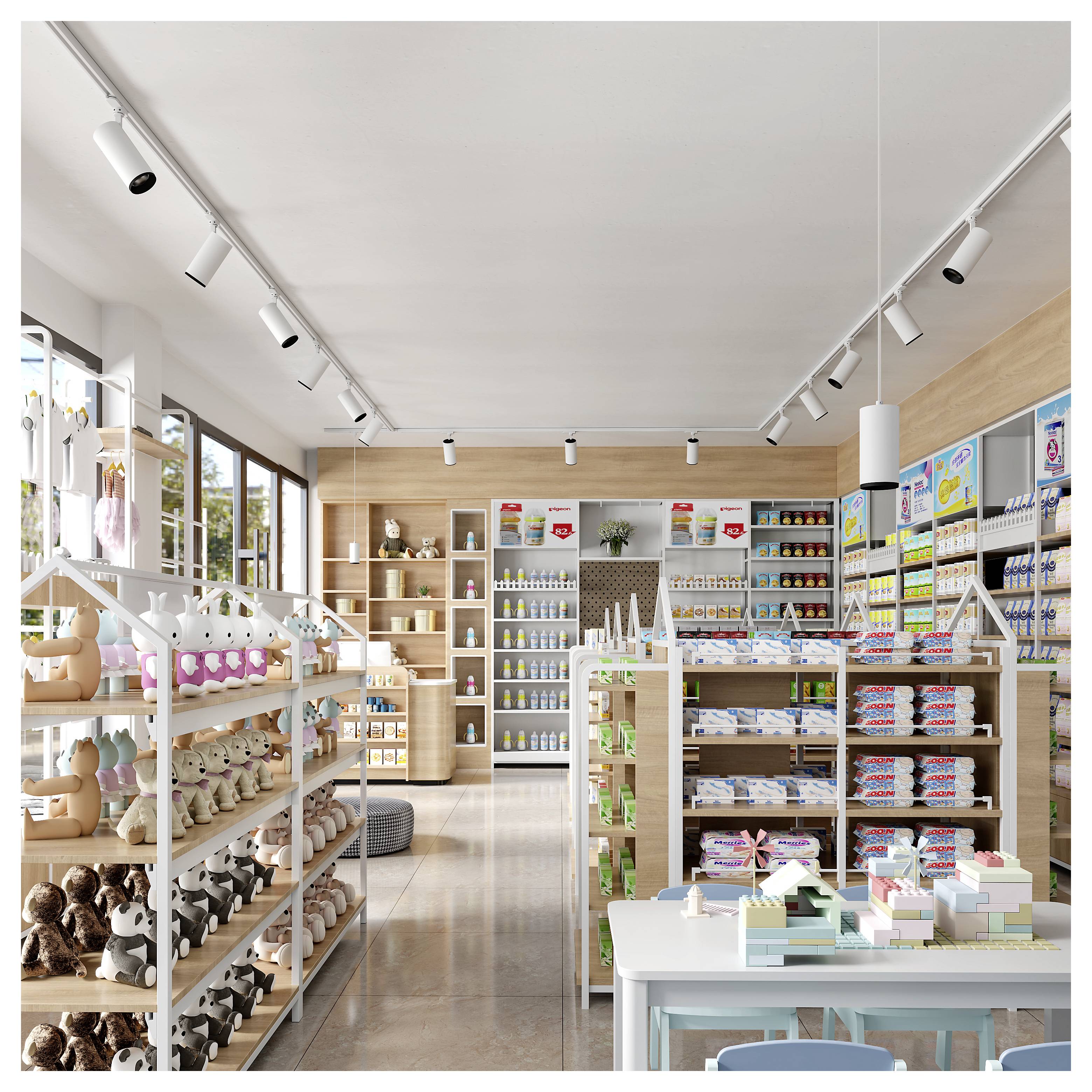

Bright, modern toy store interior with shelves of stuffed animals, dolls, and games, plus large windows and track lighting.

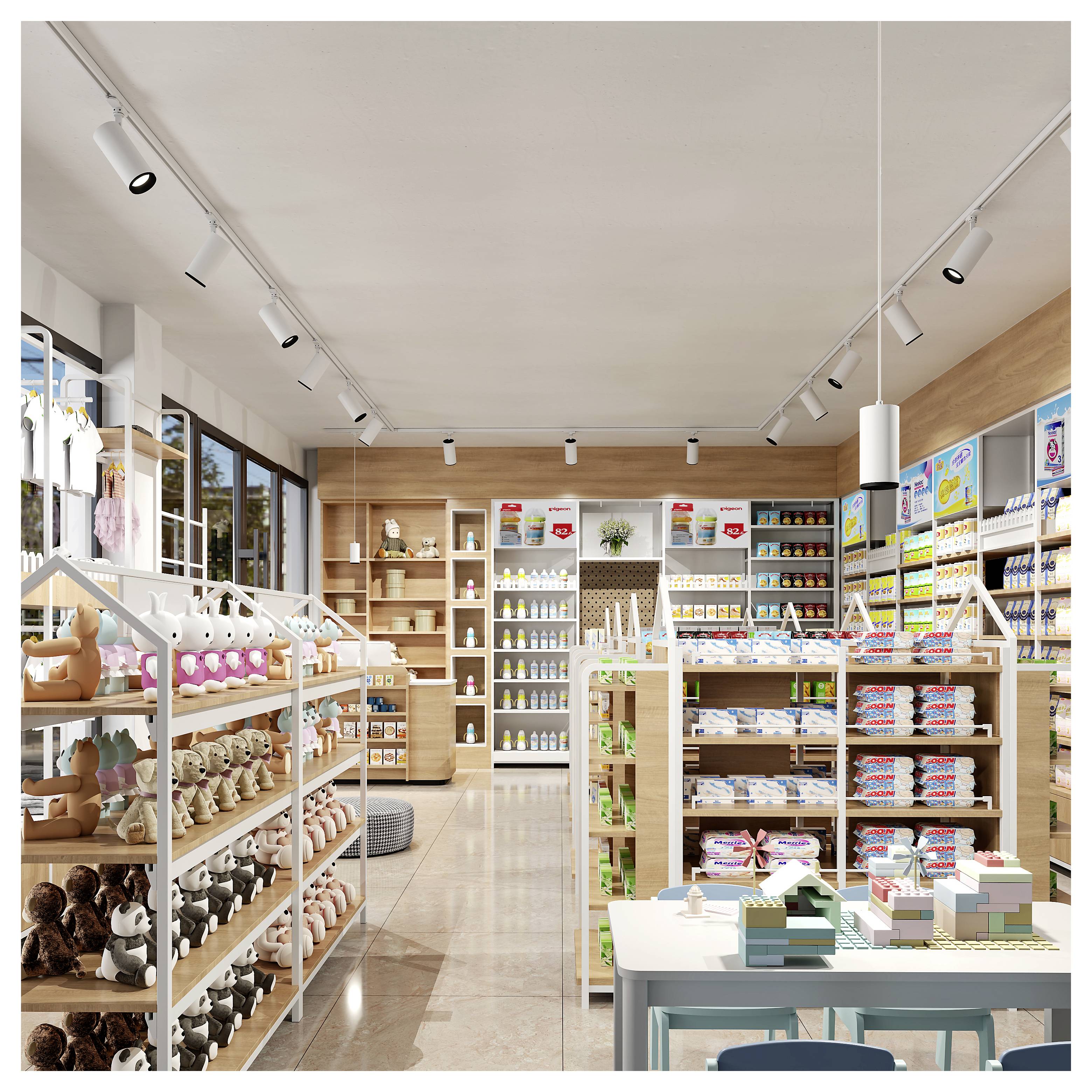

Bright, modern retail store interior with shelves of small packaged goods, plush toys, and pet products, viewed from the aisle toward the back wall.

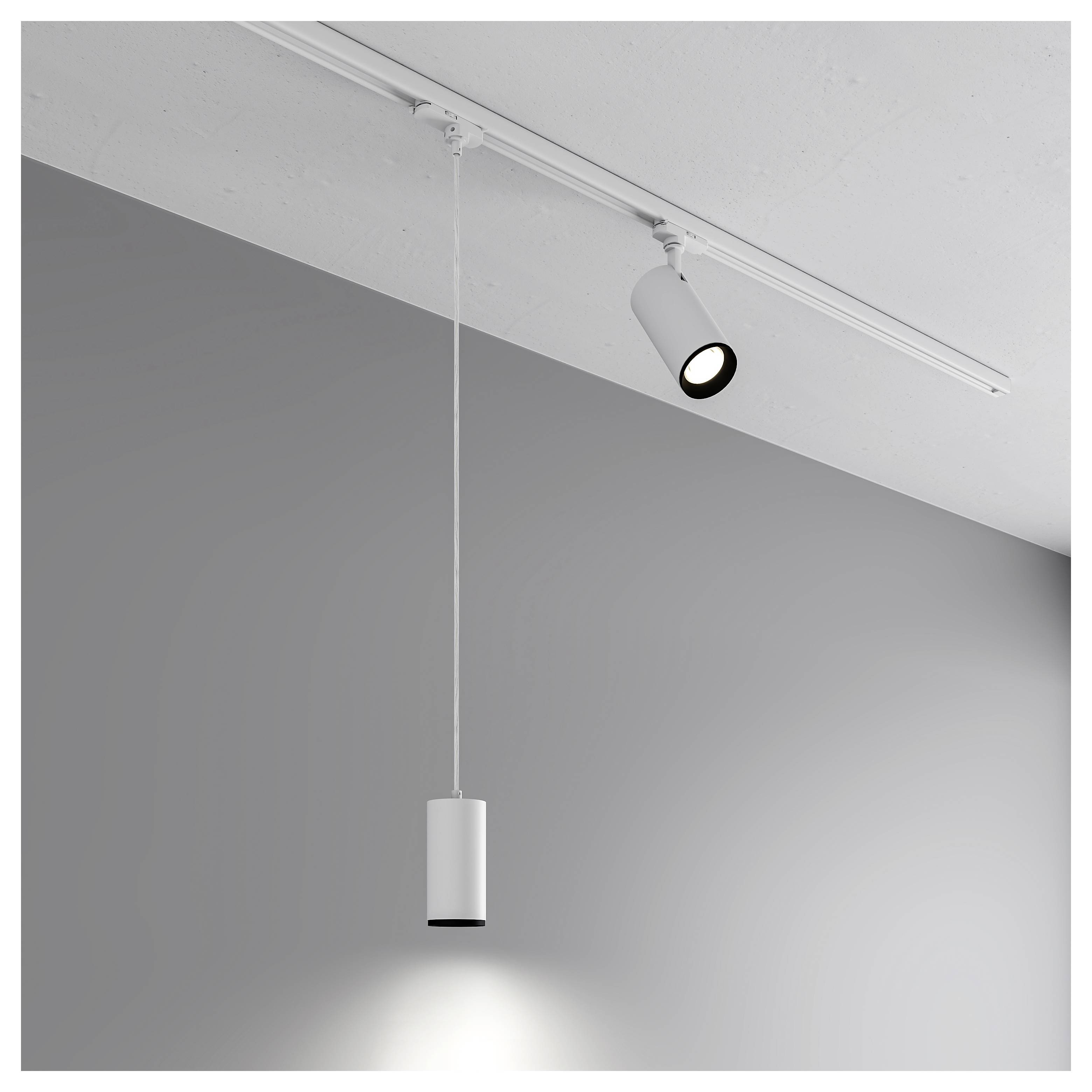

Minimalist ceiling spotlight and hanging pendant light illuminating a gray wall.<br>

1/11

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Deco Light 3-phase pendant lamp - LUCEA 10 CCT, 11 W, DALI, 3000/4000 K, white

Power= 11 W
Total luminous flux= 1000 lm
Colour temperature= 4000 K
Neutral white, Warm white

Technical specifications

Starting current max. 18.6 A / 62.9 µs
Frequency 50 - 60 Hz
Voltage range emergency lighting 176-280 V/DC
EOFI: 100%
Light source: Replaceable light source TC
Colour consistency 3 SDCM
Switching cycles 100000
Power factor 0.9
Max. Number of LS B10: 55
Max. Number of LS B16: 88
Max. Number of LS C10: 55
Max. Number of each LS C16: 88
Operating temperature -20 to +40°C.
Storage temperature -20 to 65 °C.
Input voltage 200-240 V/AC
Control: Push-dim, DALI 2.0 / DT6
UGR 13
Colour temperature 3000/4000 K
Colour reproduction (Ra): 90
Rated light current 930/1000 lm
Functions: Emergency power capable, phase switch

Product type: 3-phase lighting

Operating voltage: 240 V AC

Bulb type: LED (monochrome)

: 11 W

: 4000 K

Colour: Neutral white
Warm white

Total luminous flux: 1000 lm

Energy consumption: 11 kWh/1000h

Light features: Dimmable

Radiation angle: 36°

: IP20
IK03

Protection class: I

Factory colour: Traffic white (RAL 9016)

Material: Aluminium

Weight: 684 g

Dim: (L x W x H) 65 x 65 x 157 mm

: n.rel.

Width: 65 mm

Height: 157 mm

Length: 65 mm

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3766358 Deko Light Lucea 10 CCT 3-phase lighting 11 W LED (monochrome) Traffic white (RAL 9016)

User & Safety Instructions

User & Safety Instructions 3766358 Deko Light Lucea 10 CCT 3-phase lighting 11 W LED (monochrome) Traffic white (RAL 9016)

Warranty Terms

Warranty Terms 3766358 Deko Light Lucea 10 CCT 3-phase lighting 11 W LED (monochrome) Traffic white (RAL 9016)

Description

The DALI LUCEA series pendant lamps suitable for the 3-phase 230 V busbar system are available in versions 11, 16.5, 20 W and offer up to 2,000 lumens of light output. The maximum suspension is 1,800 mm. Optional lenses allow the individual models to narrow or expand in their viewing angle. The housing of the Lucea lamps is made of die cast aluminum.

This text is machine translated.
