Name: Deko Light Lucea 15 Tilt 3-phase lighting 15 W LED (monochrome) Jet black (RAL 9005)
Brand: Deko Light
SKU: 3766363

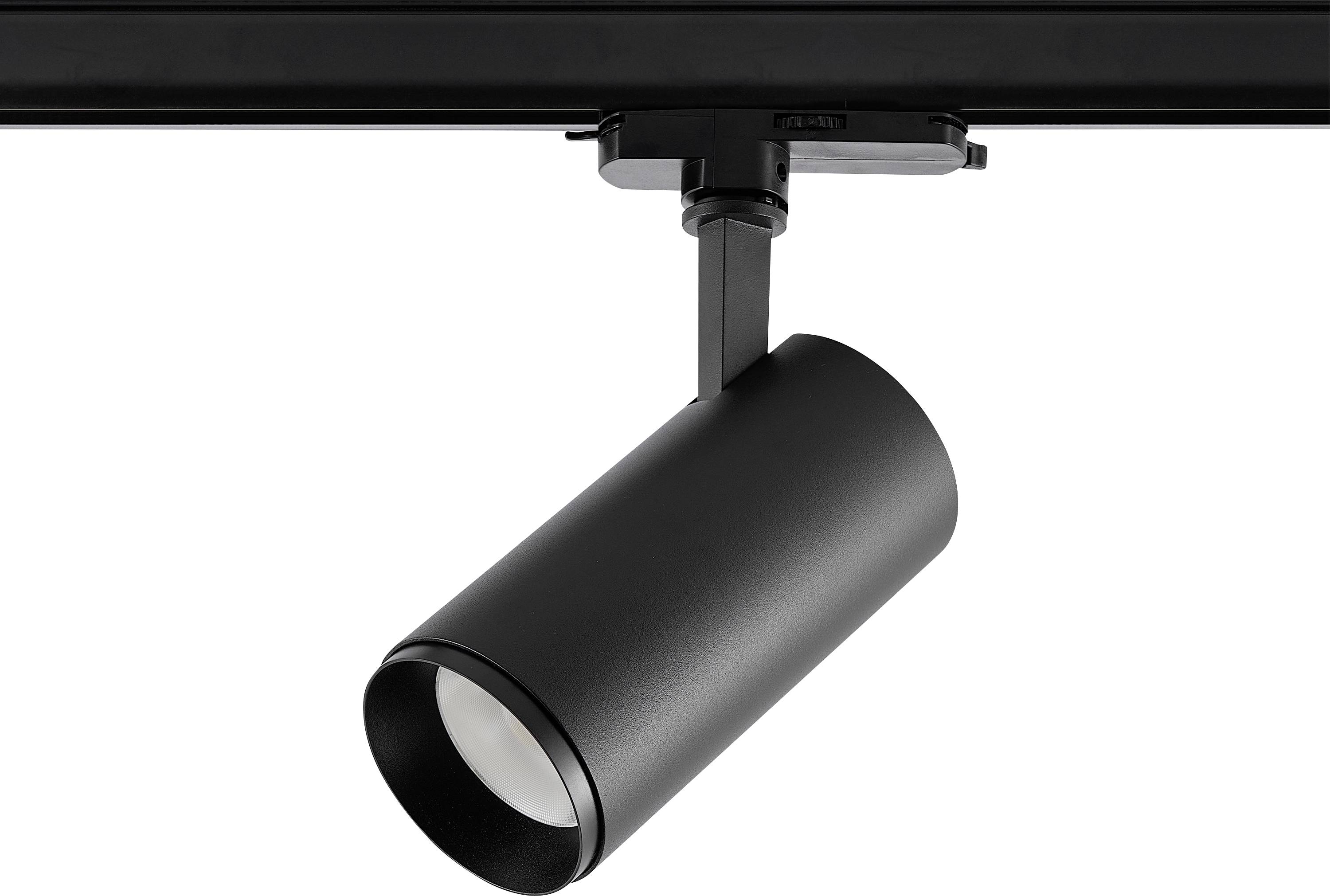

Black cylindrical track spotlight mounted on a ceiling rail, angled downward to direct focused lighting.

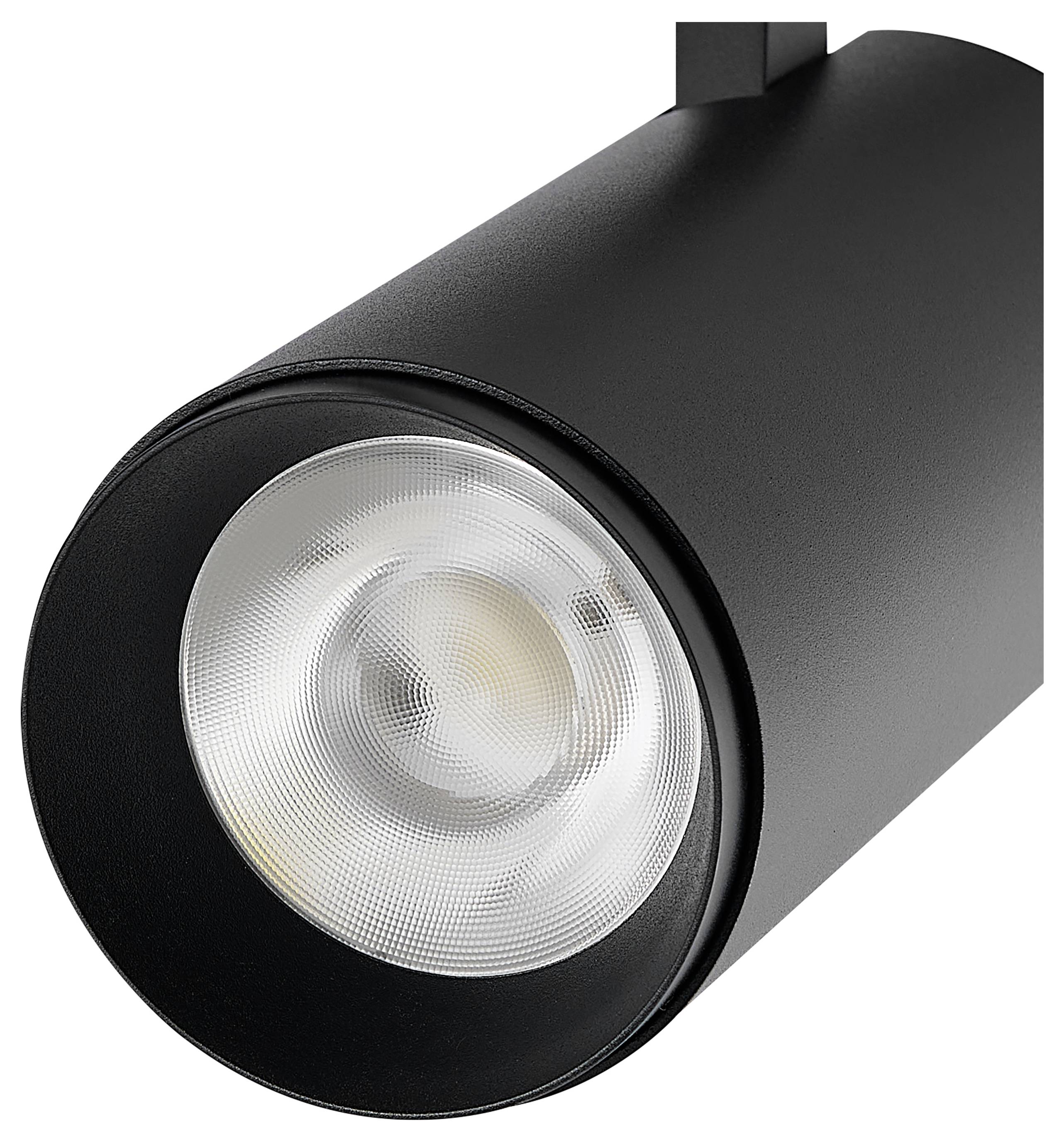

Black cylindrical track light fixture with a round textured lens, shown close up on a white background.

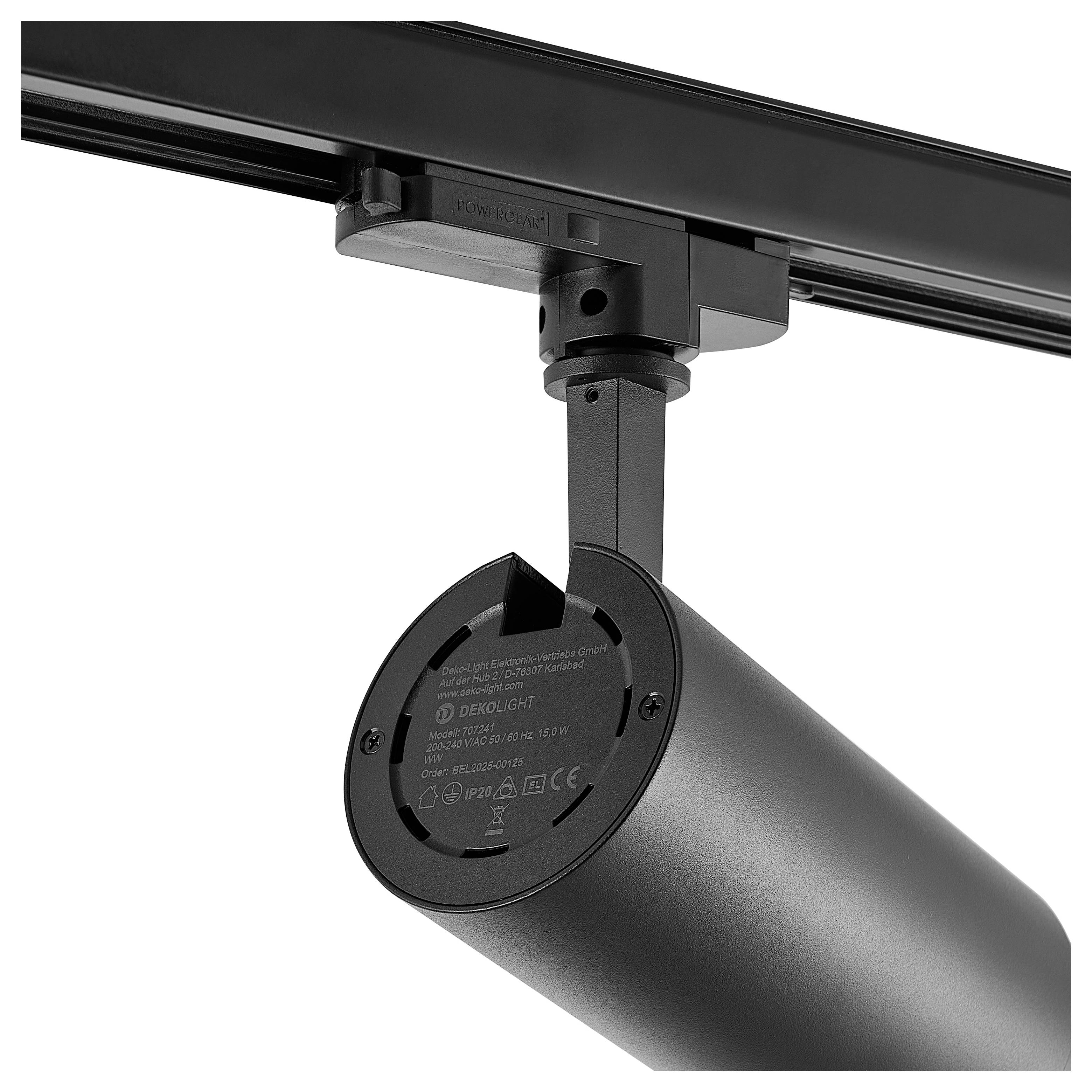

Black cylindrical track light fixture mounted on a ceiling track, shown in close-up against a white background.

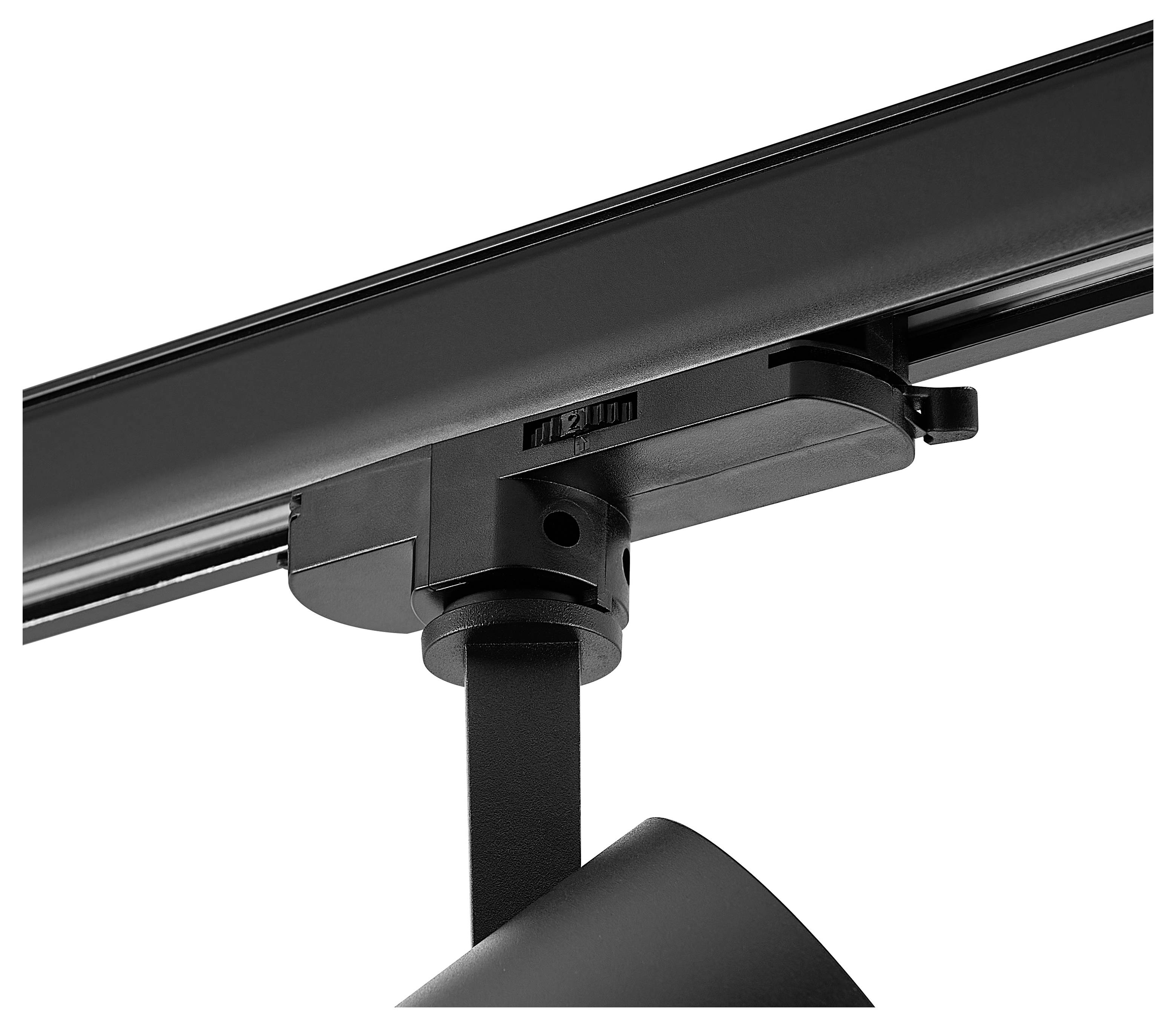

Close-up of a black track lighting fixture with an adjustable spotlight attached to the rail against a white background

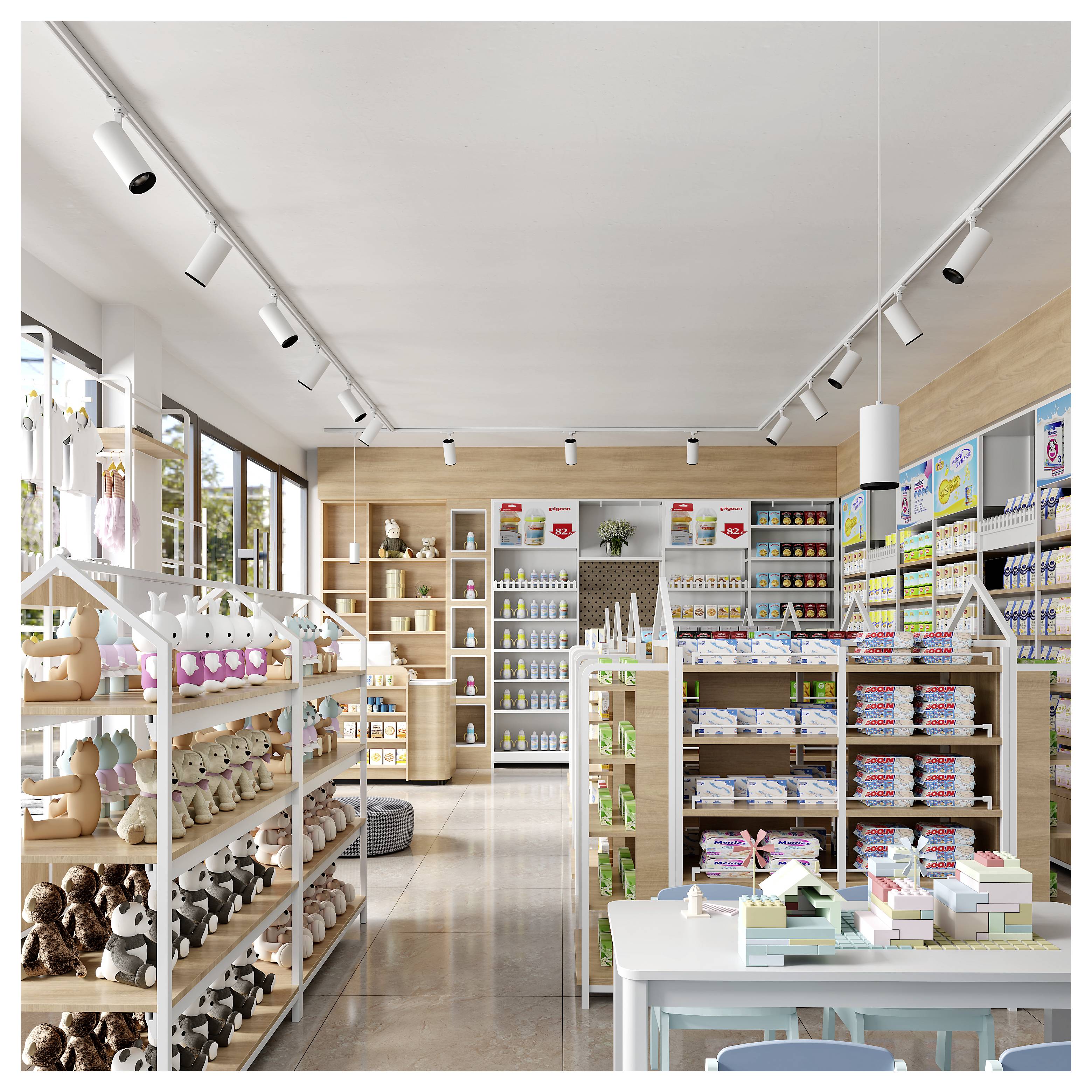

Bright, modern toy store interior with shelves of stuffed animals, dolls, games, and colorful merchandise displayed along a central aisle.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Deco Light 3-phase Spot - LUCEA 15 Tilt, 15 W, DALI, 2700 K, black

Power= 15 W
Total luminous flux= 1950 lm
Colour temperature= 2700 K
Warm white

Technical specifications

Starting current max. 18.6 A / 62.9 µs
Frequency 50 - 60 Hz
Voltage range emergency lighting 176-280 V/DC
EOFI: 100%
Light source: Replaceable light source TC
Light distribution: Symmetric
Colour consistency 3 SDCM
Switching cycles 100000
Power factor 0.9
Max. Number of LS B10: 55
Max. Number of LS B16: 88
Max. Number of LS C10: 55
Max. Number of each LS C16: 88
Operating temperature -20 to +40°C.
Storage temperature -20 to 65 °C.
Input voltage 200-240 V/AC
Control: Intelli Push-Dim, DALI 2.0 / DT6
UGR 12
Colour reproduction (Ra): 90
Functions: Emergency power capable, phase switch

Product type: 3-phase lighting

Operating voltage: 240 V AC

Bulb type: LED (monochrome)

: 15 W

: 2700 K

Colour: Warm white

Total luminous flux: 1950 lm

Energy consumption: 15 kWh/1000h

Light features: Dimmable
Pivoted
Swivelling

Rotation range (max.): 350°

Swivel range (max.): 90°

Radiation angle: 36°

: IP20
IK03

Protection class: I

Factory colour: Jet black (RAL 9005)

Material: Aluminium

Weight: 809 g

Dim: (L x W x H) 113 x 85 x 269 mm

: n.rel.

Width: 85 mm

Height: 269 mm

Length: 113 mm

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3766363 Deko Light Lucea 15 Tilt 3-phase lighting 15 W LED (monochrome) Jet black (RAL 9005)

User & Safety Instructions

User & Safety Instructions 3766363 Deko Light Lucea 15 Tilt 3-phase lighting 15 W LED (monochrome) Jet black (RAL 9005)

Warranty Terms

Warranty Terms 3766363 Deko Light Lucea 15 Tilt 3-phase lighting 15 W LED (monochrome) Jet black (RAL 9005)

Description

For the 3-phase 230 V busbar system, we also offer LUCEA series spots with DALI function. In the version it has a power of 15W or 40W and thus enables a maximum light output of up to 1950 or 4480 lumen. Optional lenses allow the individual models to narrow or expand in their viewing angle. For all versions, a door panel is also available as an optional accessory for flexible use of the lights in commercial and industrial environments.

This text is machine translated.
