Name: Deko Light Lucea 30 CCT Tilt 3-phase lighting 33 W LED (monochrome) Jet black (RAL 9005)
Brand: Deko Light
SKU: 3766357

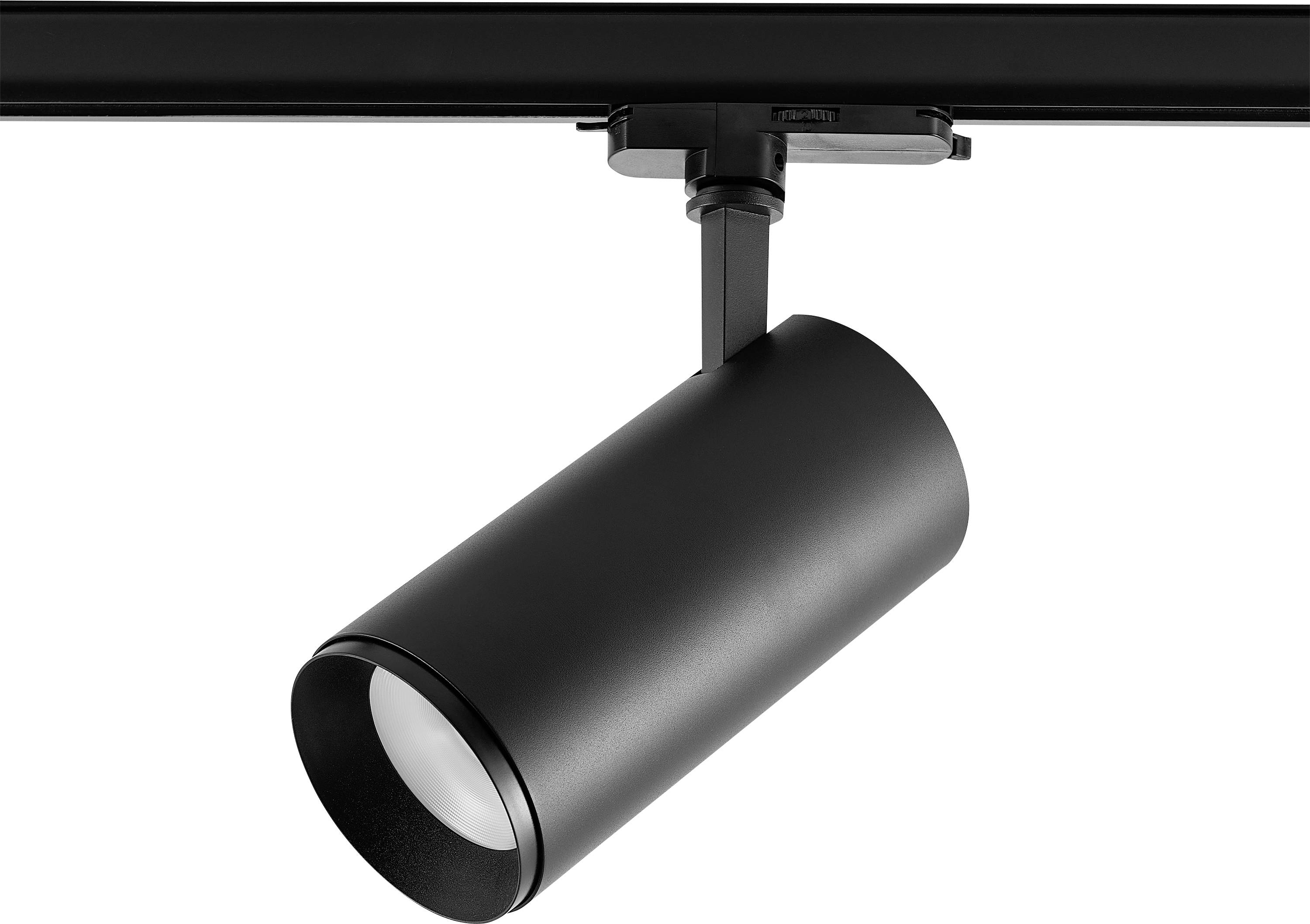

Black cylindrical track spotlight angled downward on a ceiling rail against a white background.

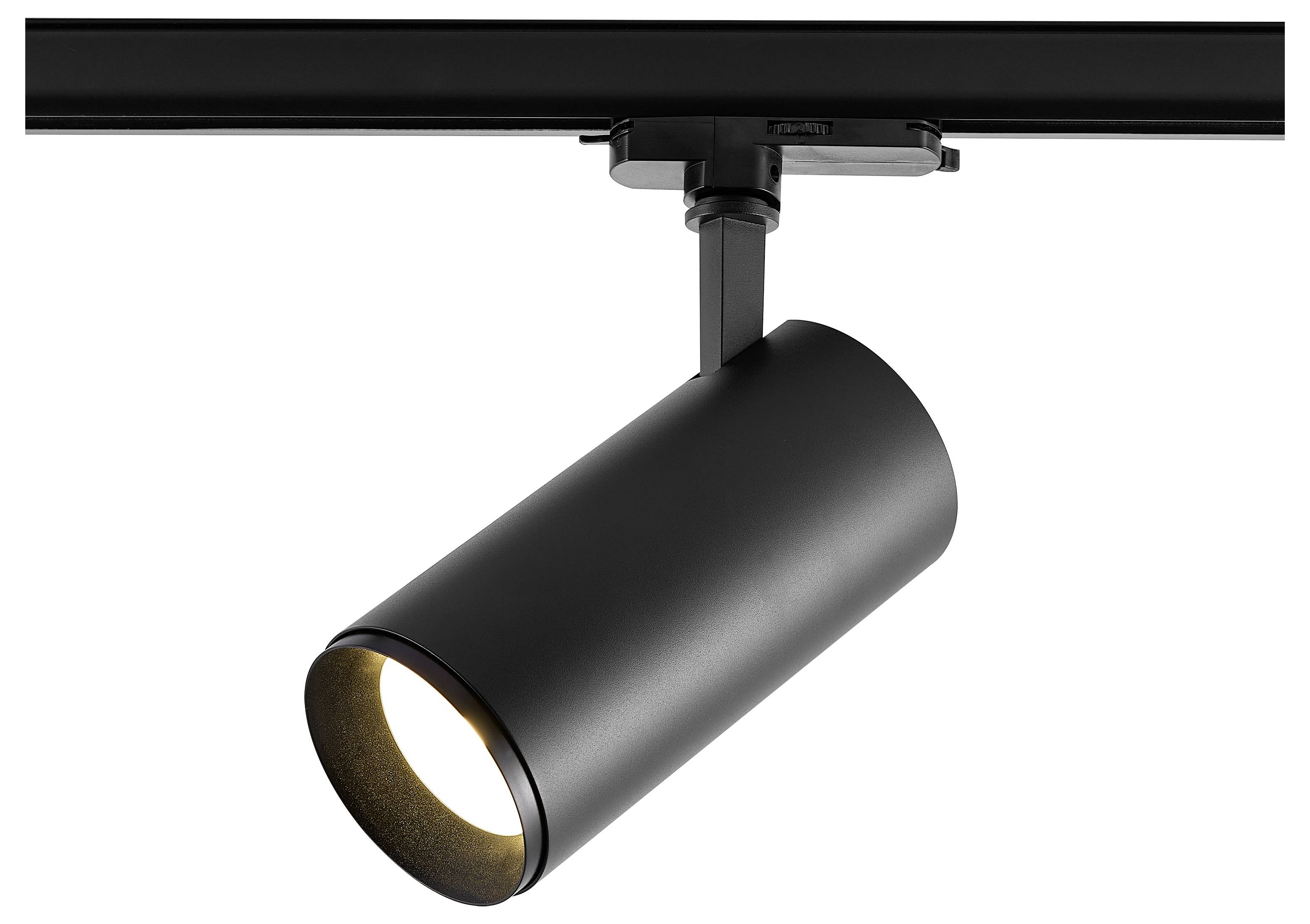

Black cylindrical track spotlight mounted on a ceiling rail, angled downward and switched on with a warm light glow.

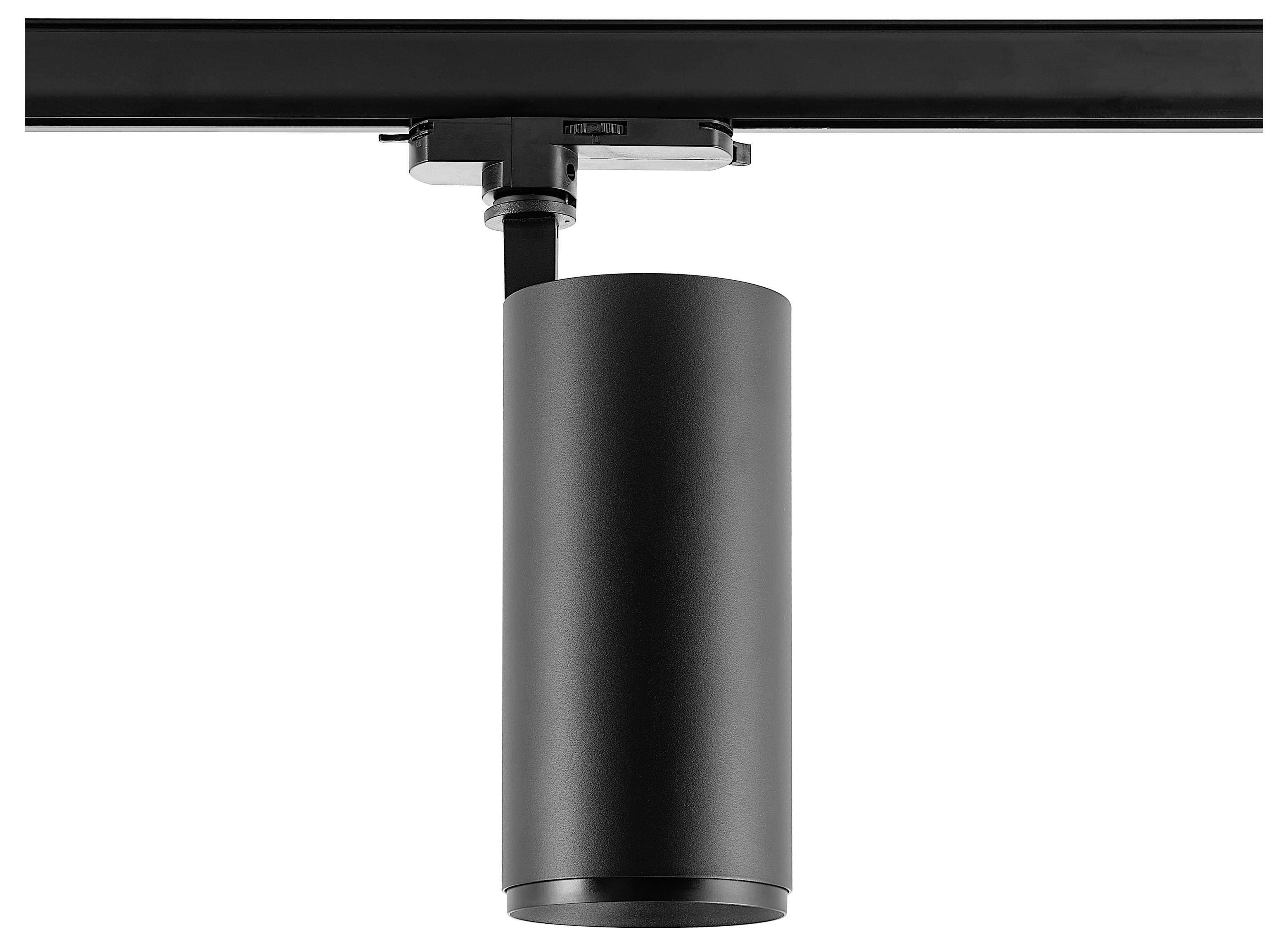

Black cylindrical track-mounted spotlight hanging from a ceiling rail on a white background.

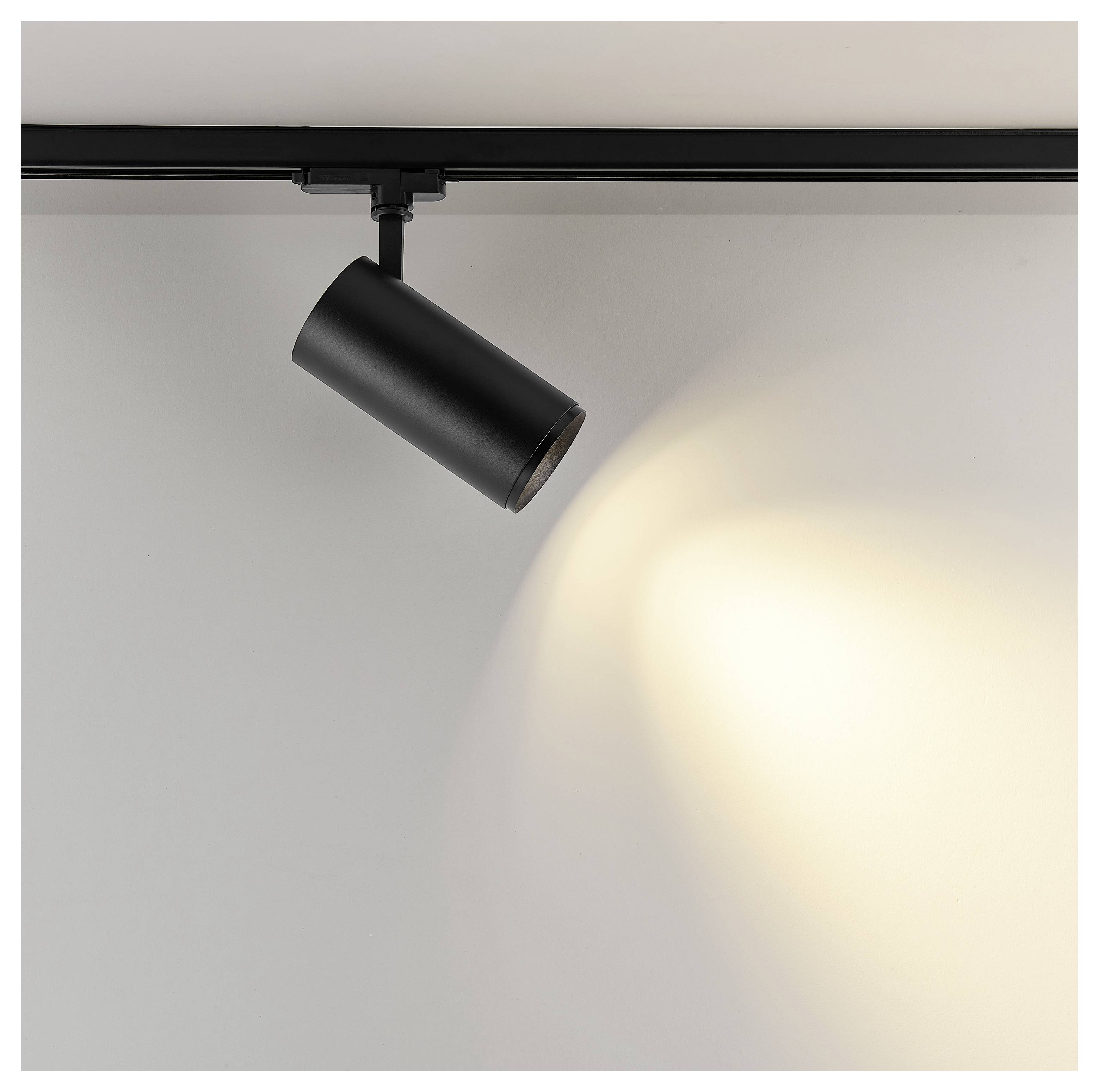

Black track light fixture mounted on ceiling, angled to cast a warm spotlight on a plain wall.<br>

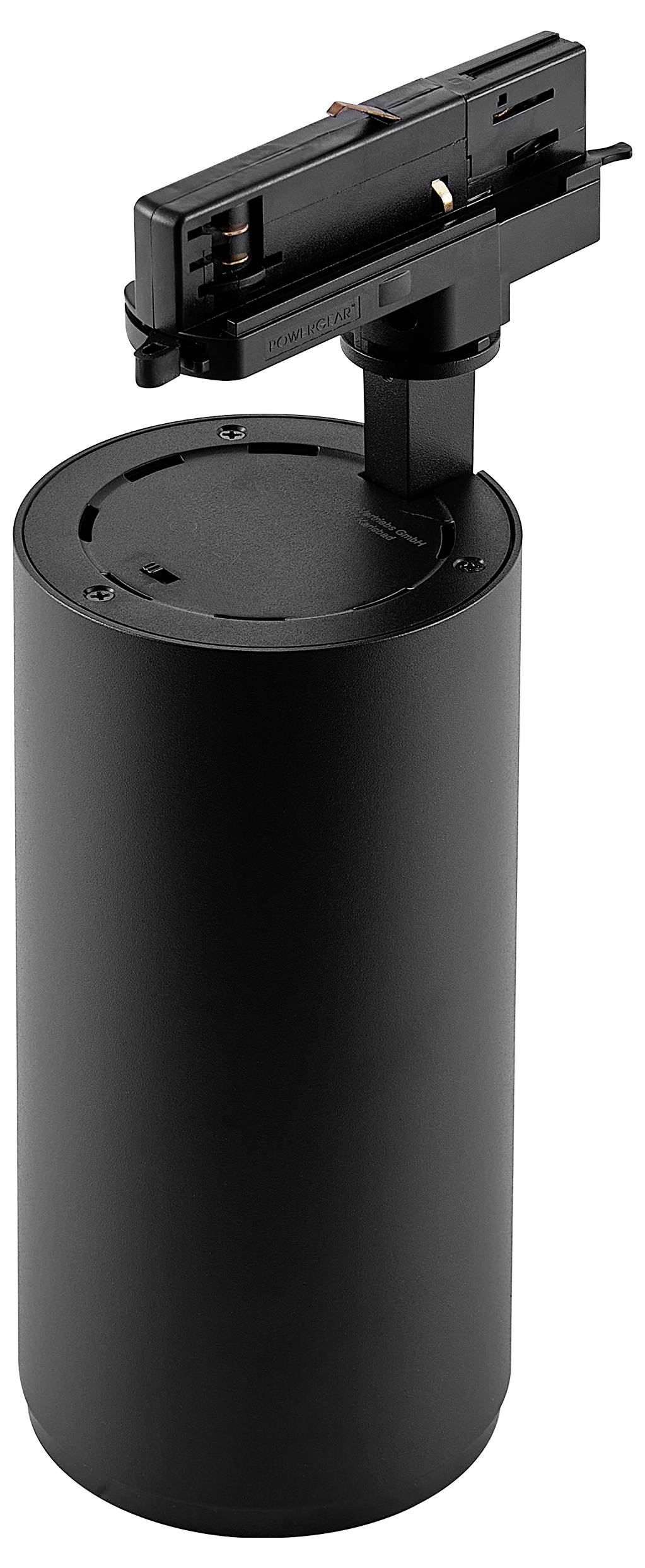

Black cylindrical ceiling spotlight with adjustable rectangular light head on a vertical mount.

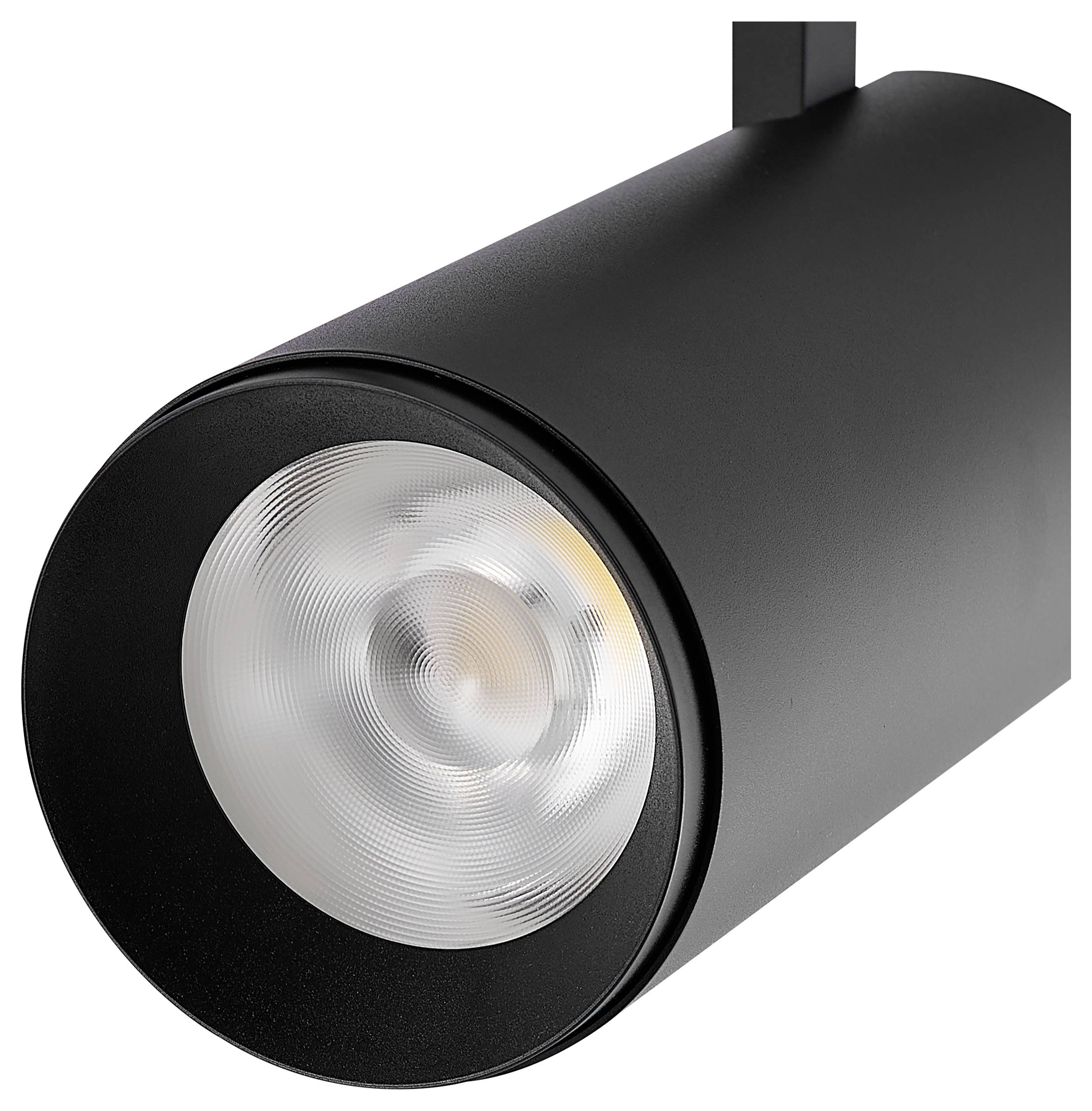

Black cylindrical track spotlight with a large circular lens on a white background.

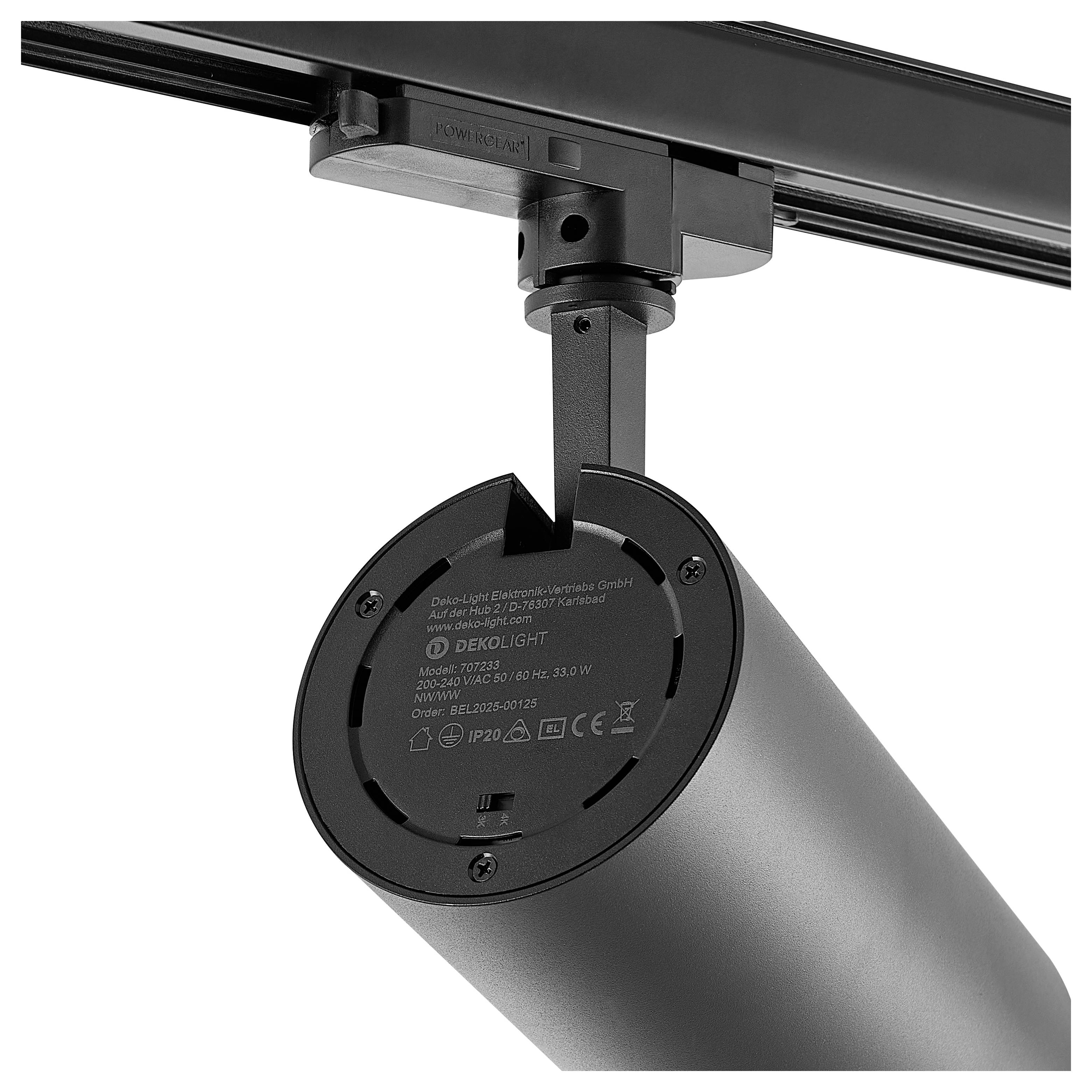

Black cylindrical track light spotlight mounted on a ceiling rail, shown from below with its adjustable bracket and label visible.<br>

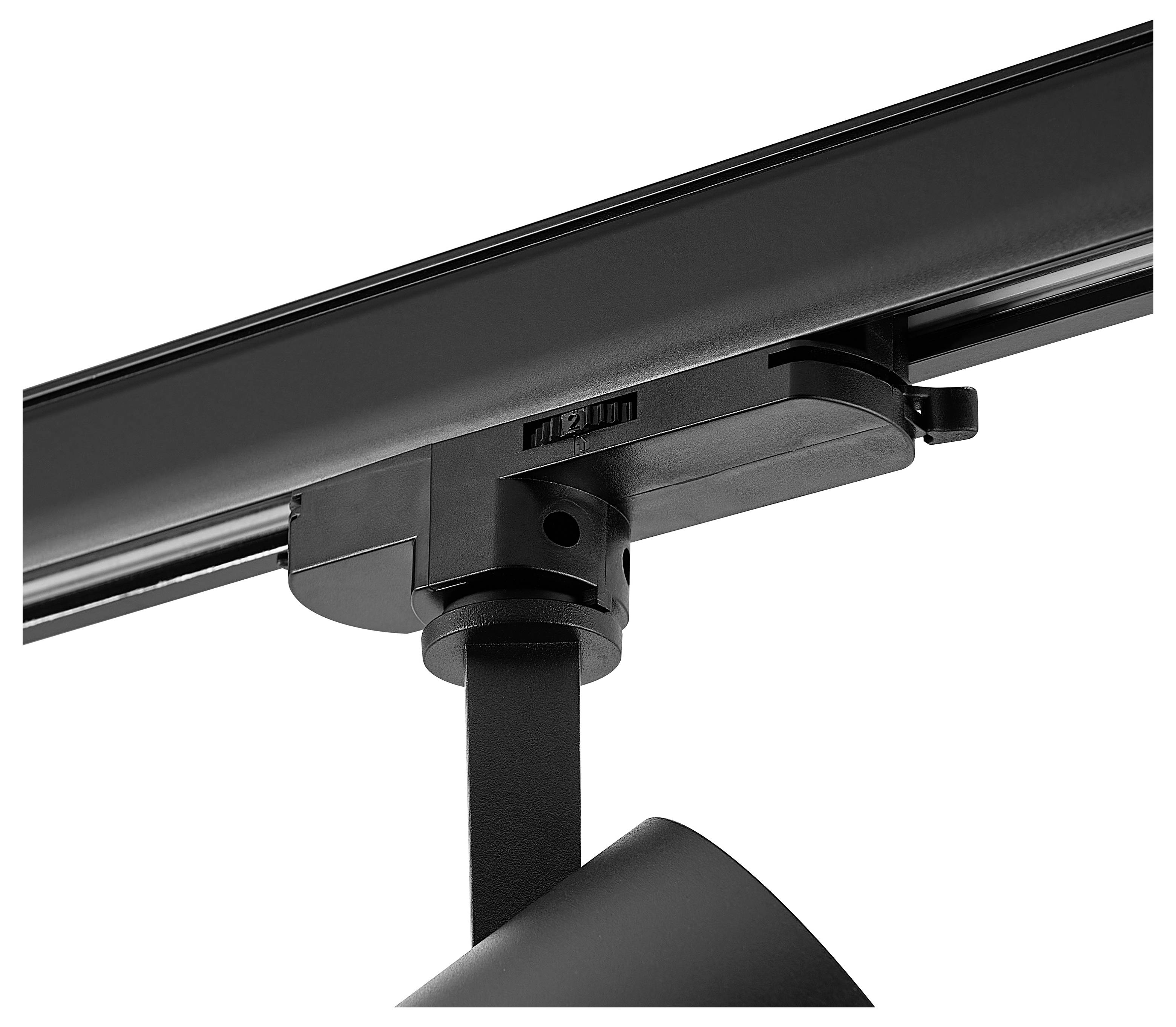

Close-up of a black track lighting adapter mounted to a ceiling rail, with a hanging spotlight below.

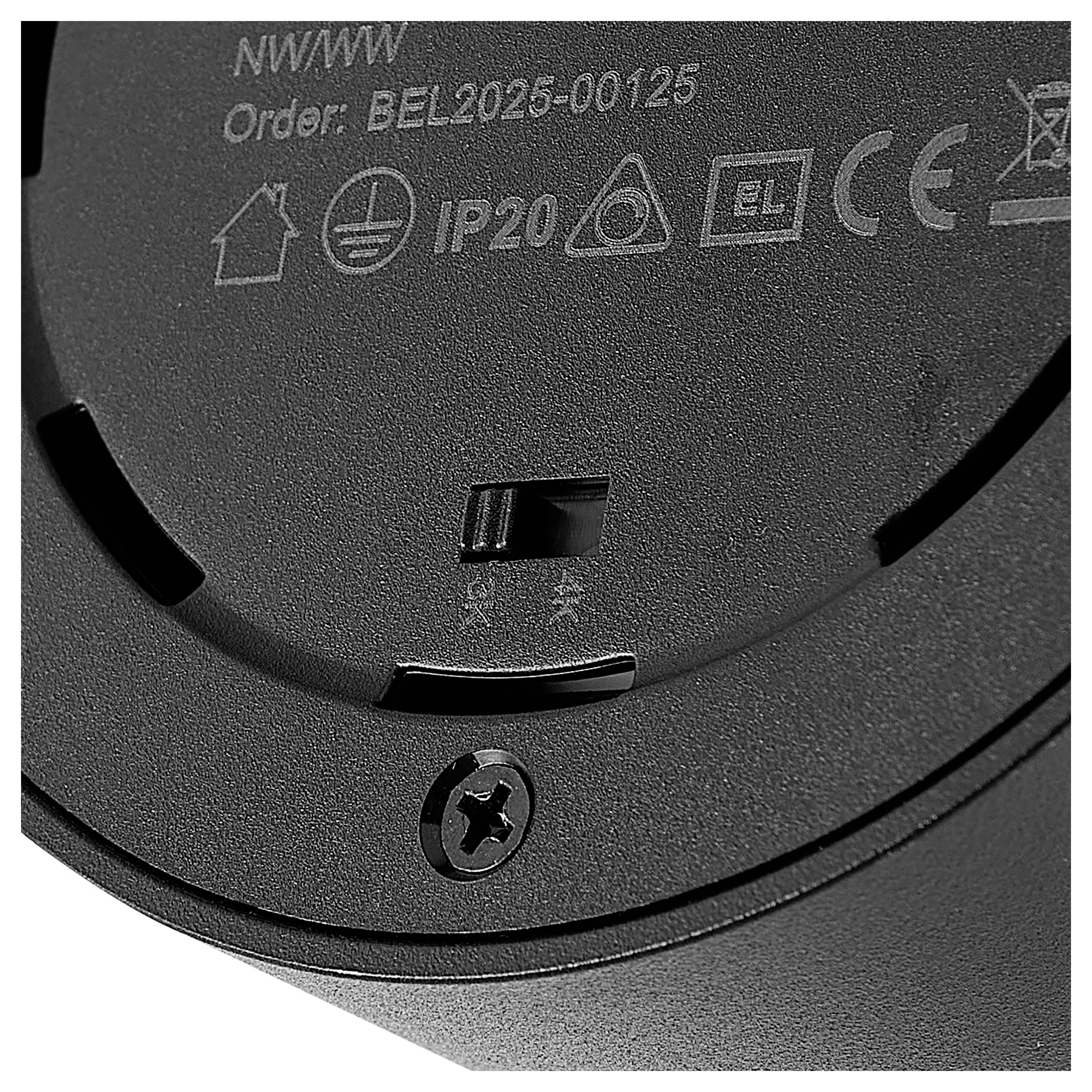

Close-up of a black electrical device base showing regulatory markings, including 'Order: BEL2025-00125', 'IP20', and CE symbols, plus a small switch and screw.

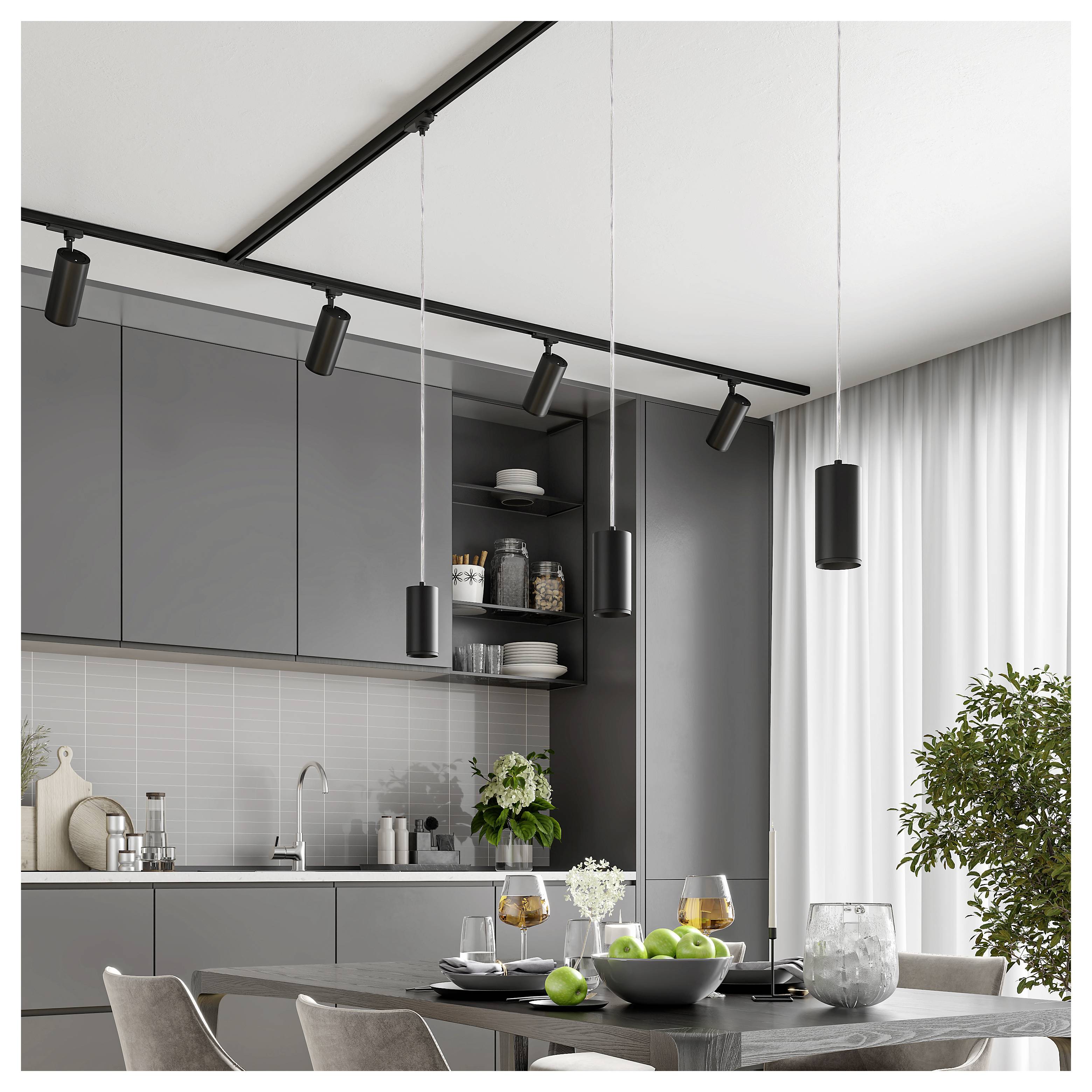

Modern gray kitchen and dining area with black track lights, island table set with fruit, dishes, and drinks beside large sheer-curtained windows.

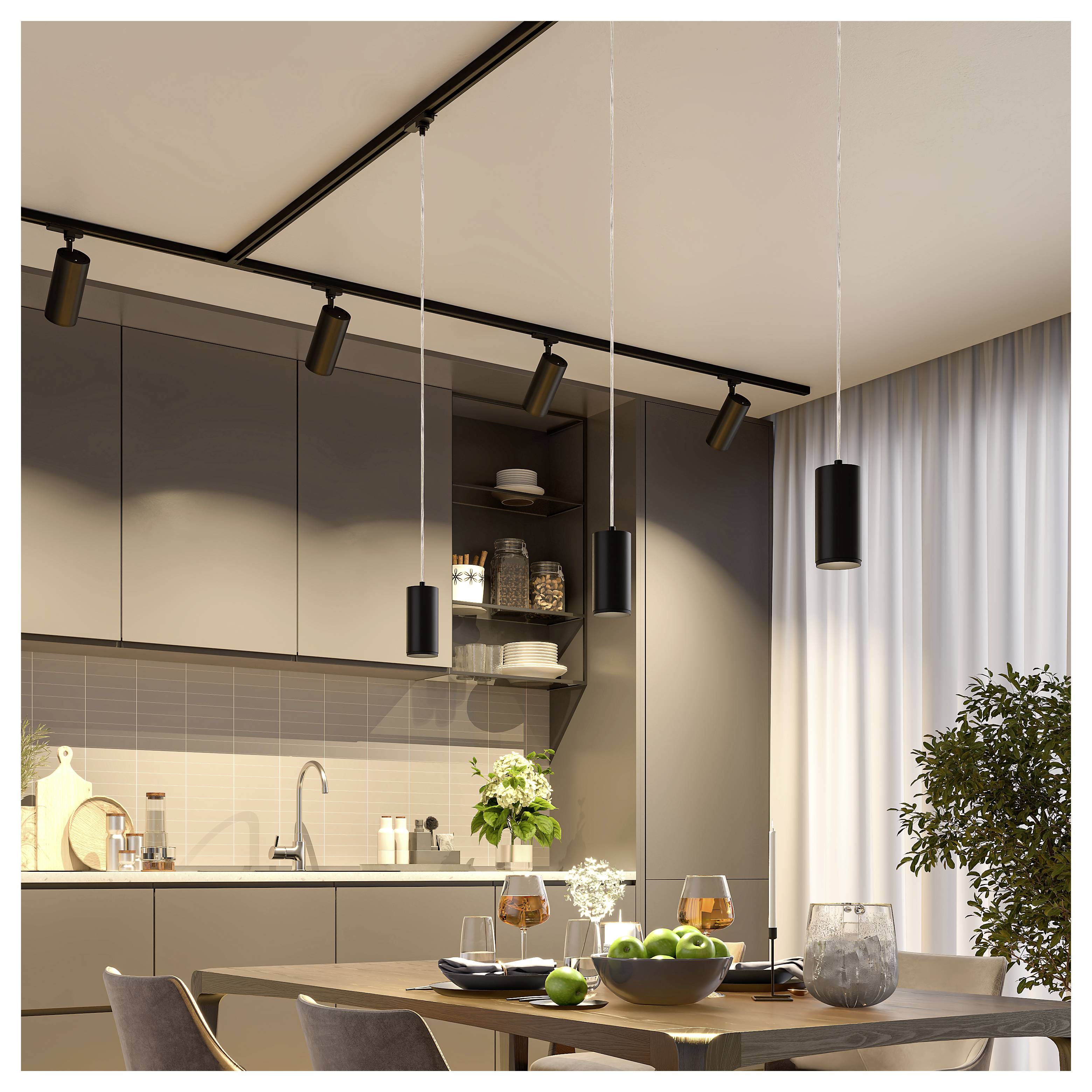

Modern kitchen and dining area with a table set with fruit, glasses, and a vase, lit by pendant and track lights near large sheer curtains.

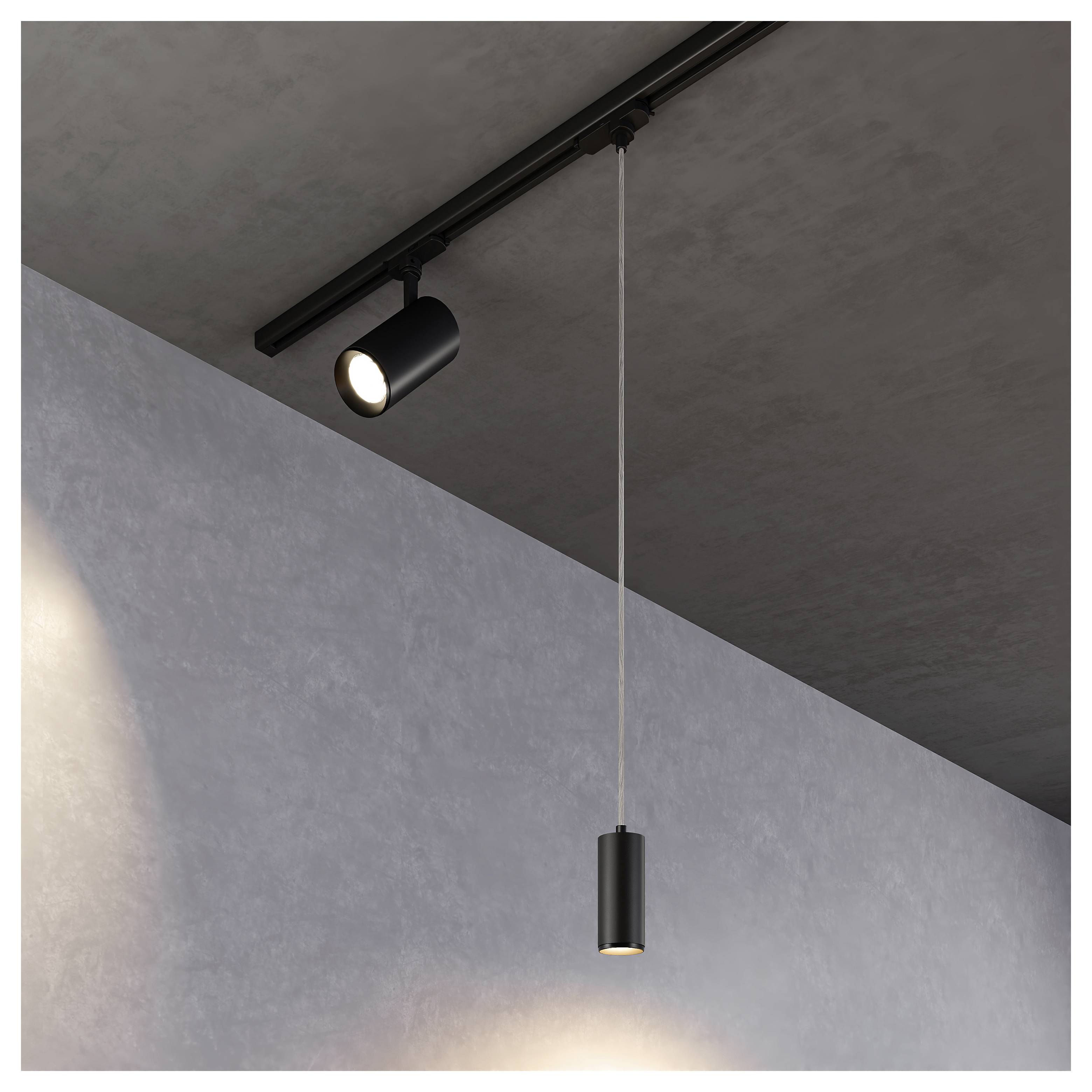

Black track and pendant lights on a slanted ceiling above a gray wall, with one spotlight glowing.<br>

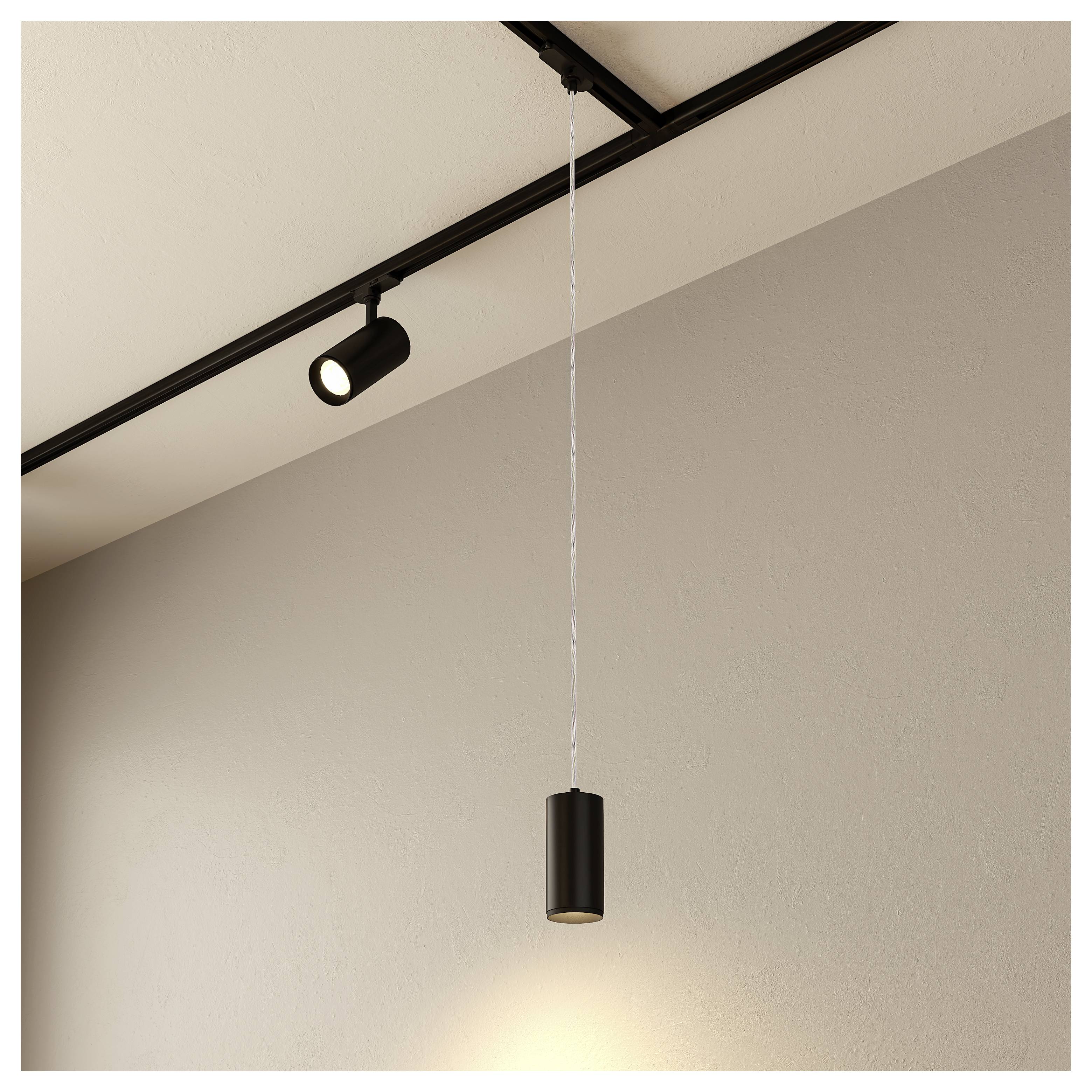

Black cylindrical pendant light hanging from a ceiling track light rail, with a spotlight above against a beige wall.

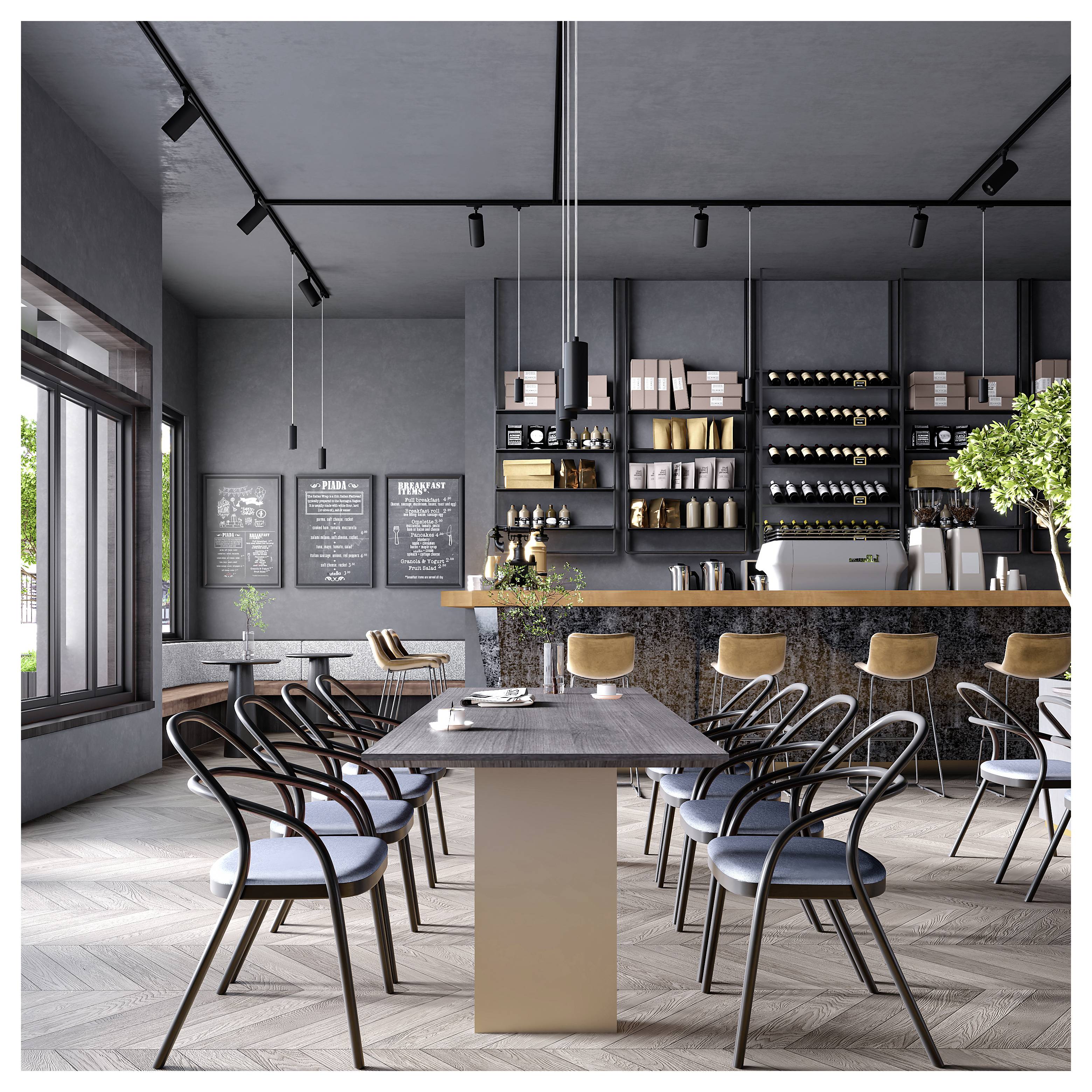

Modern minimalist café interior with empty tables and chairs, a long wooden bar, shelves of cups and bottles, and large windows on the left.<br>

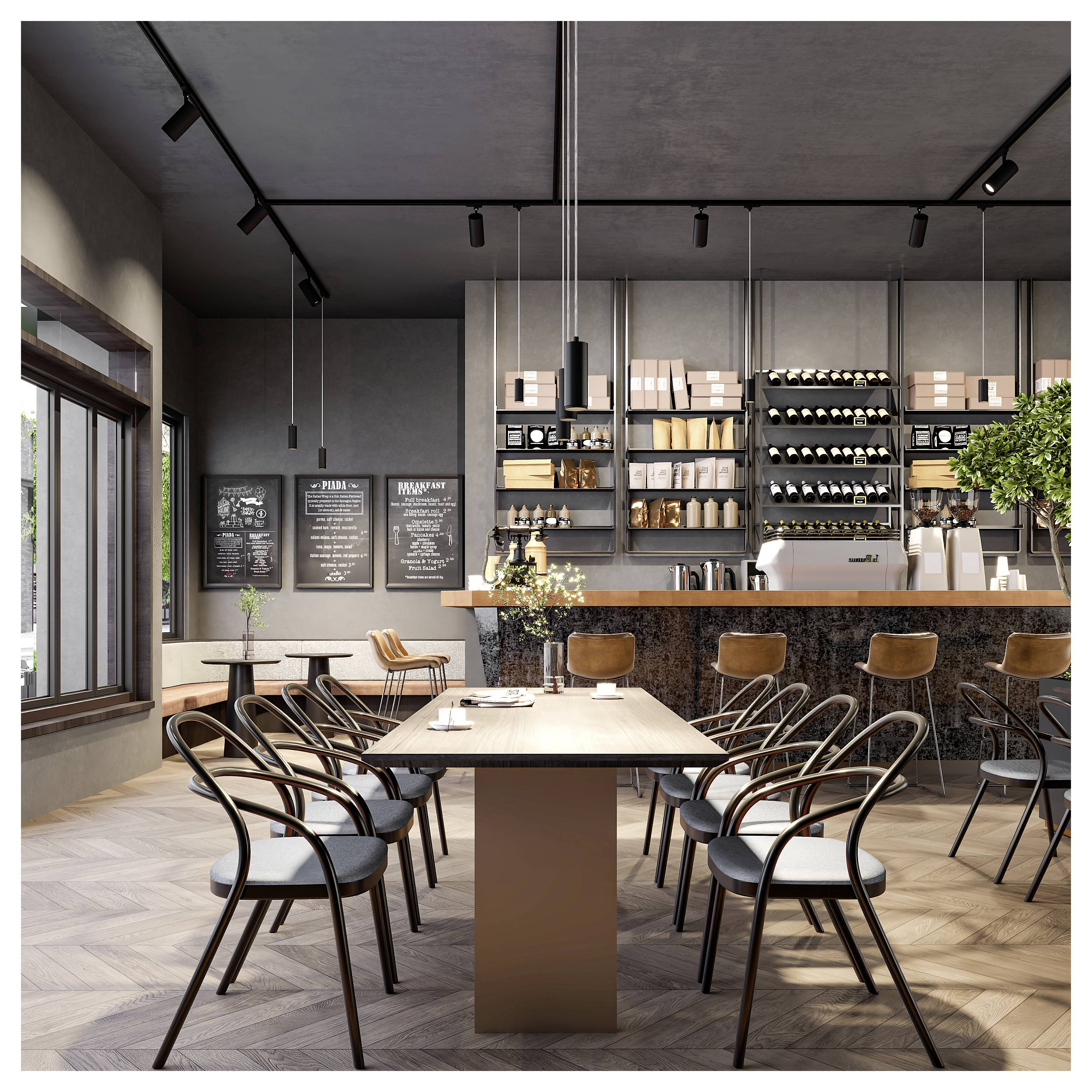

Modern cafe interior with a long communal table, black chairs, wall menu boards, and a coffee bar with shelves of cups and bottles.

1/15

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Deco Light 3-phase Spot - LUCEA 30 CCT Tilt, 33 W, DALI, 3000/4000 K, black

Power= 33 W
Total luminous flux= 2900 lm
Colour temperature= 4000 K
Neutral white, Warm white

Technical specifications

Starting current max. 25.6 A / 31.1 µs
Frequency 50 - 60 Hz
Voltage range emergency lighting 176-280 V/DC
EOFI: 100%
Light source: Replaceable light source TC
Light distribution: Symmetric
Colour consistency 3 SDCM
Switching cycles 100000
Power factor 0.9
Max. Number of LS B10: 37
Max. Number of LS B16: 59
Max. Number of LS C10: 37
Max. Number of each LS C16: 59
Operating temperature -20 to +40°C.
Storage temperature -20 to 65 °C.
Input voltage 200-240 V/AC
Control: Intelli Push-Dim, DALI 2.0 / DT6
UGR 13
Colour temperature 3000/4000 K
Colour reproduction (Ra): 90
Rated light current 2700/2900 lm

Product type: 3-phase lighting

Operating voltage: 240 V AC

Bulb type: LED (monochrome)

: 33 W

: 4000 K

Colour: Neutral white
Warm white

Total luminous flux: 2900 lm

Energy consumption: 33 kWh/1000h

Light features: Dimmable
Pivoted
Swivelling

Rotation range (max.): 350°

Swivel range (max.): 90°

Radiation angle: 36°

: IP20
IK03

Protection class: I

Factory colour: Jet black (RAL 9005)

Material: Aluminium

Weight: 1116 g

Dim: (L x W x H) 113 x 100 x 302 mm

: n.rel.

Width: 100 mm

Height: 302 mm

Length: 113 mm

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3766357 Deko Light Lucea 30 CCT Tilt 3-phase lighting 33 W LED (monochrome) Jet black (RAL 9005)

User & Safety Instructions

User & Safety Instructions 3766357 Deko Light Lucea 30 CCT Tilt 3-phase lighting 33 W LED (monochrome) Jet black (RAL 9005)

Warranty Terms

Warranty Terms 3766357 Deko Light Lucea 30 CCT Tilt 3-phase lighting 33 W LED (monochrome) Jet black (RAL 9005)

Description

For the 3-phase 230 V busbar system we offer spots with DALI function of the LUCEA series. In the version as 3-Phase spot, they are available with 33 W and thus enables a maximum light output of up to 2,900 Lumen. Optional lenses allow the individual models to narrow or expand in their viewing angle. For all versions, a door panel is also available as an optional accessory for flexible use of the lights in commercial and industrial environments.
