Deko Light Überspannungsschutzfilter mit Kontrollanzeige, 230-277VAC, 5A 843055 Surge filter Black
EAN:
Part number:
Item no:
Technical specifications
- Input voltage 230-277 V/AC
- Frequency 50 - 60 Hz
- Rated current 10 A
- Voltage protection: Up to 1500V (25ns)
- Nominal peak current (8/20us) 5KA
- Connection possibilities: Open cable
- Dim
(L x W x H) 37 x 30 x 20 mm
- Product type
Surge filter
- Factory colour
Black
- Width
30 mm
- Height
20 mm
- Length
37 mm
IP67
- Protection class
I
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3347616 Deko Light Überspannungsschutzfilter mit Kontrollanzeige, 230-277VAC, 5A 843055 Surge filter Black
Warranty Terms
Warranty Terms 3347616 Deko Light Überspannungsschutzfilter mit Kontrollanzeige, 230-277VAC, 5A 843055 Surge filter Black
Description

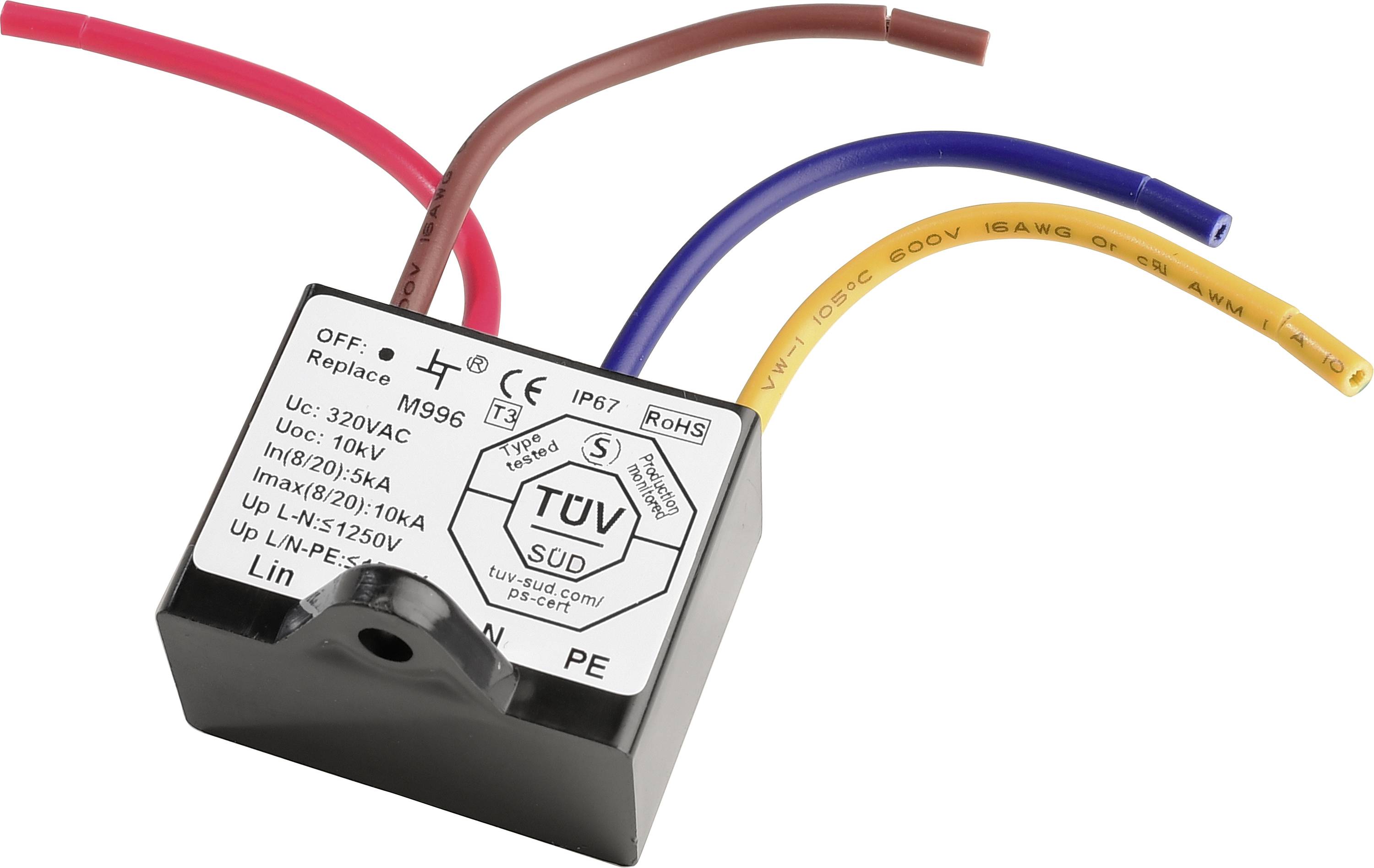

Compact overvoltage protection that effectively prevents the premature failure of LED-lamps caused by problems in the mains supply. In case of persistent failure the overvoltage protection is defective and efficiently protects the connected LED light by separating the mains and the circuit. A LED also shows that the detector is working. It protects single-phase operated, non-dimmable LED lighting systems. The IP67-protected housing comes with a mounting bracket for direct mounting in lights or, if necessary Storage boxes supplied.
