Delock 11476 DisplayPort switch DisplayPort 7680 x 4320 Pixel, 3840 x 2160 Pixel
EAN:
Part number:
Item no:
Highlights & Details

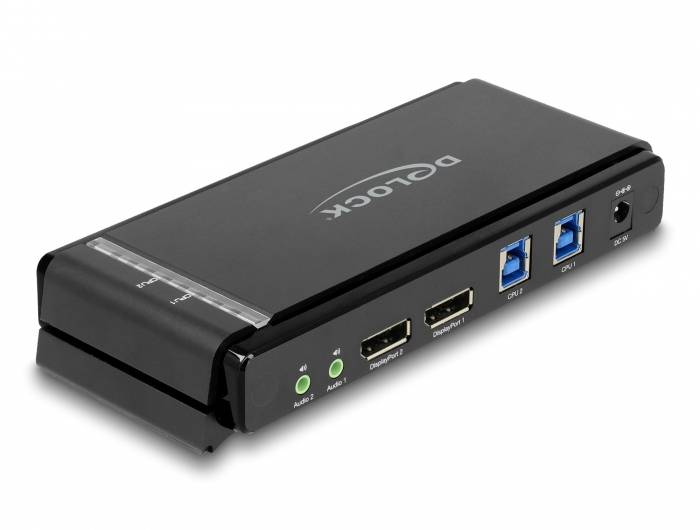

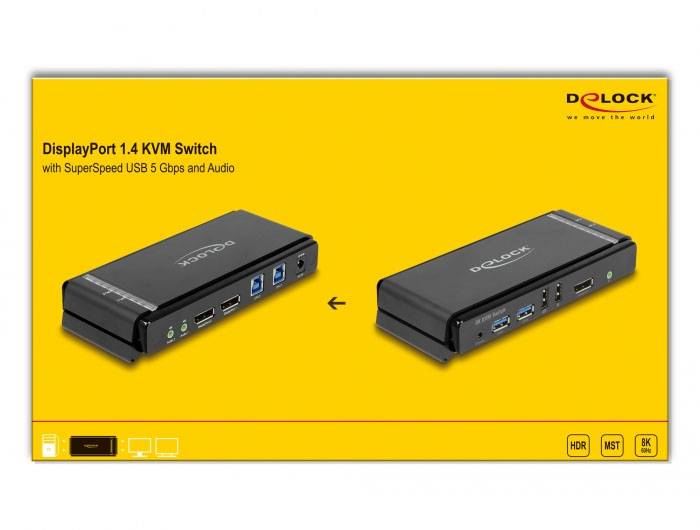

Delock 11476 DisplayPort switch
- Black
- Number of computers: 2
- Keyboard Port type: USB Mouse port type: USB video Port type: DisplayPort
- 8K Ultra HD 7680 x 4320 pixels
- Case material: metal
- Shortcuts
- AC
Technical specifications
- HD type 8K Ultra HD
- Energy source: AC
- Product type
DisplayPort switch
- Video via
DisplayPort
- Video resolution
7680 x 4320 Pixel
3840 x 2160 Pixel
- Factory colour
Black
- Weight
1060 g
- Length
200 cm
- Width
74 mm
- Height
30 mm
- Dim
(L x W x H) 200 cm x 74 mm x 30 mm
- Cable design
Round
- Version
Cable
- Depth
170 mm
- Display resolution
7680 x 4320 Pixel
- No. of DisplayPort
3 x
- No of. USB type A 3.1 /3.2 2nd gen
4 x
- Cable use
C13/C14 appliances
- Connections
RJ45 connector
- HDR support
Yes
- Connection type
USB
- Max. output current
4 A
- Output voltage
5 V
- Input voltage
100-240 V
- UKCA
yes
- Hot keys
yes
- AC adapter included
yes
- Display switch button
yes
- Number of computers controlled
2
- USB 2.0 Type-B ports quantity
2
- Video bandwidth
60 Hz
- Manual
yes
- Audio connections
yes
- HDCP
yes
- Built-in display
no
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3382451 Delock 11476 DisplayPort switch DisplayPort 7680 x 4320 Pixel, 3840 x 2160 Pixel
Description
Quick guide
This KVM switch by Delock is a practical solution for operating two computers with DisplayPort output on a display port monitor.
Peripherals
In addition, the mouse and keyboard can be connected via two USB 2.0 ports and hard disks or USB memory via two USB 5 Gbps connections.
Multi-stream Transport (MST)
With the support of MST (Multi-Stream Transport), several monitors can also be used at the DisplayPort output with an optional MST-hub.
Note
MST (Multi-Stream Transport) requires either monitors capable of performing DisplayPort daisy chaining or an active DisplayPort MST Hub. The PC source must be compatible with DisplayPort MST.
