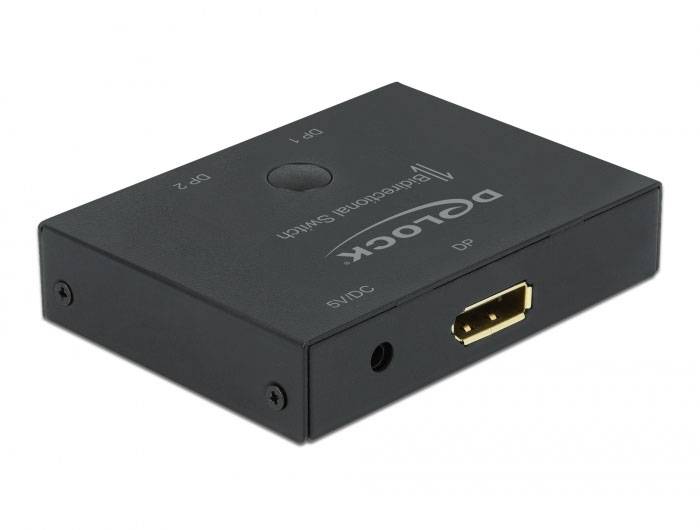

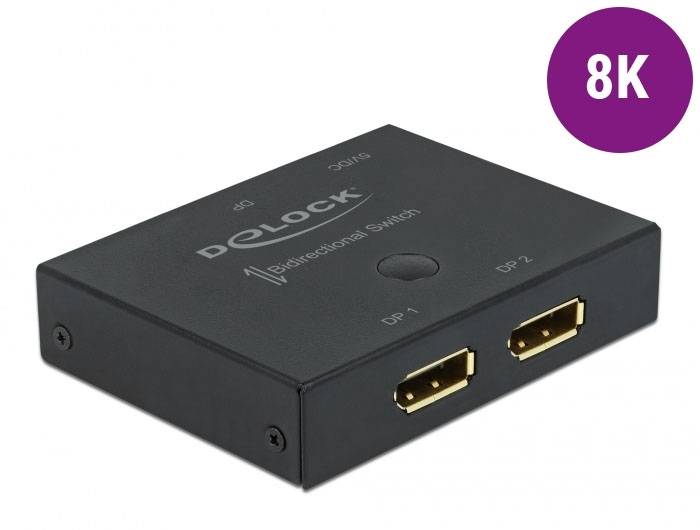

Delock 11478 DisplayPort switch
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
DisplayPort 2 - 1 switch bi-directional 8K 30 Hz
- 7680 x 4320 pixels Maximum picture repetition rate 30 Hz
- Output interface DisplayPort
- Direct current connection (DC)
- Black
Technical specifications
- Product type
DisplayPort switch
- Supported monitors
2
- Factory colour
Black
- Width
63 mm
- Height
18 mm
- Depth
83 mm
- Weight
188 g
- Cable design
Round
- Cable length
1 m
- Version
Cable
- Frame rate
30 Hz
- Cable use
C13/C14 appliances
- Connections
RJ45 connector
- Connection type
DisplayPort
- UKCA
yes
- 3.5 mm connector
yes
- DC-in jack
yes
- Manual
yes
- Operating voltage
5 V
- Maximum video resolution
7680 x 4320 p
Documents & Downloads
Datasheet
Datasheet 3381630 Delock 11478 DisplayPort switch
User & Safety Instructions
User & Safety Instructions 3381630 Delock 11478 DisplayPort switch
Description
This DisplayPort switch from Delock is a manual bi-directional switch for connecting different devices with DisplayPort connection, which offers two different application options.
1.
It can connect up to 2 devices to one monitor, TV or projector. The device which is displayed on the screen can be selected with the push of a button.
2.
A DisplayPort device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected by pressing a button. It is not possible to output simultaneously on multiple monitors.
This text is machine translated.
1.
It can connect up to 2 devices to one monitor, TV or projector. The device which is displayed on the screen can be selected with the push of a button.
2.
A DisplayPort device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected by pressing a button. It is not possible to output simultaneously on multiple monitors.
This text is machine translated.

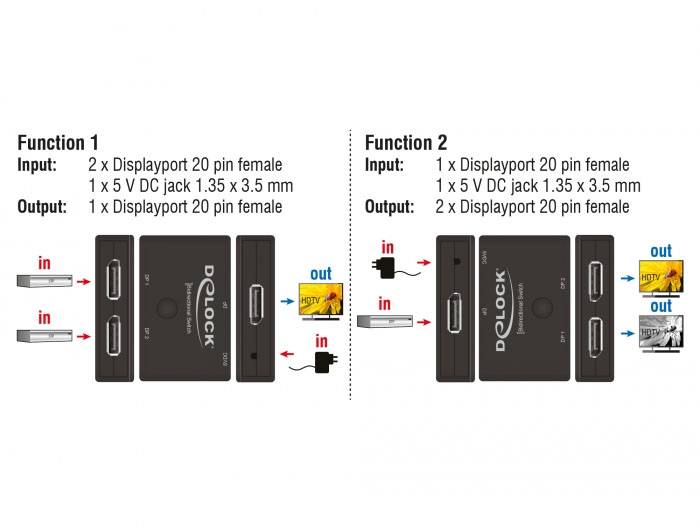

Features
- Connections:
- Function 1
- Input:
- 2 x DisplayPort 20-pin socket
- 1 x 5 V DC power socket 1.35 x 3.5 mm
- Output:
- 1 x DisplayPort 20-pin socket
- Function 2
- Input:
- 1 x DisplayPort 20-pin socket
- 1 x 5 V DC power socket 1.35 x 3.5 mm
- Output:
- 2 x DisplayPort 20-pin socket
- DisplayPort port switch switching
- Resolution up to:
- 7680 x 4320 @ 30 Hz
- 3840 x 2160 @ 144 Hz
- (Depending on the system and the connected hardware)
- Heavy duty metal casing
- Colour, black
- Dim. (LxWxH): Approx. 83 x 63 x 18 mm
System requirements
- A free DisplayPort socket
Display port cable

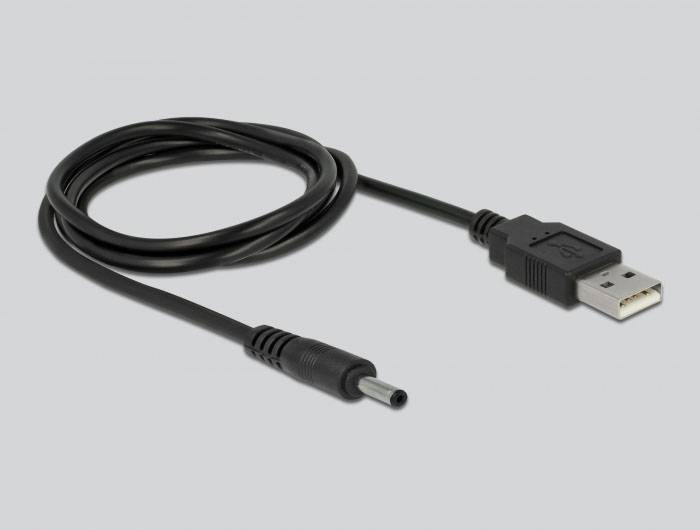

Power source via a free USB type A port
