Delock 12006 12006 Wi-Fi antenna 2 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

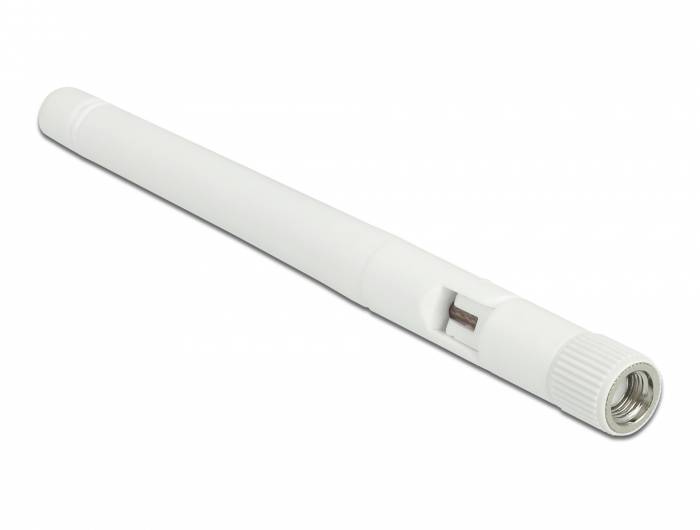

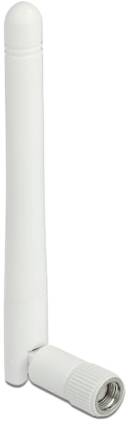

Delock WLAN 802.11 b/g/n antenna RP-SMA plug 2 dBi omnidirectional emission with swiveling joint white
- Omni-directional antenna RP-SMA white
- 2 dBi
- 2,400 - 2,500 GHz
- 50 Ohm
- Linear Polarisation Female
Technical specifications
- 2,400 - 2,500 GHz
- Impedance: 50 ohm
- Product type
Wi-Fi antenna
- Gain
2 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
RPSMA plug
- Weight
0
- No. of ports
1
- Polarisation
Linear
Vertical
- Width
108 mm
- Length
108.00 mm
- Cable design
Round
- Version
Cable
- Factory colour
White
- Cable use
C13/C14 appliances
- Material (details)
PBT
Polycarbonate (PC)
- UKCA
yes
- Operating temperature (T-T)
-45 - 85 °C
- Quantity per pack
1 Stück(e)
- Diameter
1 cm
Documents & Downloads
Datasheet
Datasheet 3382462 Delock 12006 12006 Wi-Fi antenna 2 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382462 Delock 12006 12006 Wi-Fi antenna 2 dBi 2.4 GHz
Description
This WLAN antenna can be connected to a WLAN device with RP-SMA connection, in order to receive and transmit signals.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x RP-SMA plug
- Frequency range 2.400 - 2.500 GHz
- Antenna gain 2 dBi
- Impedance: 50 ohm
- VSWR: ≤2.0
- Polarisation: linear, vertical
- Operating temperature: -45 °C - 85 °C
- Colour: white
- Length:
- Approx. 108.00 mm (with articulated joint)
- Approx. 82.50 mm (without swivel joint)
- Diameter:
- Approx. 7.80 mm (tip)
- Approx. 10.00 mm (RP-SMA)
System requirements
- Device with a free RP-SMA socket
