Delock 12427 Internal antenna LTE, GSM, UMTS
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

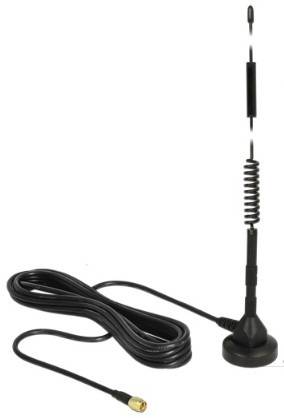

LTE antenna SMA plug 5 dBi 33.7 cm rigid omnidirectional with magnetic stand and connection cable RG-58 3 m outdoor black
Technical specifications
- Cable type: RG-174
- Product type
Mobile phone antenna
- Mobile phone standard
GSM
LTE
UMTS
- Factory colour
Black
- Gain
5 dBi
- Length
350 cm
- Antenna type
Internal antenna
- Suitable for mains
LTE
GSM
UMTS
- Width
40 mm
- Height
337 mm
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Cable use
C13/C14 appliances
- Weight
210 g
- UKCA
yes
- Operating temperature (T-T)
-30 - 70 °C
- Antenna gain level (max)
5 dBi
- Impedance
50 Ohm
- Diameter
4 cm
Documents & Downloads
Datasheet
Datasheet 3381224 Delock 12427 Internal antenna LTE, GSM, UMTS
User & Safety Instructions
User & Safety Instructions 3381224 Delock 12427 Internal antenna LTE, GSM, UMTS
Description
This Delock LTE antenna allows multiple LTE tapes to be used indoors and outdoors. It is completely GSM, LTE, UMTS, Bluetooth, WLAN 2.4 GHz, Compatible with ZigBee, DECT and Z-Wave.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range:
- 700 - 960 MHz
- 1710 - 2690 MHz
- GSM, LTE, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MHz /
- 915 MHz
- Antenna gain 5 dBi
- Impedance: 50 ohm
- Polarisation: Vertical
- VSWR: ≤2.0
- Transmitted power 50 W
- Operating temperature: -30 °C ~ 70 °C
- Colour, black
- Cable type: Coaxial
- Cable type: RG-58
- Cable color: Black
- Cable attenuation: 0.6 dB @ 1 GHz per meter
- Cable diameter: Approx. 4.95 mm
- Cable length incl. connection: Approx. 3 m.
- Antenna length incl. magnetic base: Approx. 33.7 cm
- Diameter of magnetic base: Approx. 40.0 mm
System requirements
- Device with a free SMA socket
