Delock 12428 12428 LTE antenna 0.6 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock 12428 Network-Antenna Omni-directional Antenna SMA 0.6 dBi
- Omni-directional antenna SMA Black
- 0.6 dBi
- 2.6 GHz
- 50 Ohm
- Vertical polarization
Technical specifications
- Frequency band: 2.6 GHz
- Impedance: 50 ohm
- Cable type: RG-58
- Product type
LTE antenna
- Gain
0.6 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
SMA plug
- Antenna socket
SMA plug
- Weight
0.39
- No. of ports
1
- Mounting type
Magnetic base
- Polarisation
Vertical
- Width
100 mm
- Height
465 mm
- Length
250 cm
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Factory colour
Black
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-30 - 70 °C
- Quantity per pack
1 Stück(e)
- Power handling
50 W
Documents & Downloads
Datasheet
Datasheet 3381184 Delock 12428 12428 LTE antenna 0.6 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3381184 Delock 12428 12428 LTE antenna 0.6 dBi 2.4 GHz
Description
Quick guide
This Delock LTE antenna allows multiple LTE tapes to be used indoors and outdoors. It is completely GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz compatible.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range:
- 700 MHz
- 850 - 960 MHz
- 1710 - 2170 MHz
- 2400 - 2500 MHz
- 2600 - 2690 MHz
- GSM, LTE, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MHz /
- 915 MHz
- Antenna gain 7 dBi
- Impedance: 50 ohm
- Polarisation: Vertical
- VSWR: ≤2.0
- Transmitted power 50 W
- Operating temperature: -30 °C ~ 70 °C
- Colour, black
- Cable type: Coaxial
- Cable type: RG-58
- Cable color: Black
- Cable attenuation: 0.6 dB @ 1 GHz per meter
- Cable diameter: Approx. 4.95 mm
- Cable length incl. connection: Approx. 3 m.

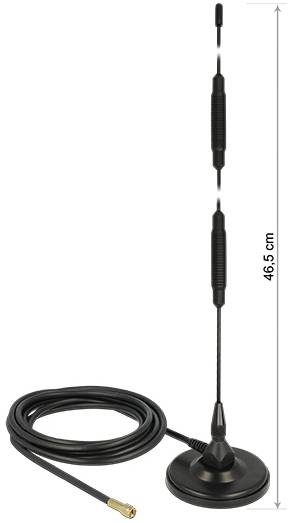

- Antenna length incl. magnetic base: Approx. 46.5 cm
- Diameter of magnetic base: Approx. 80.0 mm
System requirements
- Device with a free SMA socket
