Delock 12568 Internal antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

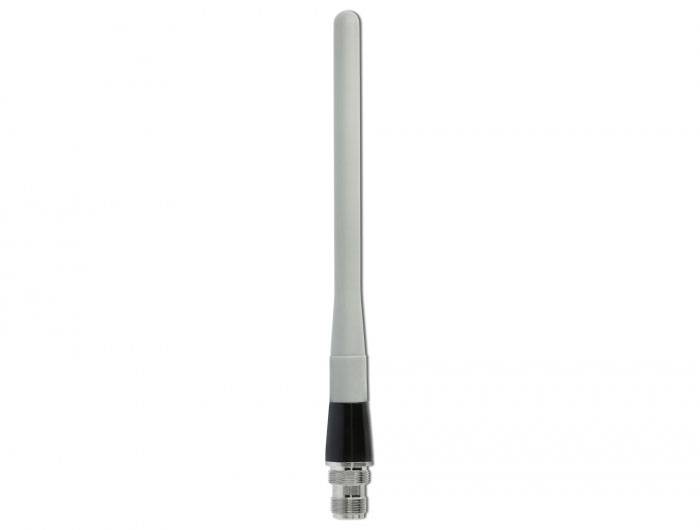

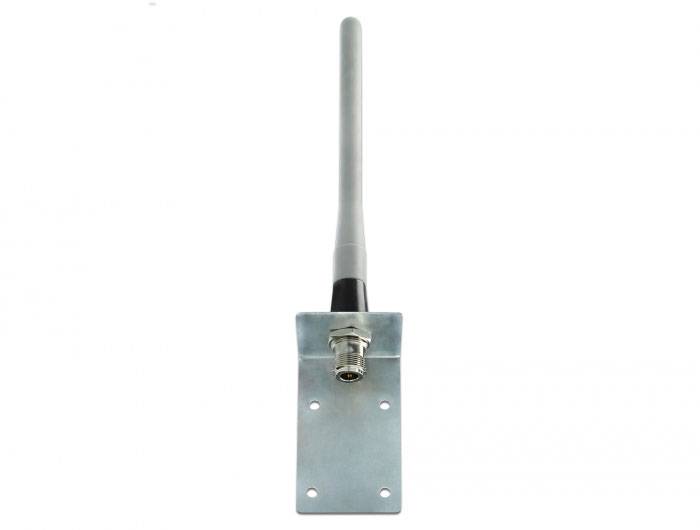

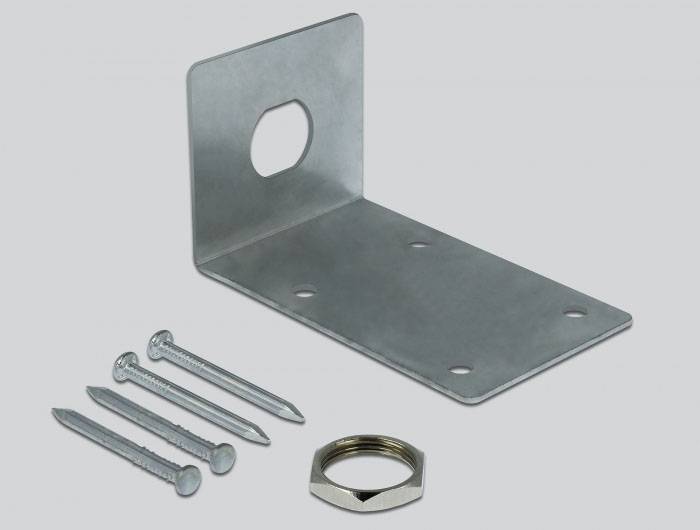

LPWAN 890 - 960 MHz antenna N socket 3.5 dBi omnidirectional wall mounting outdoor gray
Technical specifications
- RF wireless interface
- Product type
Mobile phone antenna
- Factory colour
Grey
- Gain
3.5 dBi
- Antenna type
Internal antenna
- Width
20 mm
- Height
219 mm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Weight
0.17
- UKCA
yes
- Number of products included
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3382481 Delock 12568 Internal antenna
User & Safety Instructions
User & Safety Instructions 3382481 Delock 12568 Internal antenna
Description
This Delock antenna allows you to use the 890 - 960 MHz bandwidth in indoor and outdoor areas. Low Power wide area networks (LPWAN) are radio networks that cover large distance ranges. They are characterized by a high reception sensitivity and a low energy intake.
This text is machine translated.
This text is machine translated.
Features

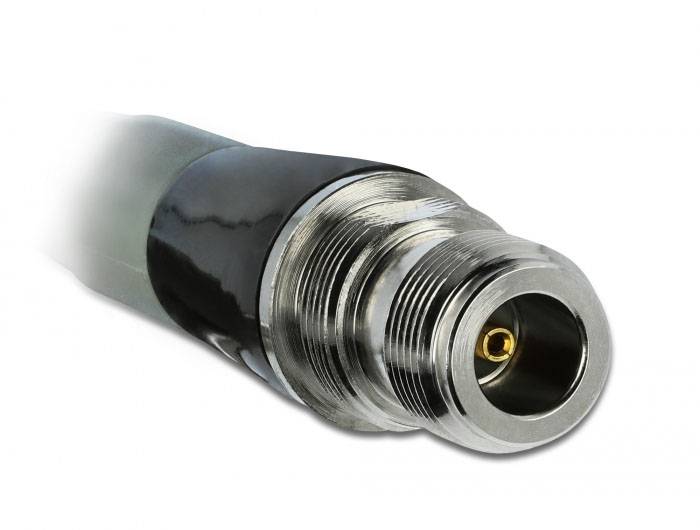

- 1 x N socket
- Frequency range 890 - 960 MHz
- LoRa, NB-IoT, Sigfox, ZigBee, Z Wave
- Antenna gain 3.5 dBi
- Impedance: 50 ohm
- VSWR: ≤1.5
- Polarisation: Vertical
- Operating temperature: -40 °C ~ 80 °C
- Colour: grey
- Dimensions (LxD): Approx. 219 x 20 mm
System requirements
- Device with an empty N connection
