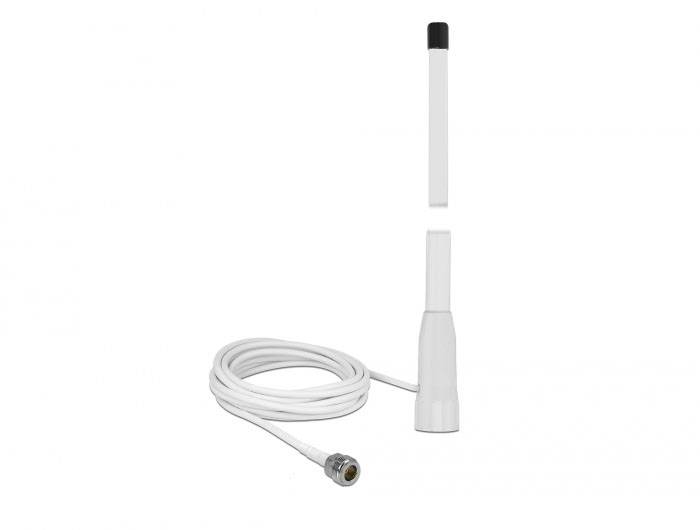

Delock 12576 12576 Wi-Fi antenna 10 dBi 2.4 GHz
EAN:
Part number:
Item no:
Highlights & Details
Delock 12576 Network-Antenna Omni-directional antenna N-type 10 dBi
- Omni-directional antenna N-type white
- 10 dBi
- 2.4 ~ 2.5 GHz
- 50 Ohm
- Vertical polarization
Technical specifications
- 2.4 - 2.5 GHz
- Impedance: 50 ohm
- Cable type RG-58 U
- Product type
Wi-Fi antenna
- Gain
10 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
N socket
- Antenna socket
N socket
- Weight
2.169
- No. of ports
1
- Polarisation
Vertical
- Height
1105 mm
- Length
1.105 m
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Factory colour
White
- Cable use
C13/C14 appliances
- Material (details)
Glass-fiber reinforced polymer (GFRP)
- UKCA
yes
- Operating temperature (T-T)
-50 - 80 °C
- Horizontal beam width
360°
- Vertical beam width
47°
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3382482 Delock 12576 12576 Wi-Fi antenna 10 dBi 2.4 GHz
Description
This Delock antenna allows you to use the 2.400 GHz band indoors and outdoors. It is fully compatible with Bluetooth, WLAN 2.400 GHz, ZigBee 2.400 GHz and ISM 2.400 GHz. Their material is particularly weatherproof.
This text is machine translated.
This text is machine translated.
Features
- 1 x N socket
- Frequency range 2.400 - 2.500 GHz
- Bluetooth, WLAN 2.400 GHz, ZigBee 2.400 GHz, ISM 2.400 GHz
- Antenna gain 10 dBi
- Impedance: 50 ohm
- VSWR: ≤1.5
- Polarisation: Vertical
- HBW horizontal opening angle: 360°
- VBW vertical aperture angle: 47°
- Operating temperature: -50 °C ~ 80 °C
- Housing material:GFK
- Colour: white
- Cable type: Coaxial
- Cable type RG-58 U
- Cable attenuation:
- 0.57 dB @ 1.0 GHz per meter
- 1.20 dB @ 3.0 GHz per meter
- Cable diameter: Approx. 4.95 mm
- Cable length incl. connection: Approx. 3.0 m.
- Weight: approx. 0.5 kg
- Dimensions (L): Approx. 1.105 m
System requirements
- Device with an empty N connection
